Description

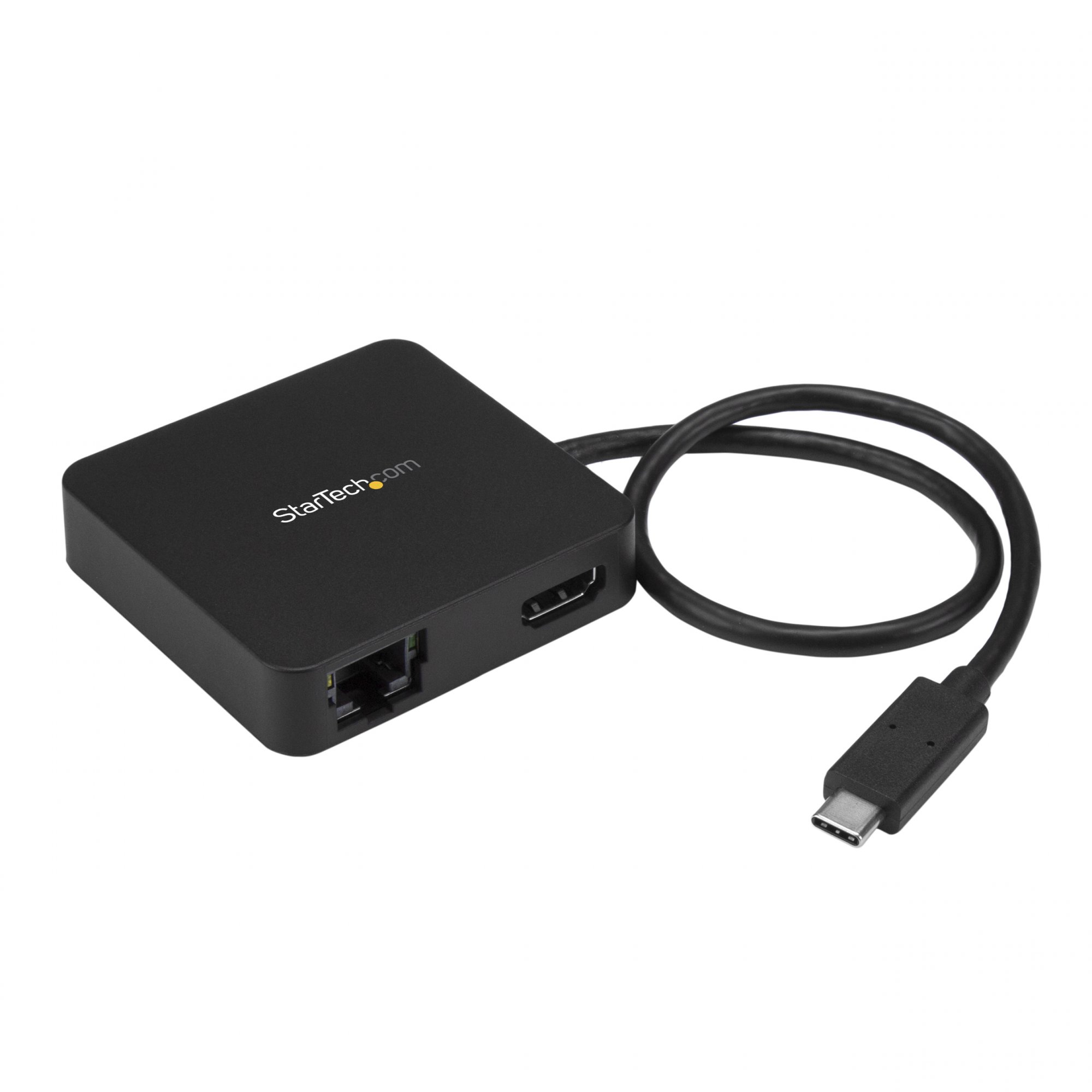

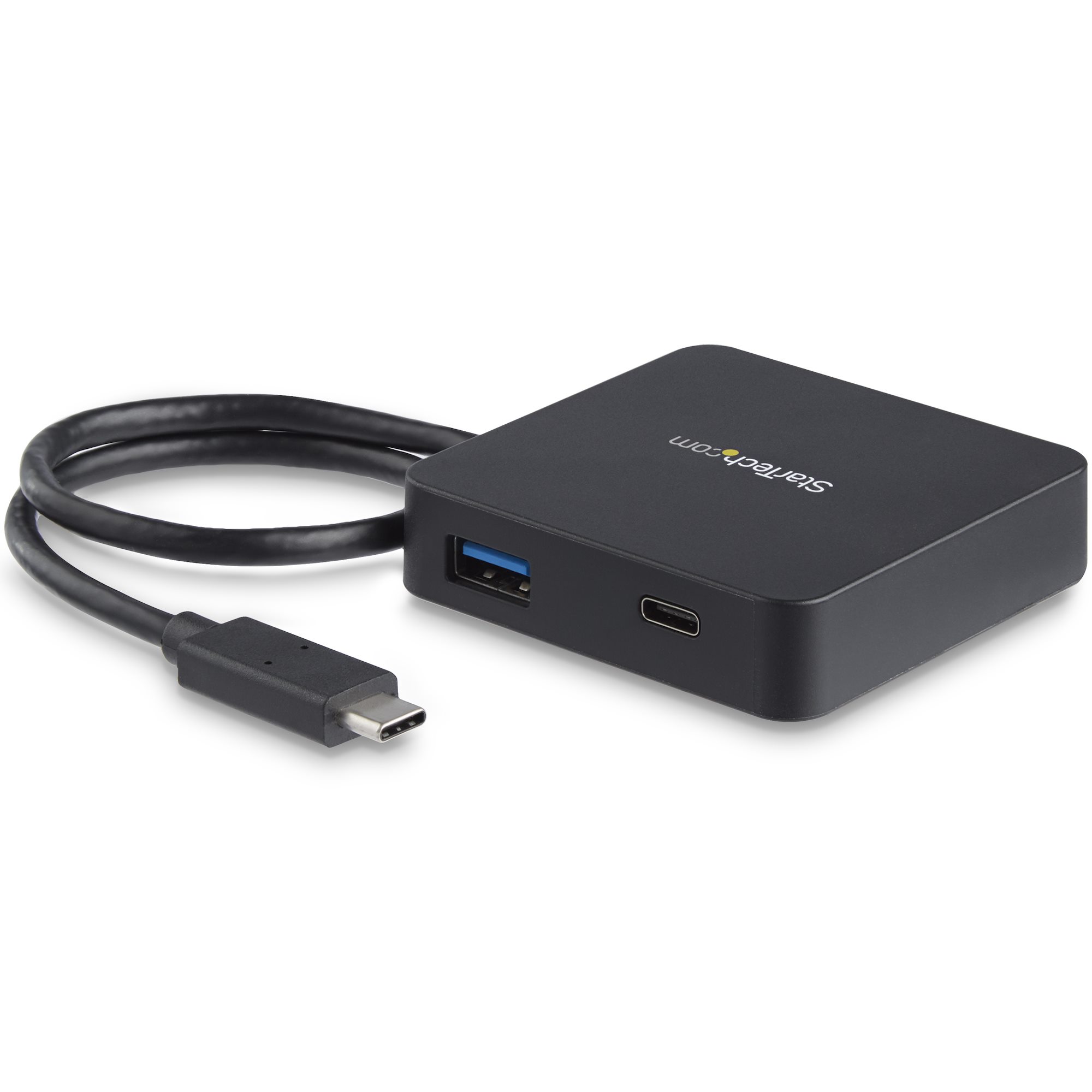

StarTech.com USB C Multiport Adapter - Portable USB-C Mini Dock 4K HDMI Video - Gigabit Ethernet, USB 3.0 Hub (1x USB-A 1x USB-C) - USB Type-C Multiport Adapter - Thunderbolt 3 Compatible. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 4096 x 2160 pixels. Power source type: USB. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Other operating systems supported: ChromeOS

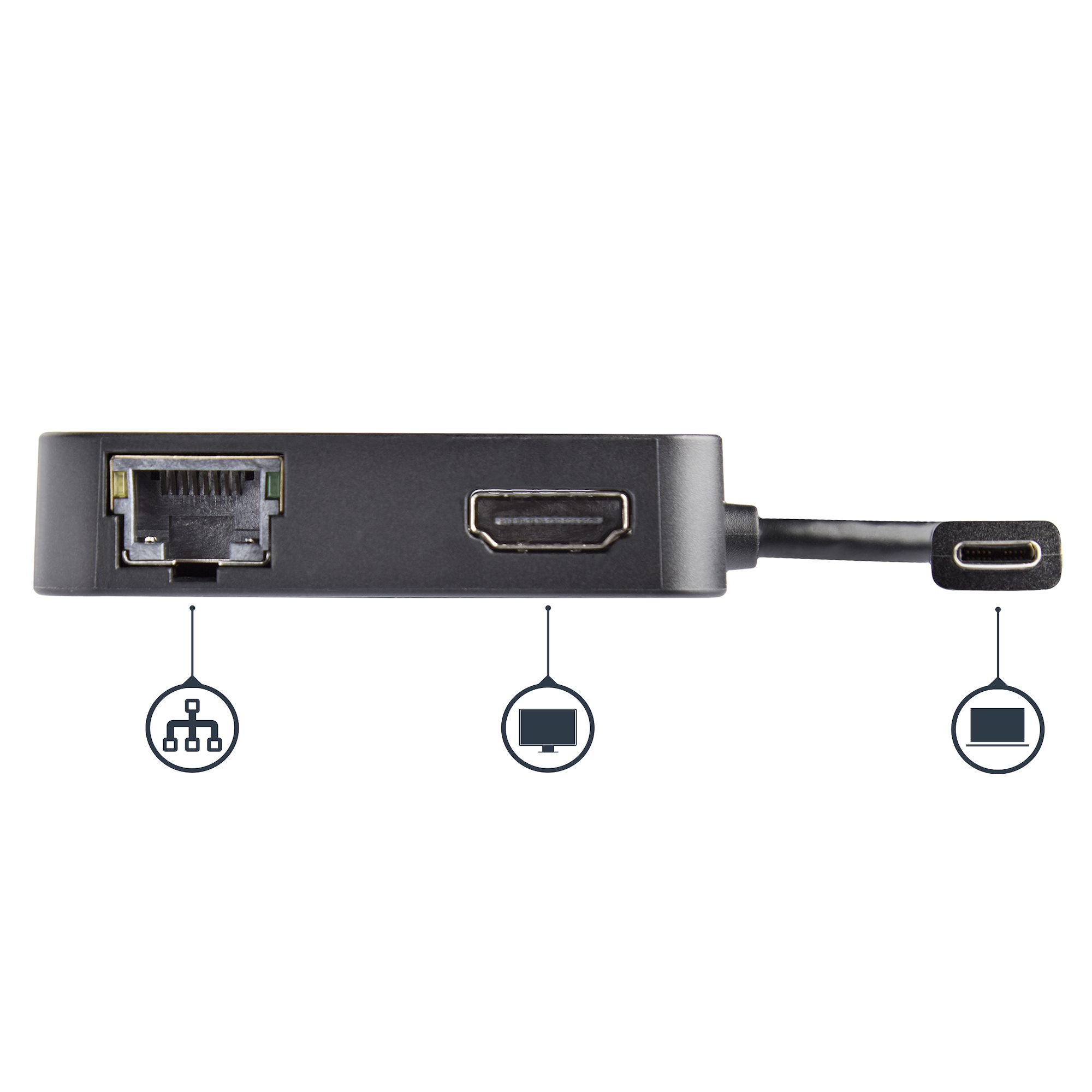

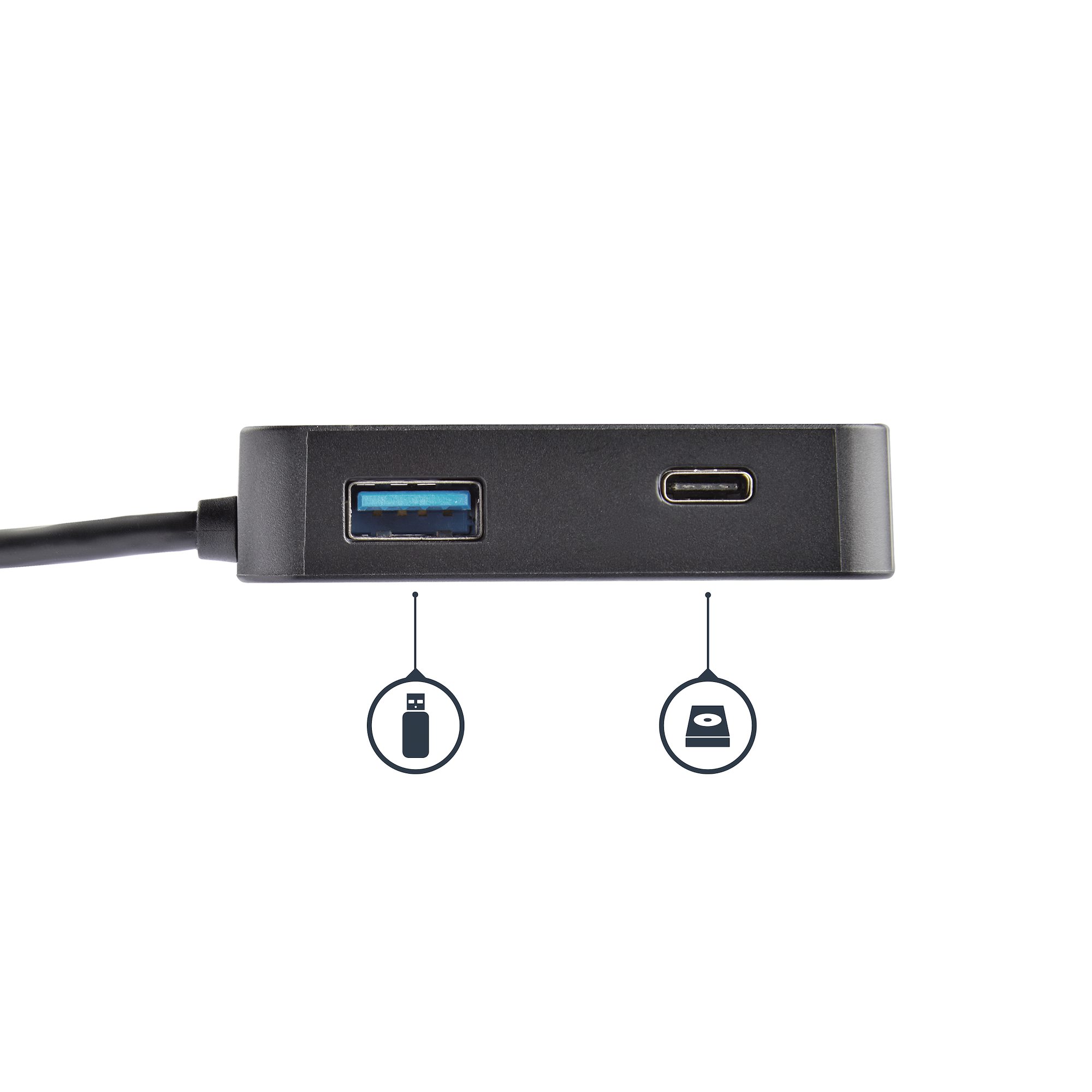

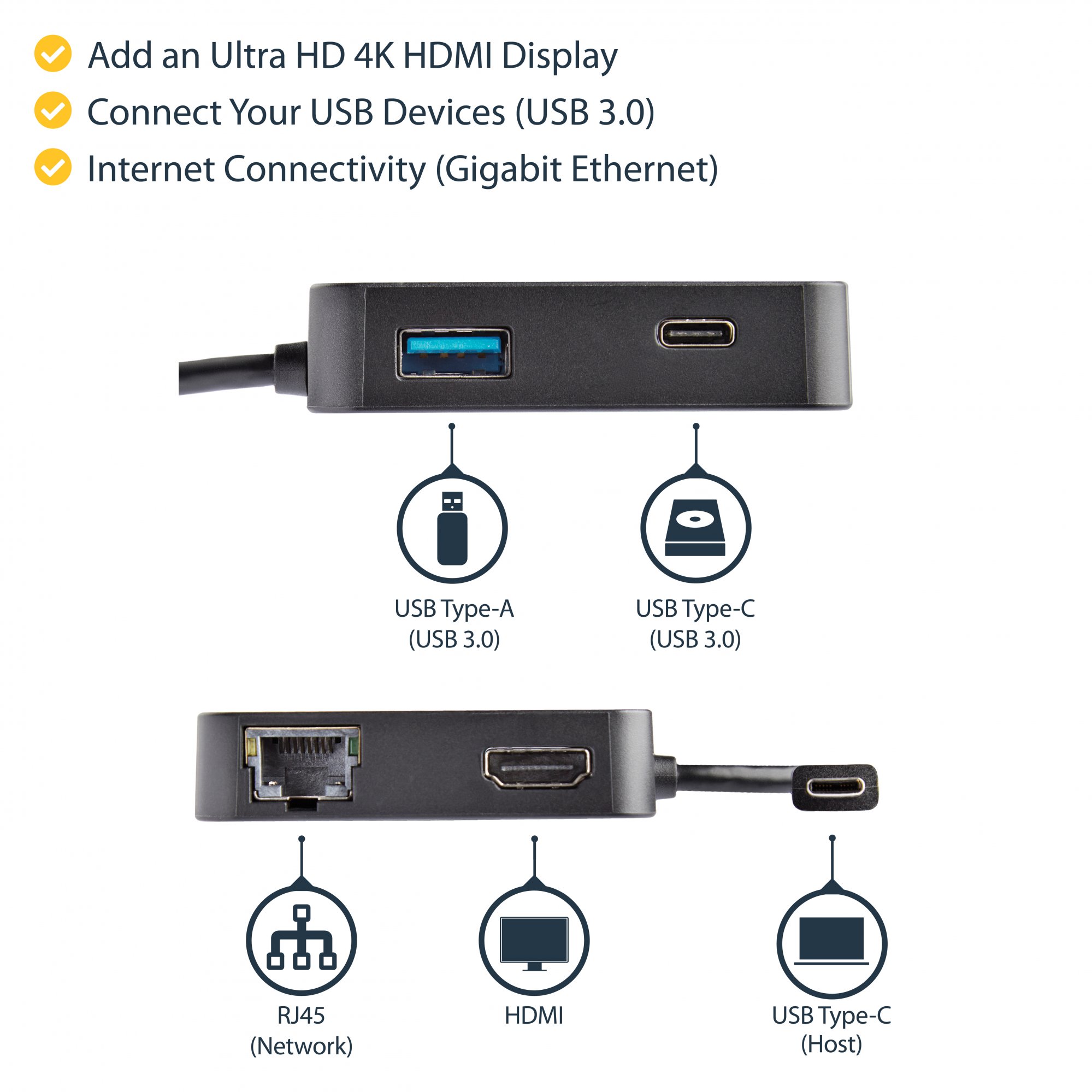

DOCKING STATION WITH ESSENTIAL PORTS: 4-in-1 USB C multiport adapter with 4K 30Hz HDMI video output, Gigabit Ethernet port, USB 3.0 Hub 5Gbps (1x USB-A and 1x USB-C ports); USB bus-powered_x000D_

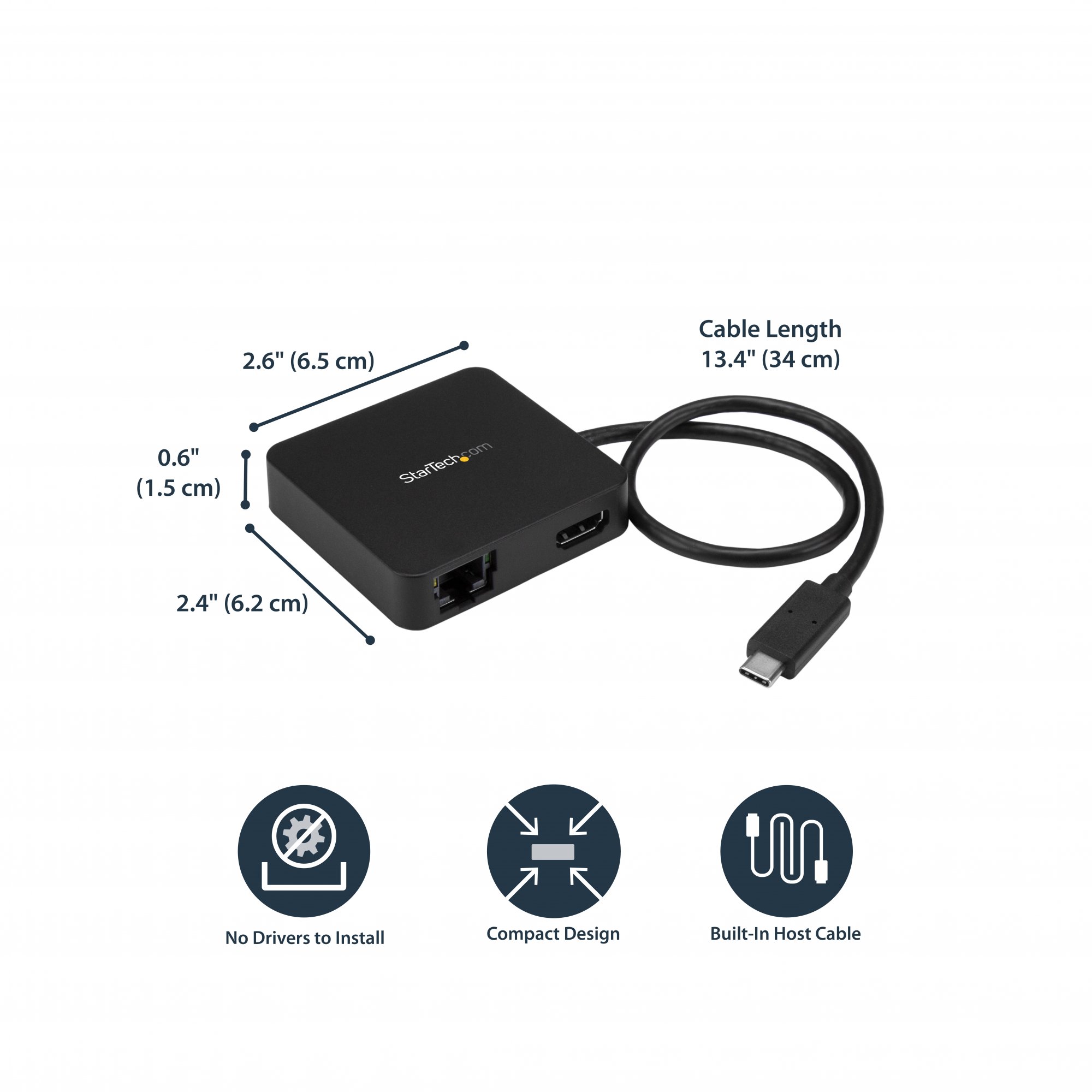

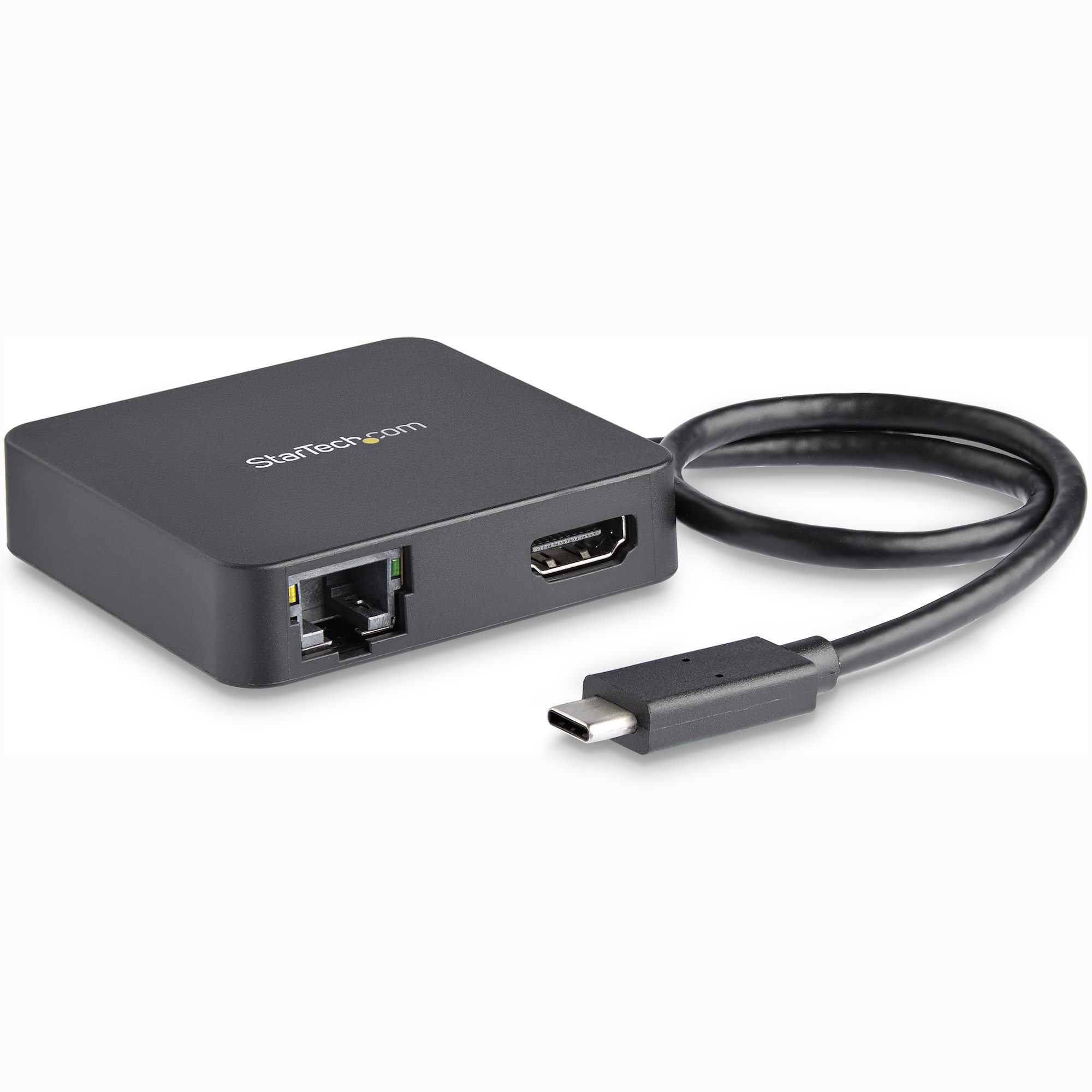

EXTRA LONG CABLE: Mini dock has an attached 13 in (34cm) cable to provide extended reach to reduce connector strain on 2-in-1 devices like Surface Pro 7, iPad Pro, HP Elite or laptops on riser stands_x000D_

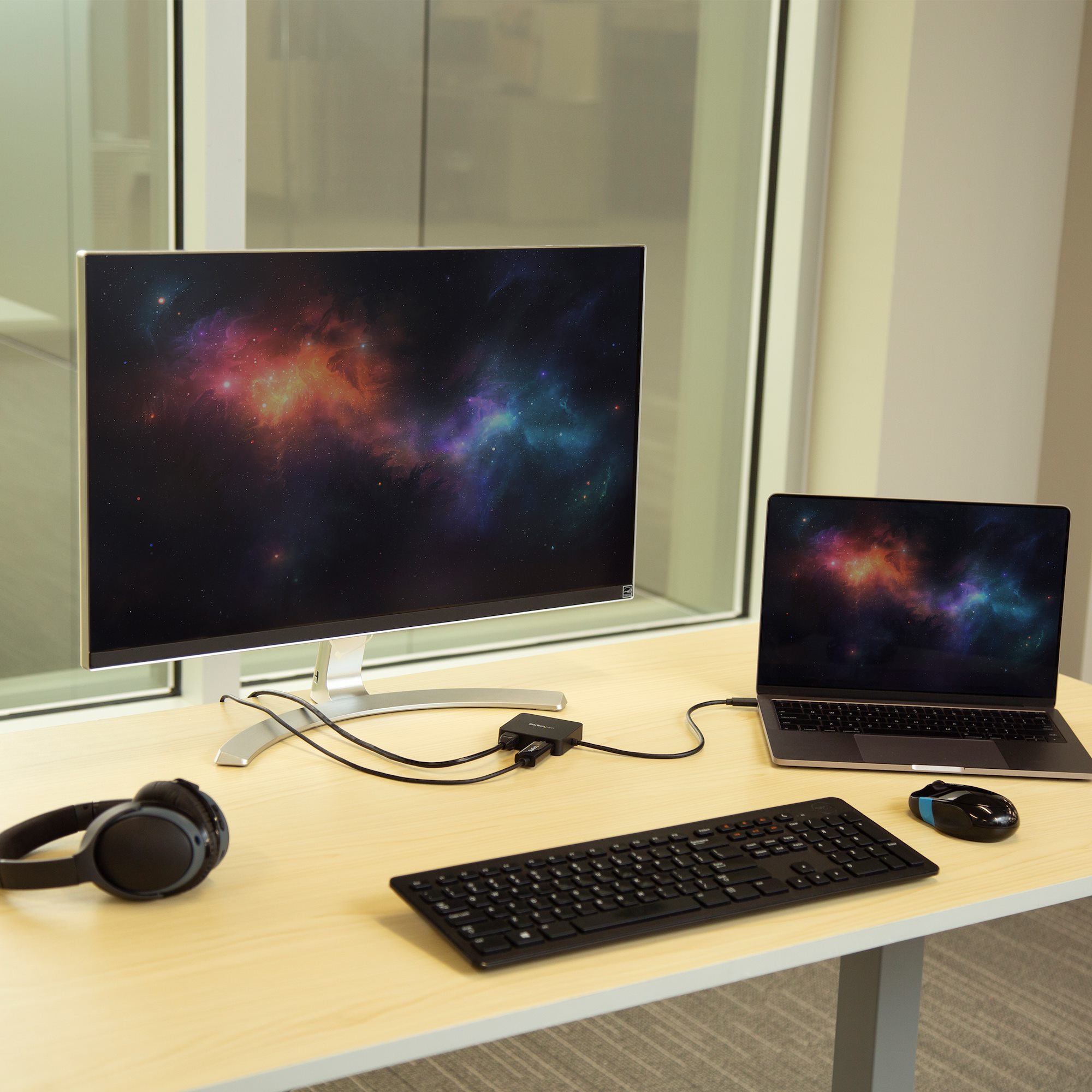

DESIGNED FOR PORTABILITY: USB-C port expander w/ ultra compact square design for presentations in meeting rooms connected to a TV/display/monitor, working from home or on the go_x000D_

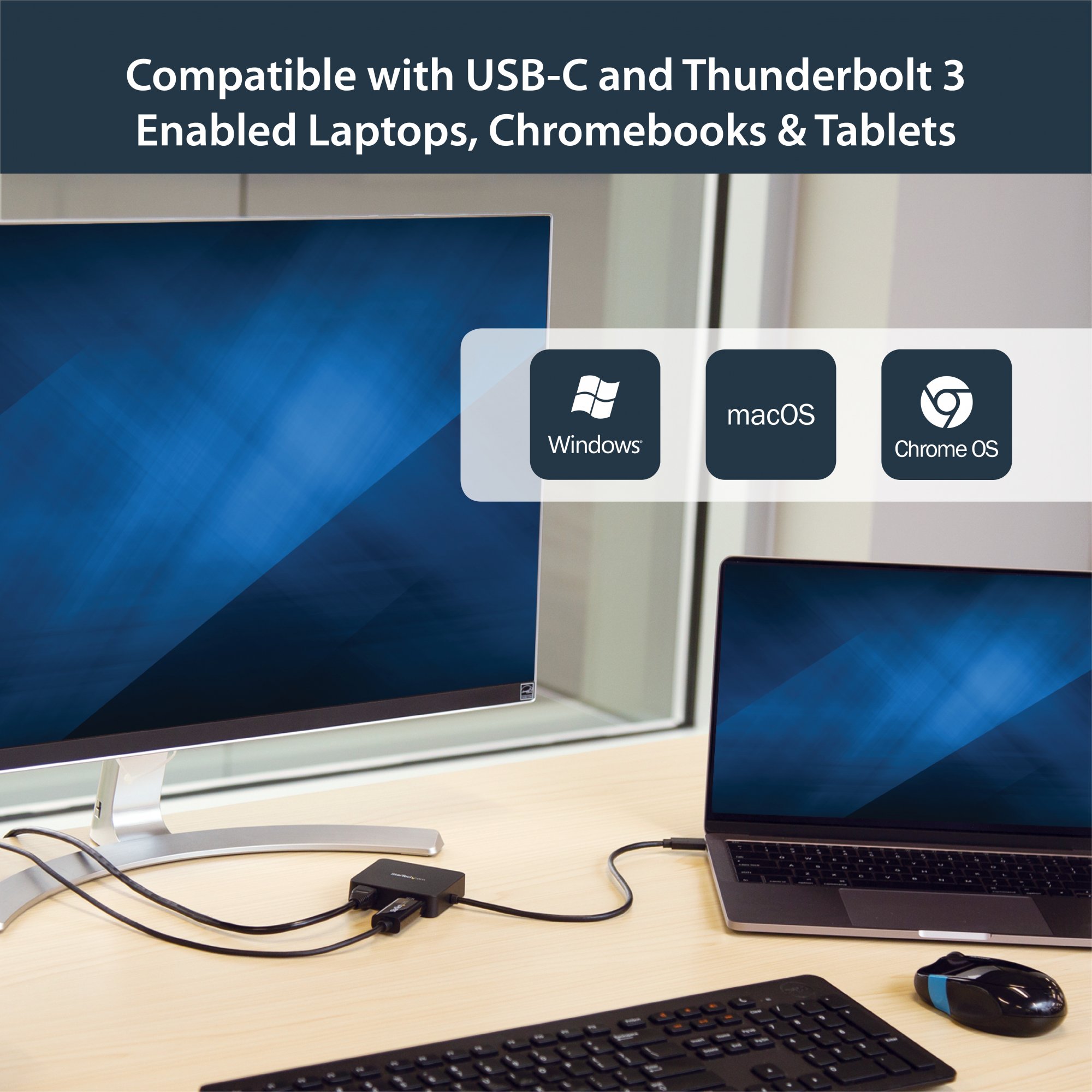

WIDE DEVICE COMPATIBILITY: USB-C and Thunderbolt 3 laptops, ultrabooks, USB-C Chromebook, tablets and phones for brands such as HP, Dell, Lenovo, MacBooks, iPad Pro, Surface, Samsung and Pixelbook_x000D_
WIDE OS COMPATIBILITY & EASY SETUP: Universal USB Type-C multiport adapter features automatic driver installation & supports major operating systems like Windows, macOS, ChromeOS, iPadOS and Android_x000D_
_x000D_

Product Properties

Manufacturer
StarTech.com

Model
DKT30CHD

EAN
65030868266

Bullet points

Point
DESIGNED FOR PORTABILITY

DOCKING STATION WITH ESSENTIAL PORTS

EXTRA LONG CABLE

WIDE DEVICE COMPATIBILITY

WIDE OS COMPATIBILITY & EASY SETUP

_x000D_

Logistics data

Harmonized System (HS) code
84733020

Master (outer) case height
324 mm

Master (outer) case length
420 mm

Master (outer) case width
255 mm

Products per master (outer) case
20 pc(s)

Network

Auto MDI/MDI-X
Yes

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100,1000 Mbit/s

Full duplex
Yes

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Wake-on-LAN ready
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 90%

Operating temperature (T-T)
0 - 60 °C

Storage temperature (T-T)
-20 - 60 °C

Other features

Cable length
0.34 m

Chipset
Genesys Logic - GL3523, Realtek - RTL8153, Parade - PS176

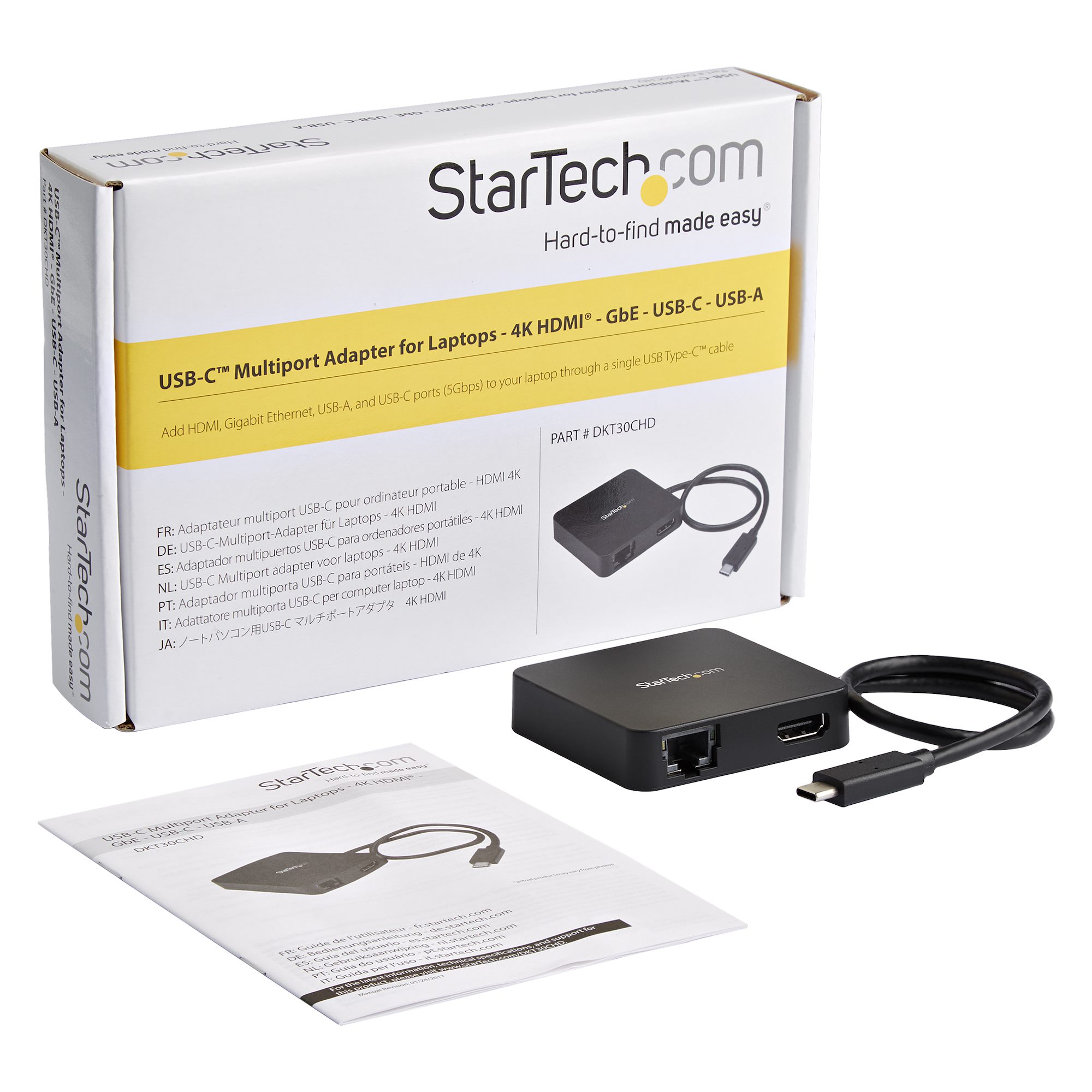

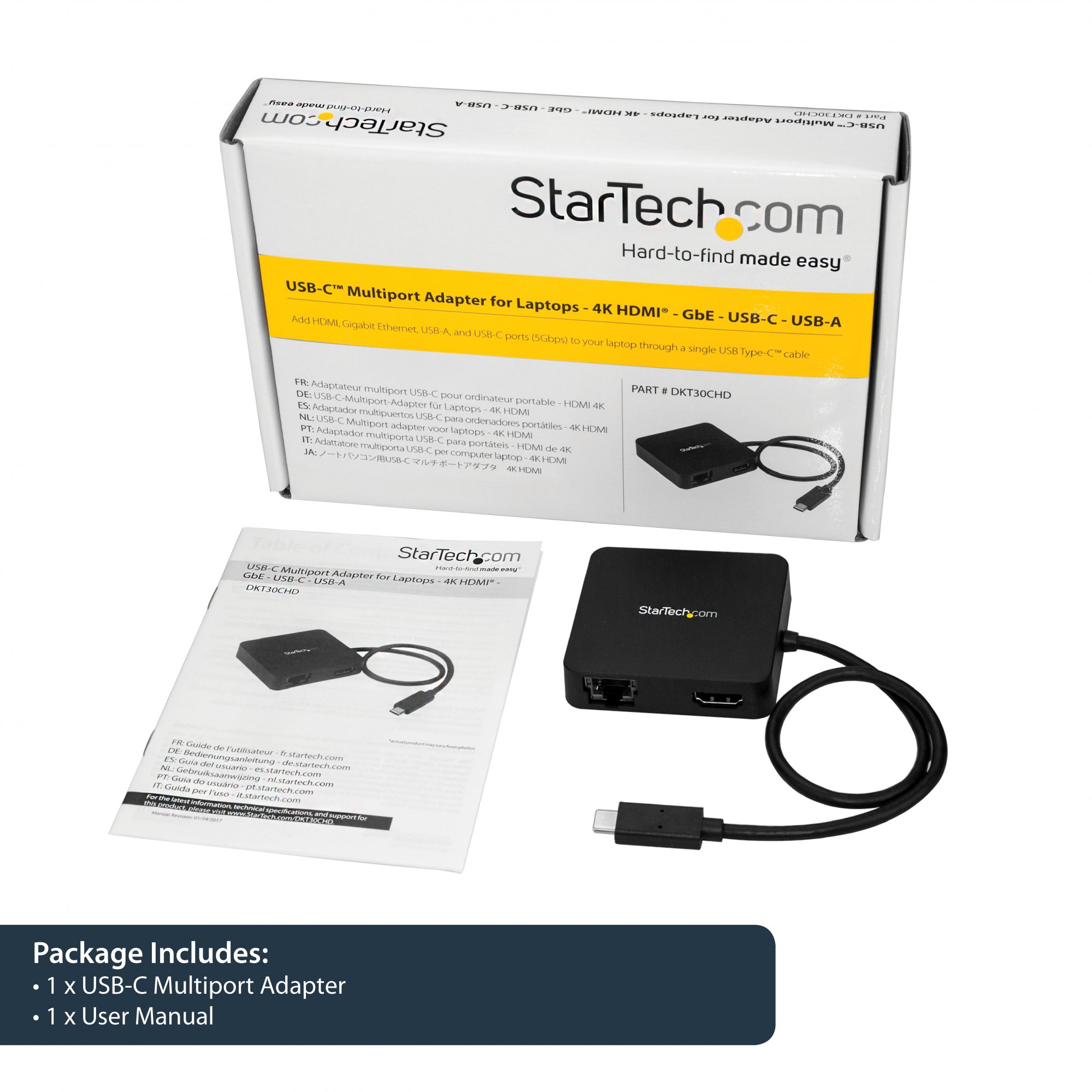

Packaging content

Quick start guide
Yes

Packaging data

Package depth
210 mm

Package height
40 mm

Package weight
200 g

Package width
145 mm

Performance

Card reader integrated
No

Certification
CE, FCC, TAA, REACH

Data transfer rate
5 Gbit/s

Housing material
Plastic

Maximum digital resolution
4096 x 2160 pixels

Product colour
Black

UASP support
Yes

Ports & interfaces

Connectivity technology
Wired

HDMI ports
1

Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Microphone in
No

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1

Power

Power source type
USB

Software

Mac compatibility
Yes

Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura

Other operating systems supported
ChromeOS

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Sustainability

Sustainability certificates
RoHS

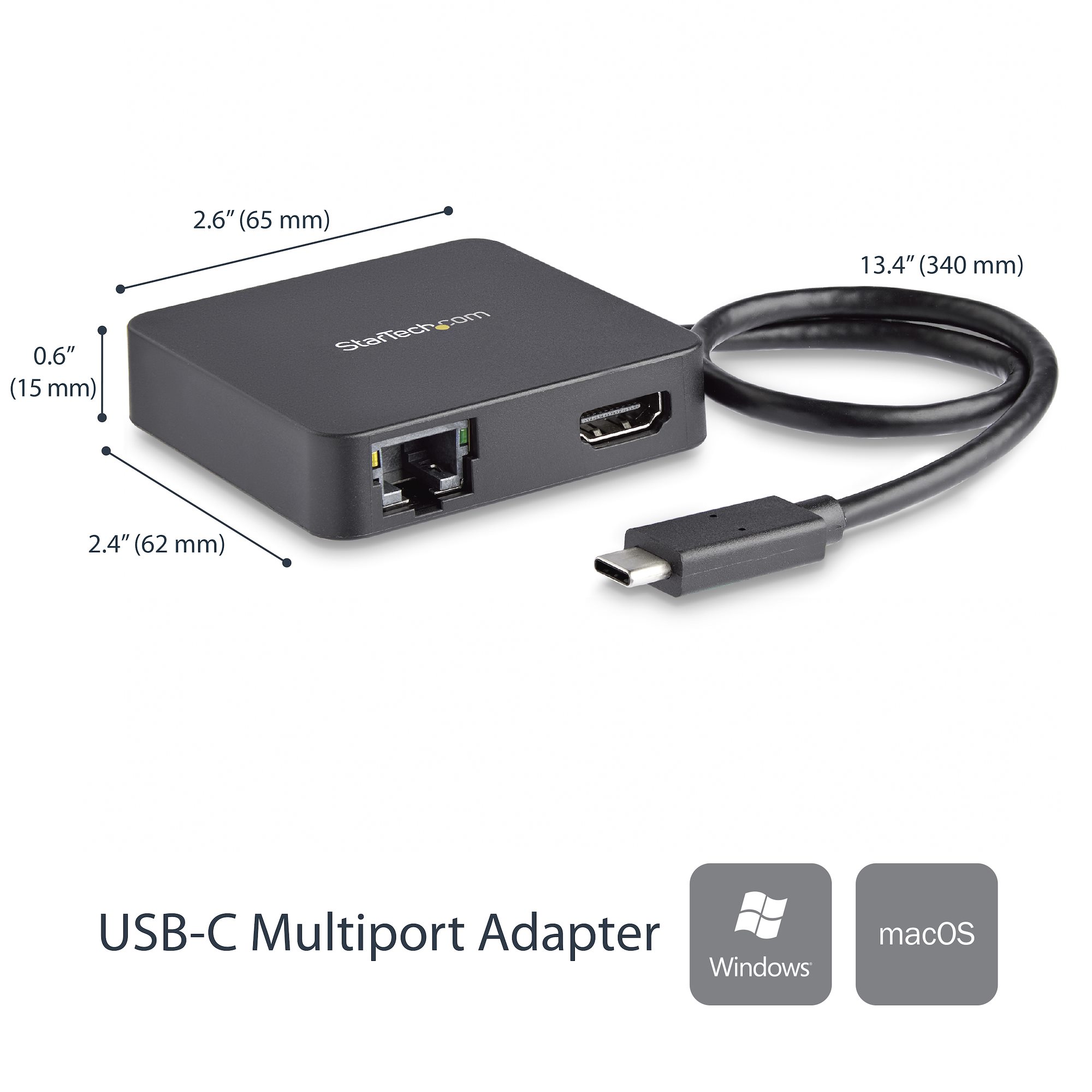

Weight & dimensions

Depth
65 mm

Height
15 mm

Weight
52 g

Width
62 mm
