Description

StarTech.com USB C Multiport Adapter - USB-C to 4K 60Hz HDMI 2.0, 100W Power Delivery Pass-Through Charging, 3-Port USB 3.0 Hub, Audio - USB-C Mini Dock - Portable USB Type-C Travel Dock. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Product colour: Black, Silver, Data transfer rate: 5 Gbit/s, HD type: 4K Ultra HD. Power consumption (typical): 8 W. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3..., Mobile operating systems supported: Android, iPadOS. Sustainability certificates: CE, RoHS

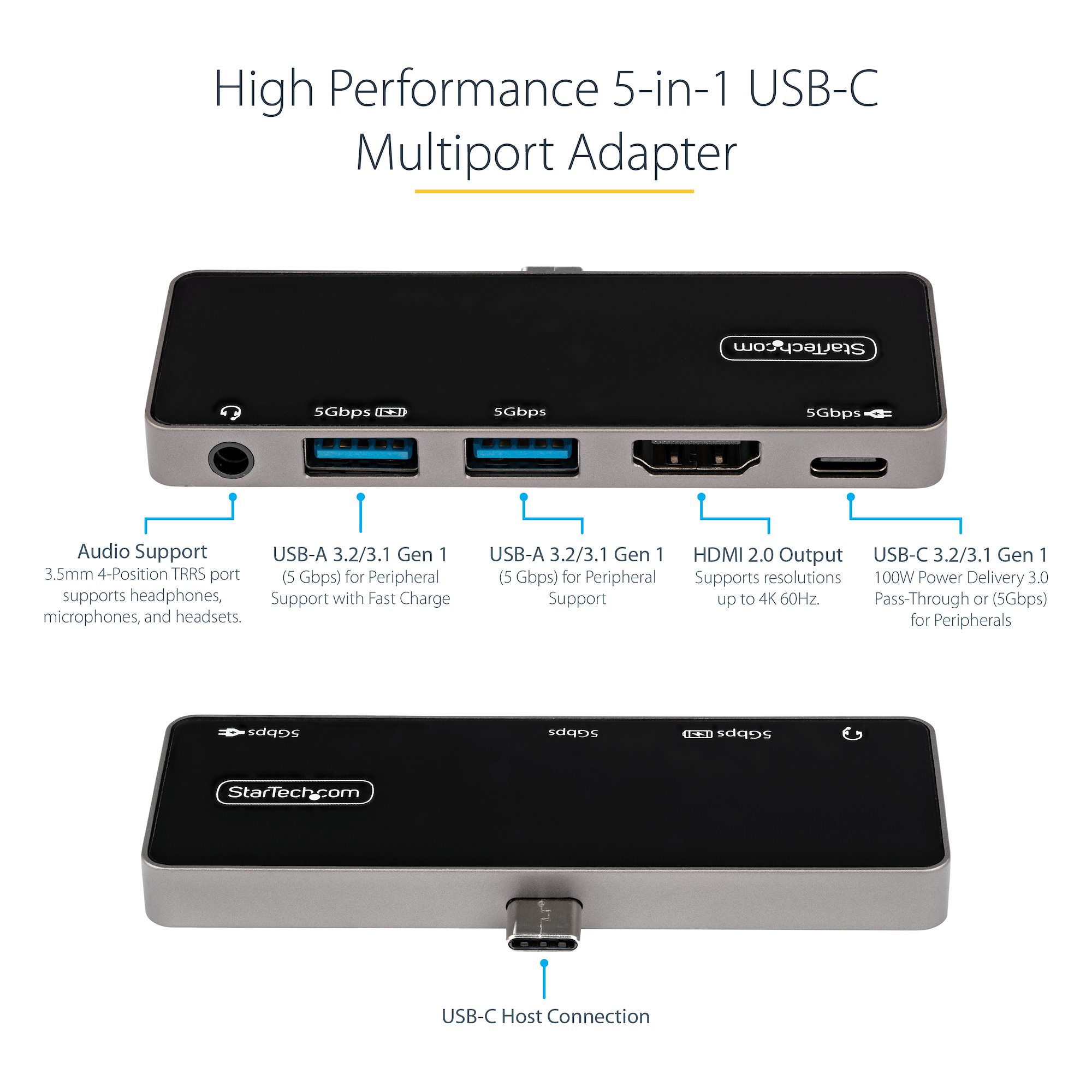

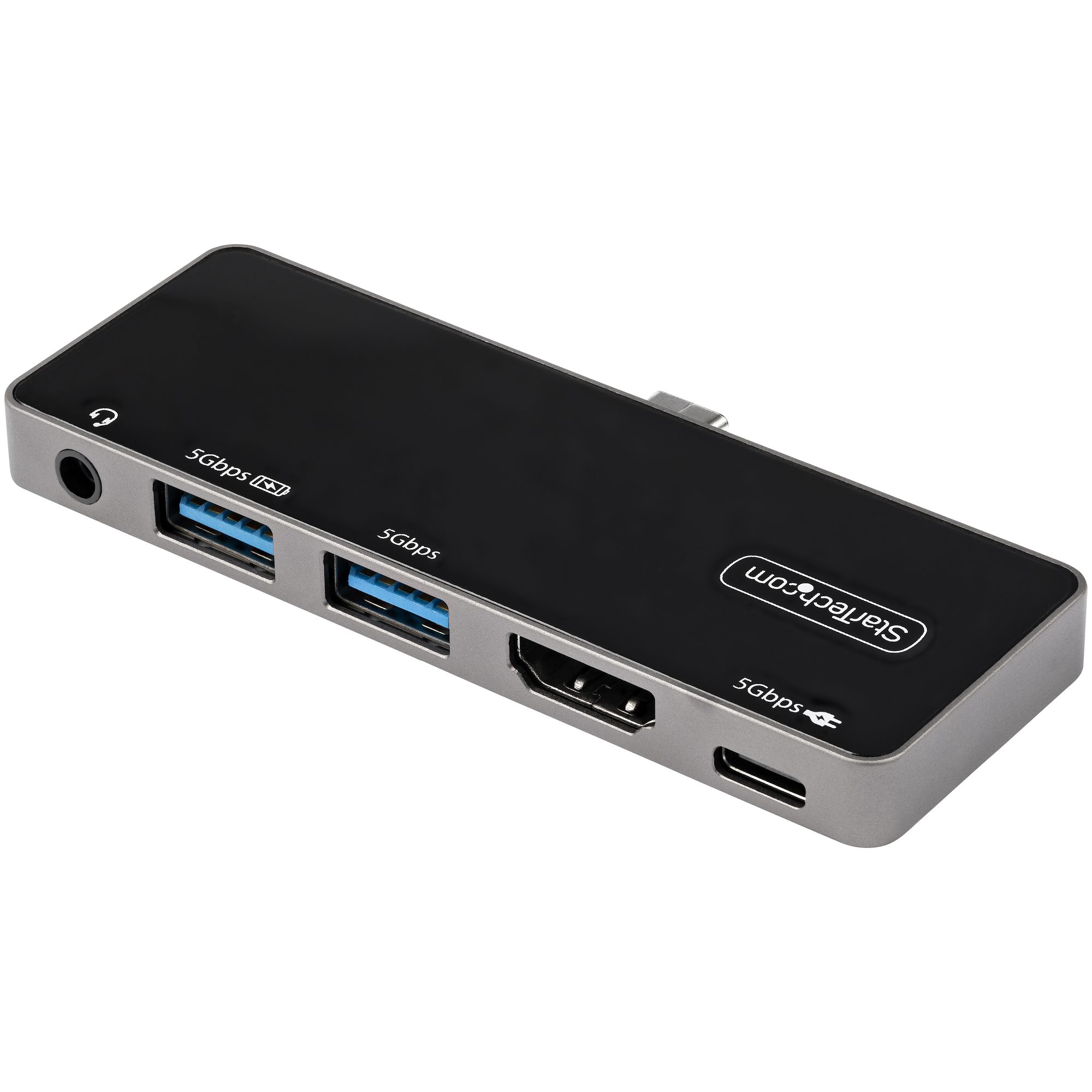

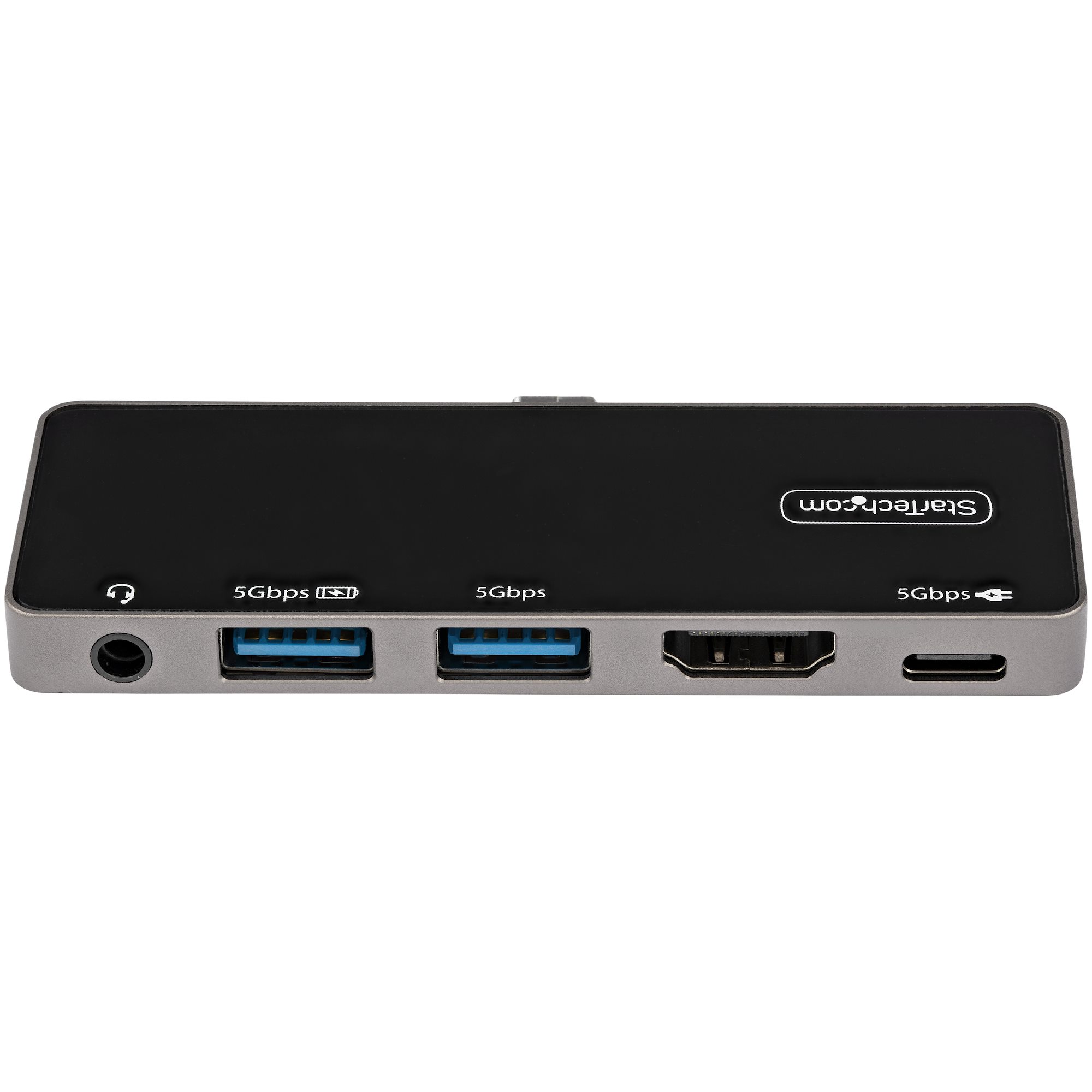

5-IN-1 FUNCTIONALITY: USB-C multiport adapter (USB 3.1/3.2 Gen 1 5Gbps) with DP 1.4 Alt Mode supports up to 4K 60Hz HDMI 2.0 (HDR) video, 2-Port USB-A Hub (1x BC1.2 fast charge), TRRS audio for headset/mic, and 1x USB-C (Data + Power Delivery 3.0)

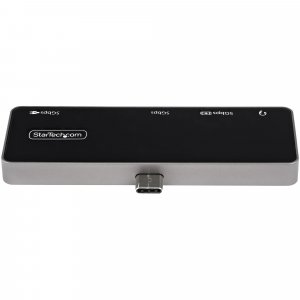

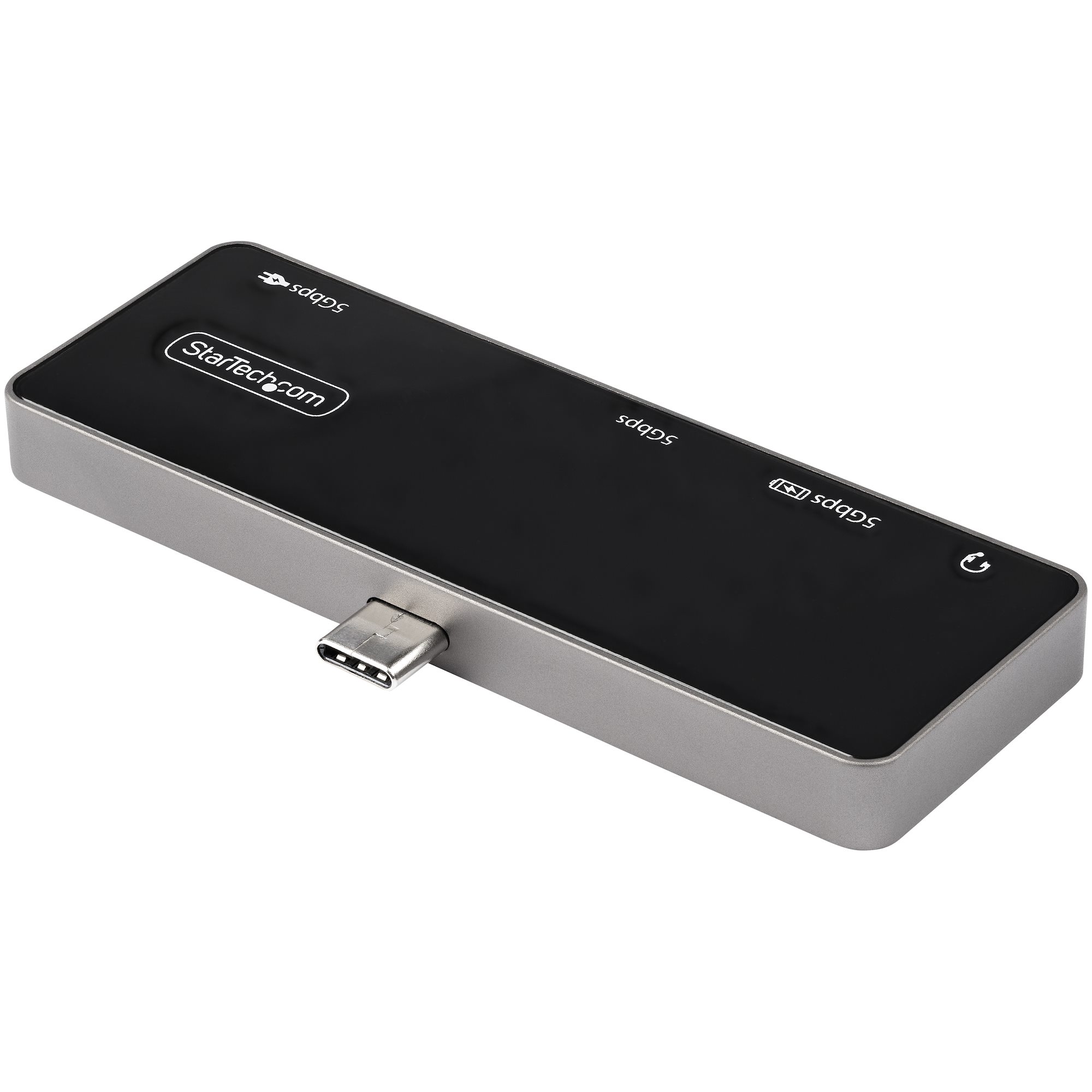

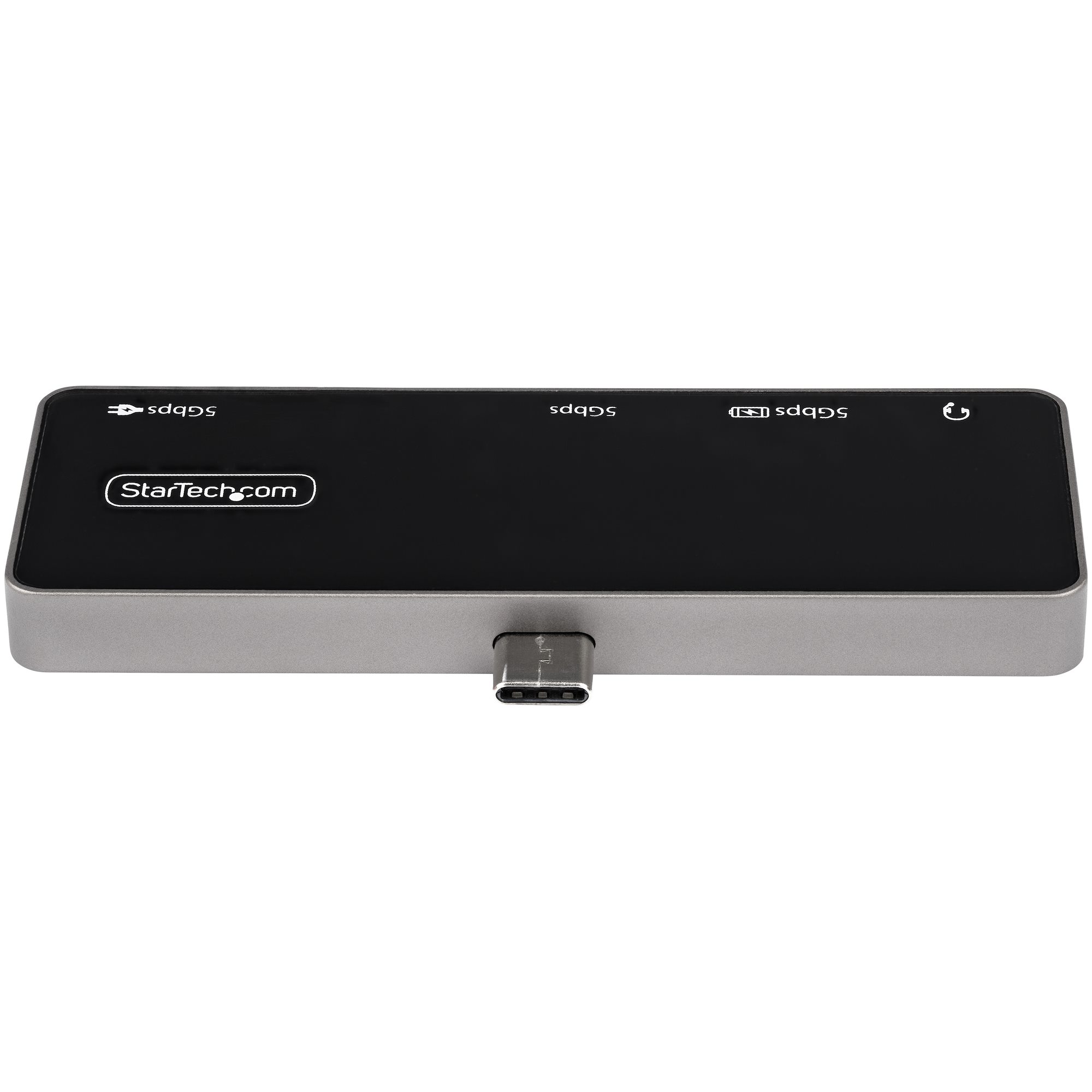

CABLE-FREE USB-C HOST CONNECTION: USB C multiport adapter features a built-in, center positioned USB-C connector for a flush cableless connection to iPad Pro, Surface Pro 7, Google Pixelbook, and other USB-C tablets, Chromebooks and laptops
RELIABLE PERFORMANCE: USB bus powered or via external USB-C power adapter; 100W Power Delivery 3.0 pass through with 8W reserved for adapter to avoid video flickering, device dropouts or overdrawing power common in other hubs; up to 92W for laptop charging

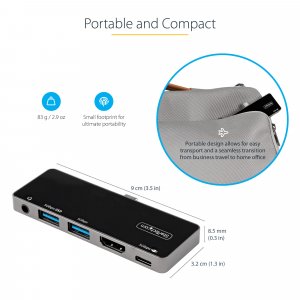

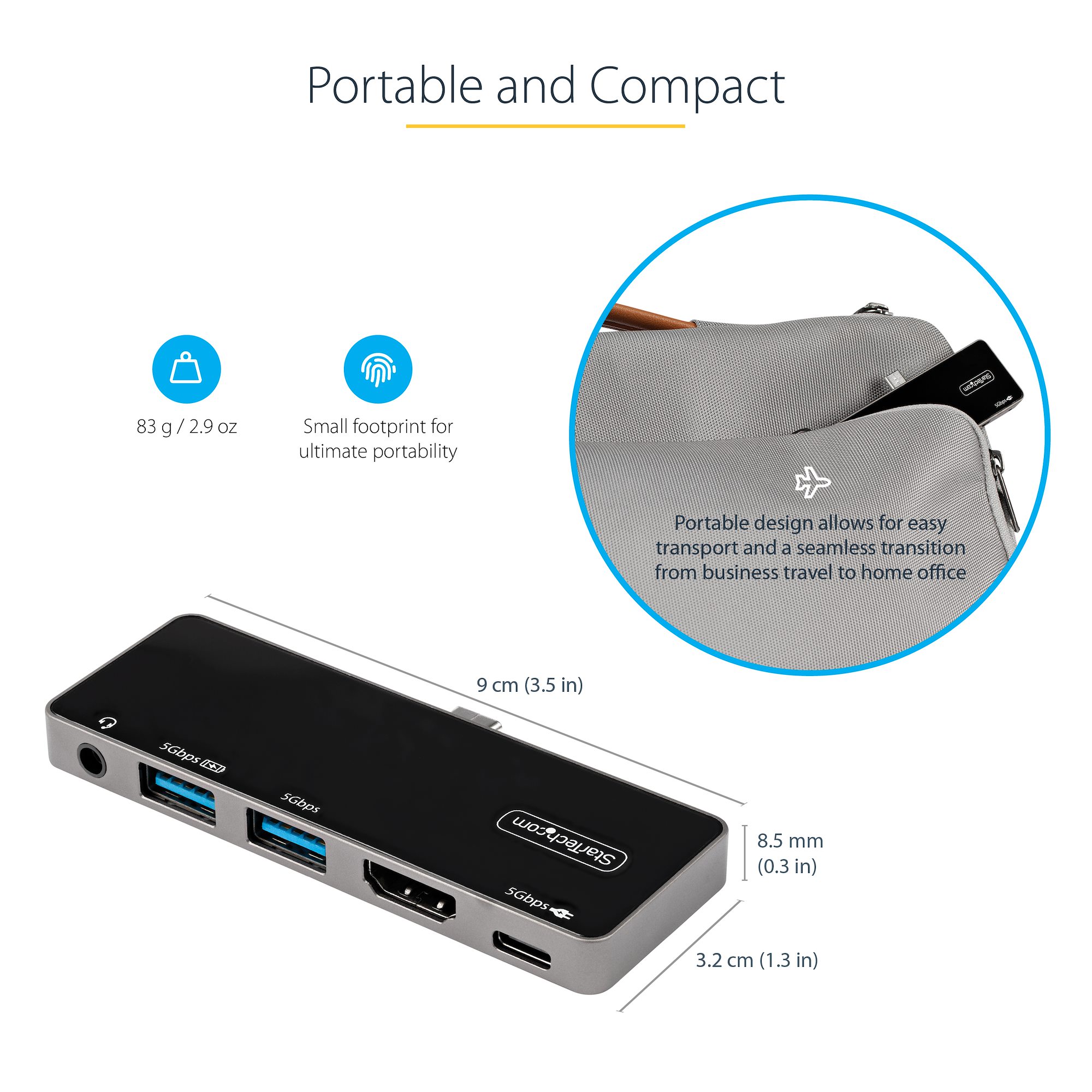

PORTABLE & COMPACT: Portable docking station design allows for easy transport either separately in laptop bag or left connected to laptop for convenient on-the-go use, business travel or work from home
WIDE OPERATING SYSTEM COMPATIBILITY: With automatic driver installation for easy installation, this universal USB Type-C multiport adapter supports all major operating systems such as Windows, macOS, iPadOS, ChromeOS

Product Properties

Manufacturer
StarTech.com

Model
DKT30ICHPD

EAN
65030891622

Bullet points

Point
5-IN-1 FUNCTIONALITY

CABLE-FREE USB-C HOST CONNECTION

PORTABLE & COMPACT

RELIABLE PERFORMANCE

WIDE OPERATING SYSTEM COMPATIBILITY

Logistics data

Harmonized System (HS) code
84733020

Master (outer) case height
200 mm

Master (outer) case length
340 mm

Master (outer) case width
450 mm

Products per master (outer) case
30 pc(s)

Network

Ethernet LAN
No

Operational conditions

Operating relative humidity (H-H)
10 - 85%

Operating temperature (T-T)
0 - 45 °C

Storage temperature (T-T)
-10 - 70 °C

Other features

Chipset
VIA Labs - VL102, VIA Labs - VL817, Parade - PS186

Packaging content

User guide
Yes

Packaging data

Package depth
170 mm

Package height
30 mm

Package weight
110 g

Package width
142 mm

Quantity per pack
1 pc(s)

Performance

Card reader integrated
No

Data transfer rate
5 Gbit/s

HD type
4K Ultra HD

Maximum digital resolution
3840 x 2160 pixels

Maximum refresh rate
60 Hz

Number of displays supported
1

Product colour
Black, Silver

Ports & interfaces

Combo headphone/mic port
Yes

Connectivity technology
Wired

HDMI ports
1

HDMI version
2.0

Headphone connectivity
3.5 mm

Headphone outputs
1

Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1

USB Power Delivery
Yes

USB Power Delivery up to
100 W

Power

Power consumption (typical)
8 W

Software

Mac operating systems supported
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura

Mobile operating systems supported
Android, iPadOS

Other operating systems supported
ChromeOS

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Sustainability

Sustainability certificates
CE, RoHS

Weight & dimensions

Depth
32 mm

Height
8.5 mm

Weight
83 g

Width
90 mm
