Description

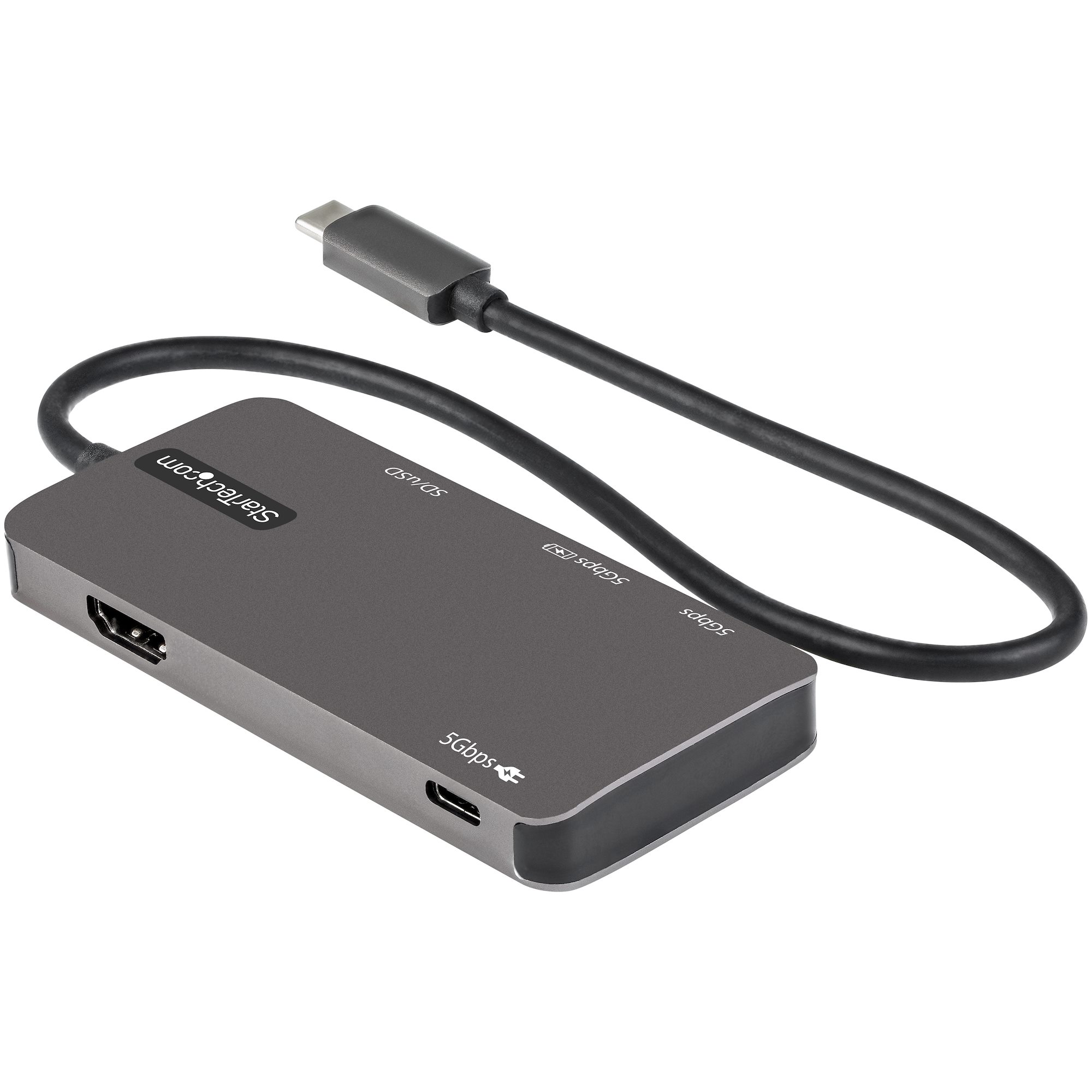

StarTech.com USB C Multiport Adapter - USB-C to 4K HDMI, 100W Power Delivery Pass-through, SD/MicroSD Slot, 3-Port USB 3.0 Hub - USB Type-C Mini Dock - 12" (30cm) Long Attached Cable. Connectivity technology: Wired, USB Power Delivery up to: 100 W. Product colour: Grey, Compatible memory cards: MMC, MicroSD (TransFlash), SD, Data transfer rate: 5 Gbit/s. Power source type: USB, Power consumption (typical): 12 W. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3..., Mobile operating systems supported: Android, iPadOS. Sustainability certificates: CE, RoHS

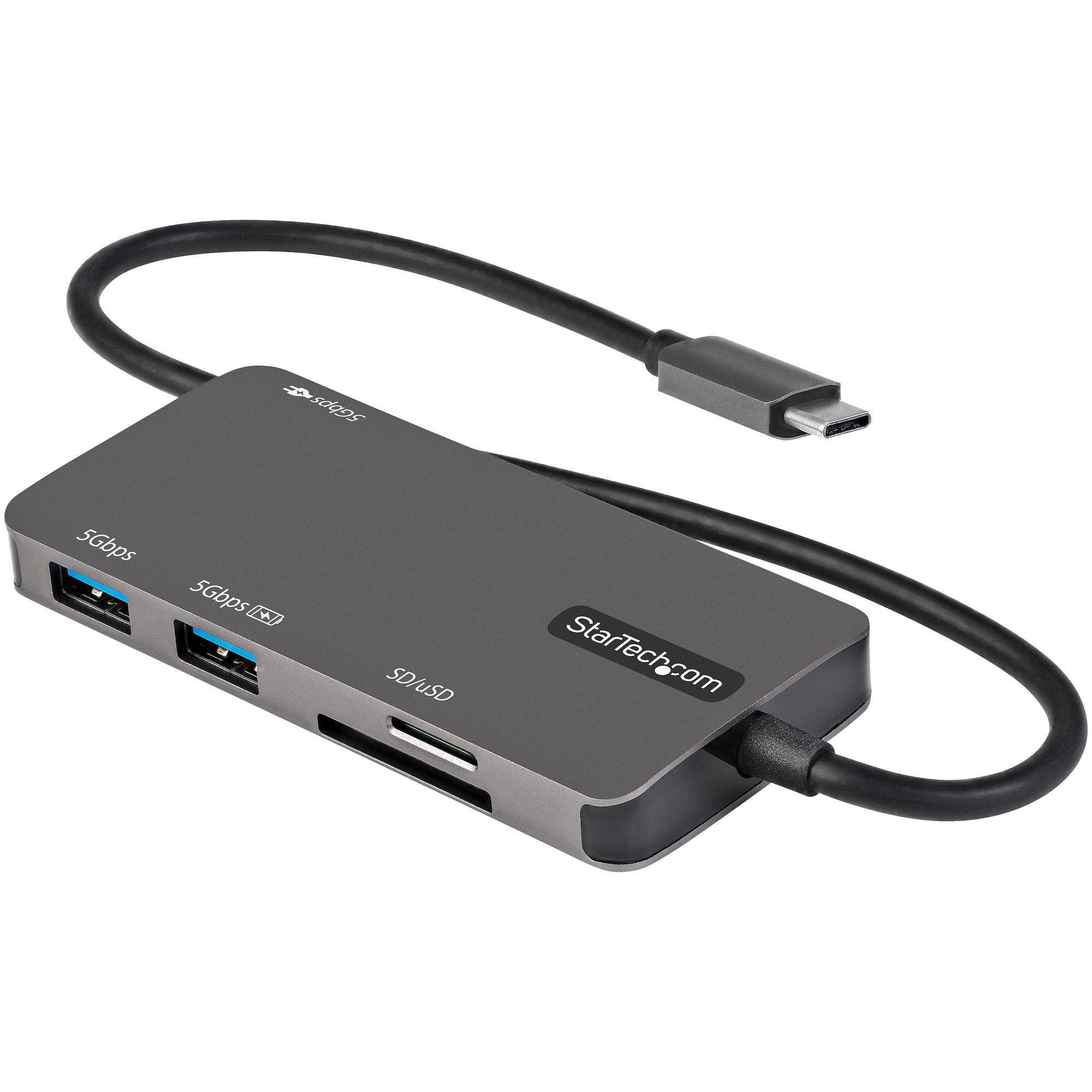

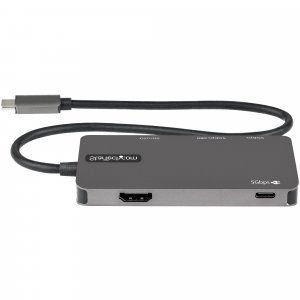

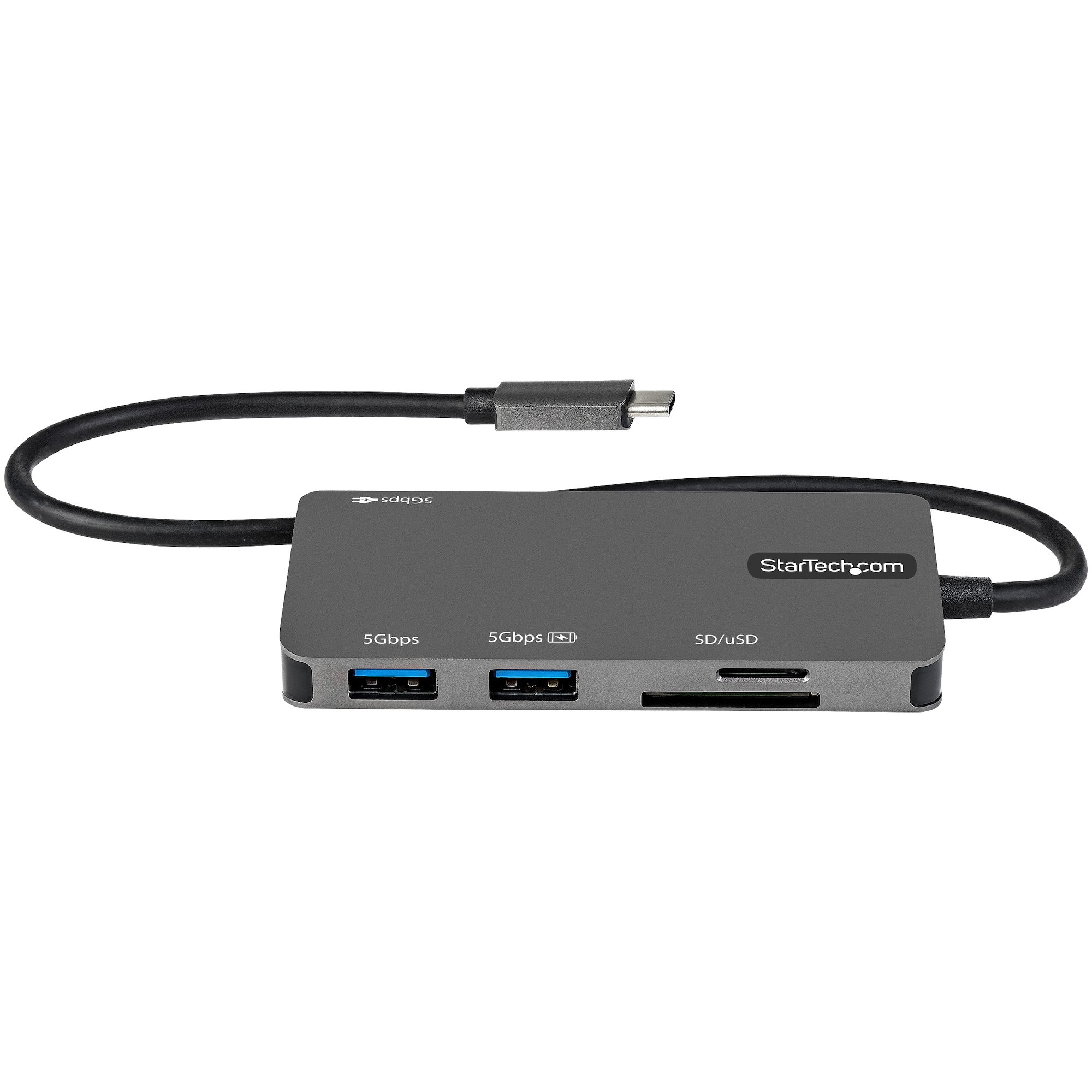

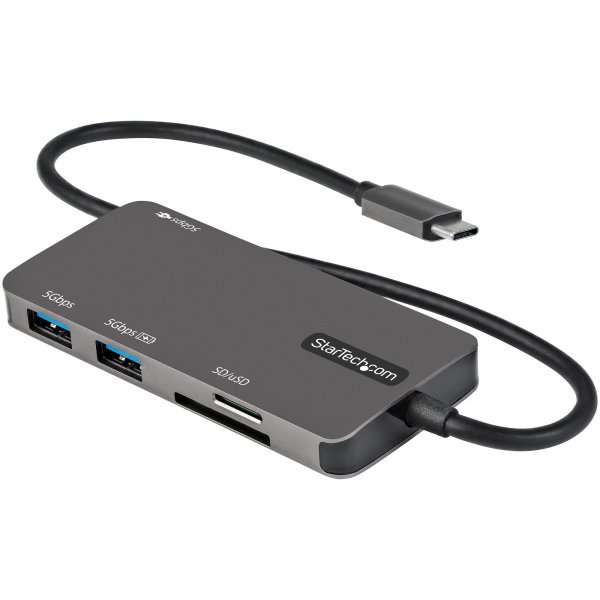

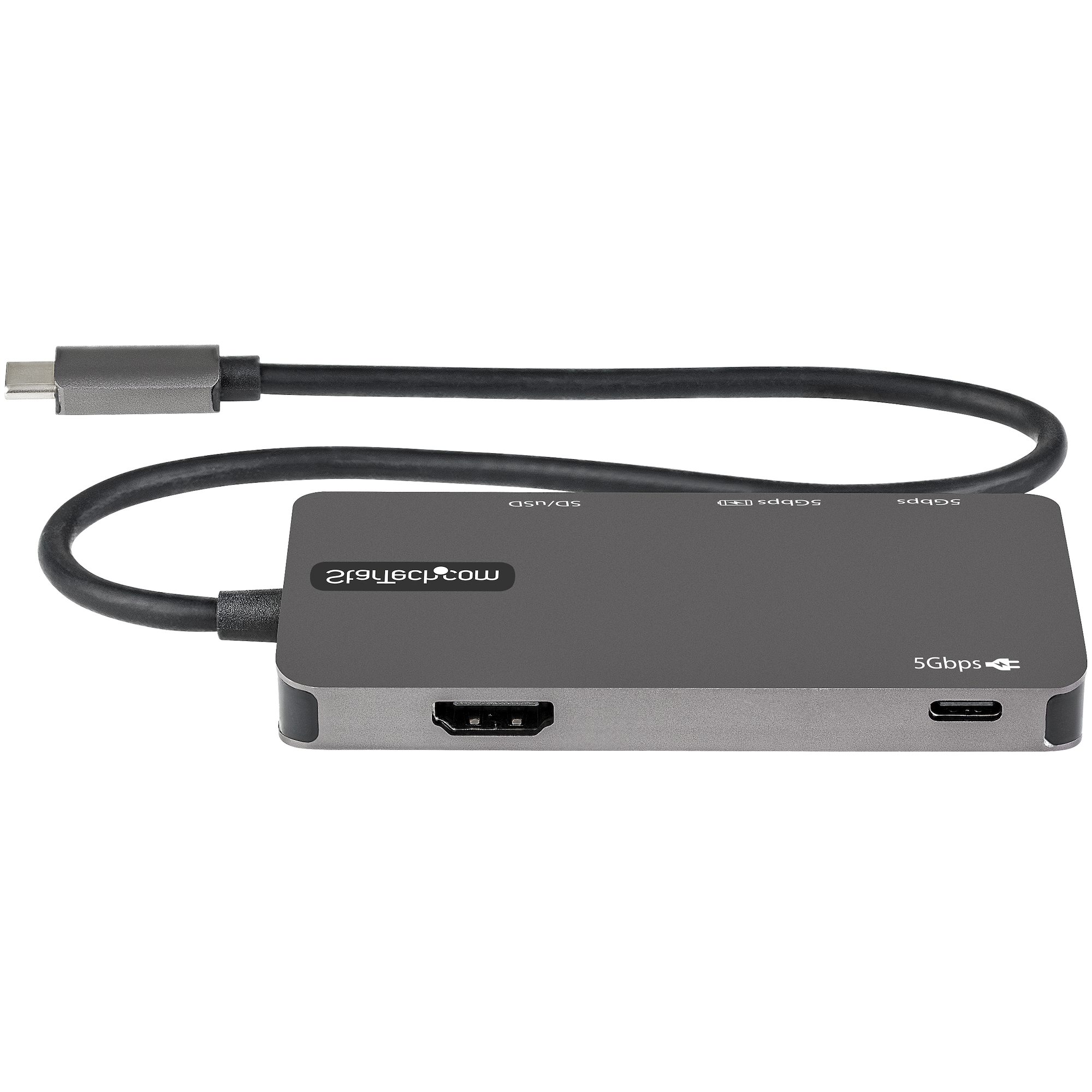

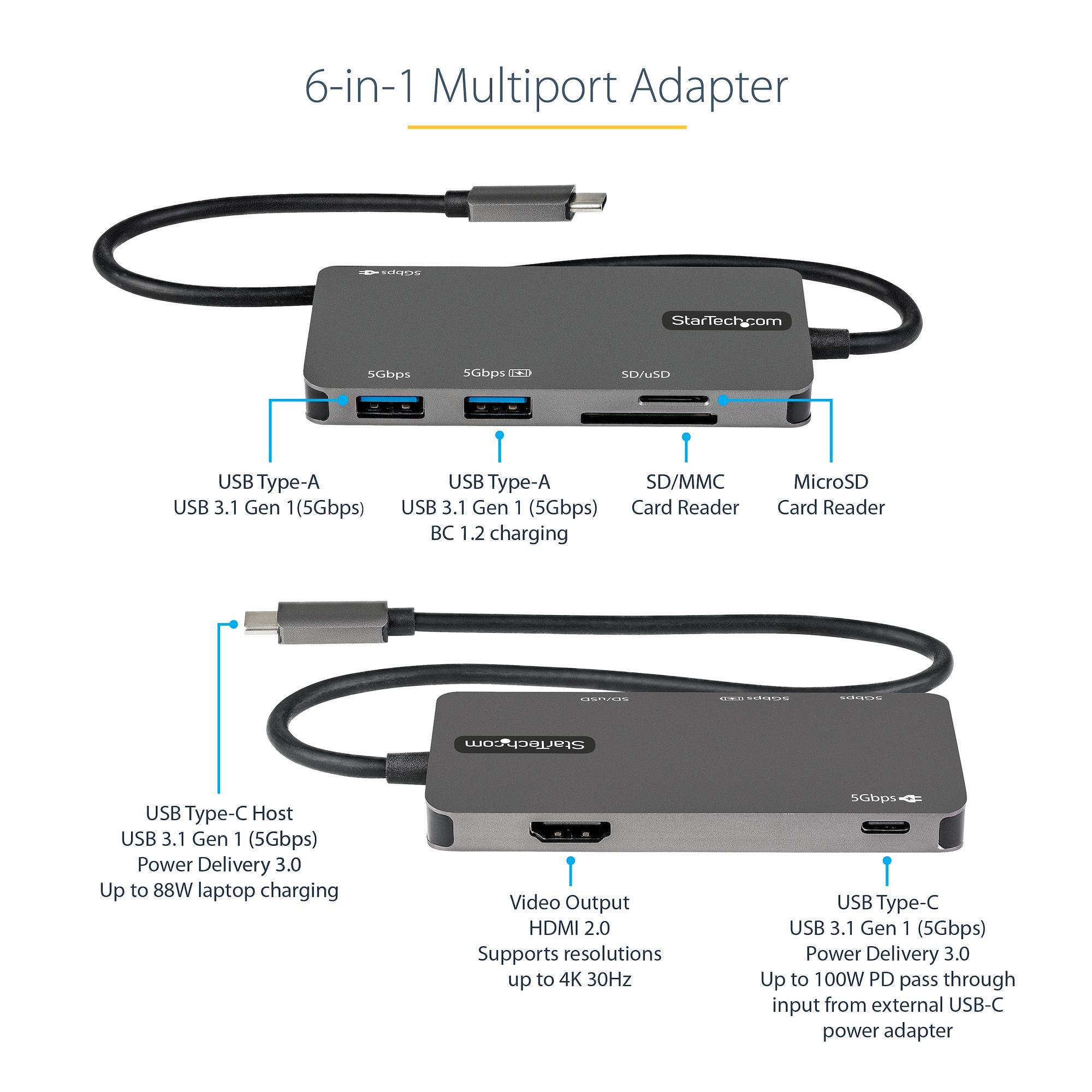

6-IN-1 MULTIPORT ADAPTER: USB-C multiport adapter w/ HDMI 4K 30Hz video output, 2x USB-A (USB 3.1 Gen 1 5Gbps & BC 1.2 charging), 1x USB-C (Data + 100W Power Delivery 3.0), MicroSD & SD Card Reader; works w/ ultra-wide monitors up to 3440x1440 @60Hz

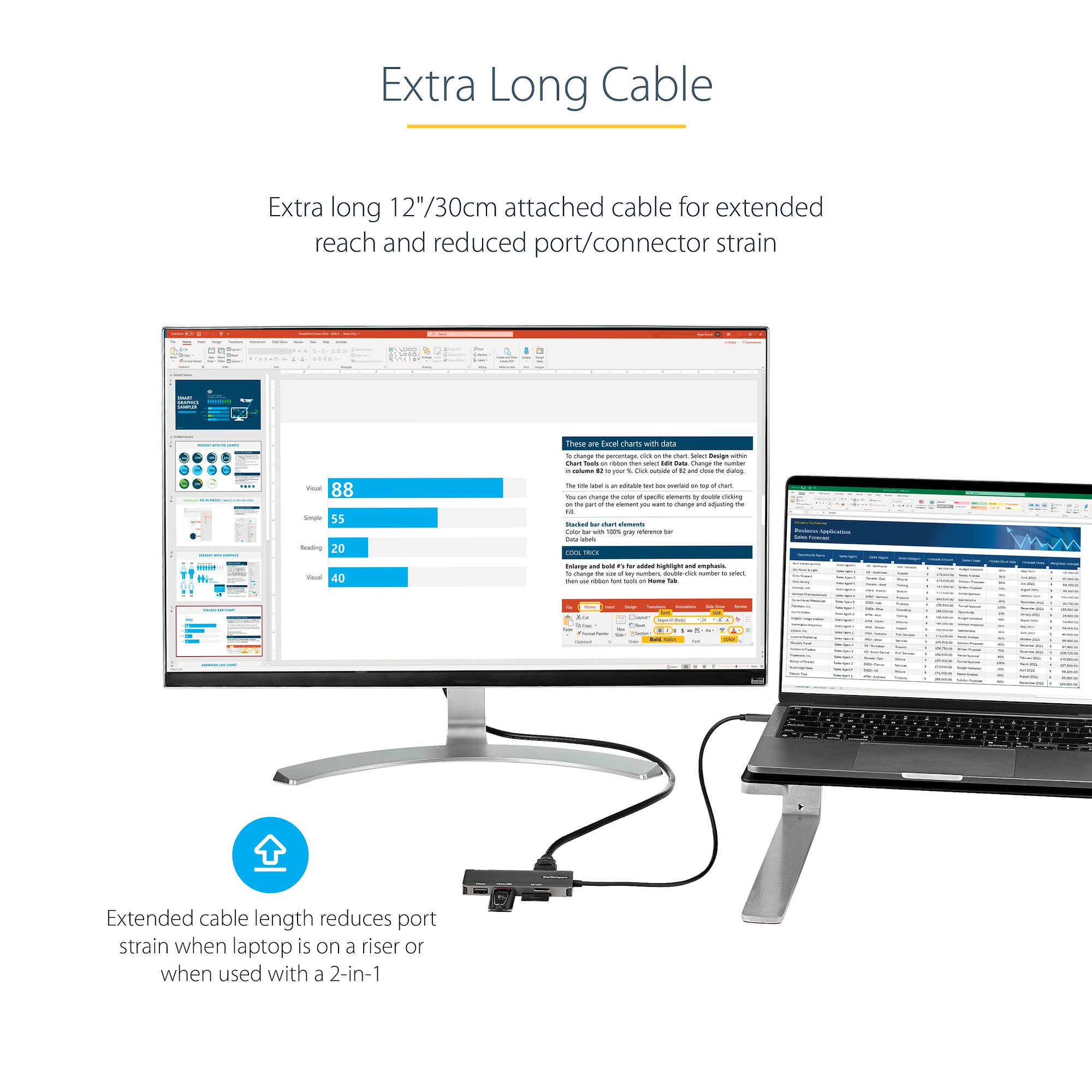

EXTRA LONG CABLE: USB C mini dock with 12"" (30cm) attached cable for extended reach to reduce port/connector strain on 2-in-1 devices like Surface Pro 7, iPad Pro, HP Elite x2 & laptops on riser stands

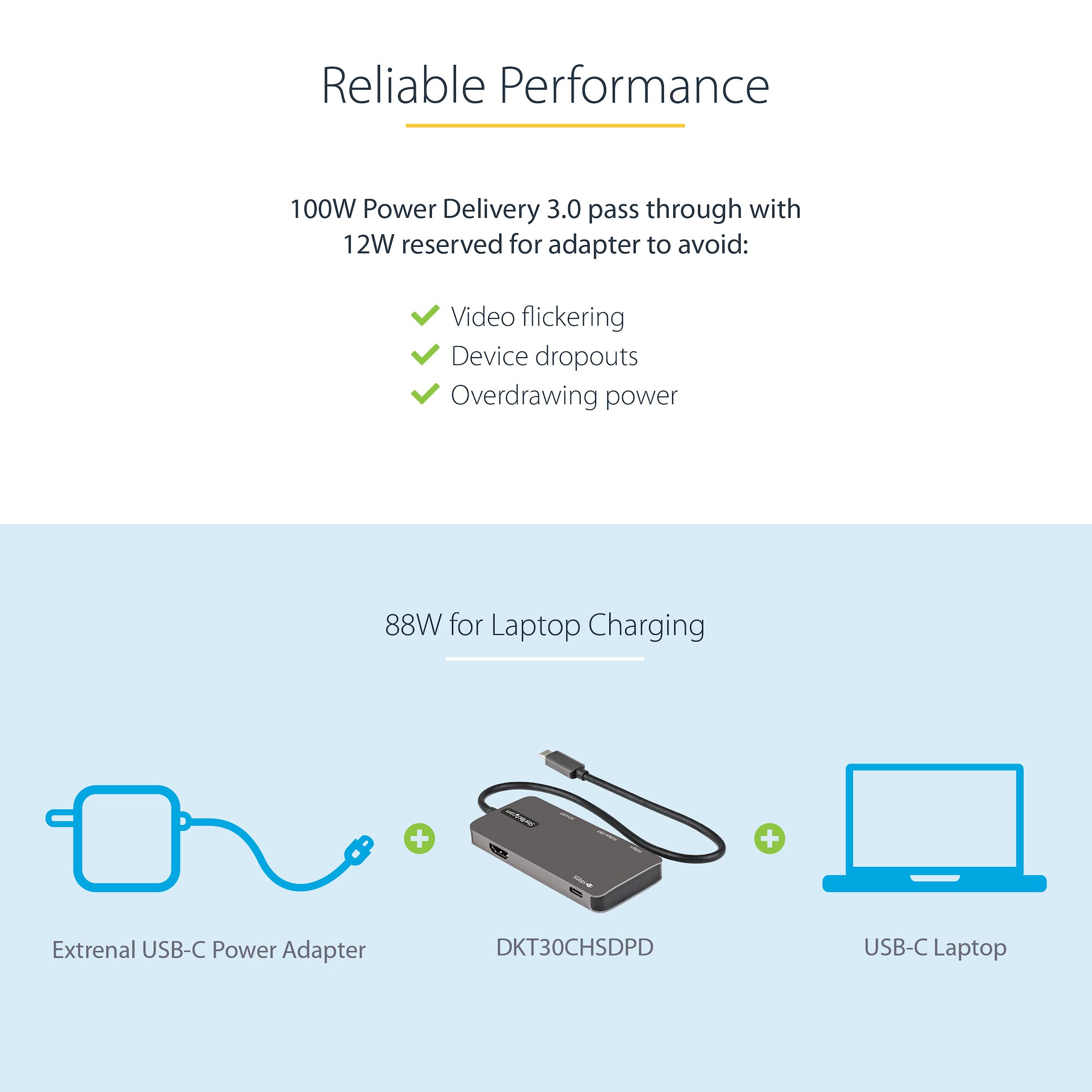

RELIABLE PERFORMANCE: USB bus powered or via external USB-C power adapter; 100W Power Delivery 3.0 pass through w/ 12W reserved for adapter to avoid video flickering, device dropouts or overdrawing power common in other hubs; up to 88W for laptop charging
WIDE COMPATIBILITY: Fully compatible with USB-C laptops, ultrabooks & Chromebooks, plus Thunderbolt 3 laptops from HP, Dell, Lenovo, MacBooks (Intel processor and M1 chip), and Surface; works w/ Windows, macOS, iPadOS, Android and ChromeOS

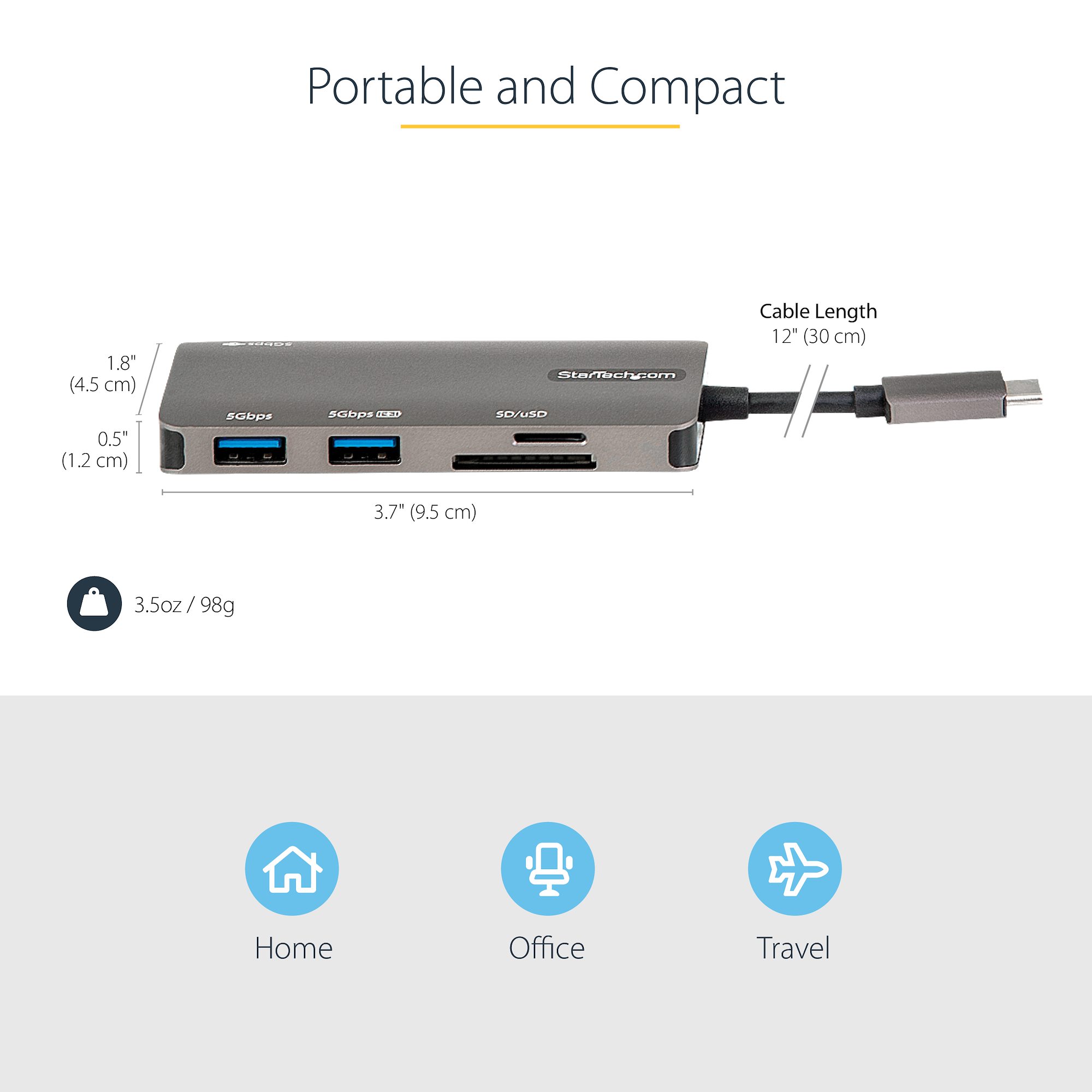

PORTABLE & COMPACT: Portable USB Type-C multiport adapter is designed for easy transport in a laptop bag for convenient on-the-go use between office, home office, shared office spaces, and business travel

Product Properties

Manufacturer
StarTech.com

Model
DKT30CHSDPD

EAN
65030891783

Bullet points

Point
6-IN-1 MULTIPORT ADAPTER

EXTRA LONG CABLE

PORTABLE & COMPACT

RELIABLE PERFORMANCE

WIDE COMPATIBILITY

Logistics data

Harmonized System (HS) code
84733020

Master (outer) case height
310 mm

Master (outer) case length
530 mm

Master (outer) case width
330 mm

Products per master (outer) case
60 pc(s)

Network

Ethernet LAN
No

Operational conditions

Operating relative humidity (H-H)
5 - 90%

Operating temperature (T-T)
0 - 70 °C

Storage temperature (T-T)
-10 - 55 °C

Other features

Cable length
0.3 m

Chipset
Fresco Logic - FL7102, Parade - PS176, Fresco Logic - FL5001, ALCORMICR - AU84612

Packaging content

Quick start guide
Yes

Packaging data

Package depth
175 mm

Package height
30 mm

Package weight
134 g

Package width
145 mm

Performance

Card reader integrated
Yes

Compatible memory cards
MMC, MicroSD (TransFlash), SD

Data transfer rate
5 Gbit/s

Maximum digital resolution
3440 x 1440 pixels

Maximum refresh rate
60 Hz

Product colour
Grey

Ports & interfaces

Connectivity technology
Wired

HDMI ports
1

Microphone in
No

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1

USB Power Delivery
Yes

USB Power Delivery revision
3.0

USB Power Delivery up to
100 W

Power

Power consumption (typical)
12 W

Power source type
USB

Software

Mac operating systems supported
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura

Mobile operating systems supported
Android, iPadOS

Other operating systems supported
ChromeOS

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Sustainability

Sustainability certificates
CE, RoHS

Weight & dimensions

Depth
52 mm

Height
14 mm

Weight
98 g

Width
310 mm
