Description

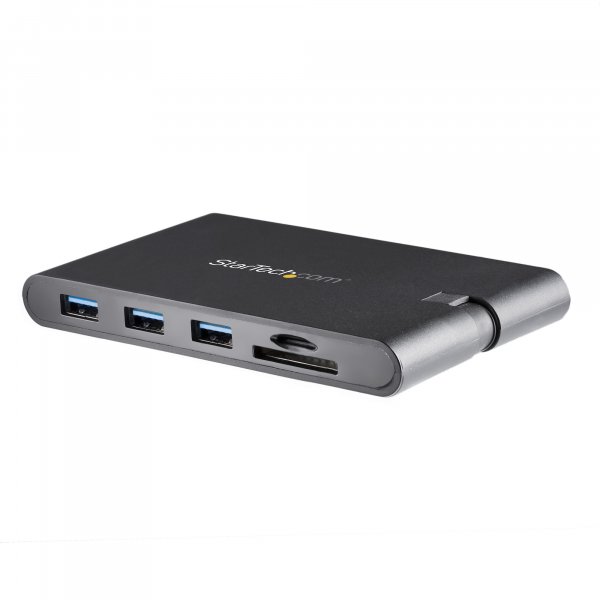

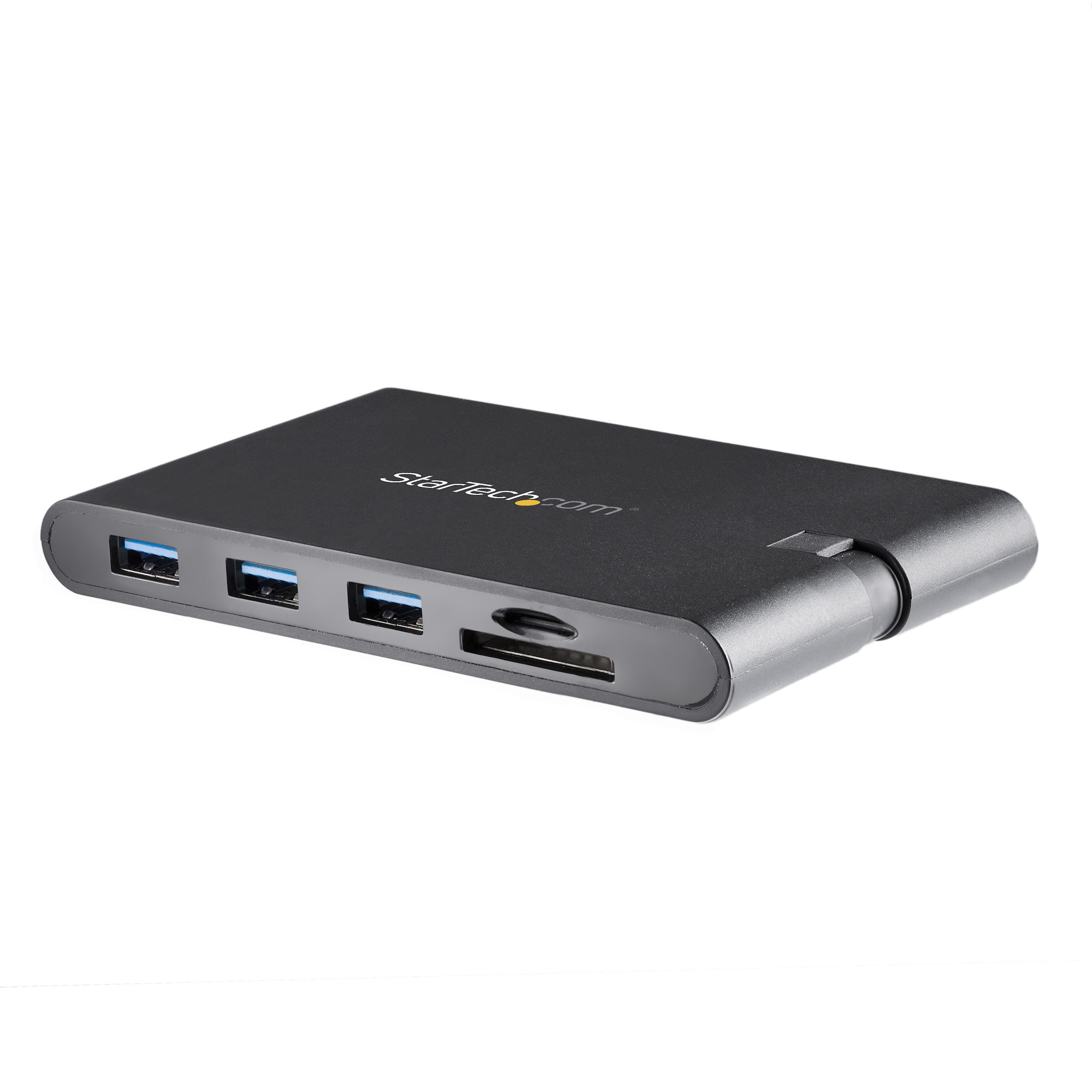

StarTech.com USB C Multiport Adapter - USB Type-C Mini Dock with HDMI 4K or VGA 1080p Video - 100W Power Delivery Passthrough, 3-port USB 3.0 Hub, GbE, SD & MicroSD - Laptop Travel Dock. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Compatible memory cards: MMC, MicroSD (TransFlash), SD, Data transfer rate: 5 Gbit/s. Power source type: USB. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14..., Other operating systems supported: ChromeOS

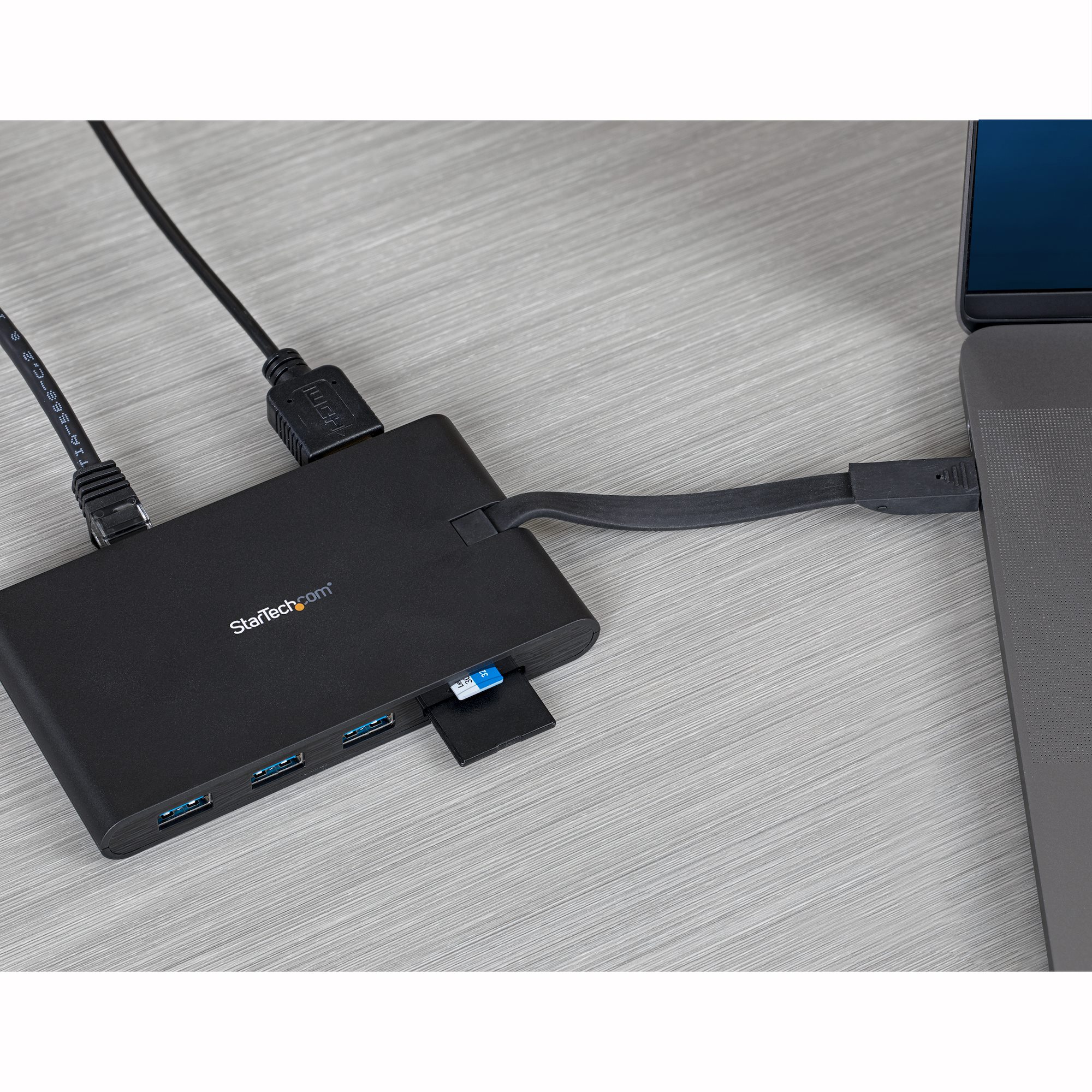

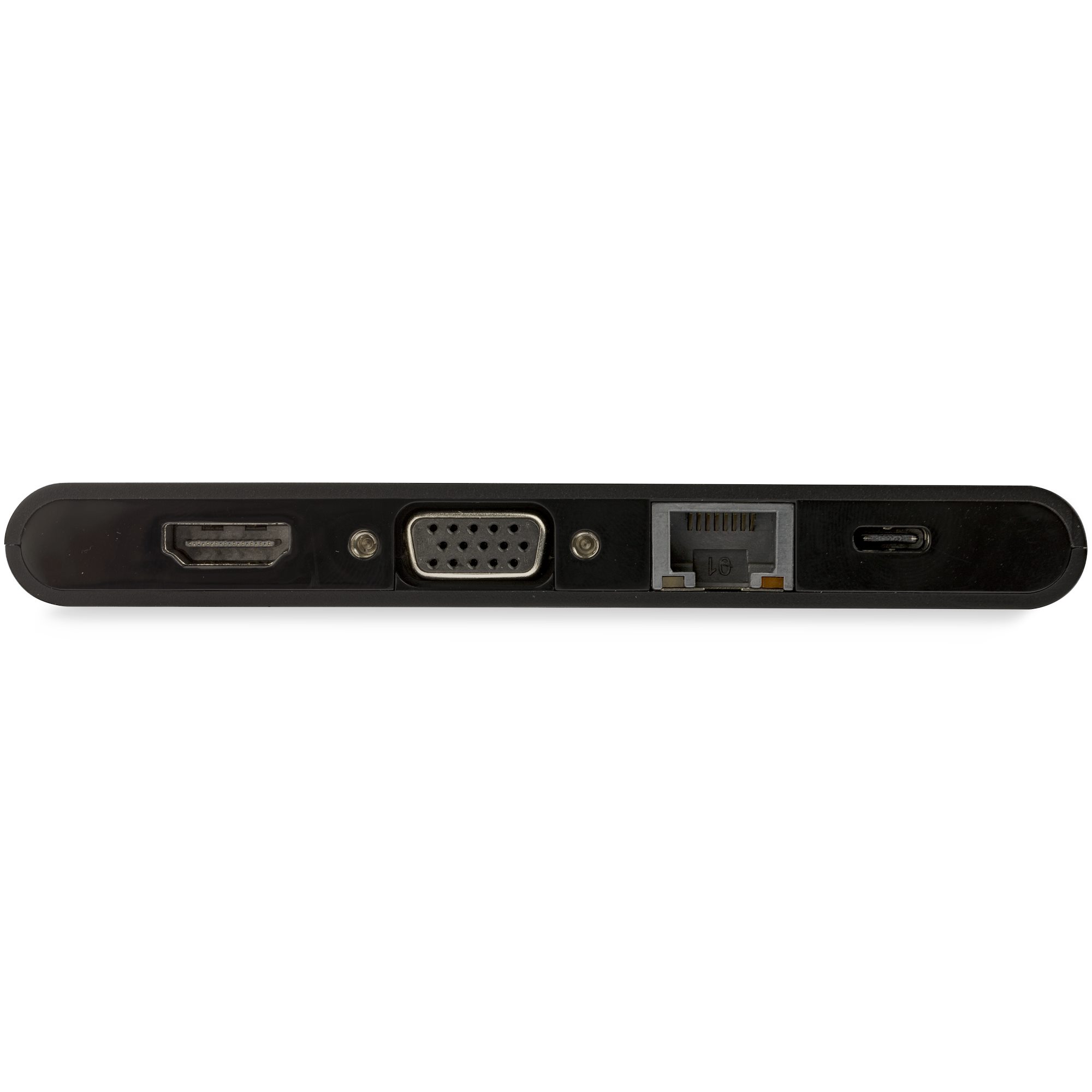

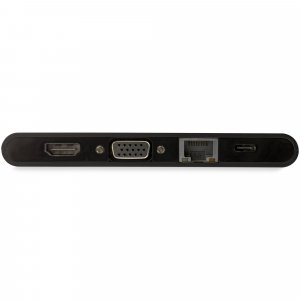

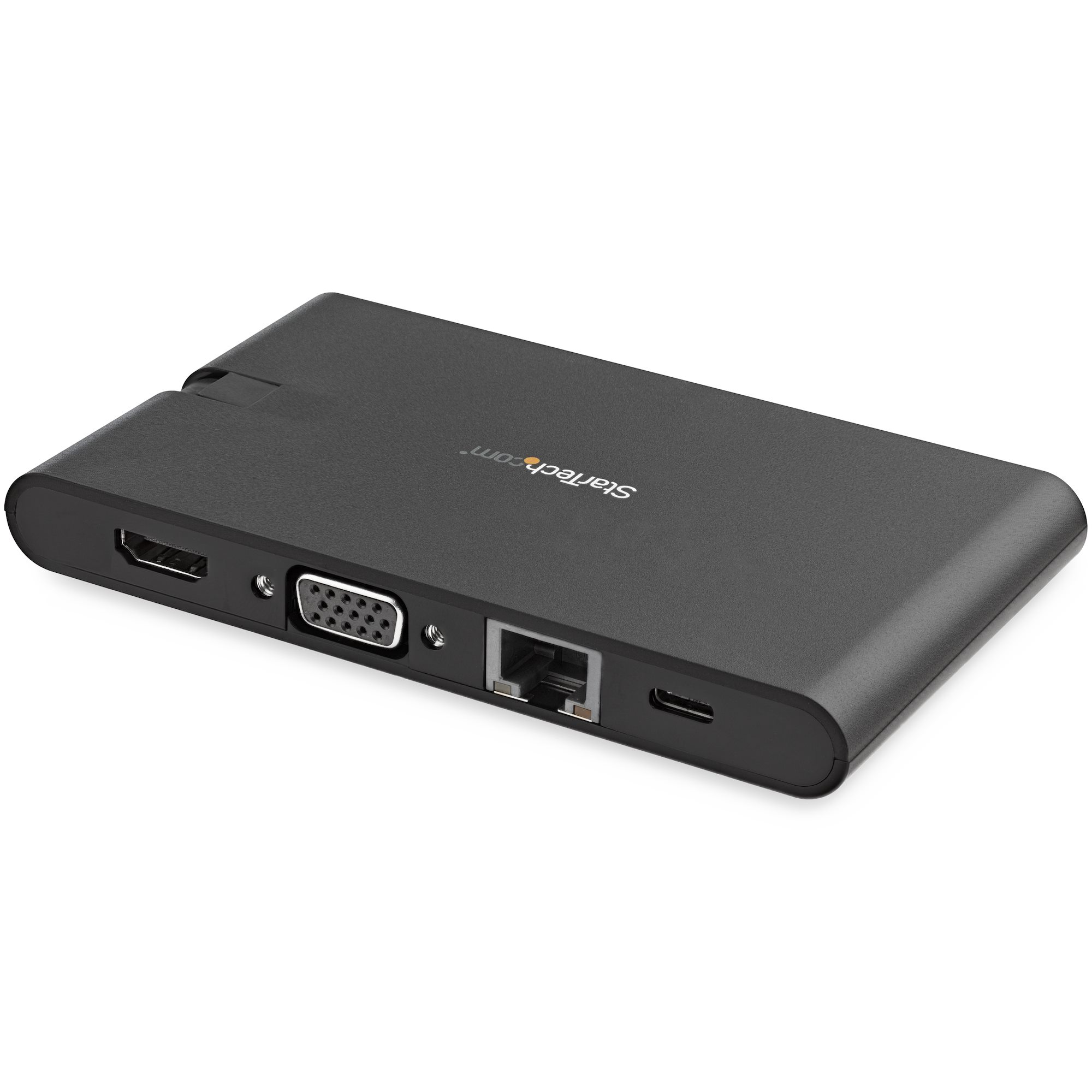

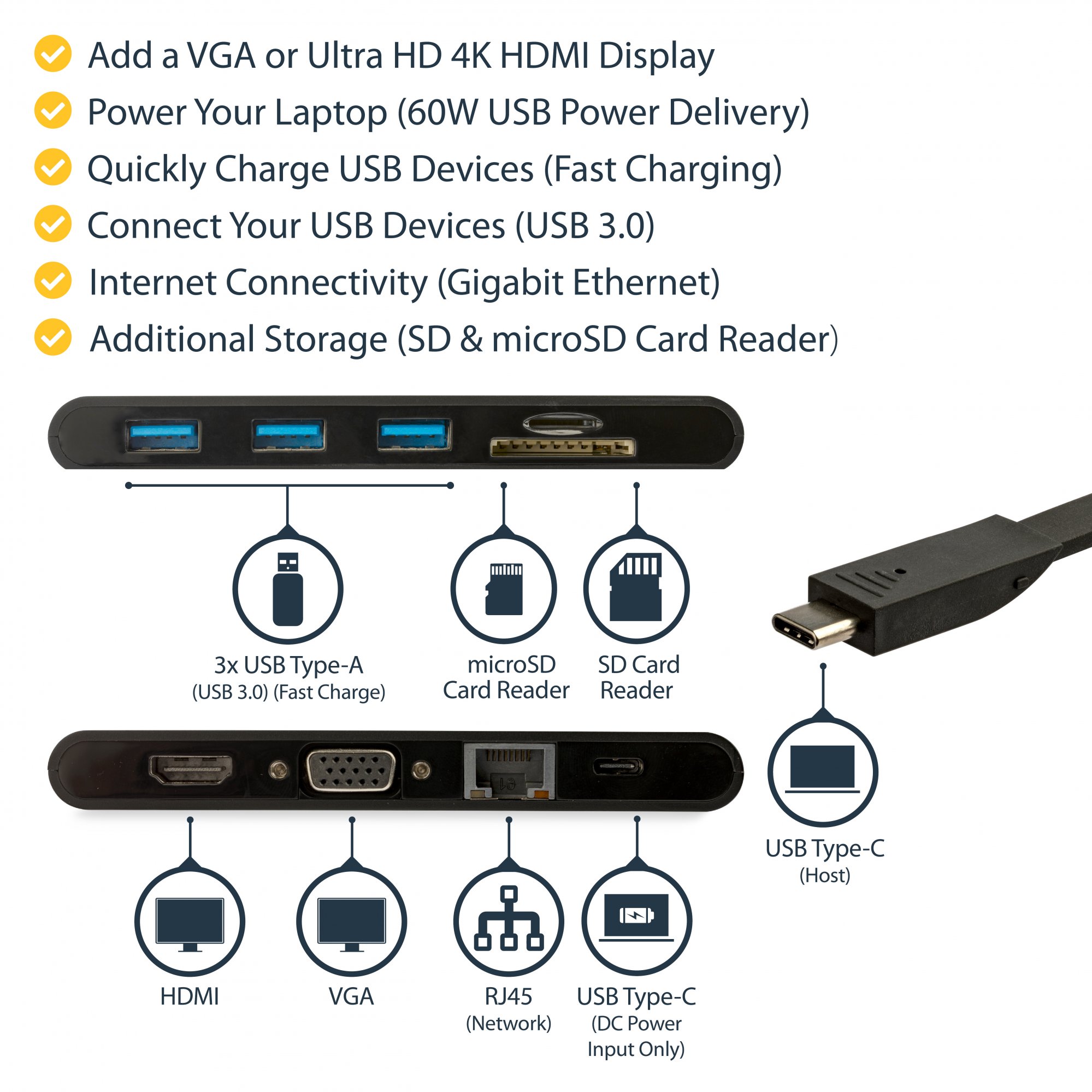

8-IN-1 USB-C PORTABLE MINI DOCK: Eliminates the hassle of carrying multiple adapters w/ 4K 30Hz HDMI or 1080p VGA video, 3x 5Gbps USB-A, SD slot, microSD slot, 1x Gigabit Ethernet, 1x headset/mic jack_x000D_
POWER FLEXIBILITY: Travel dock is USB bus powered and supports up to 100W Power Delivery 3.0 Passthrough; 15W reserved for dock and up to 85W for laptop charging using your USB-C power adapter_x000D_

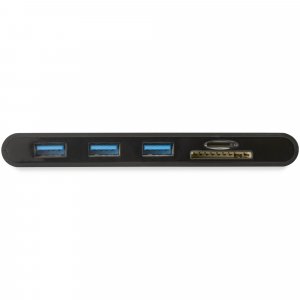

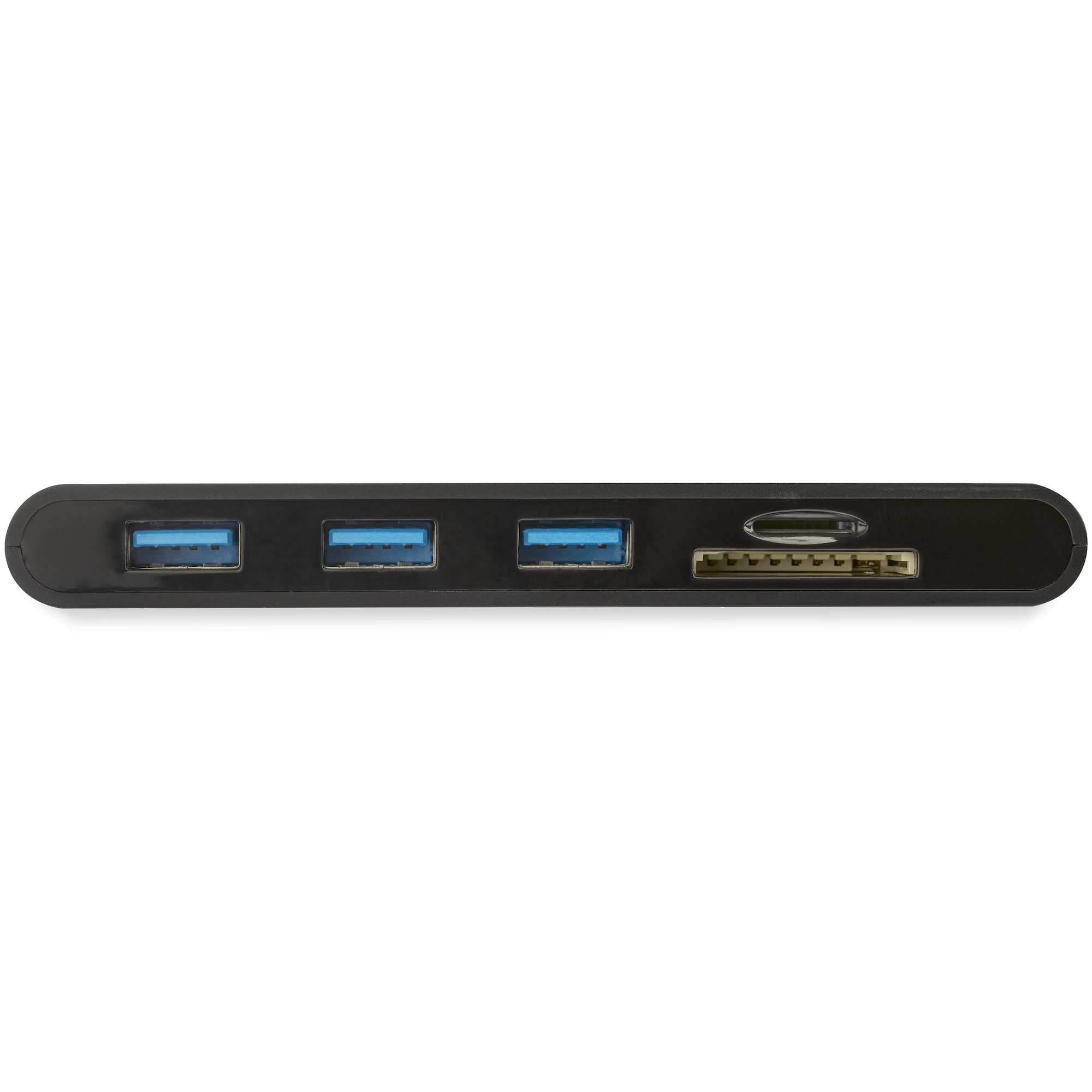

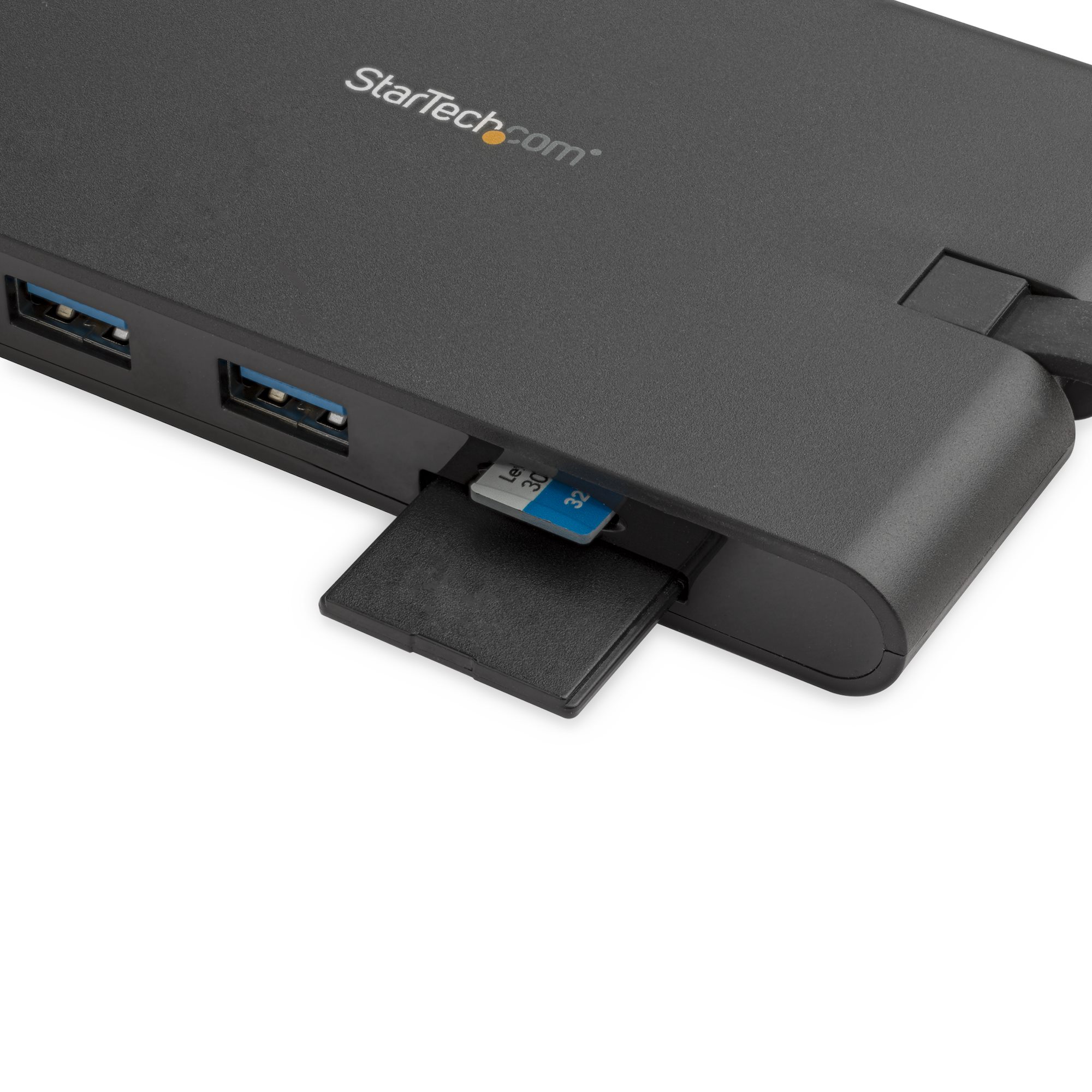

SIMULTANEOUS SD & MICRO SD ACCESS: USB-C multiport adapter provides both a SD/SDHC/SDXC and a MicroSD card reader for additional data storage or backup, and provides access to both simultaneously_x000D_

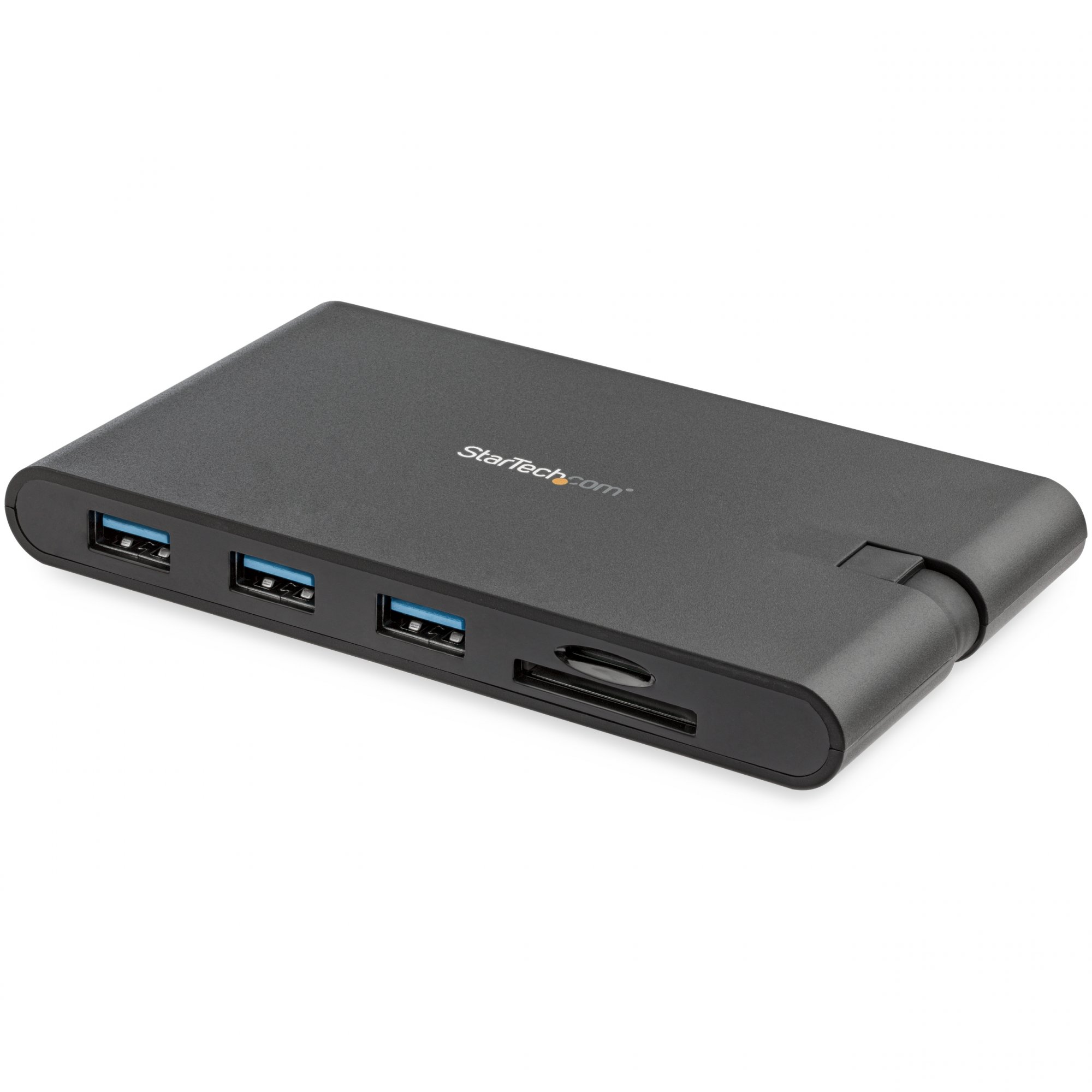

FAST CHARGE PORTS: Portable docking station w/3x USB 3.0 Type-A ports support BC 1.2 1.5A fast-charge to charge tablets or smartphones on any one of the ports, w/USB-C power adapter & laptop connected_x000D_

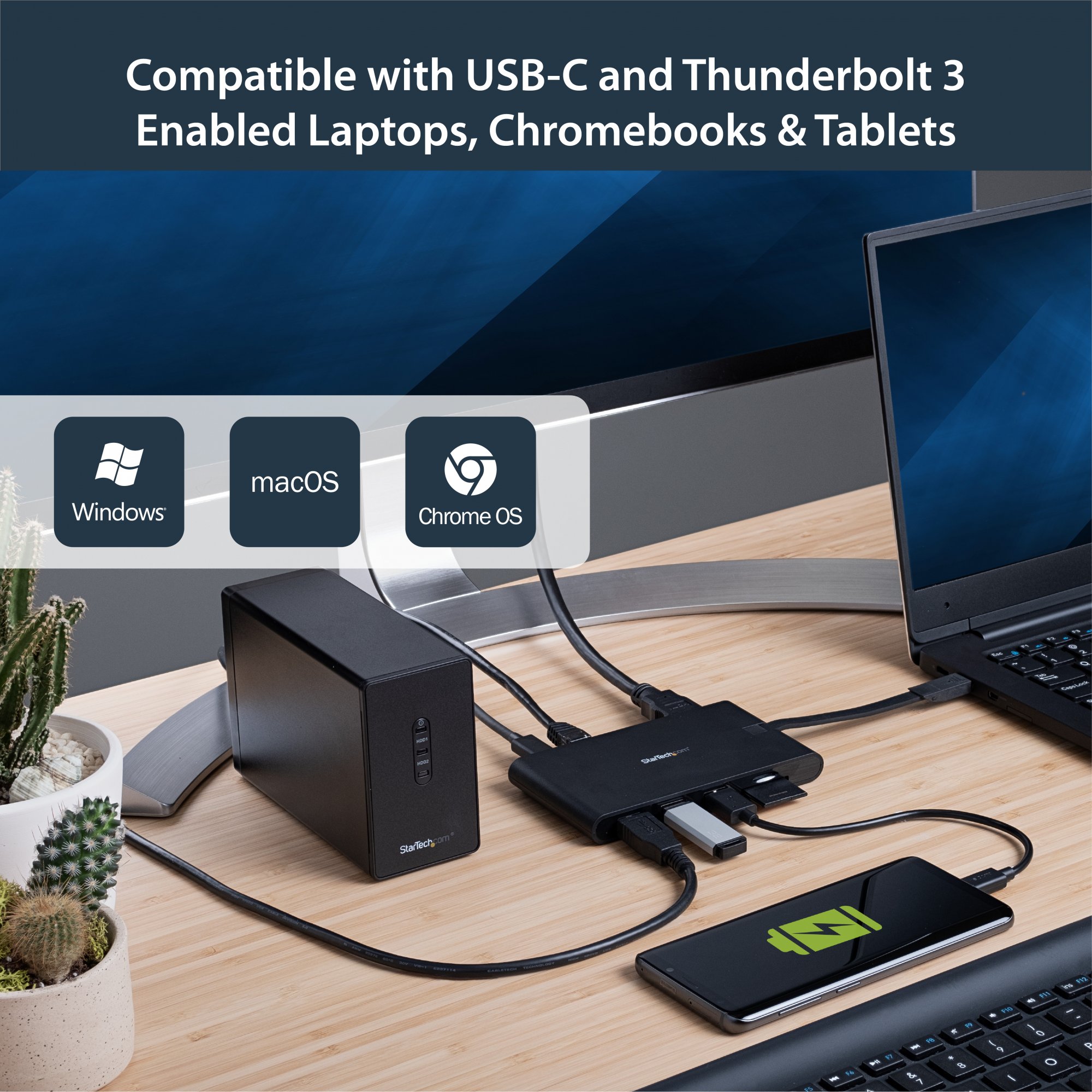

WIDE DEVICE & OS COMPATIBILITY: All-in-one adapter dongle works with HP, Dell, Lenovo, MacBook, iPad Pro, Surface, Chromebooks & Samsung Galaxy devices on Windows, macOS, ChromeOS, iPadOS & Android_x000D_
_x000D_

Product Properties

Manufacturer
StarTech.com

Model
DKT30CHVSCPD

EAN
65030879170

Bullet points

Point
8-IN-1 USB-C PORTABLE MINI DOCK

FAST CHARGE PORTS

POWER FLEXIBILITY

SIMULTANEOUS SD & MICRO SD ACCESS

WIDE DEVICE & OS COMPATIBILITY

_x000D_

Logistics data

Harmonized System (HS) code
84733020

Master (outer) case height
310 mm

Master (outer) case length
530 mm

Master (outer) case width
330 mm

Products per master (outer) case
60 pc(s)

Network

10G support
No

Auto MDI/MDI-X
Yes

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100,1000 Mbit/s

Full duplex
Yes

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 45 °C

Storage temperature (T-T)
-10 - 70 °C

Other features

Cable length
0.118 m

Chipset
VIA/VLI - VL102, VIA/VLI - VL817, Parade - PS8338B, Parade - PS176, Analogix - ANX9833, ALCOR MICRO - AU84612, Realtek - RTL8153

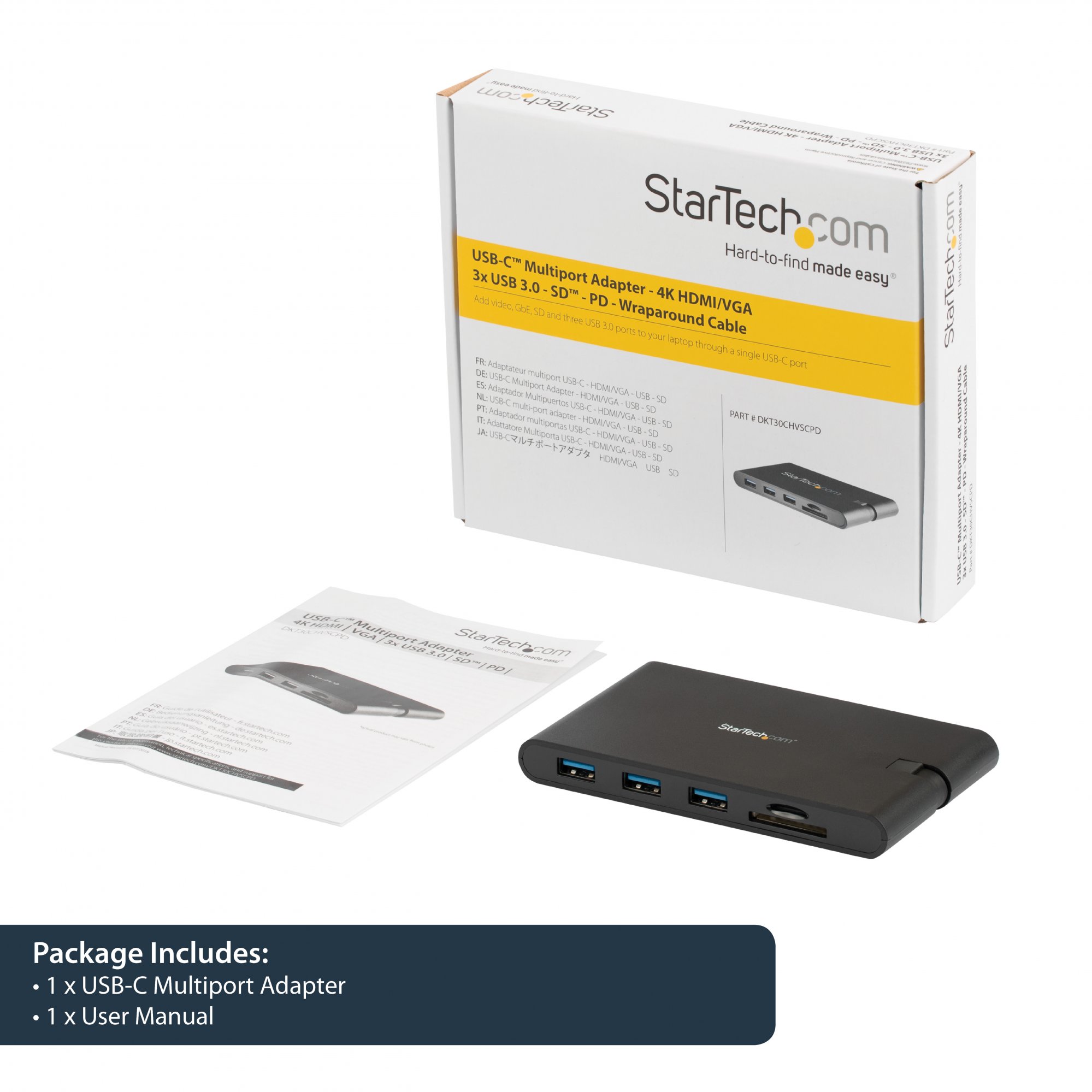

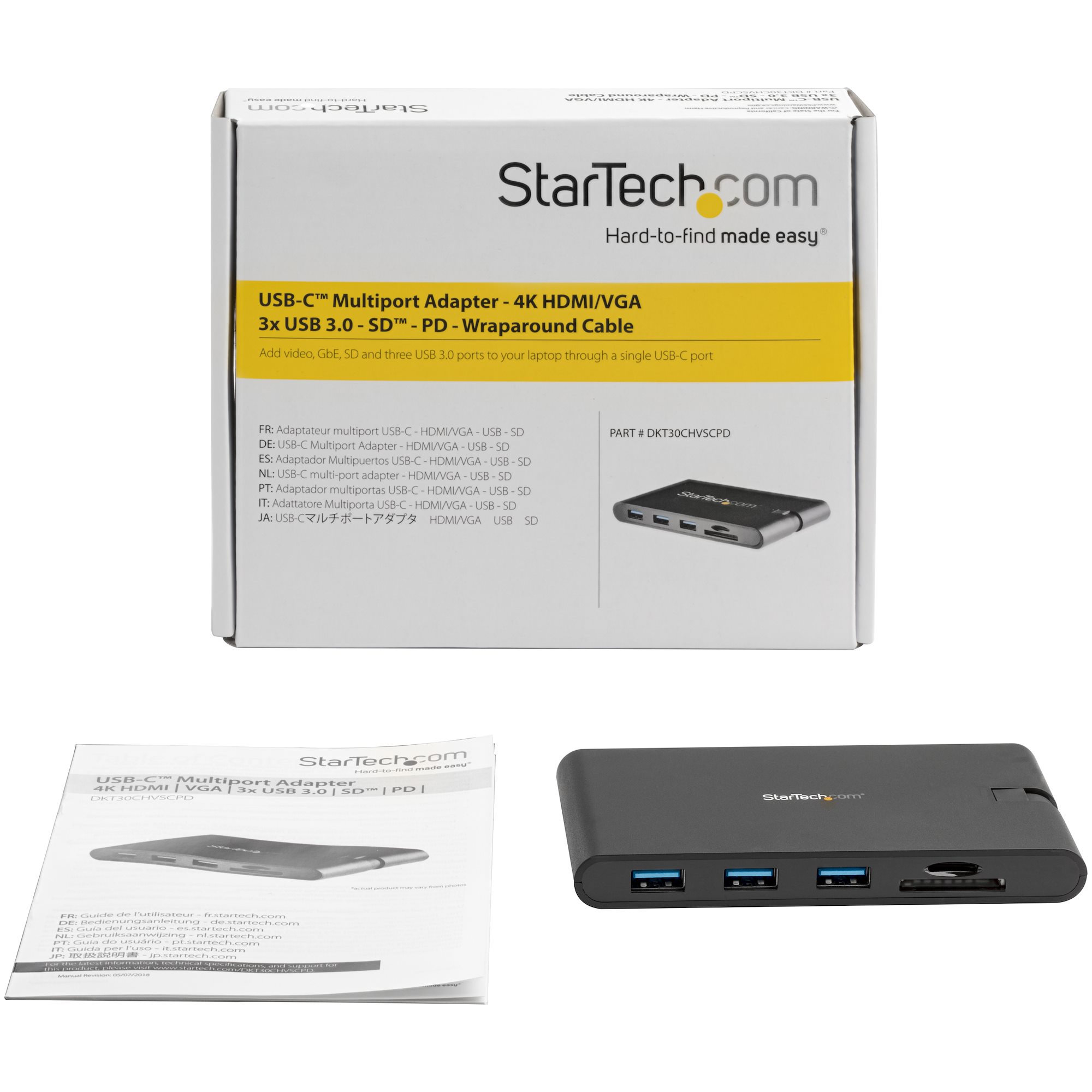

Packaging content

Manual
Yes

Packaging data

Package depth
142 mm

Package height
30 mm

Package weight
137 g

Package width
170 mm

Quantity per pack
1 pc(s)

Performance

Card reader integrated
Yes

Certification
CE, FCC, REACH

Compatible memory cards
MMC, MicroSD (TransFlash), SD

Data transfer rate
5 Gbit/s

Housing material
Plastic

Maximum digital resolution
3840 x 2160 pixels

Product colour
Black

UASP support
Yes

Ports & interfaces

Connectivity technology
Wired

HDMI ports
1

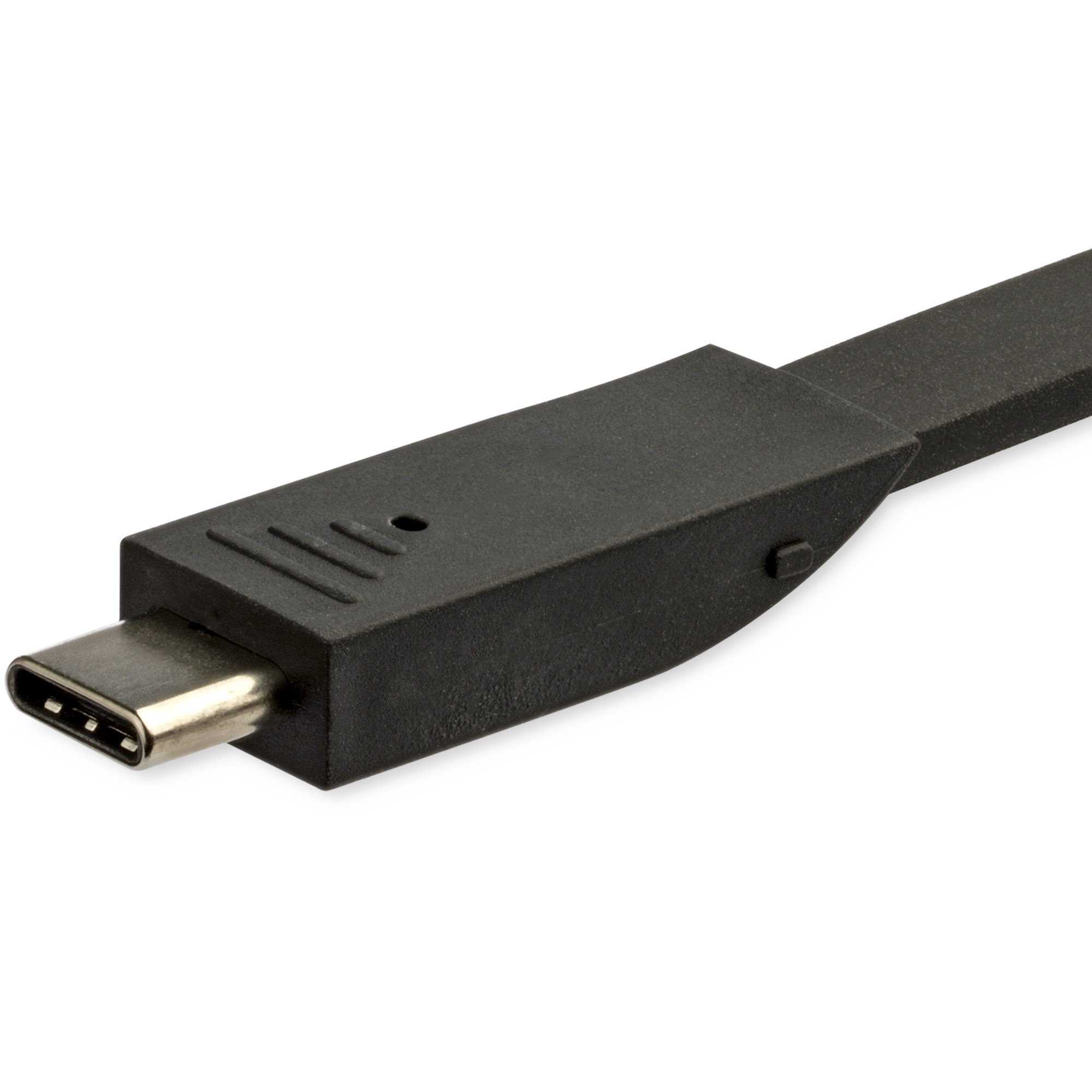

Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Microphone in
No

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1

VGA (D-Sub) ports quantity
1

Power

Power source type
USB

Software

Mac compatibility
Yes

Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura

Other operating systems supported
ChromeOS

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Sustainability

Sustainability certificates
RoHS

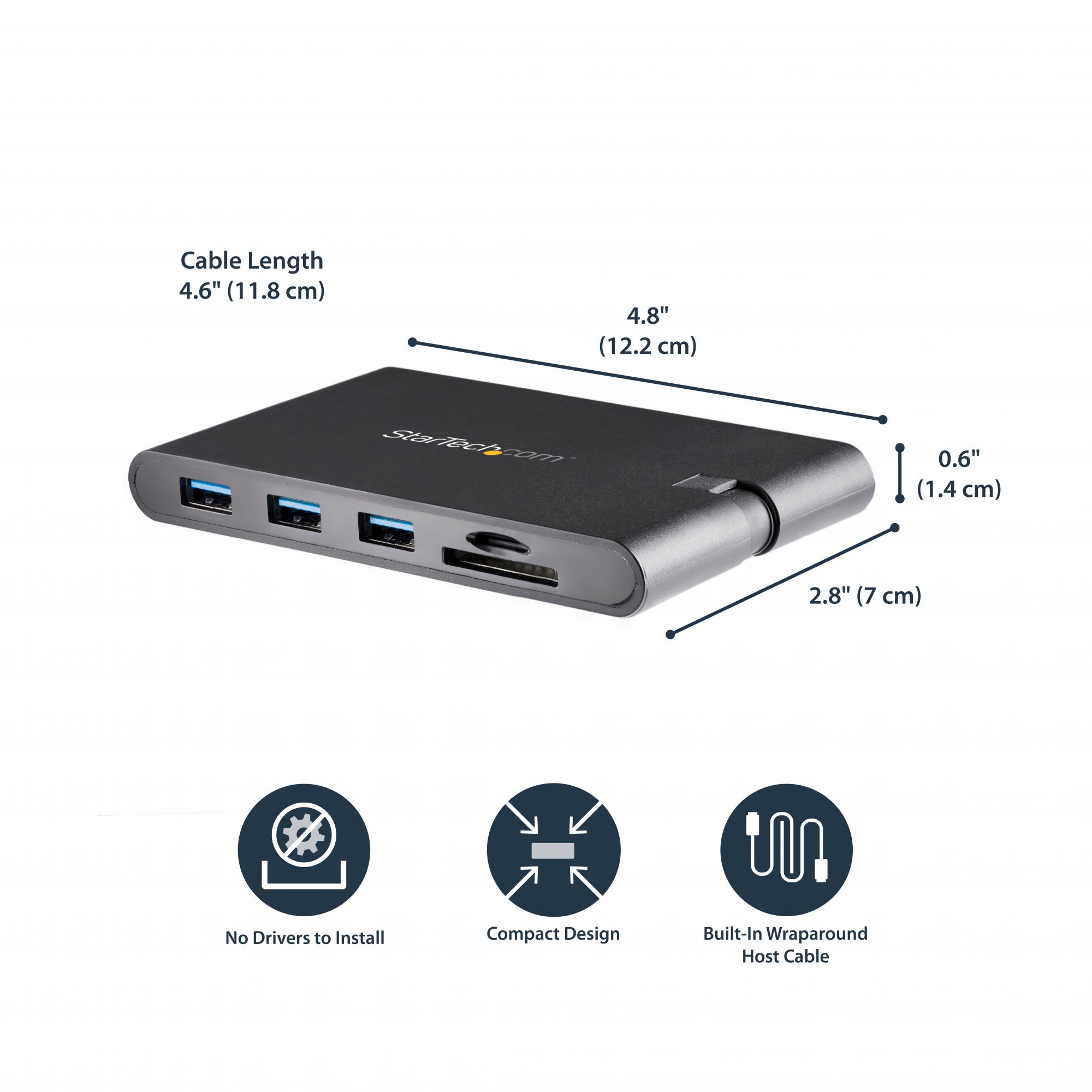

Weight & dimensions

Depth
122 mm

Height
14 mm

Weight
129 g

Width
70 mm
