Description

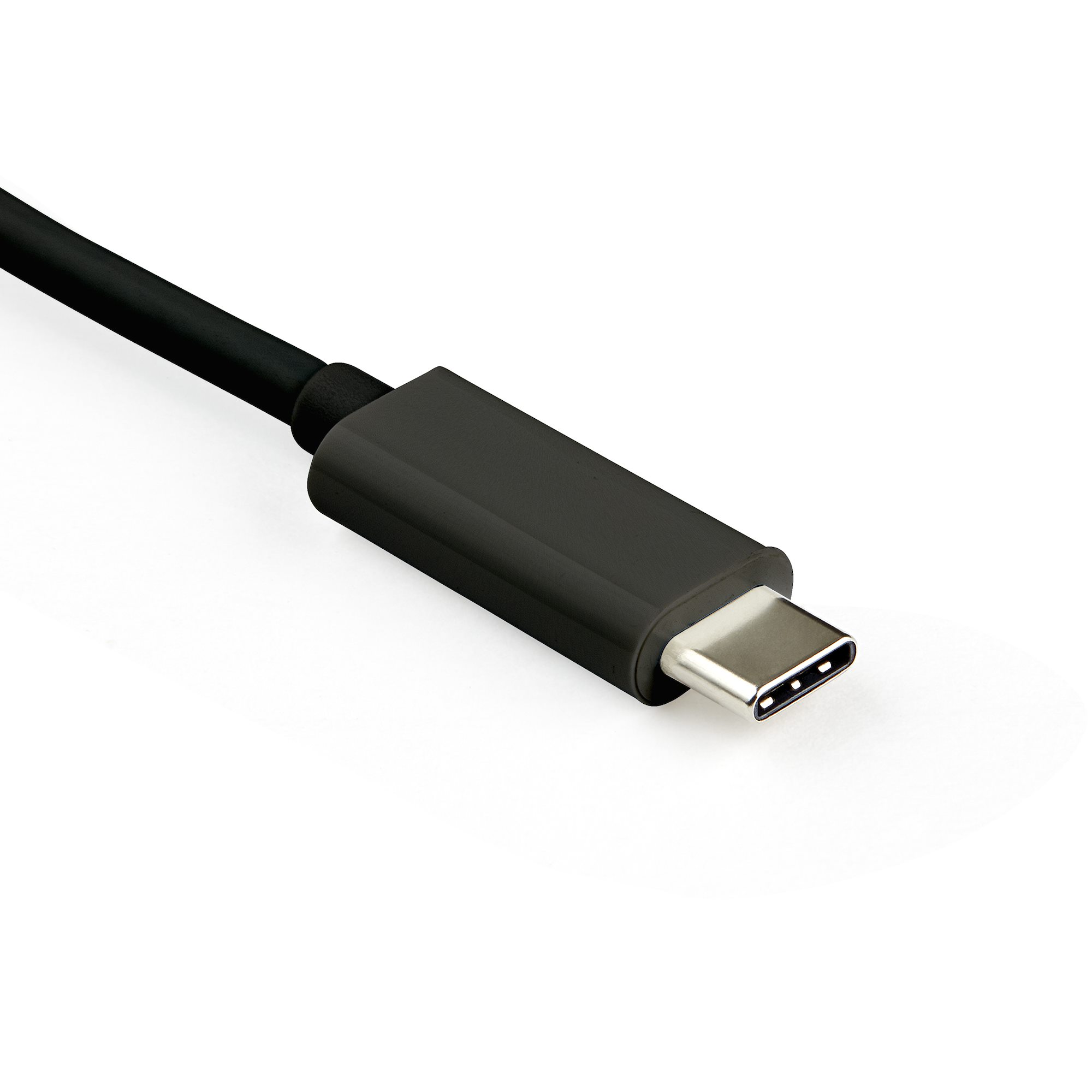

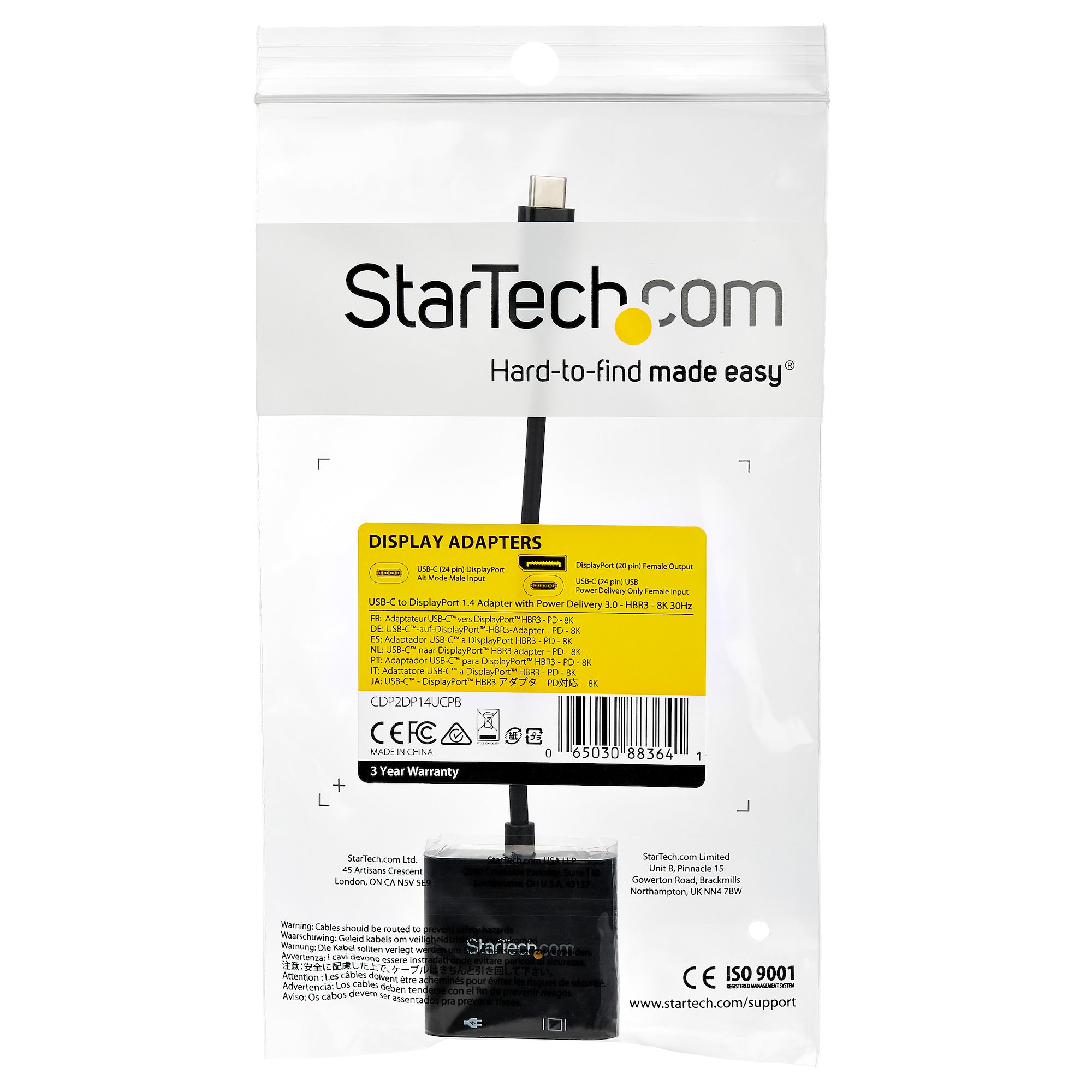

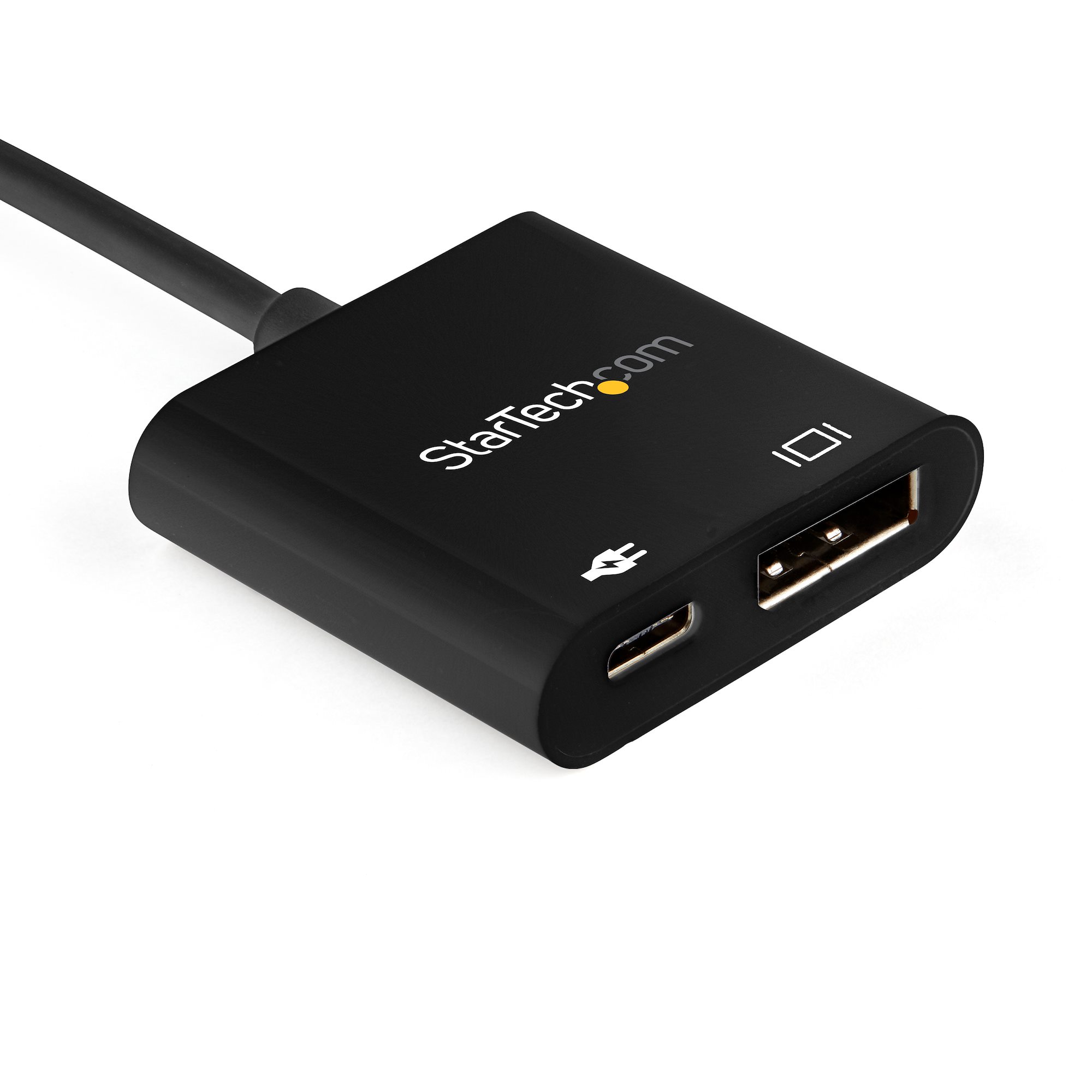

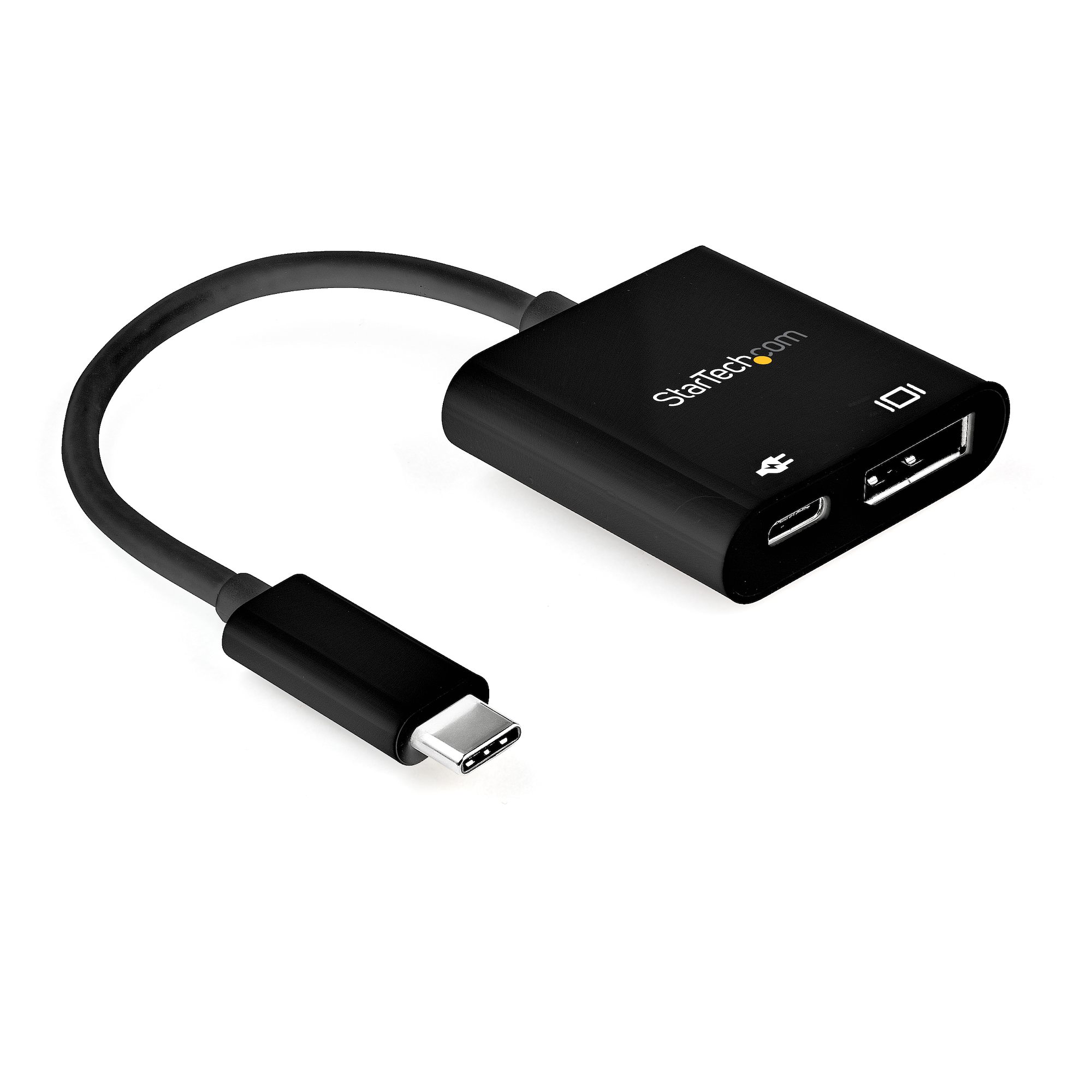

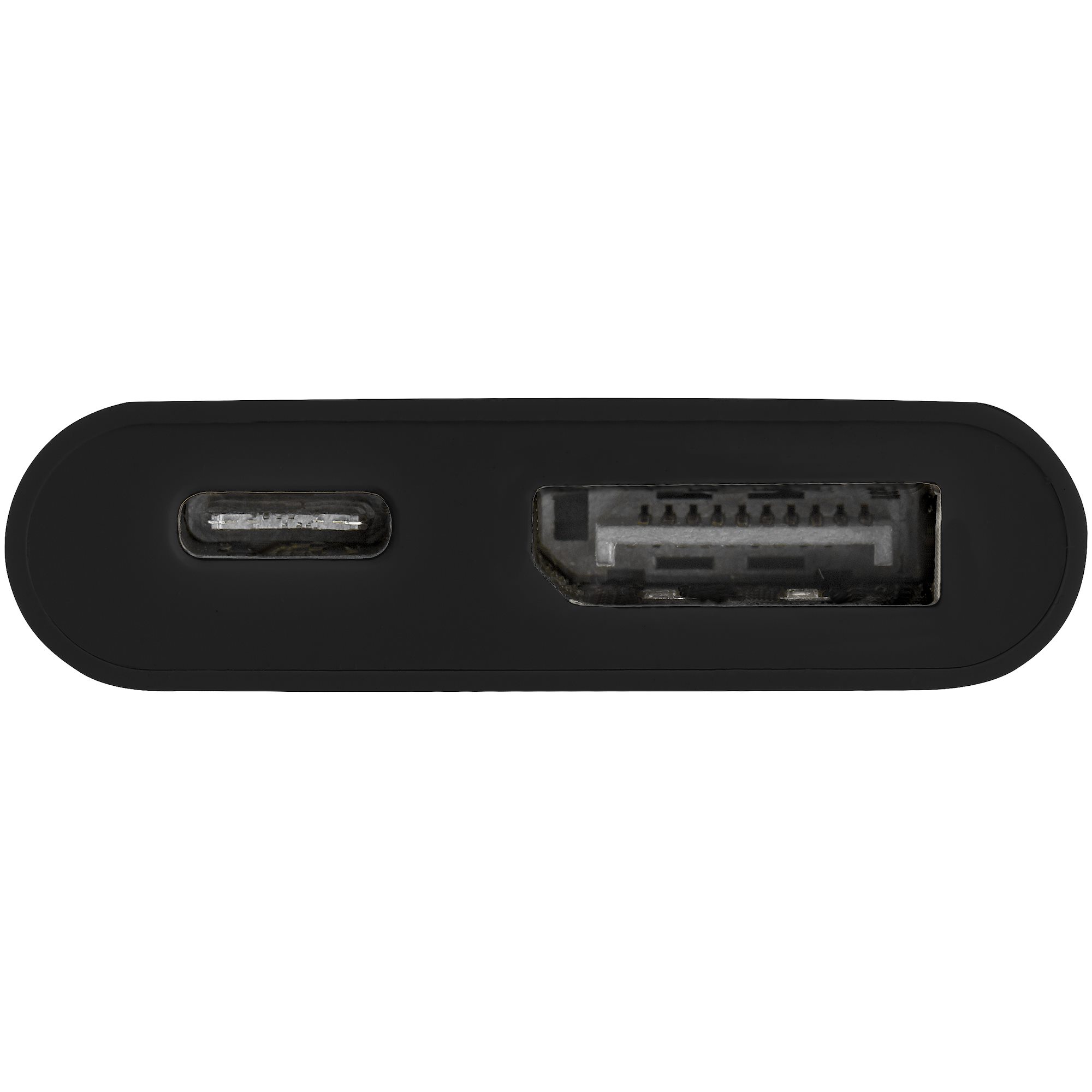

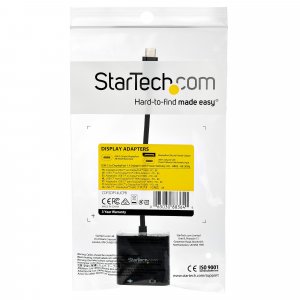

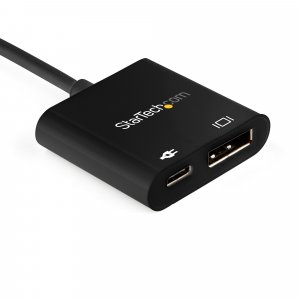

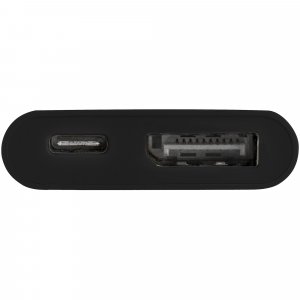

StarTech.com USB C to DisplayPort Adapter with Power Delivery - 8K 60Hz /4K 120Hz USB Type C to DP 1.4 Video Converter w/ 60W PD Pass-Through Charging - HBR3 - Thunderbolt 3 Compatible. USB connector type: USB Type-C, USB connector gender: Male, HDCP version: 1.4/2.2. Product colour: Black, Housing material: Plastic. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina,.... Width: 40 mm, Depth: 43 mm, Height: 11.4 mm. Products per master (outer) case: 200 pc(s), Master (outer) case width: 328 mm, Master (outer) case length: 482 mm

HIGH PERFORMANCE: USB-C to DisplayPort 1.4 (DP Alt Mode HBR3) (32.4Gbps) adapter to connect a single DP display supporting 8K 60Hz (7680x4320) or 4K 120Hz UHD
HDR/DisplayHDR
DSC
HDCP 2.2/1.4
60W PD PASS THROUGH CHARGING: The USB-C video converter adapter allows up to 60W Power Delivery to power & charge your laptop while displaying video on a DisplayPort monitor using a single USB-C port
COMPATIBILITY: Works w/ DP over USB Type-C (Thunderbolt 3 compatible) laptops like Lenovo ThinkPad X1 Carbon, Dell XPS 13, HP EliteBook, TB3 MacBook Pro 13 / Air, Surface Book 3/Laptop 3, Chromebook

Product Properties

Manufacturer
StarTech.com

Model
CDP2DP14UCPB

EAN
65030883641

Bullet points

Point
60W PD PASS THROUGH CHARGING

COMPATIBILITY

DSC

HDCP 2.2/1.4

HDR/DisplayHDR

HIGH PERFORMANCE

Design

Housing material
Plastic

Integrated USB cable
Y

Product colour
Black

Logistics data

Harmonized System (HS) code
84733020

Master (outer) case height
210 mm

Master (outer) case length
482 mm

Master (outer) case width
328 mm

Products per master (outer) case
200 pc(s)

Operational conditions

Operating relative humidity (H-H)
10 - 85%

Operating temperature (T-T)
5 - 45 °C

Storage temperature (T-T)
-10 - 70 °C

Performance

Audio output channels
7.1 channels

Chipset
Parade PS8468, VIA VL102

DisplayPort output
Y

DisplayPort version
1.4

DVI output
N

HDCP
Y

HDCP version
1.4/2.2

HDMI output
N

Maximum resolution
7680 x 4320 pixels

Number of displays supported
1

Refresh rate at maximum resolution
30 Hz

Supported graphics resolutions
1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160, 7680 x 4320

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1

USB connector gender
Male

USB connector type
USB Type-C

System requirements

Mac compatibility
Y

Mac operating systems supported
Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Technical details

Sustainability certificates
CE, RoHS

Sustainability compliance
Y

Weight & dimensions

Depth
43 mm

Height
11.4 mm

Package depth
226 mm

Package height
11 mm

Package weight
26 g

Package width
124 mm

Weight
22 g

Width
40 mm
