Description

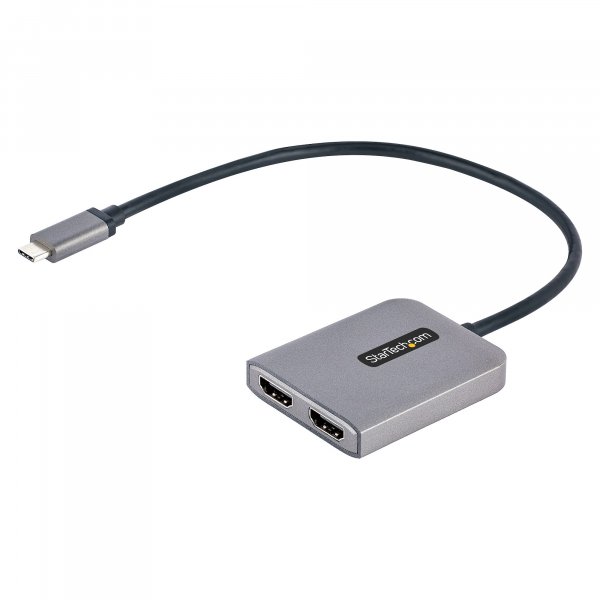

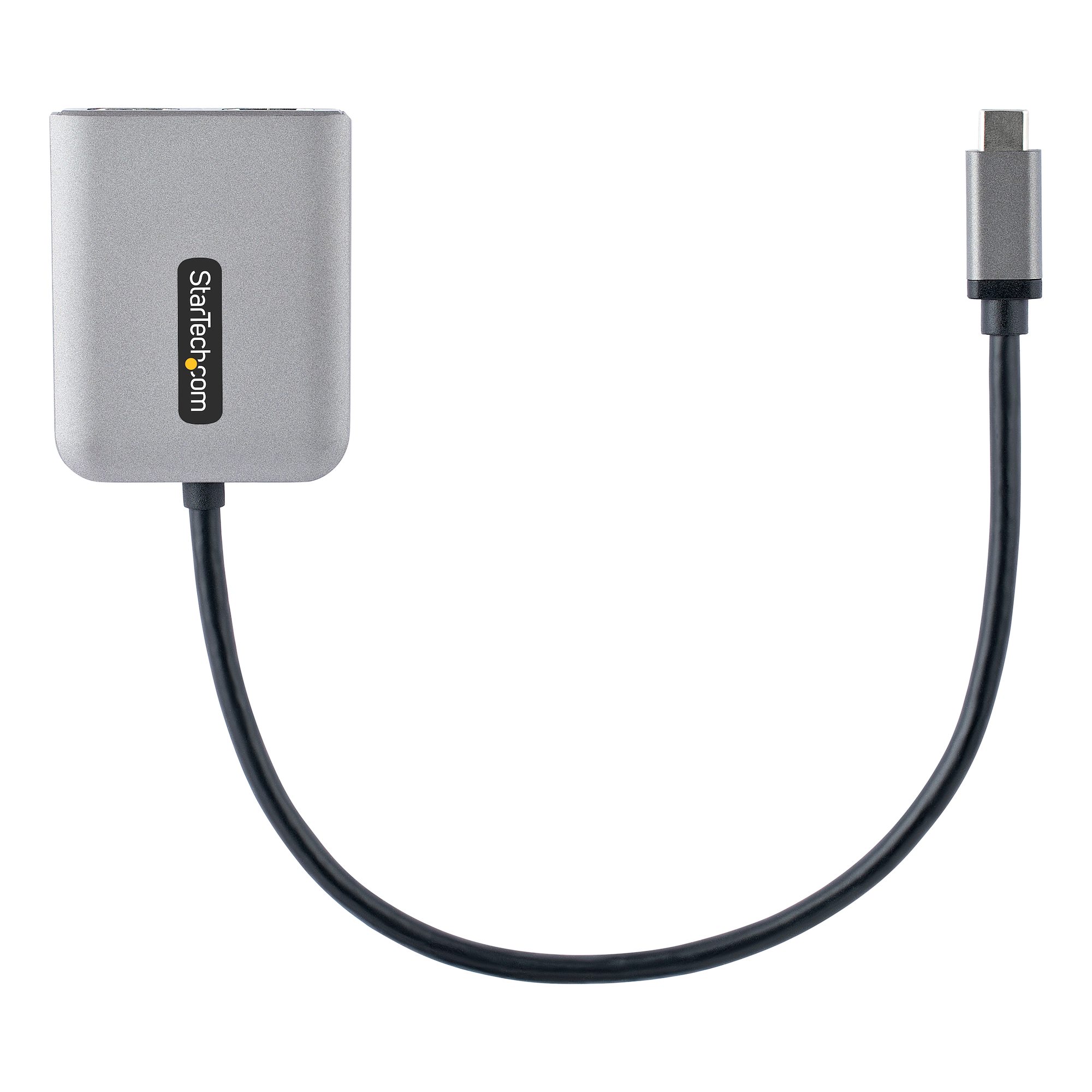

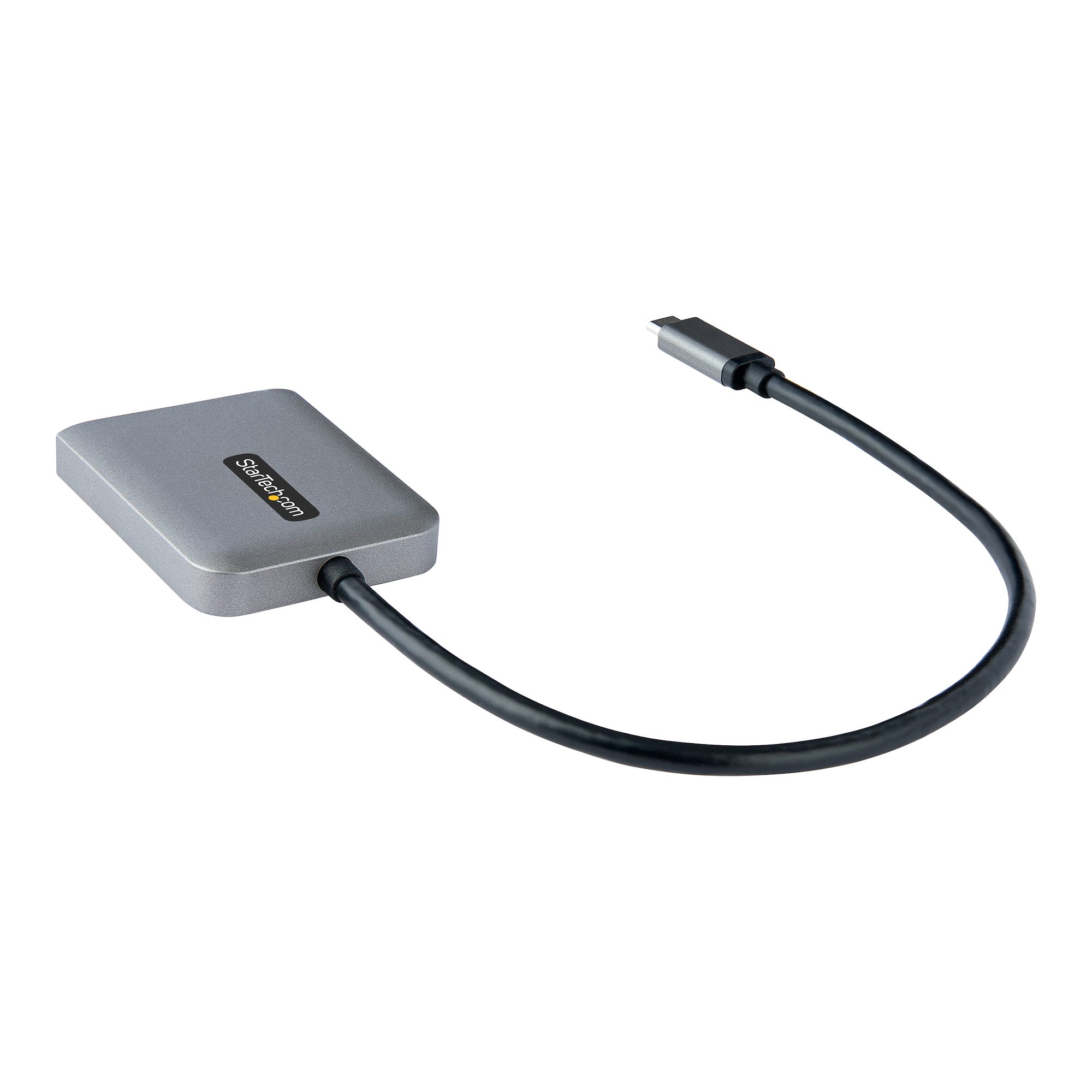

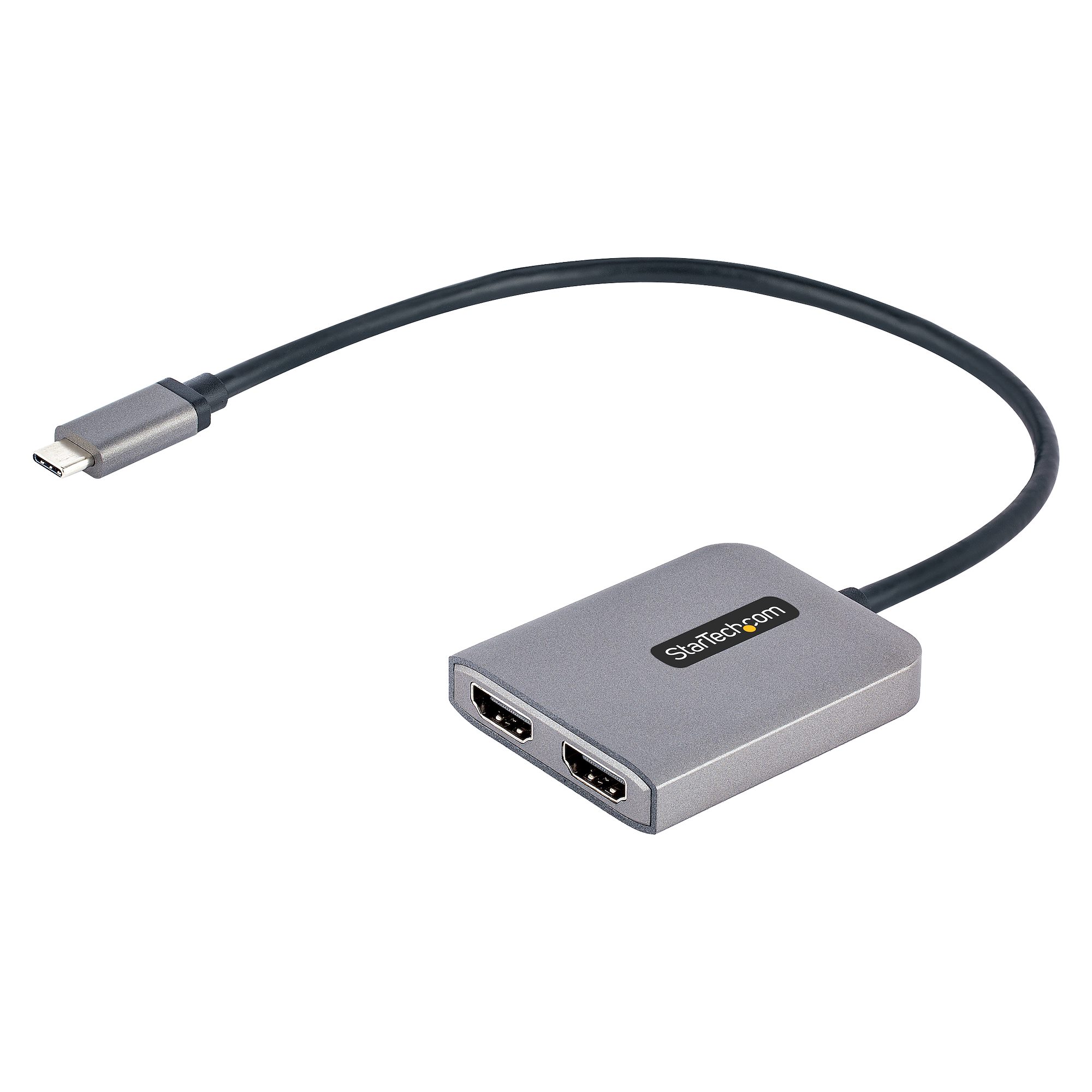

StarTech.com USB-C to Dual HDMI MST HUB - Dual HDMI 4K 60Hz - USB Type C Multi Monitor Adapter for Laptop w/ 1ft/30cm cable - DP 1.4 Multi-Stream Transport Hub - USB-C to HDMI Splitter. USB connector type: USB Type-C, USB connector gender: Male, USB connector form factor: Straight. Product colour: Black, Grey, Housing material: Plastic, USB cable length: 0.3 m. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10.... Width: 105 mm, Depth: 43 mm, Height: 14 mm. Products per master (outer) case: 70 pc(s), Master (outer) case width: 473 mm, Master (outer) case length: 331 mm

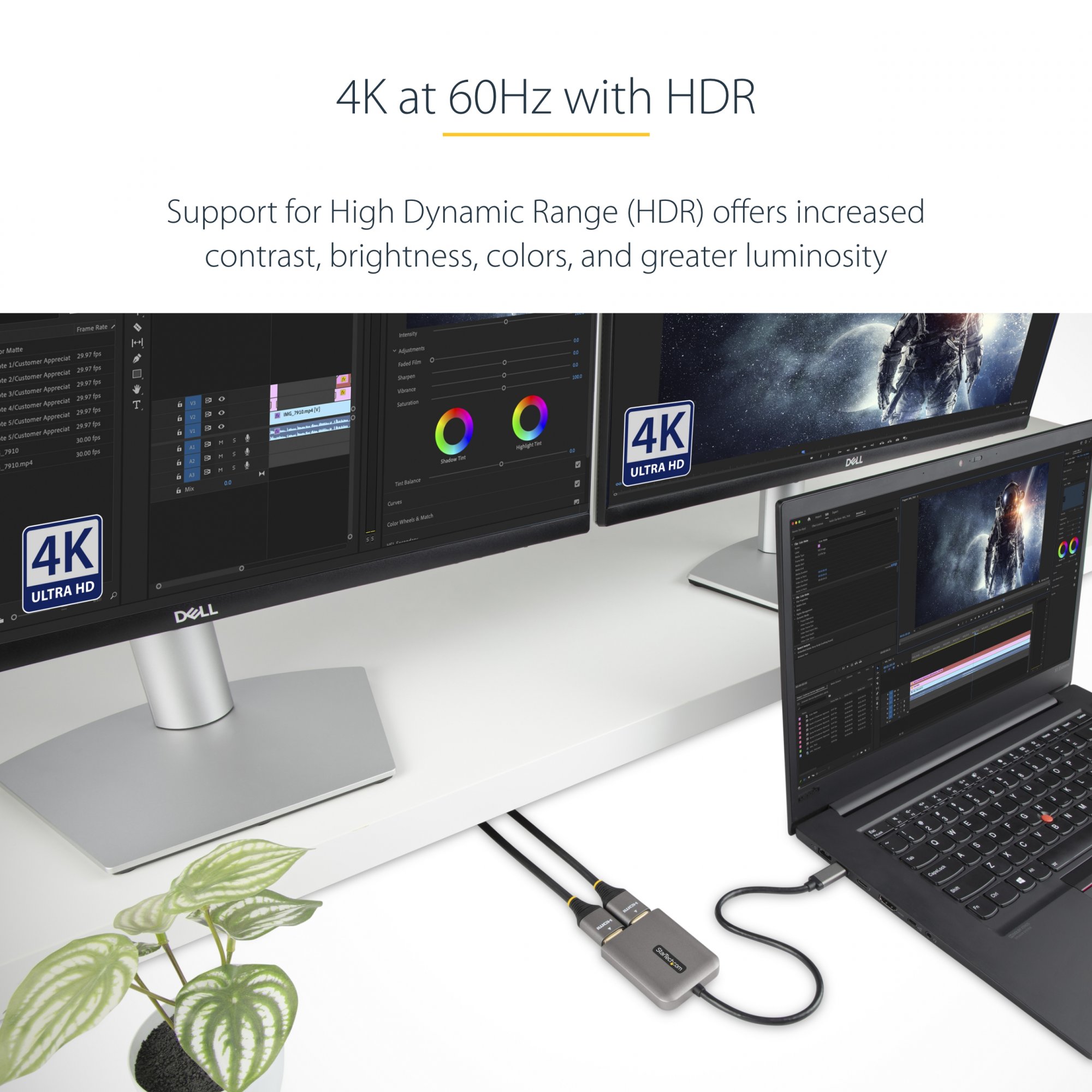

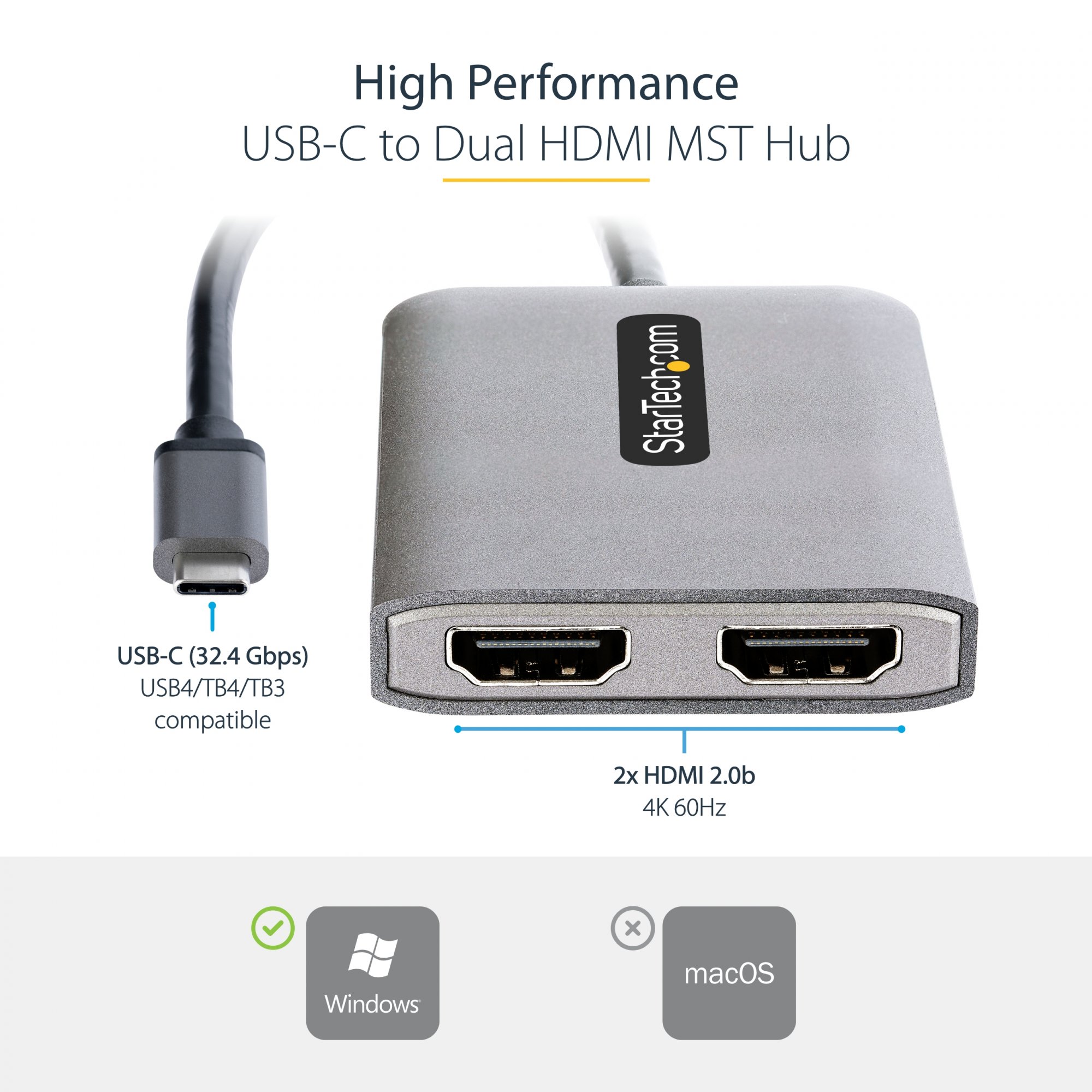

MULTI-MONITOR CONFIGURATION: USB Type-C to Dual HDMI MST Hub/Splitter drives up to two 4K 60Hz displays from a USB-C DP 1.4 host with DSC; USB Powered; Supports HDR and 2ch HDMI Audio; HDCP 2.2; TB3/TB4/USB4 Compatible; Not compatible with macOS

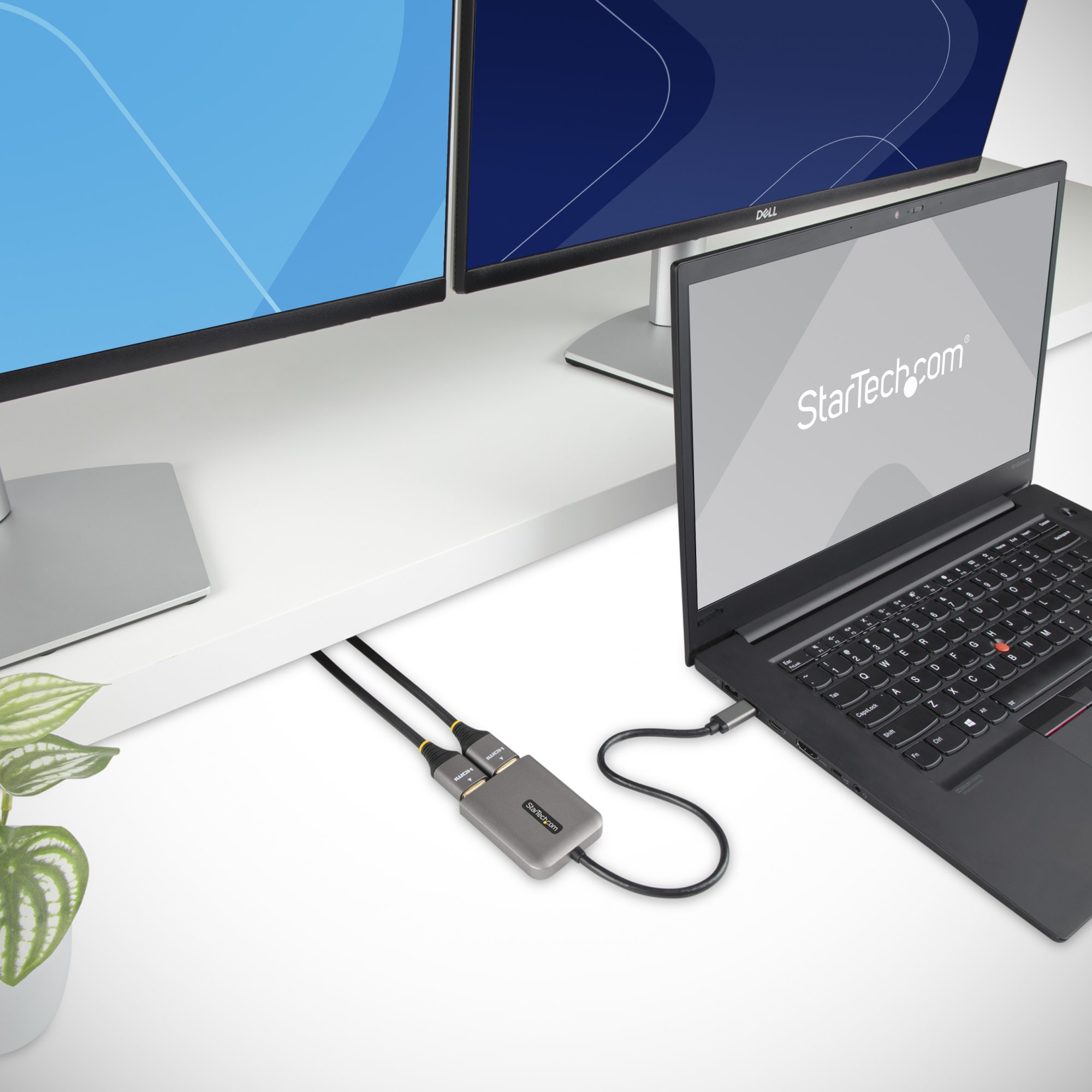

NO DRIVERS OR SOFTWARE: Increase productivity by adding two extended or mirrored displays to a Windows laptop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage

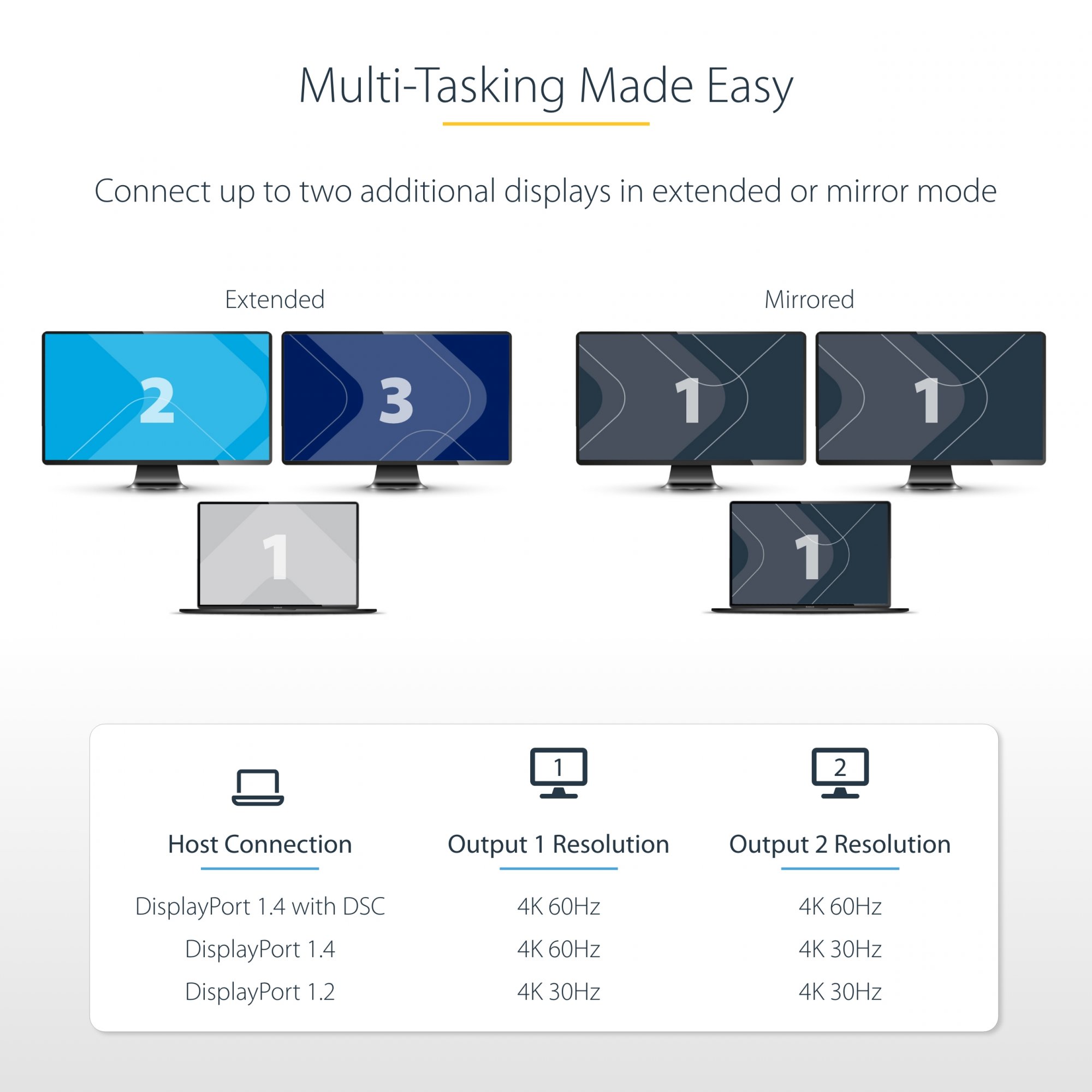

HARDWARE COMPATIBILITY: Dual 4K 60Hz supported on Windows PC with discrete GPUs or 12th gen and up Intel Processors featuring DP 1.4 with DSC; See resolution chart below for other configurations; Please verify number of displays supported by your GPU

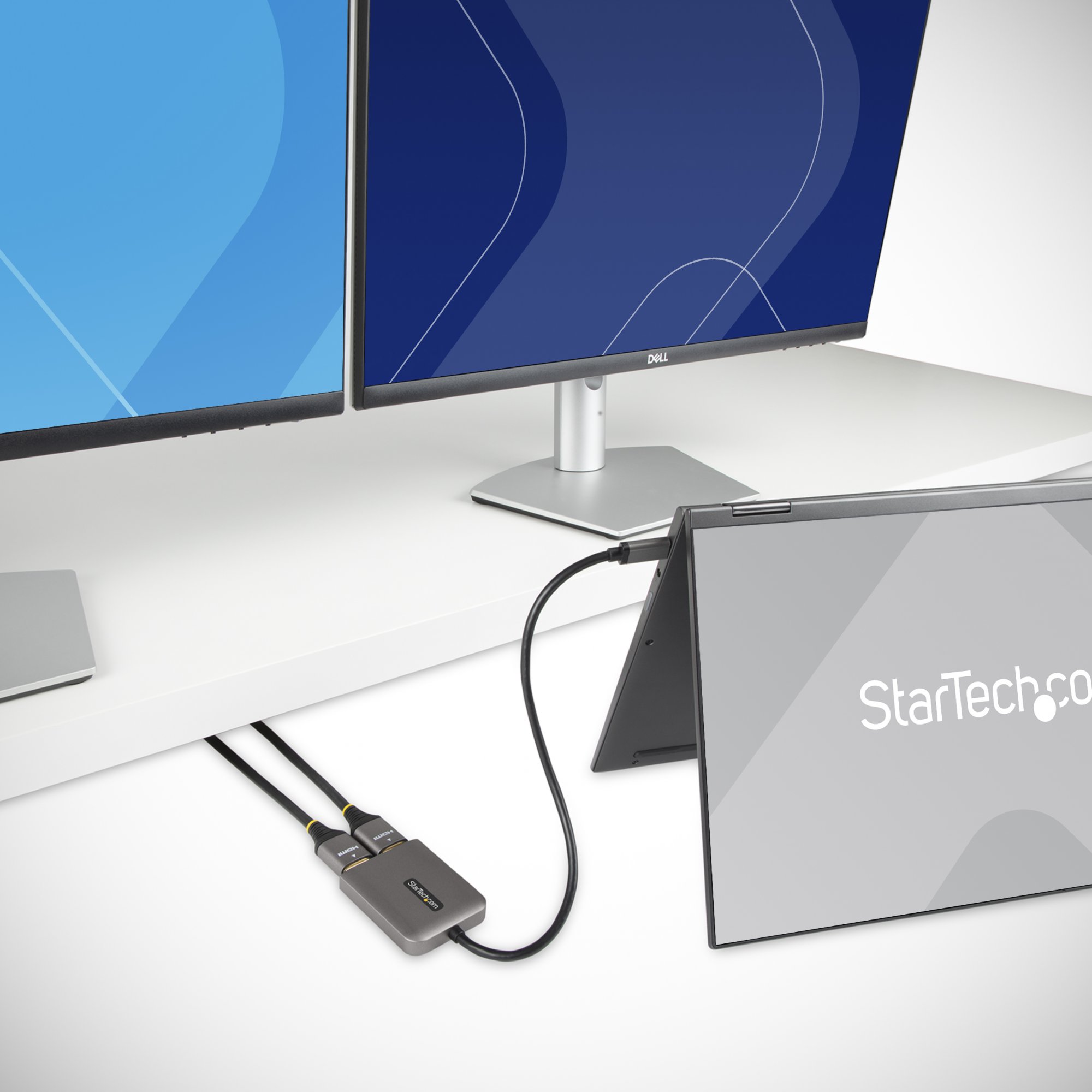

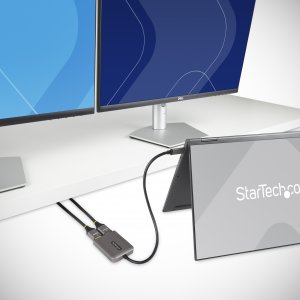

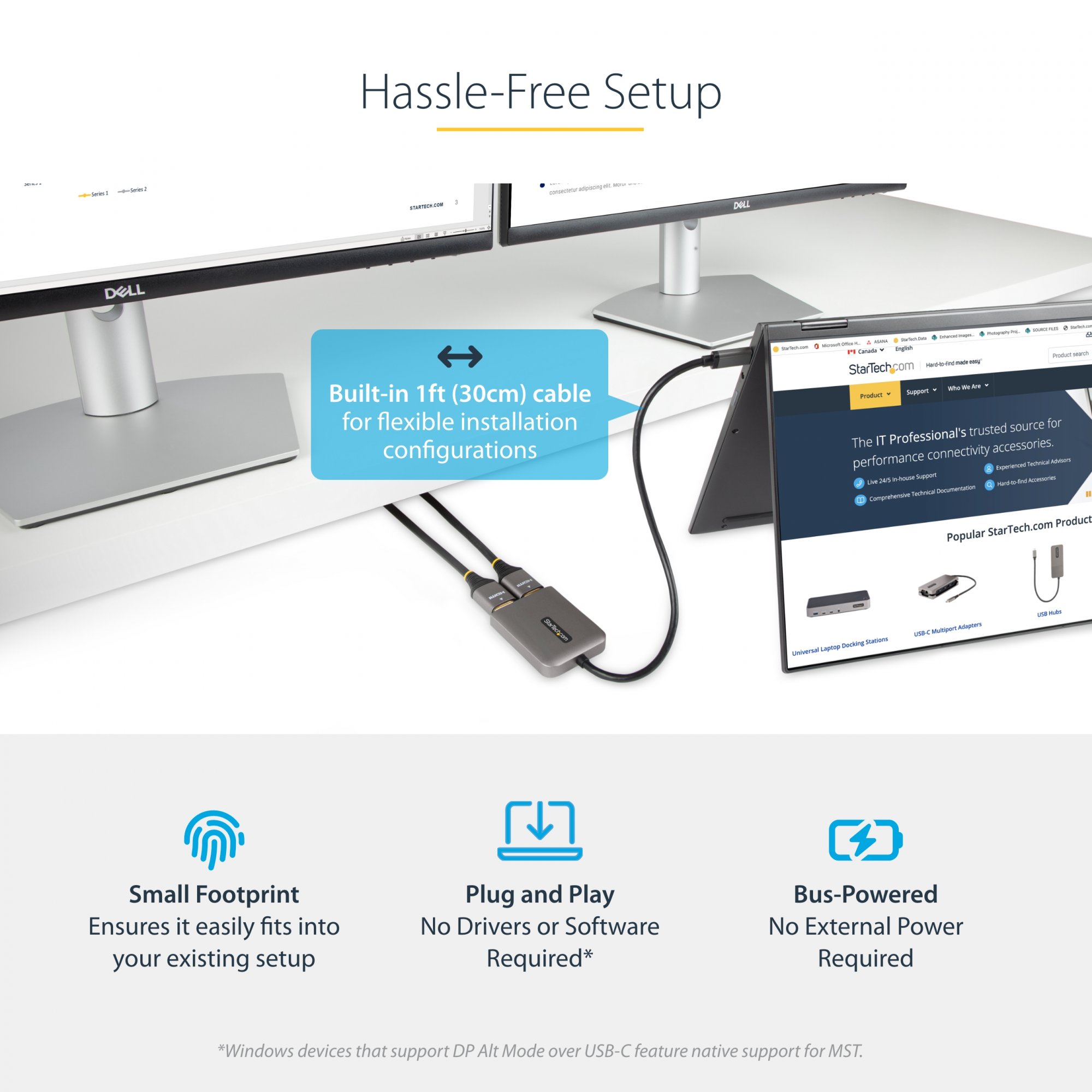

EXTRA-LONG CABLE: 1ft (30 cm) built-in cable for extended reach reduces port/connector strain on 2-in-1 devices like Surface Pro 7 and up, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces
OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the USBC to Dual HDMI Adapter

Product Properties

Manufacturer
StarTech.com

Model
MST14CD122HD

EAN
65030888288

Bullet points

Point
EXTRA-LONG CABLE

HARDWARE COMPATIBILITY

MULTI-MONITOR CONFIGURATION

NO DRIVERS OR SOFTWARE

OUR ADVANTAGE

Design

Housing material
Plastic

Integrated USB cable
Yes

Product colour
Black, Grey

USB cable length
0.3 m

Logistics data

Harmonized System (HS) code
84733020

Master (outer) case height
440 mm

Master (outer) case length
331 mm

Master (outer) case width
473 mm

Products per master (outer) case
70 pc(s)

Operational conditions

Operating relative humidity (H-H)
5 - 90%

Operating temperature (T-T)
0 - 70 °C

Storage temperature (T-T)
-10 - 55 °C

Performance

Audio output channels
7.1 channels

Chipset
Synaptics VMM5200

Data transfer rate (max)
32.4 Gbit/s

DisplayPort output
Yes

DVI output
No

HDMI output
Yes

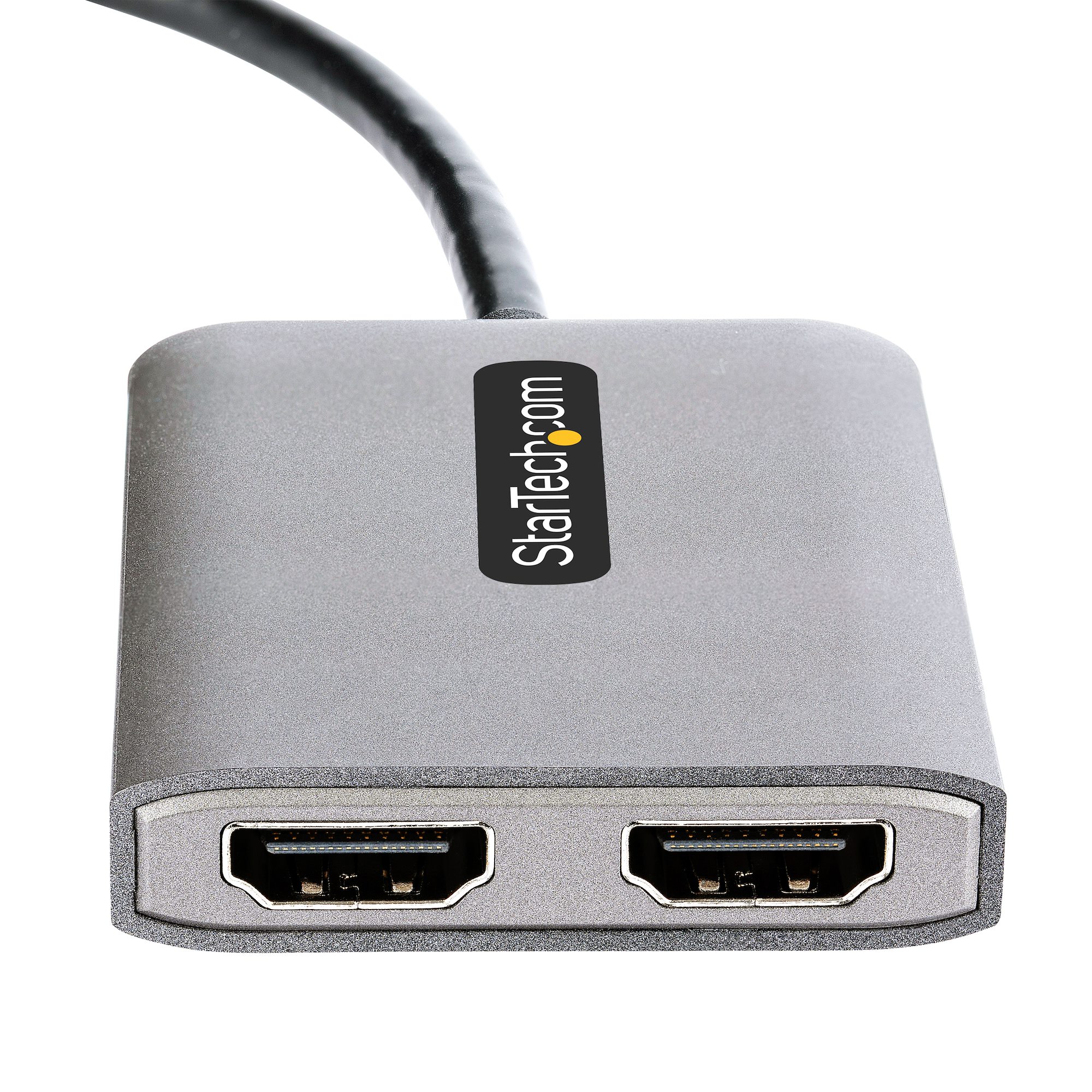

HDMI ports quantity
2

High Dynamic Range (HDR) supported
Yes

Maximum resolution
3840 x 2160 pixels

Number of displays supported
2

Refresh rate at maximum resolution
60 Hz

USB connector form factor
Straight

USB connector gender
Male

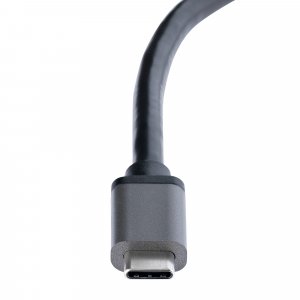

USB connector type

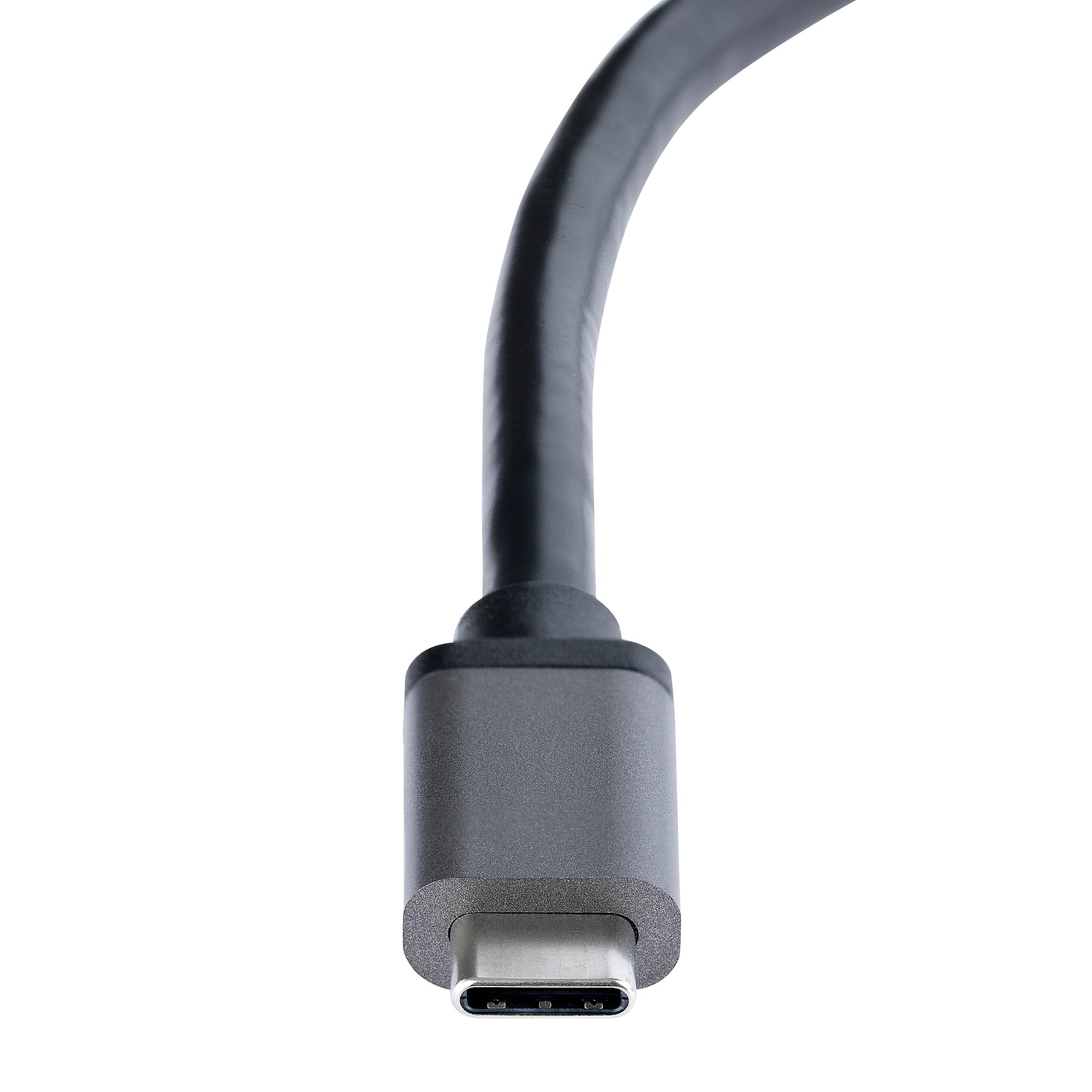

USB Type-C

System requirements

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 x64, Windows 11, Windows 11 x64

Technical details

Sustainability certificates
CE, RoHS

Weight & dimensions

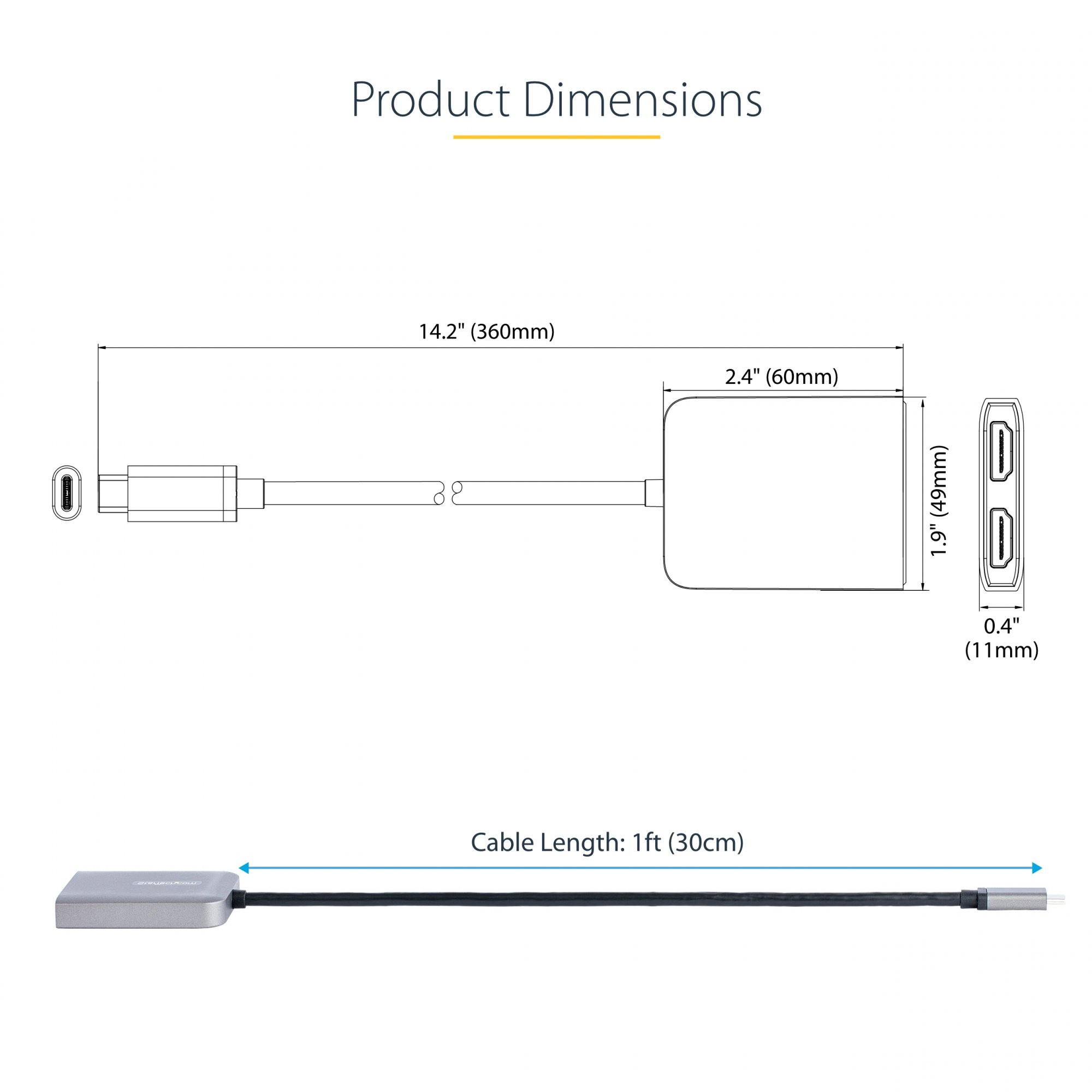

Depth
43 mm

Height
14 mm

Package depth
170 mm

Package height
30 mm

Package weight
108.8 g

Package width
142 mm

Weight
55 g

Width
105 mm
