Description

StarTech.com USB-C & USB-A Dock - Dual Monitor 4K 60Hz Dock DisplayPort + HDMI - Hybrid USB 3.0 Docking Station for USB-C or USB-A Laptops - 6x USB Type-A, GbE - USB 3.1 Gen 1 - Mac/Windows. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Silver, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 4096 x 2160 pixels. Power source type: AC, AC input voltage: 100 - 240 V, Input current: 1 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura

DUAL 4K 60Hz HYBRID USB-C & USB-A DOCK: Universal USB 3.0 docking station (5Gbps) works with USB-C & USB-A laptops/computers; port replicator features 6-Port USB Type-A hub, Gigabit Ethernet, and 3.5mm audio jacks (headset and mic)

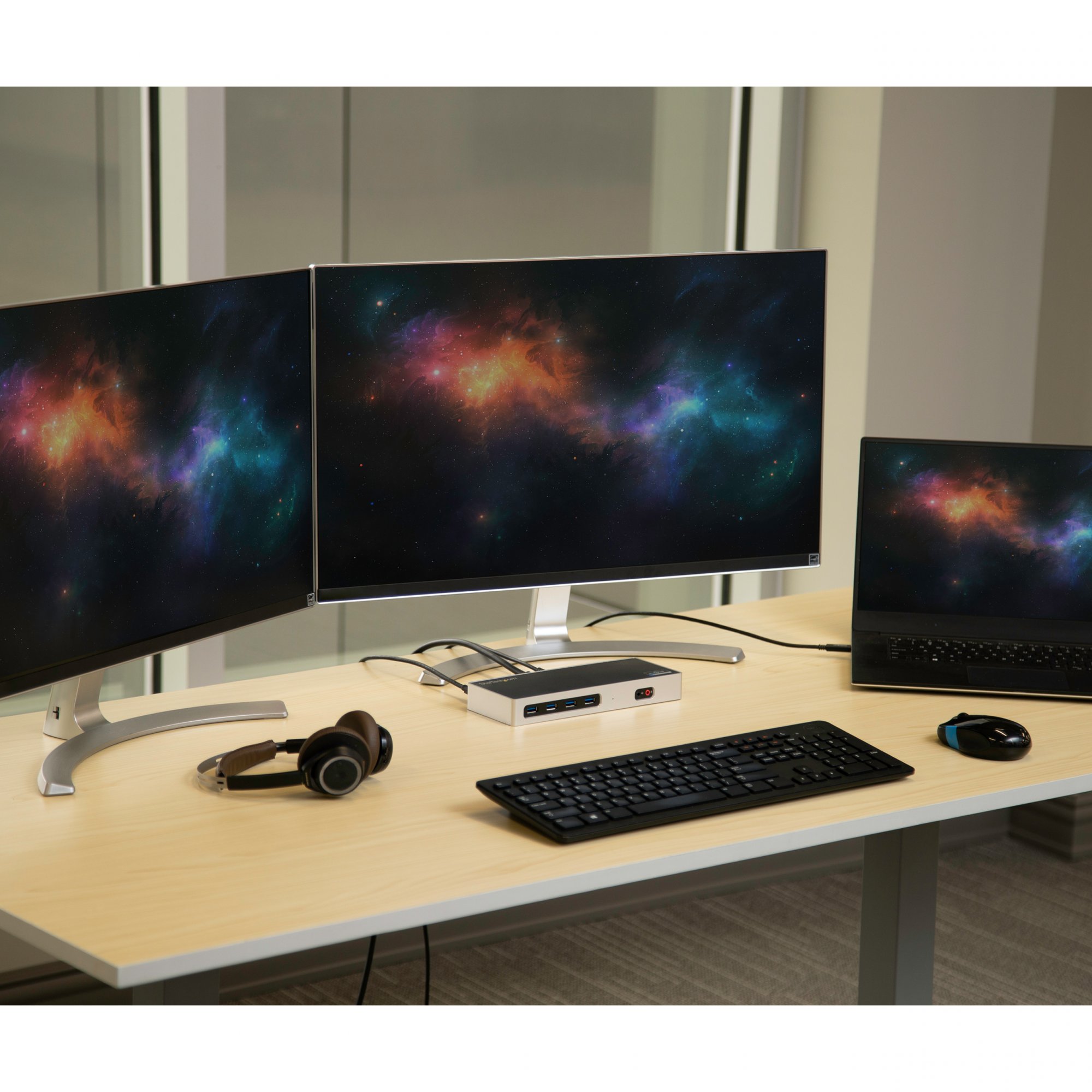

FLEXIBLE MULTI MONITOR VIDEO: This dual 4K 60Hz universal laptop docking station can connect up to 2 monitors: Dual DisplayPort or Dual HDMI or DP + HDMI displays - supports two extended displays on MacBooks with both the Intel processor or Apple M1/M2 chip

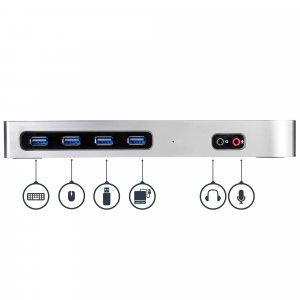

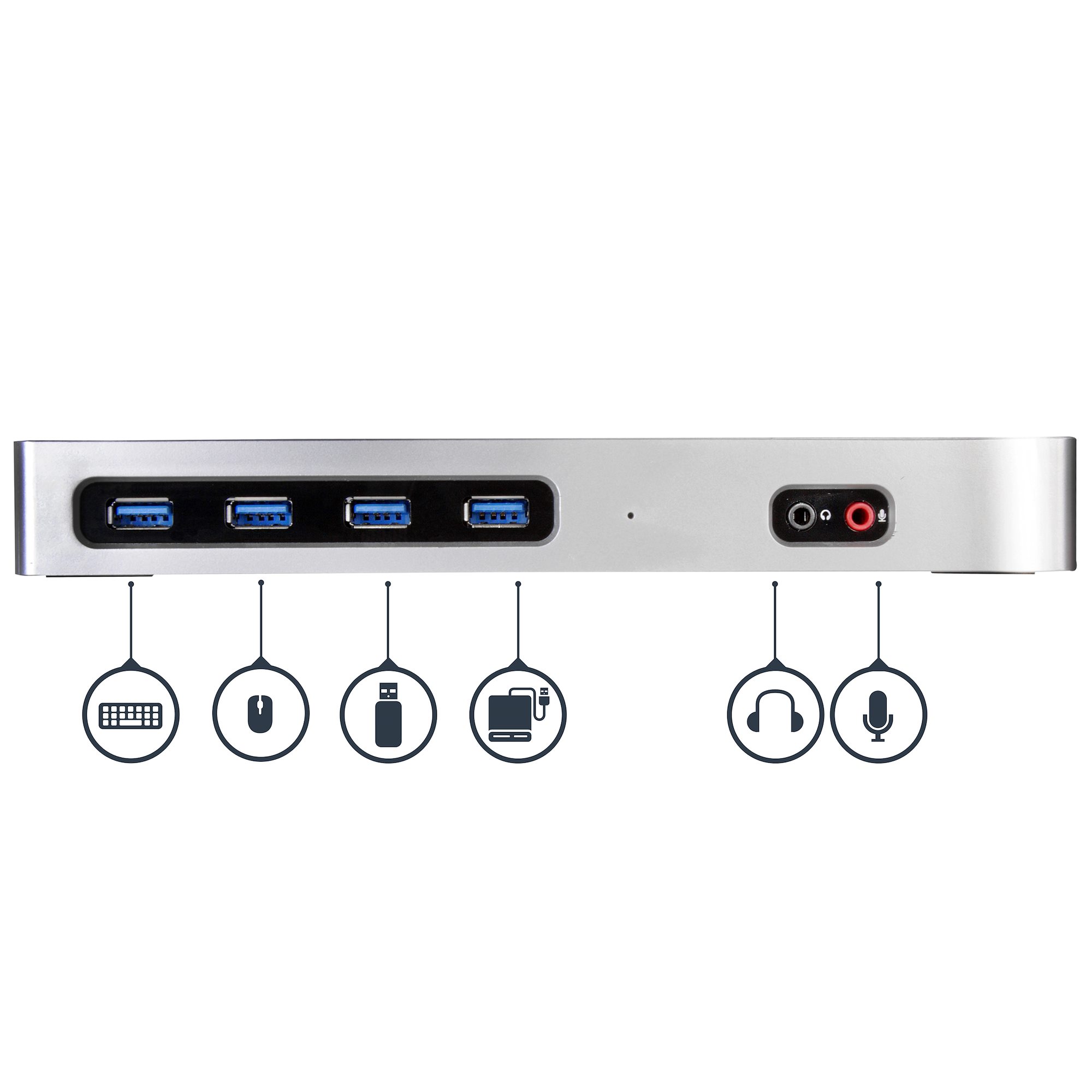

6 DOWNSTREAM USB-A PORTS: Hybrid USB C dock has a built-in 6-port USB 3.1/3.2 Gen 1 (5Gbps) hub with USB-A ports on the front and back to support devices such as a keyboard, mouse, flash drive, external hard drive, and printer
FOR USB-A & USB-C LAPTOPS: DisplayLink certified DL 6950 chipset supports USB-C/Thunderbolt 3 & USB-A PCs; USB-C & USB-A host cables incl; Supports Windows, macOS, Chrome OS, & Ubuntu; This dock does not provide USB-C Power Delivery to charge your laptop
STARTECH.COM ADVANTAGE: StarTech.com offers a 3-year warranty and free lifetime technical support on all docking stations; with over 3000 products globally, StarTech.com makes hard-to-find easy.

Product Properties

Manufacturer
StarTech.com

Model
DK30A2DH

EAN
65030868235

Bullet points

Point
6 DOWNSTREAM USB-A PORTS

DUAL 4K 60Hz HYBRID USB-C & USB-A DOCK

FLEXIBLE MULTI MONITOR VIDEO

FOR USB-A & USB-C LAPTOPS

STARTECH.COM ADVANTAGE

Logistics data

Harmonized System (HS) code
84733020

Master (outer) case height
305 mm

Master (outer) case length
325 mm

Master (outer) case width
325 mm

Products per master (outer) case
10 pc(s)

Network

10G support
No

Auto MDI/MDI-X
Yes

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100,1000 Mbit/s

Full duplex
Yes

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-10 - 70 °C

Other features

Cable length
0.152 m

Chipset
DisplayLink - DL-6950, VIA/VLI - VL813

Number of microphone inputs
1

USB data transfer rates
12,480,5000 Mbit/s

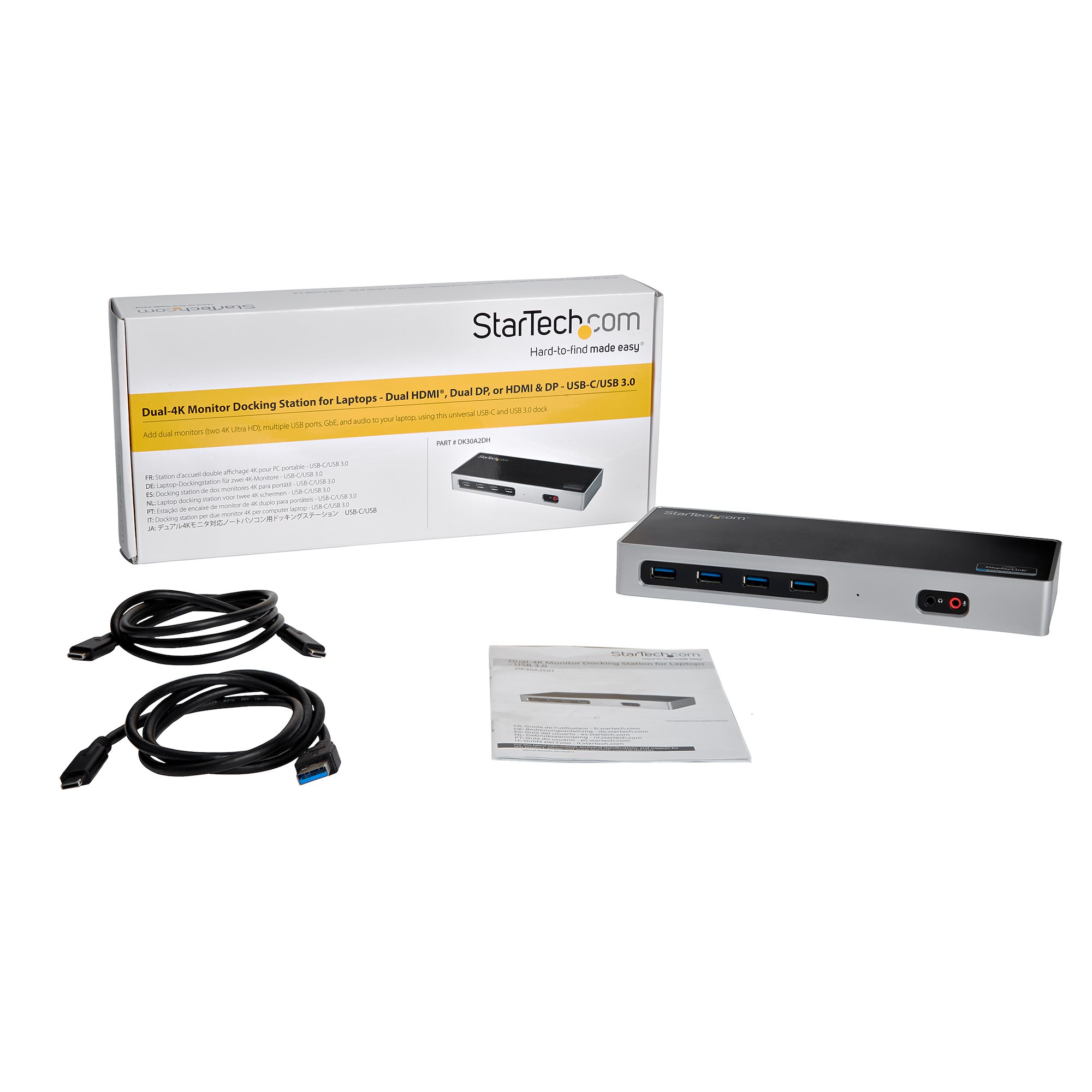

Packaging content

AC adapter included
Yes

Cables included
USB Type-A to USB Type-C, USB Type-C

Quick start guide
Yes

Packaging data

Package depth
318 mm

Package height
52 mm

Package weight
900 g

Package width
130 mm

Performance

Brand compatibility
Any brand

Card reader integrated
No

Certification
CE, FCC, REACH

Data transfer rate
5 Gbit/s

Housing material
Aluminium, Plastic

LED indicators
Power

Maximum digital resolution
4096 x 2160 pixels

Number of displays supported
2

On/off switch
Yes

Product colour
Black, Silver

UASP support
Yes

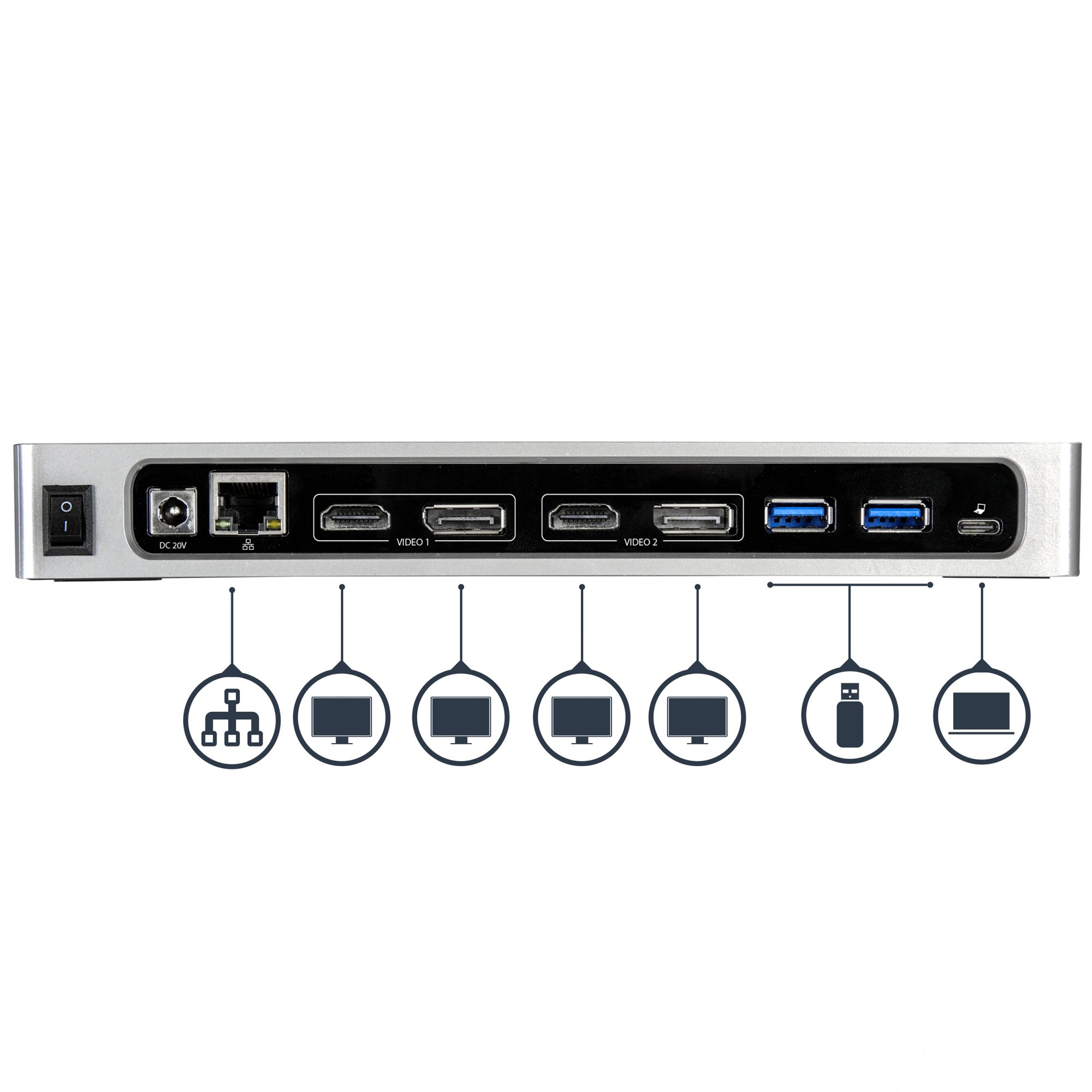

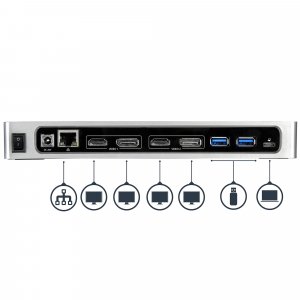

Ports & interfaces

Combo headphone/mic port
No

Connectivity technology
Wired

DC-in jack
Yes

DisplayPorts quantity
2

HDMI ports
2

Headphone connectivity
3.5 mm

Headphone outputs
1

Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Microphone in
Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6

Power

AC input voltage
100 - 240 V

Compatible power plug types
AU, EU, JP, UK, US

Input current
1 A

Output current
2 A

Output voltage
20 V

Power consumption (typical)
40 W

Power plug type
Type N

Power source type
AC

Software

Mac compatibility
Yes

Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Sustainability

Sustainability certificates
RoHS

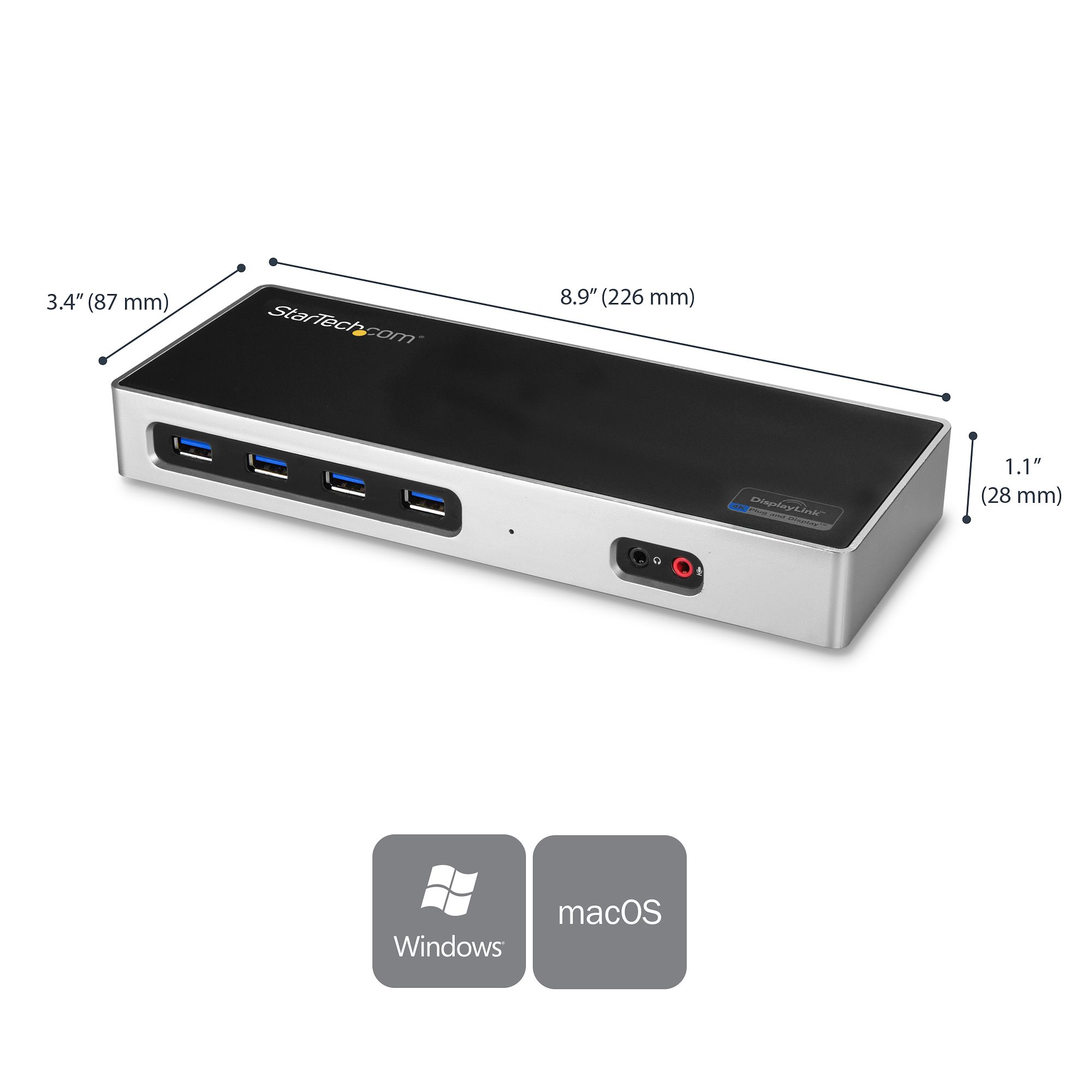

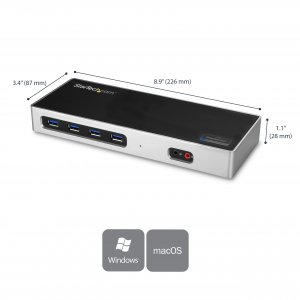

Weight & dimensions

Depth
226 mm

Height
28 mm

Weight
301 g

Width
87 mm
