Description

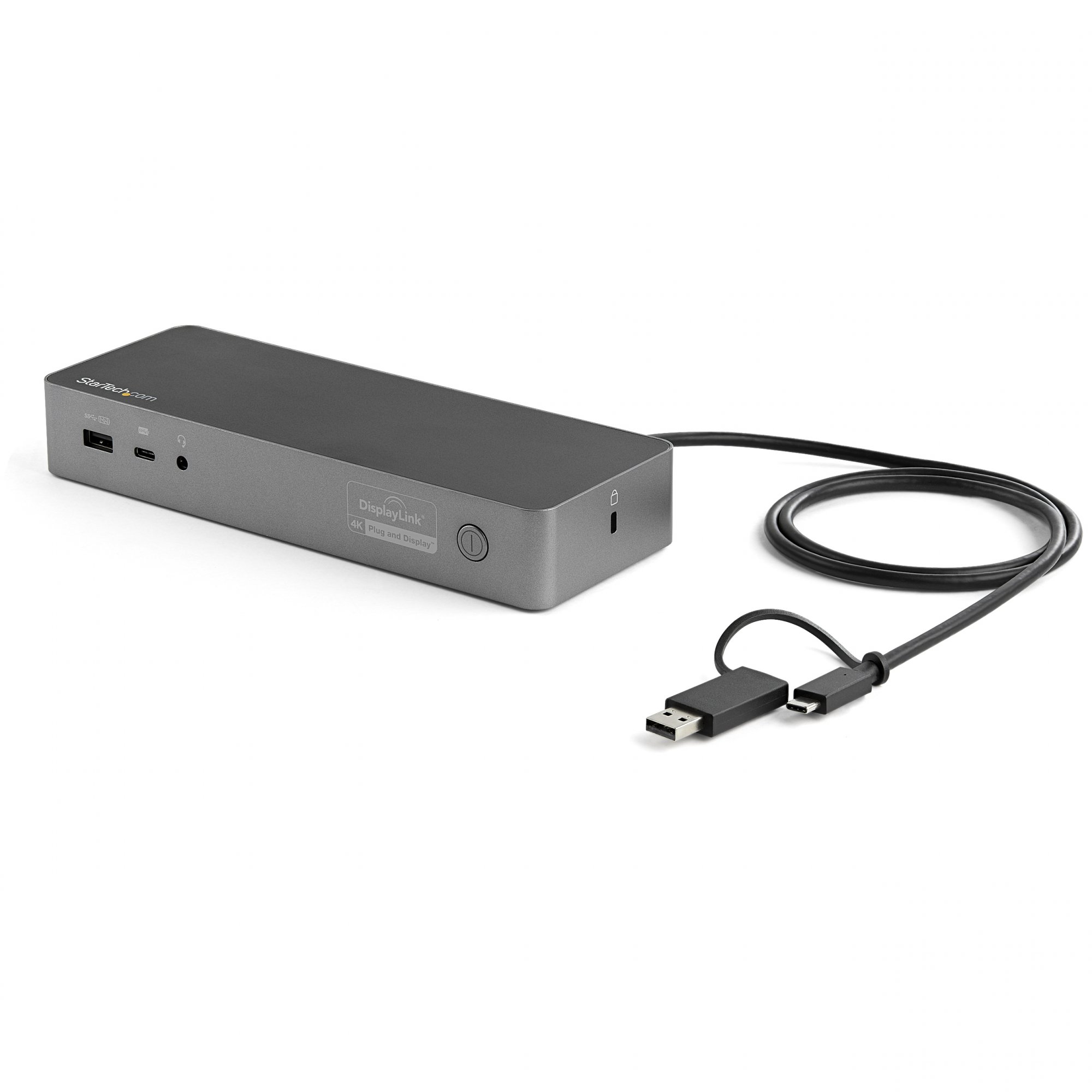

StarTech.com USB-C & USB-A Dock - Hybrid Universal Laptop Docking Station with 100W Power Delivery - Dual Monitor 4K 60Hz HDMI & DisplayPort - 4x USB 3.1 Gen 1 Hub, GbE - Windows & Mac. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Headphone connectivity: 3.5 mm. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Grey, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 5120 x 2880 pixels. AC input voltage: 100 - 240 V, Input current: 2.5 A, Power supply: 100 W. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina,..., Other operating systems supported: ChromeOS

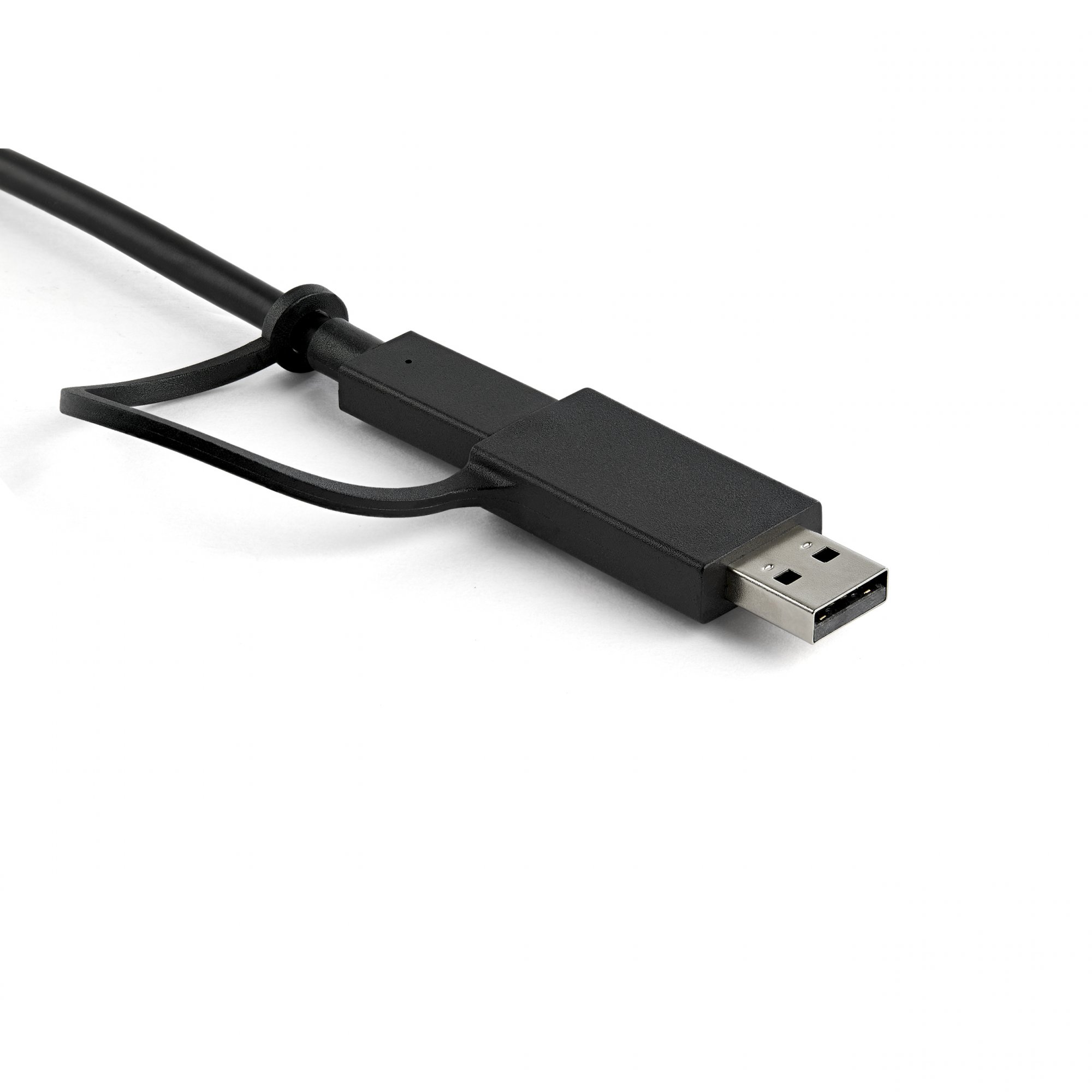

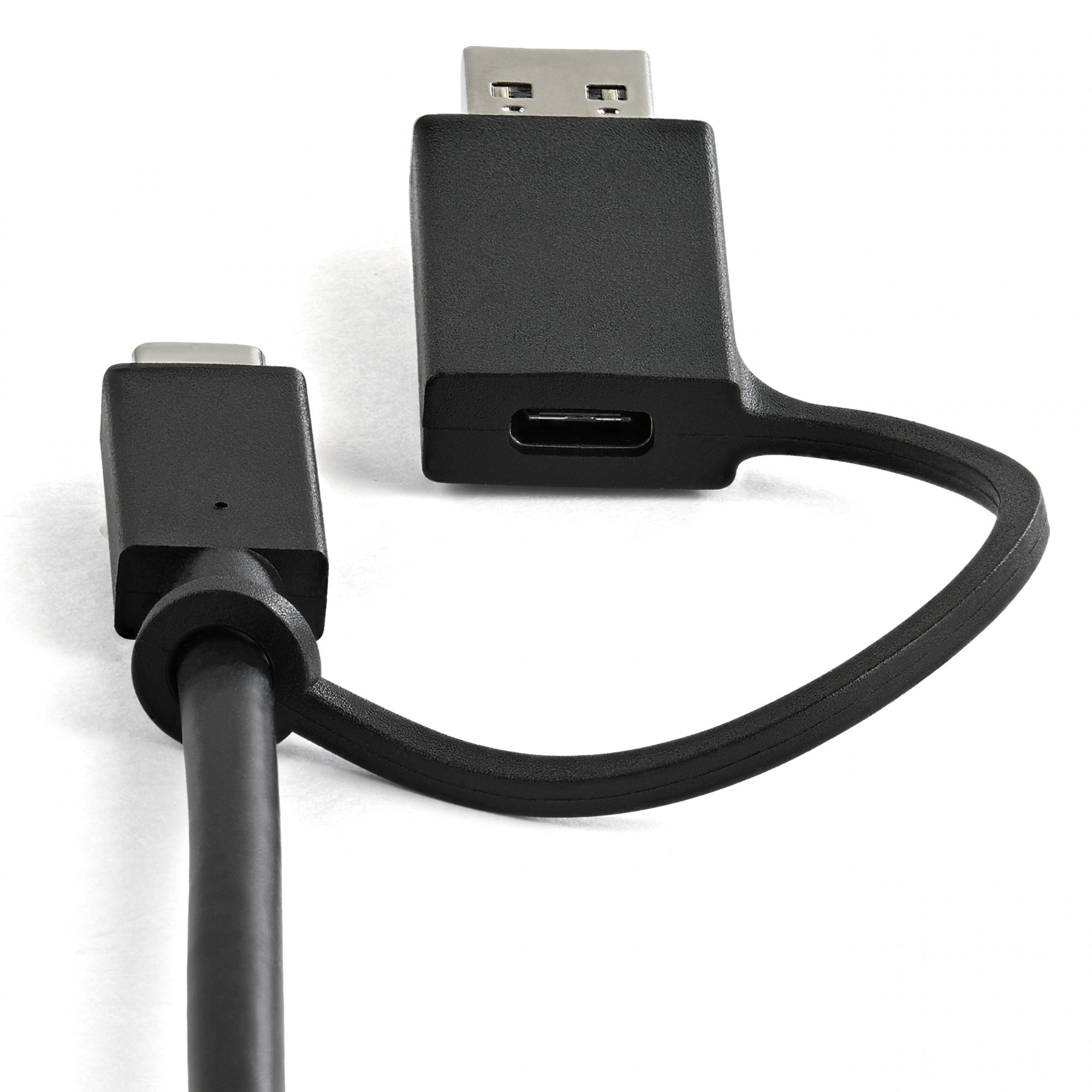

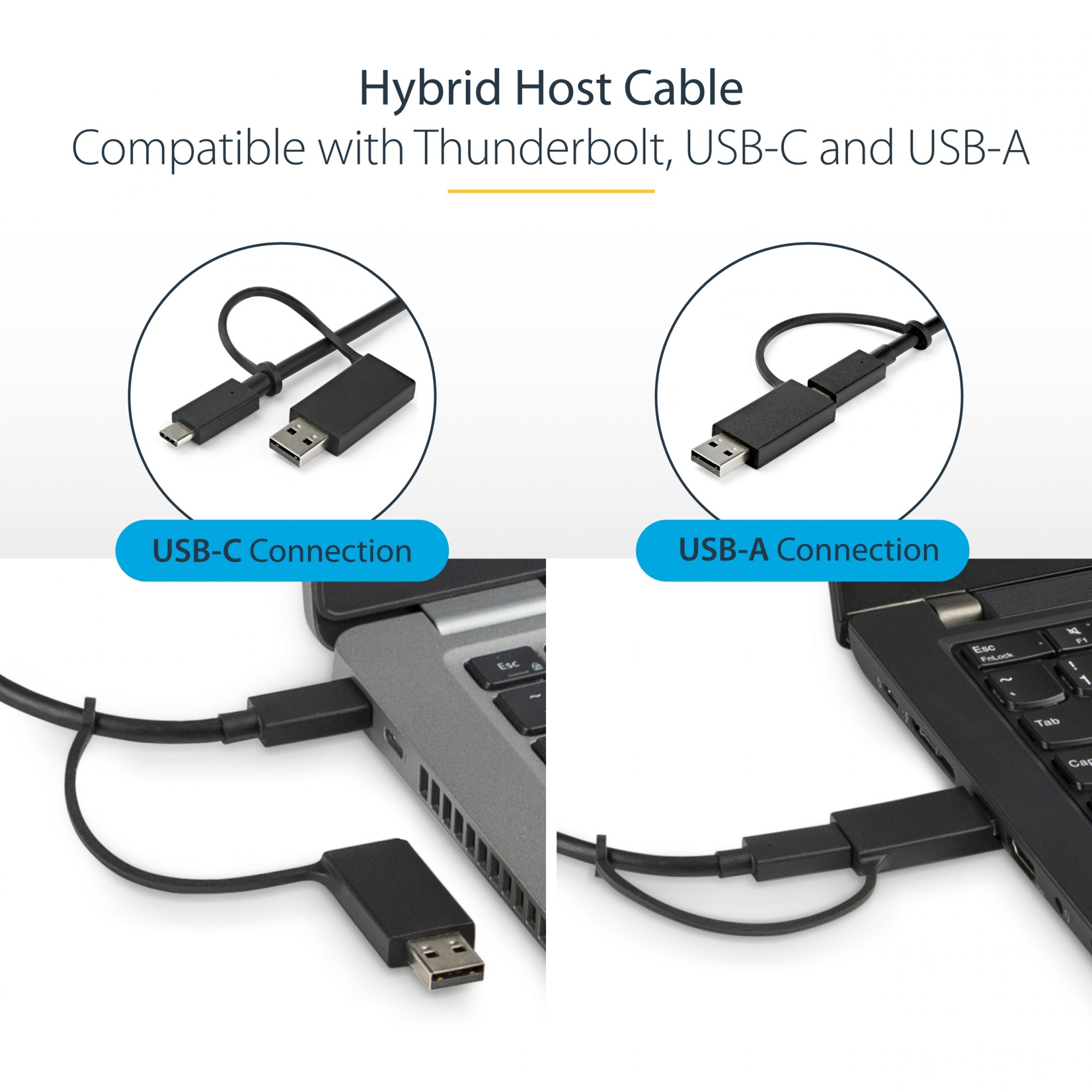

HYBRID DOCK: Universal docking station works with USB Type-C, Thunderbolt 3 / 4 & USB Type-A laptop computers, using a 2-in-1 USB-C/USB-A 3.1 Gen 1 cable, ideal for hoteling or shared workspace setup

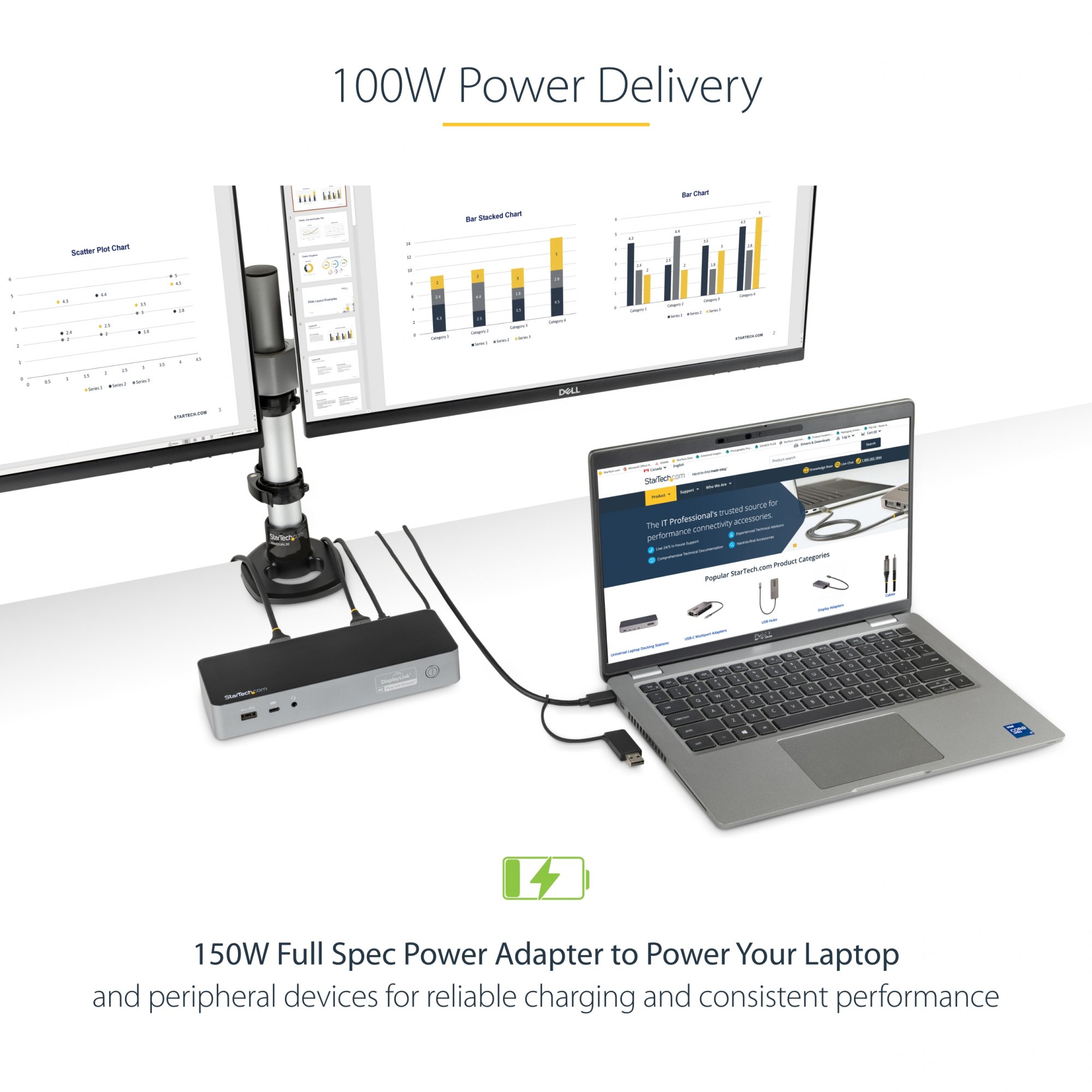

100W POWER DELIVERY 3.0: Power & charge USB-C & Thunderbolt 3 and 4 workstation laptops & ultrabooks incl. Lenovo X1, Thinkpad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, Zbook & MacBook Pro 16

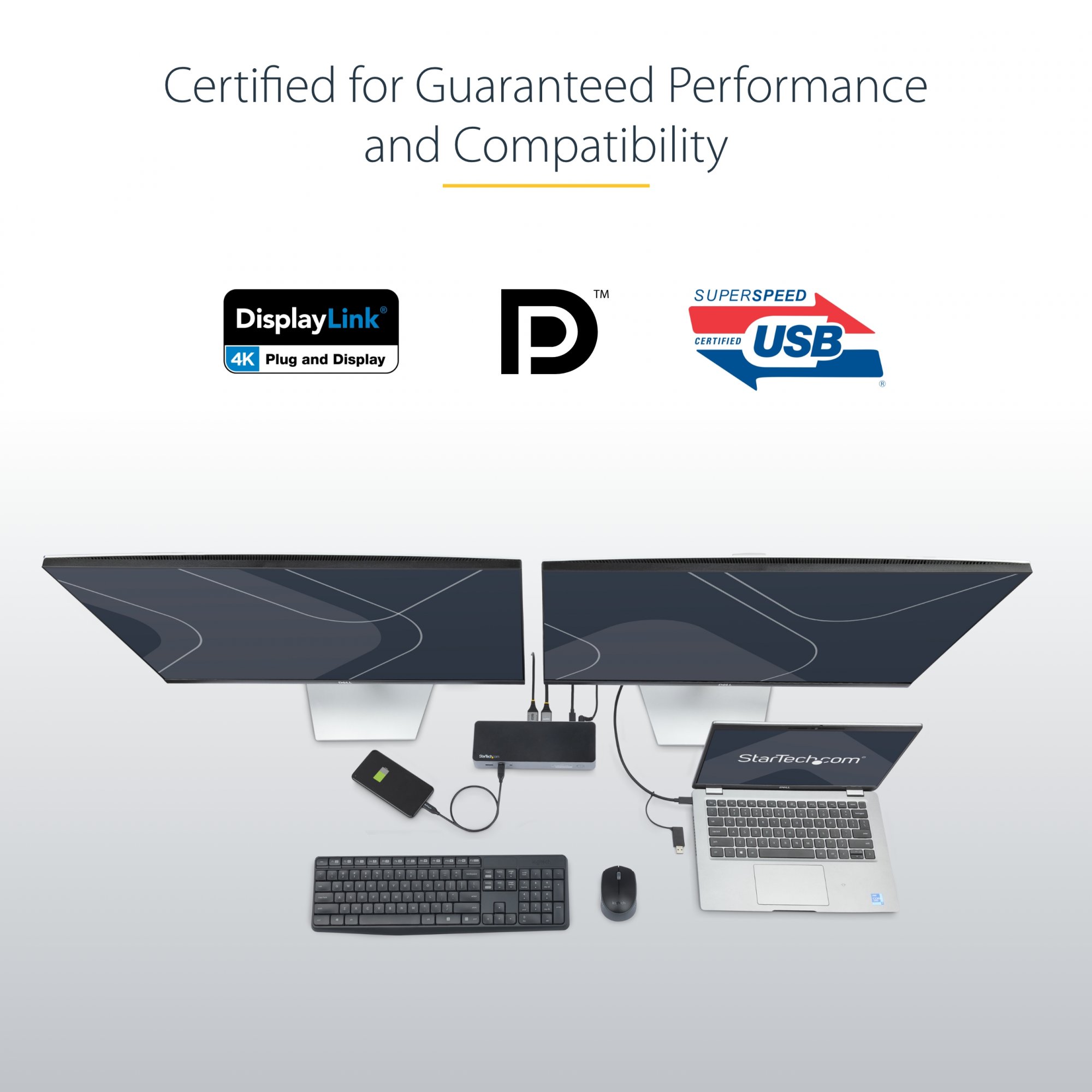

GUARANTEED COMPATIBILITY: USB-C & USB-A hybrid dock is USB-IF, VESA & DisplayLink certified for max performance & universal compatibility w/ Dell, HP, Lenovo & Apple where mixed laptop brands deployed

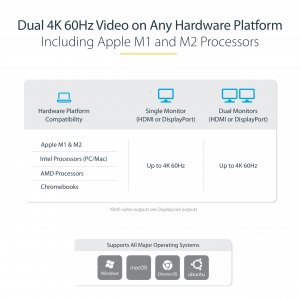

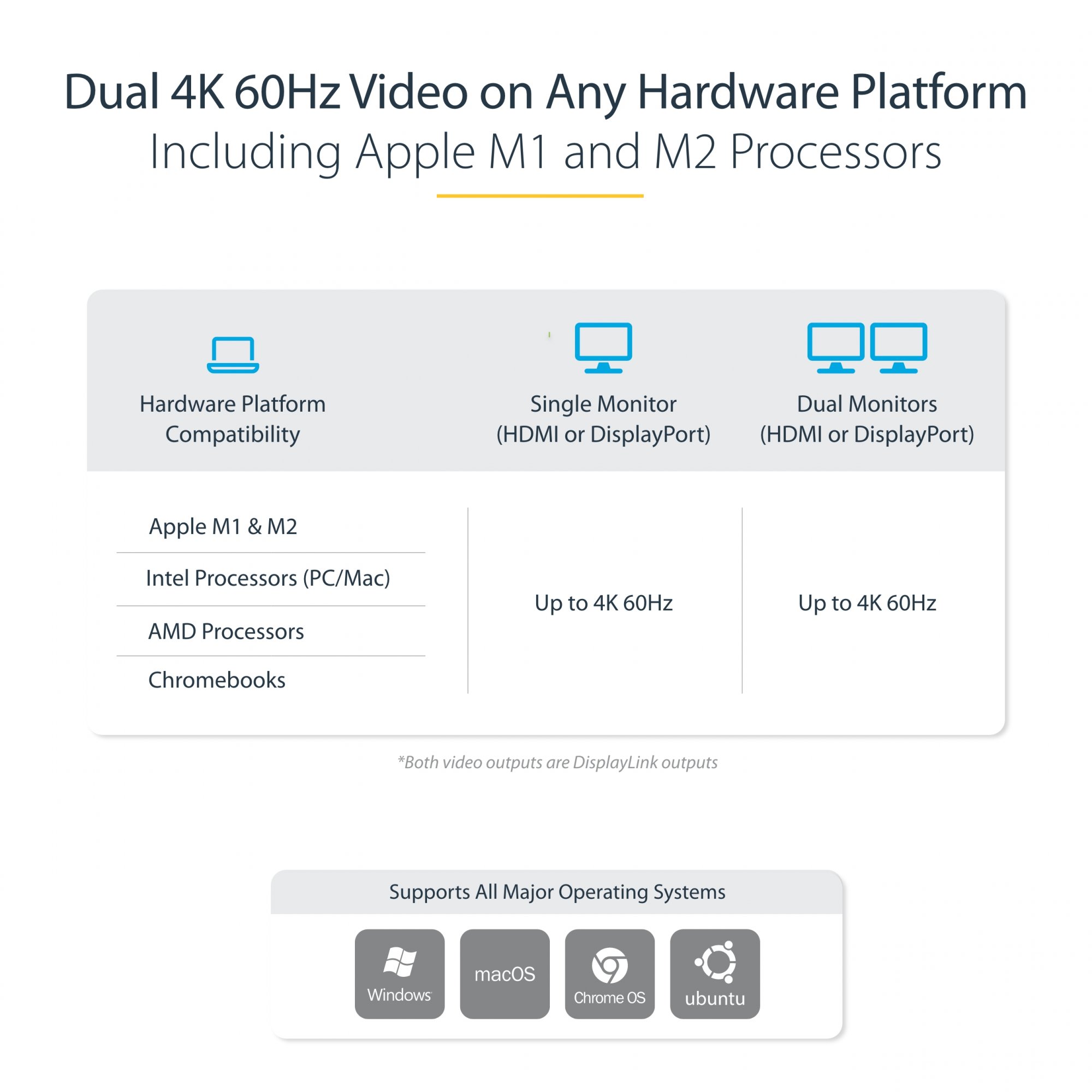

FLEXIBLE DUAL VIDEO OUTPUTS: This Dual 4K 60Hz UHD USB-C & USB-A docking station can connect Dual DisplayPort or Dual HDMI or DP + HDMI displays; supports dual extended displays on MacBooks w/ the Intel processor or Apple M1/M2 chip

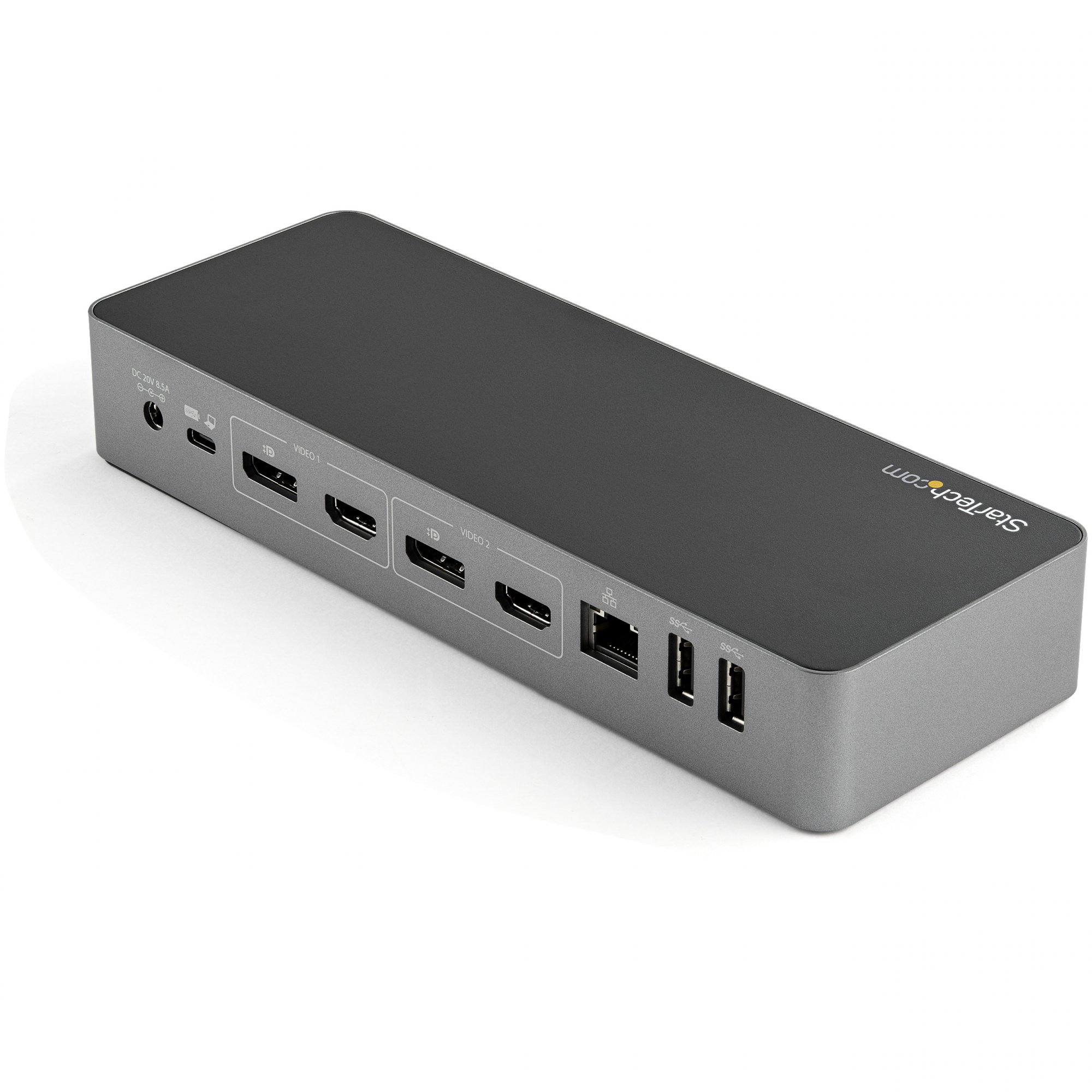

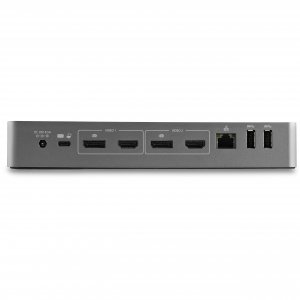

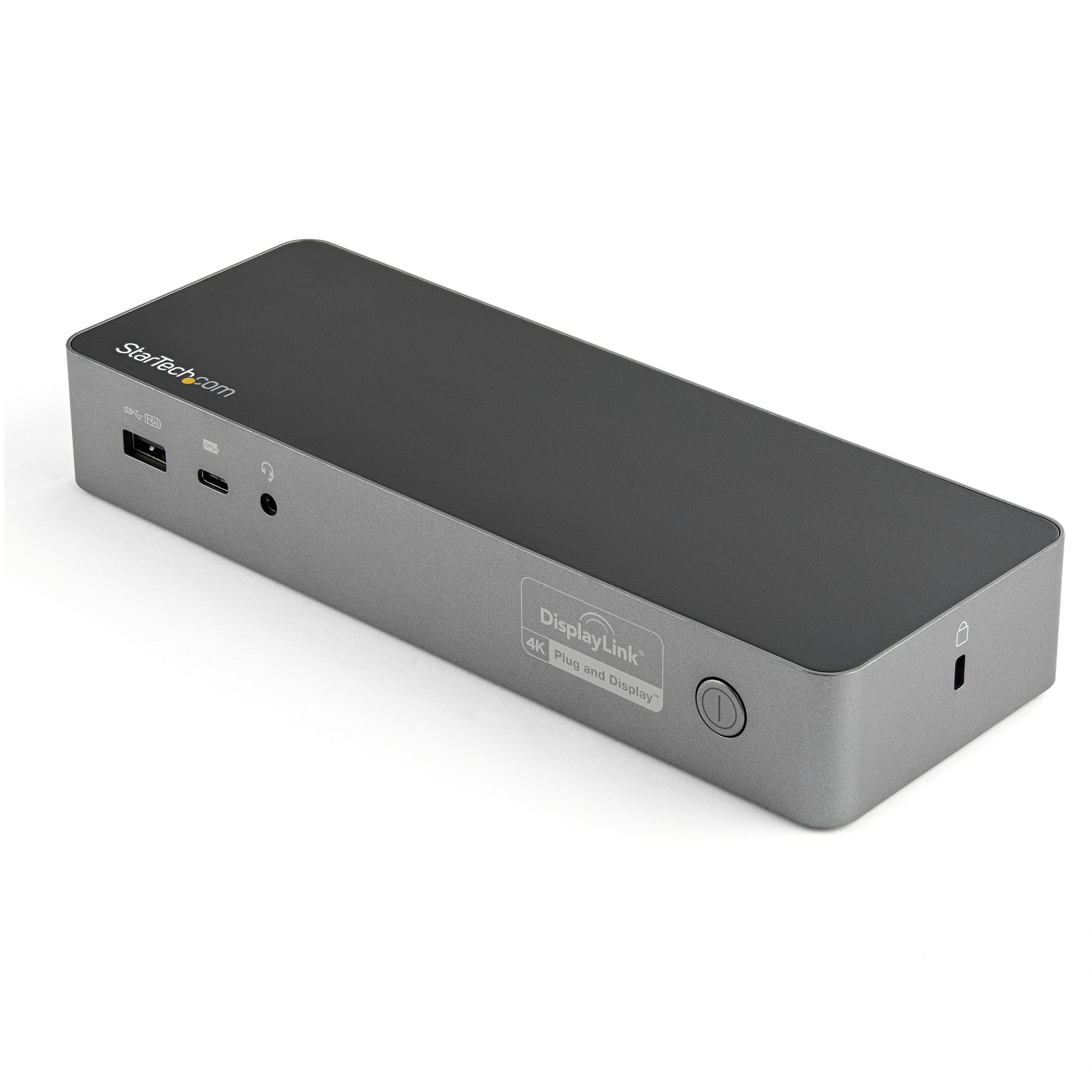

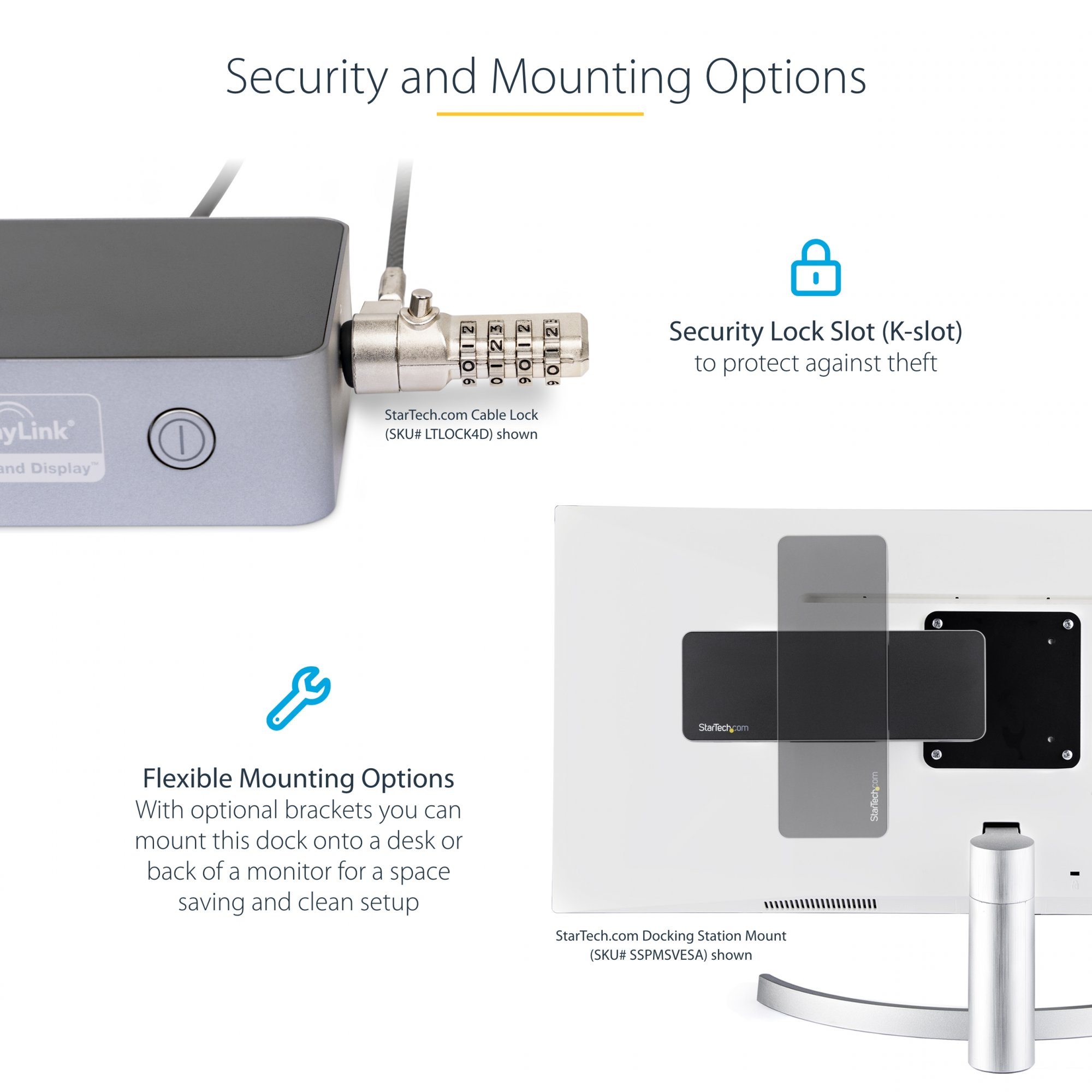

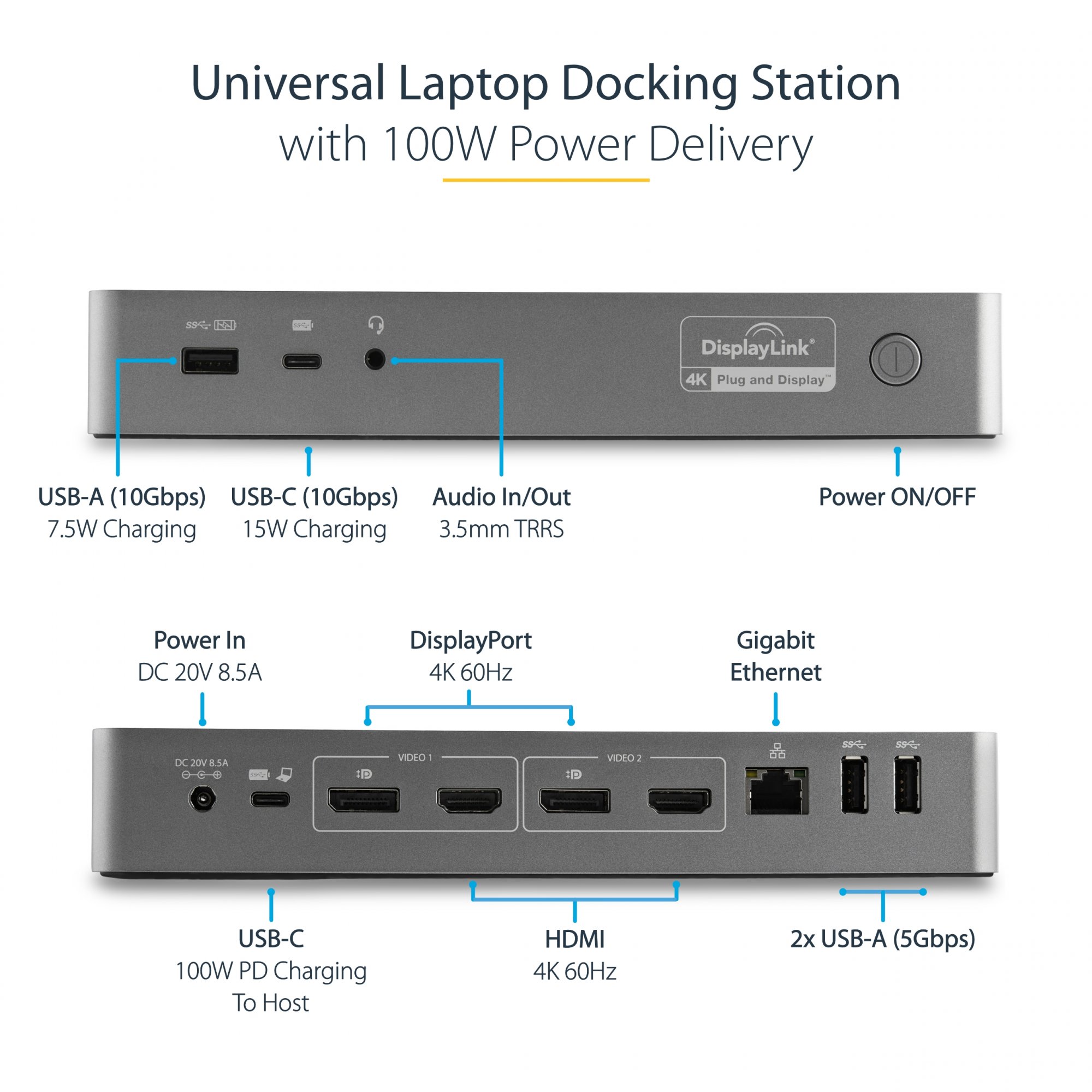

FULL FEATURED DOCK: 1 USB-C, 3 USB-A (2 fast charge), Gigabit Ethernet & audio ports, k-slot for security & holes for optional mounting bracket; incl. DisplayLink update utility

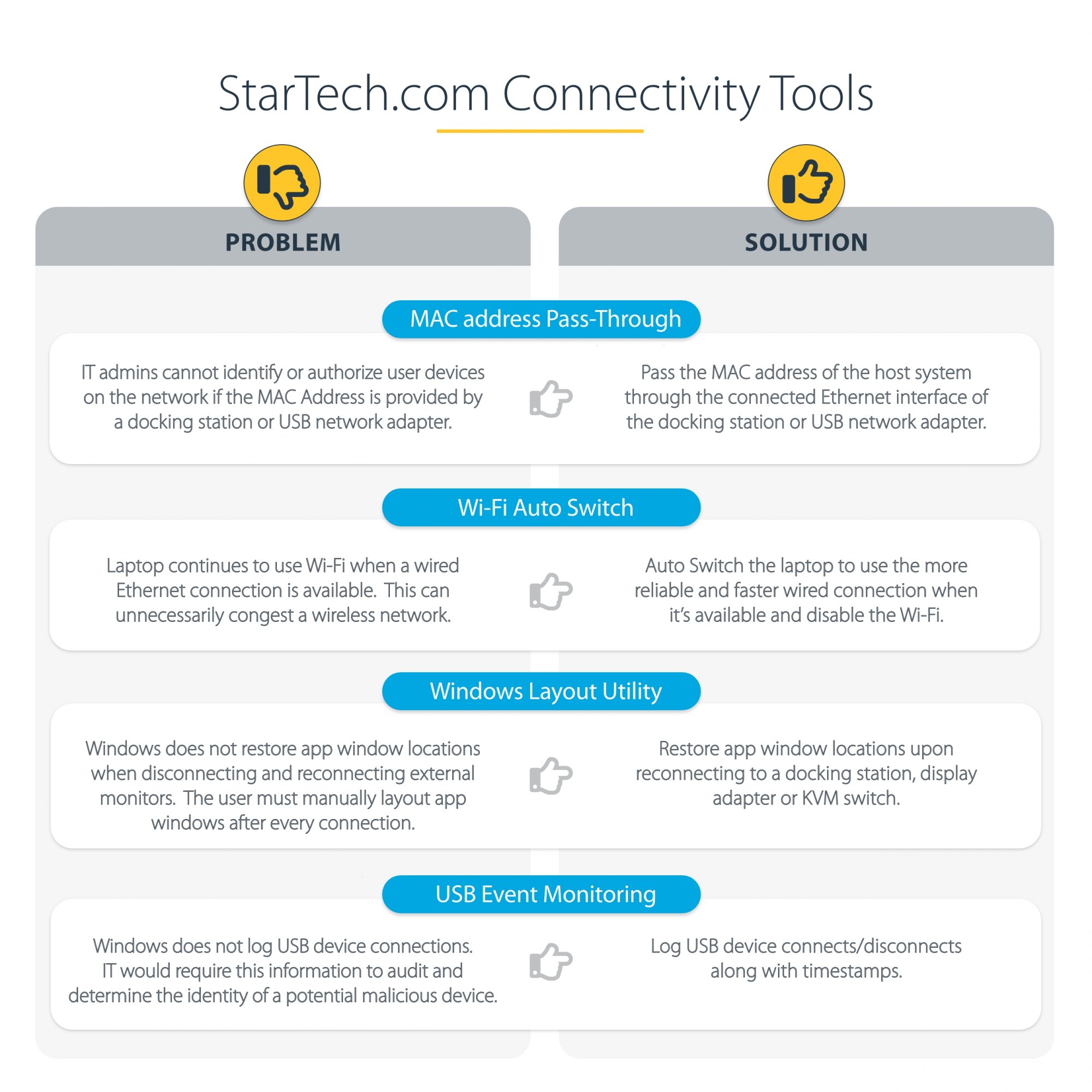

CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities

Product Properties

Manufacturer
StarTech.com

Model
DK30C2DPEPUE

EAN
65030879989

Bullet points

Point
100W POWER DELIVERY 3.0

CONNECTIVITY TOOLS

FLEXIBLE DUAL VIDEO OUTPUTS

FULL FEATURED DOCK

GUARANTEED COMPATIBILITY

HYBRID DOCK

Logistics data

Harmonized System (HS) code
84733020

Master (outer) case height
302 mm

Master (outer) case length
335 mm

Master (outer) case width
280 mm

Products per master (outer) case
6 pc(s)

Network

10G support
N

Ethernet LAN
Y

Ethernet LAN (RJ-45) ports
1

Full duplex
Y

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
0 - 50 °C

Storage temperature (T-T)
-20 - 70 °C

Other features

Chipset
DisplayLink - DL6950, Genesys Logic - GL3523, Fresco Logic - FL7102, Fresco Logic - FL7201, VIA Labs - VL160, RealTek - RTL8153, Texas Instruments - TS3A225E

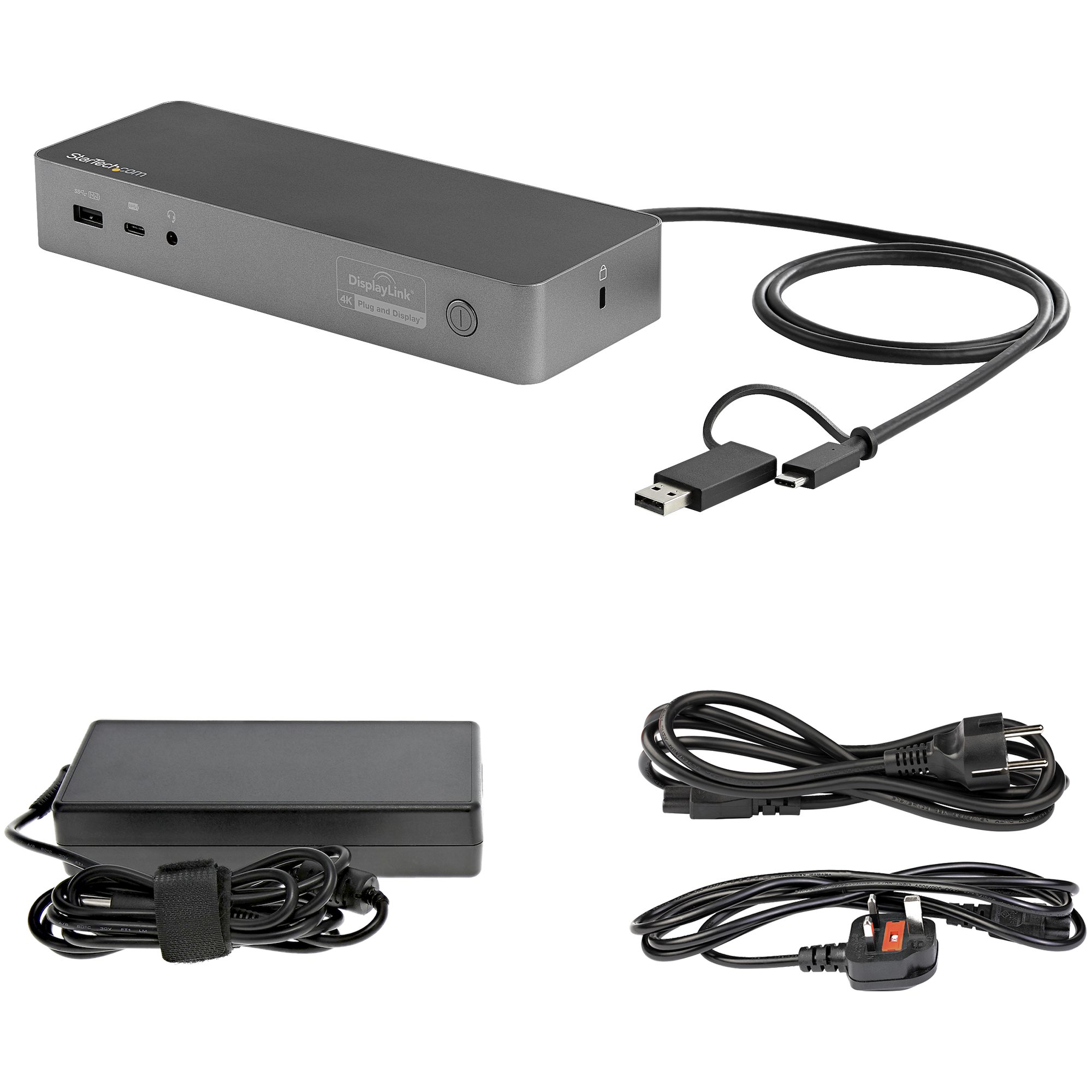

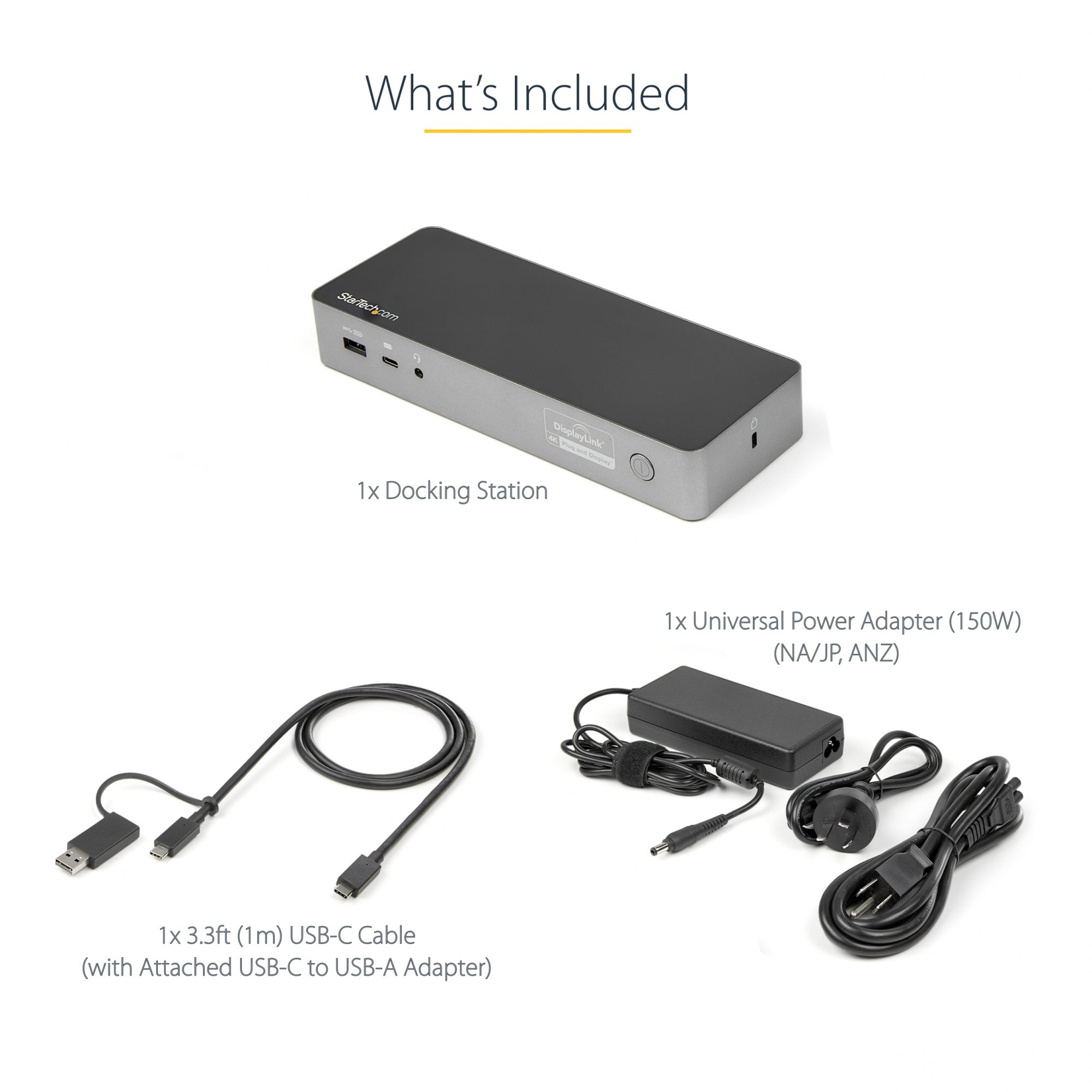

Packaging content

AC adapter included
Y

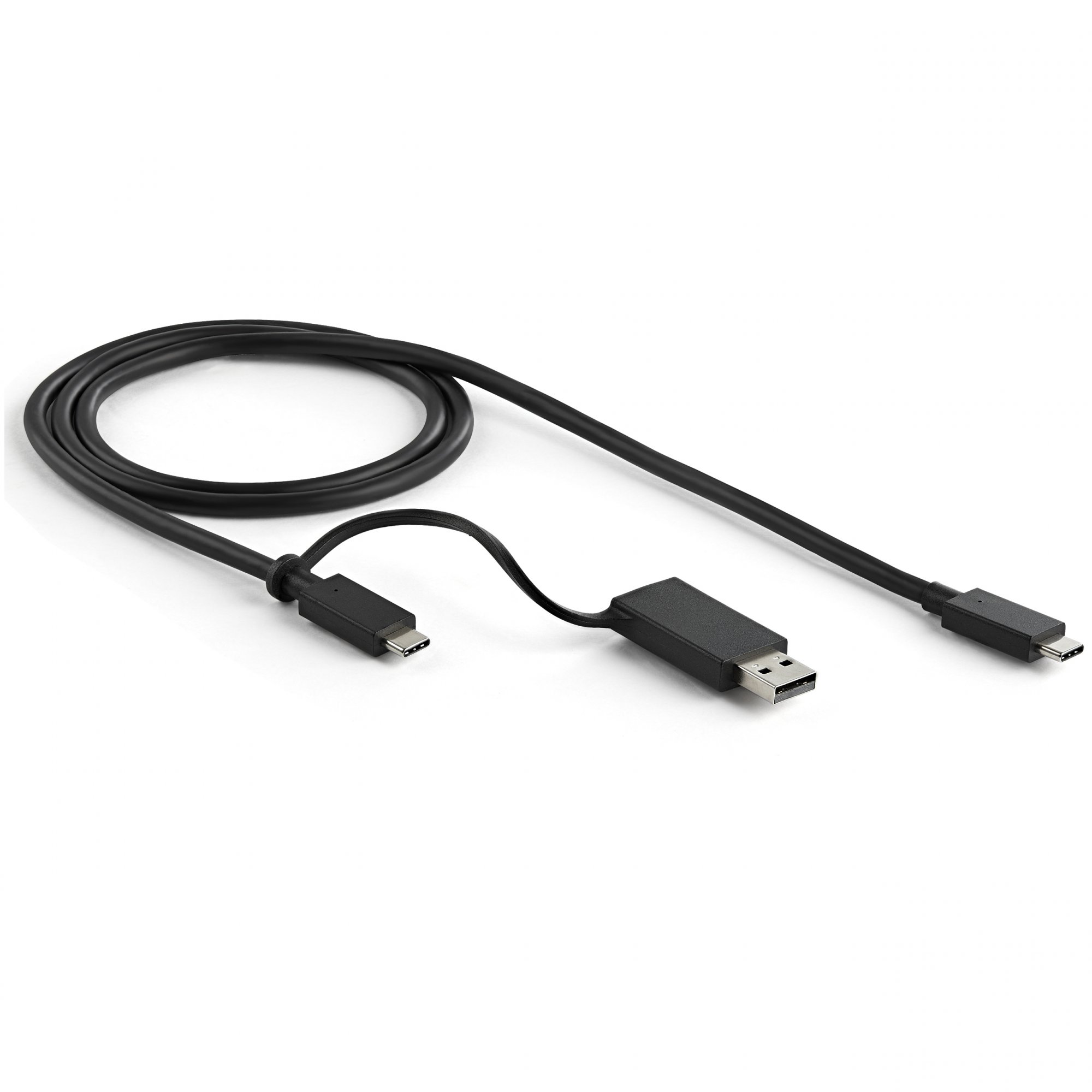

Cables included
USB Type-A to USB Type-C

Quick start guide
Y

Packaging data

Package depth
270 mm

Package height
90 mm

Package weight
1.3 kg

Package width
155 mm

Performance

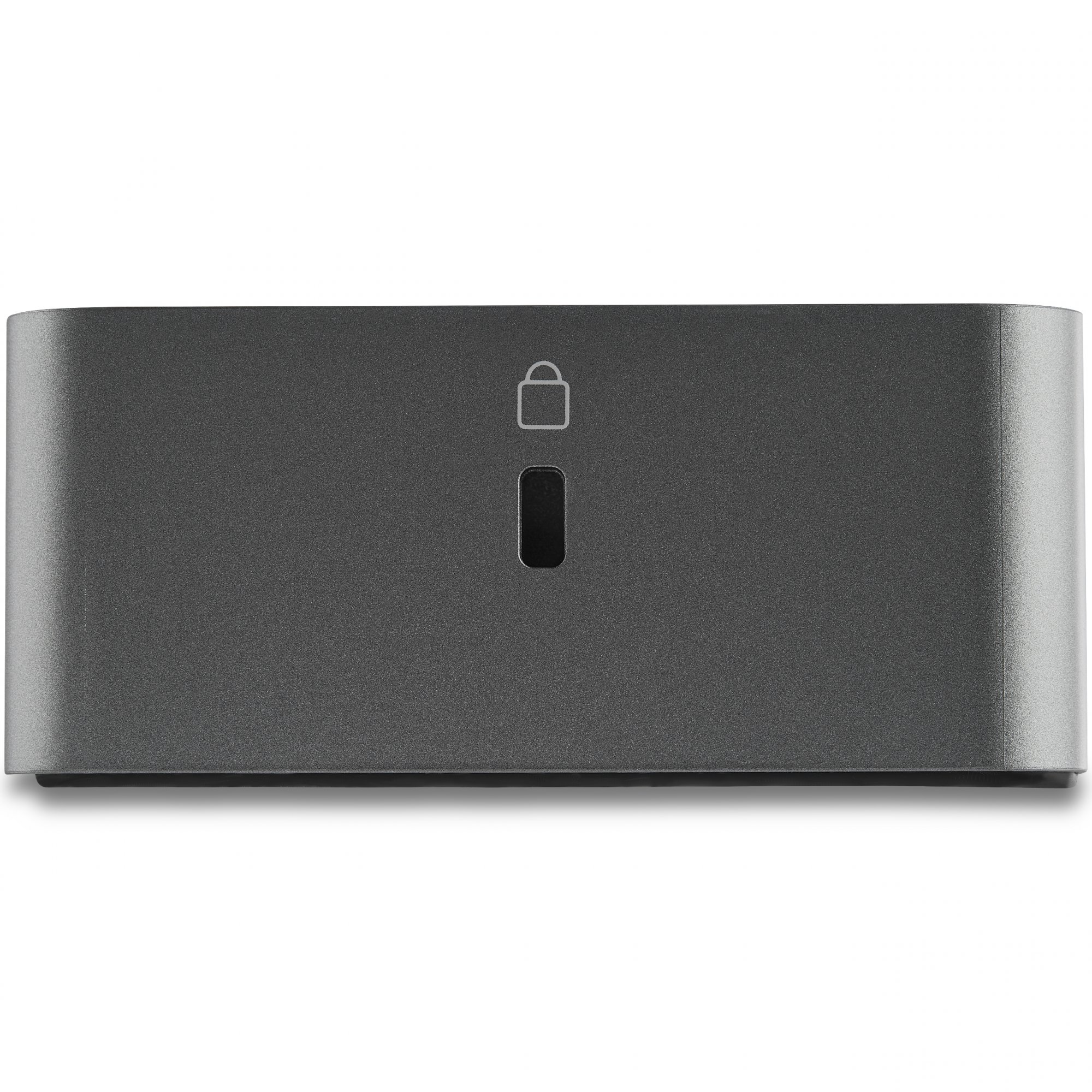

Cable lock slot
Y

Cable lock slot type
Kensington

Card reader integrated
N

Certification
CE, FCC, REACH

Data transfer rate
5 Gbit/s

Housing material
Plastic

Maximum digital resolution
5120 x 2880 pixels

On/off switch
Y

Product colour
Black, Grey

UASP support
Y

Ports & interfaces

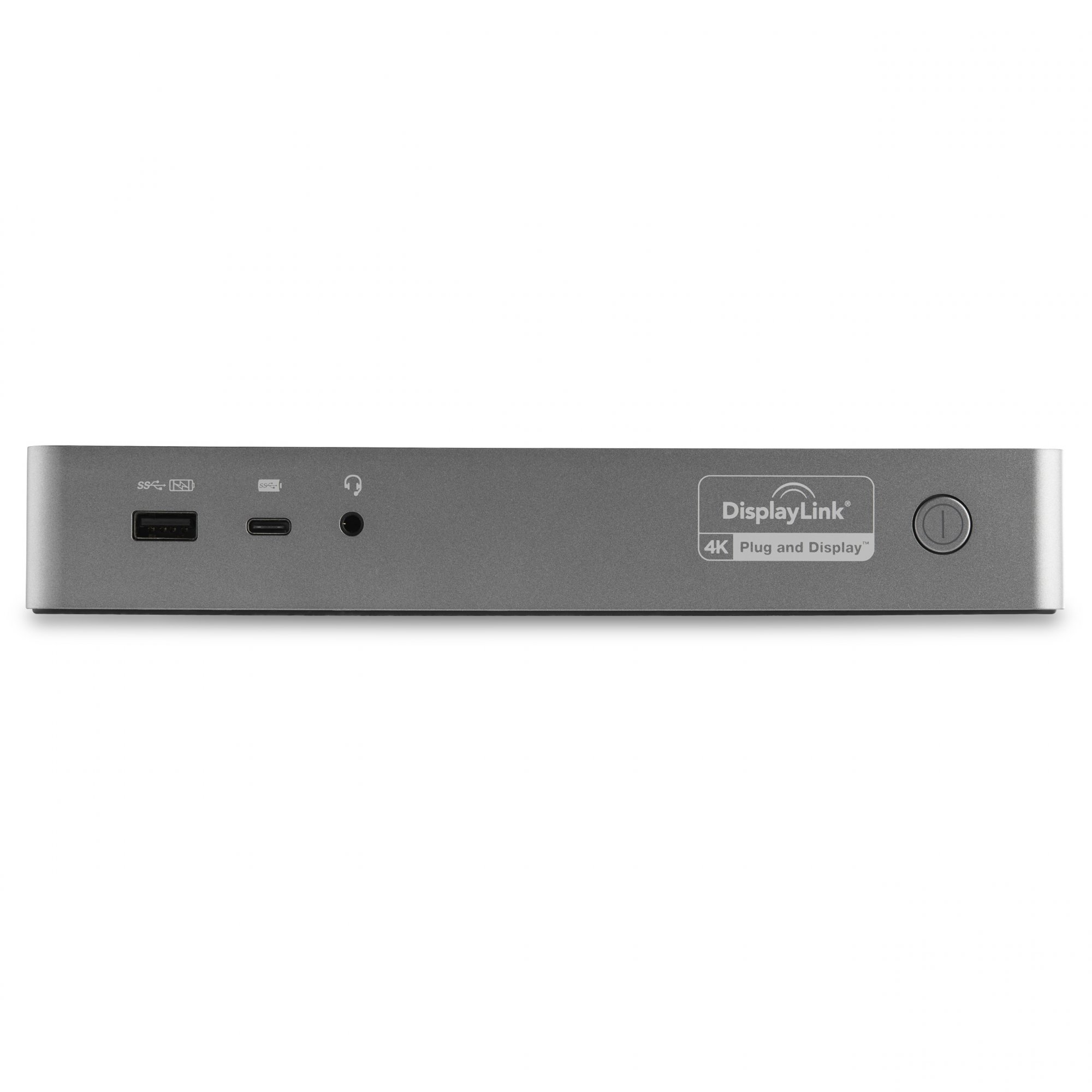

Combo headphone/mic port
Y

Connectivity technology
Wired

DC-in jack
Y

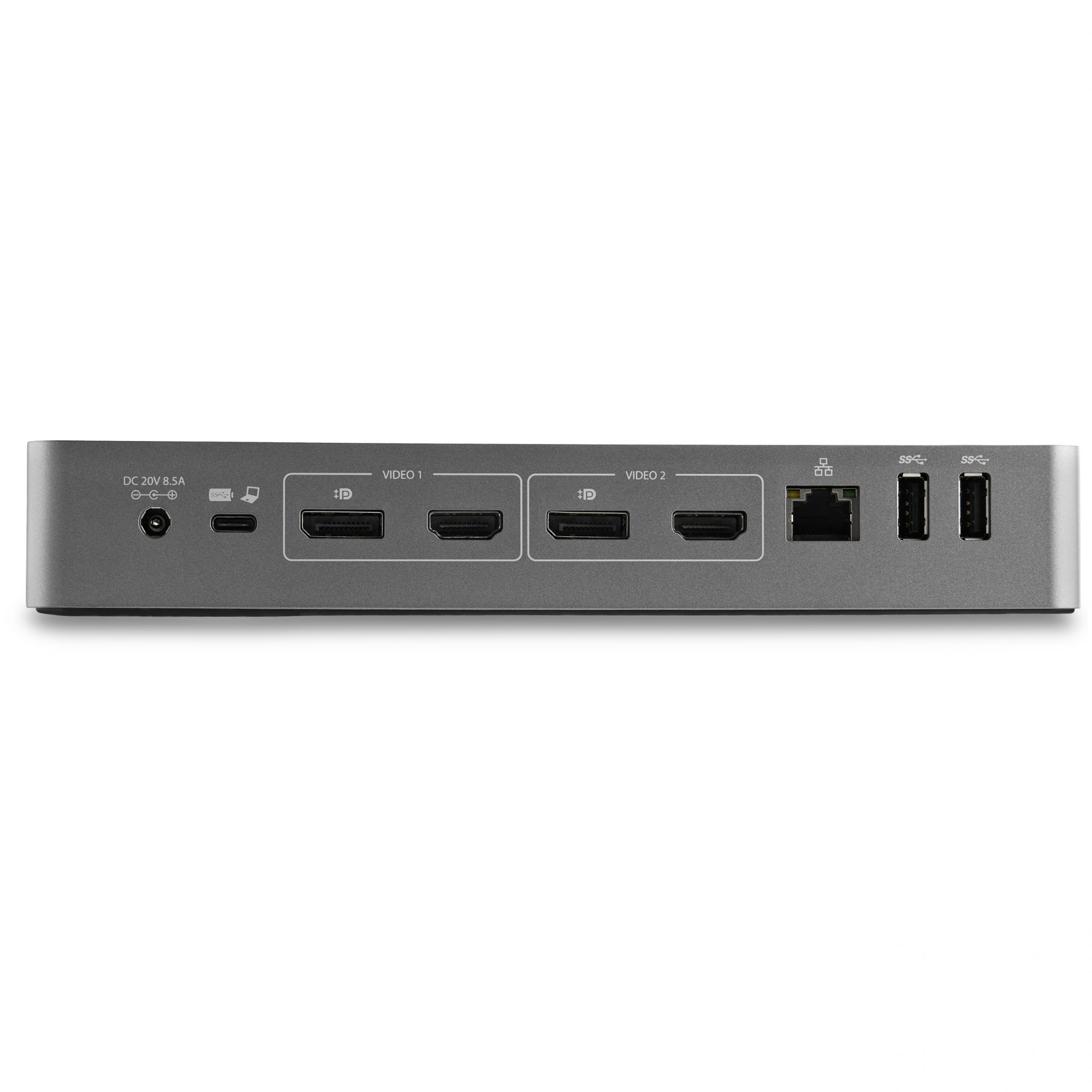

DisplayPorts quantity
2

HDMI ports
2

Headphone connectivity
3.5 mm

Headphone outputs
1

Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1

Power

AC input voltage
100 - 240 V

Compatible power plug types
EU, UK

Input current
2.5 A

Output current
8.5 A

Output voltage
20 V

Power consumption (typical)
170 W

Power plug type
Type N

Power supply
100 W

Software

Mac compatibility
Y

Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura

Other operating systems supported
ChromeOS

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Sustainability

Sustainability certificates
RoHS

Weight & dimensions

Depth
220 mm

Height
30 mm

Weight
280 g

Width
80 mm
