Description

TP-Link 5G Whole Home Wi-Fi 6 Gateway. Product colour: Black, Antenna type: Internal, Product type: Mesh router. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Mobile network generation: 5G, 4G standard: LTE-TDD & LTE-FDD. Processor frequency: 2.2 GHz, Firewall security: SPI Firewall. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50 - 60 Hz, AC adapter input current: 1.5 A

Ultra-Fast Broadband Connection: Supports Sub-6 GHz 5G technology boosts download speeds up to 5.0 Gbps§
Ultra-Low Latency: 5G brings responsive network connections with only 1 ms latency
AX6000 Dual-Band Wi-Fi 6 Speed: 4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)

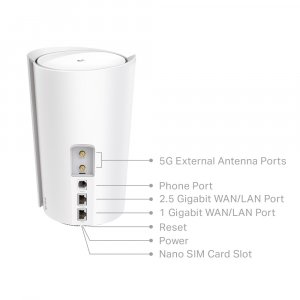

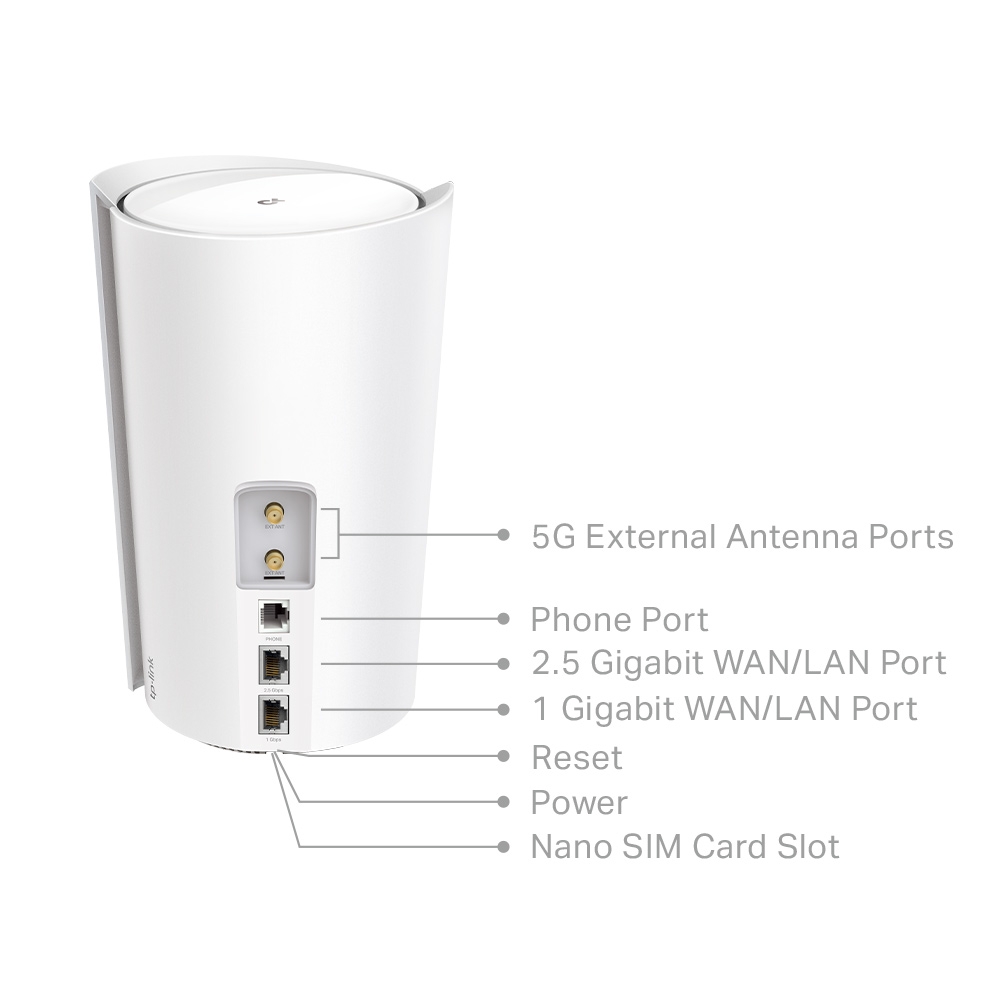

2.5 Gigabit Wired Connections: 1× 2.5 Gbps port + 1× Gigabit port

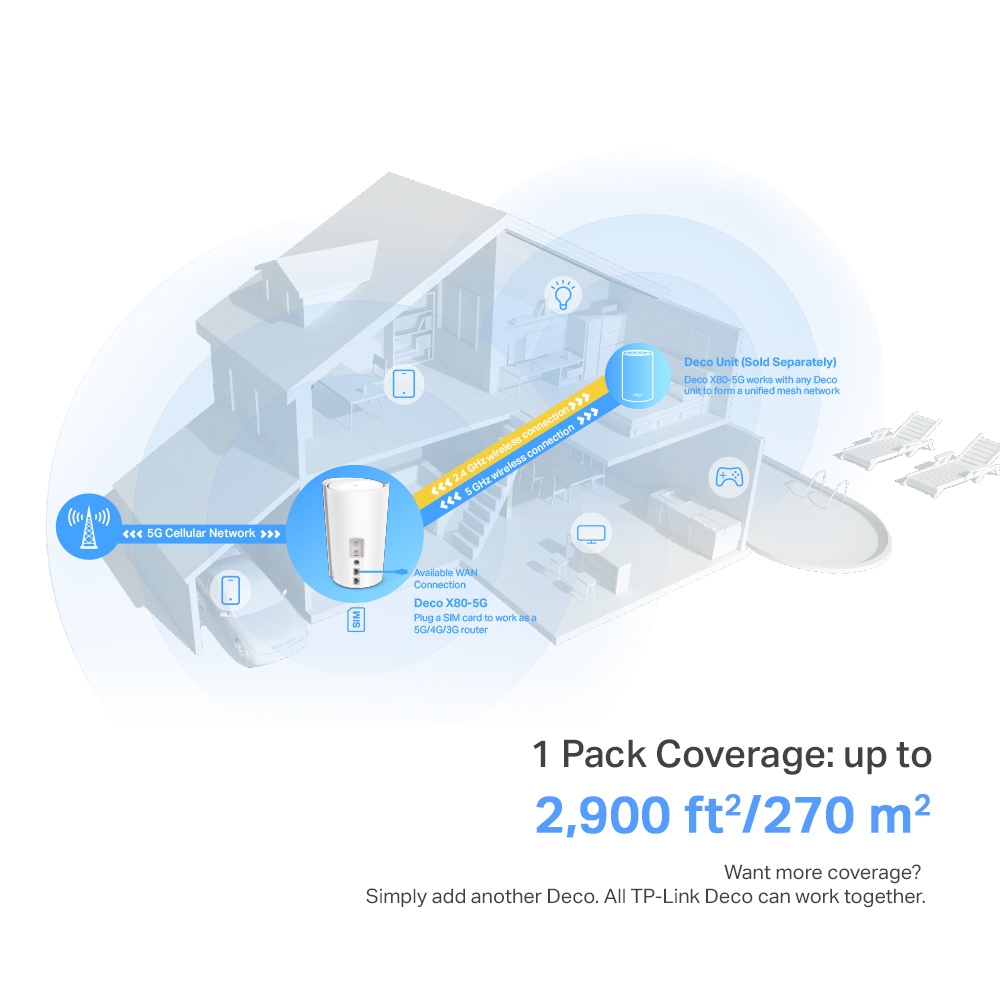

Mesh Network: Deco mesh technology ensures strong Wi-Fi signals everywhere
Flexible Network Access: 4G, 5G, Fixed-Line Internet Access
Plug & Play: Enjoy Deco 5G right after inserting a SIM card
VoLTE Support: Home phone over VoLTE
Simplified Setup: Easily set up and manage your network with the TP-Link Deco app
TP-Link HomeShield: Provides comprehensive network protection, robust parental controls, and real-time loT security

Product Properties

Manufacturer
TP-LINK

Model
DECO X80-5G(1-PACK

EAN
6935364072865

Bullet points

Point
2.5 Gigabit Wired Connections: 1× 2.5 Gbps port + 1× Gigabit port

AX6000 Dual-Band Wi-Fi 6 Speed: 4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)

Flexible Network Access: 4G, 5G, Fixed-Line Internet Access

Mesh Network: Deco mesh technology ensures strong Wi-Fi signals everywhere

Plug & Play: Enjoy Deco 5G right after inserting a SIM card

Simplified Setup: Easily set up and manage your network with the TP-Link Deco app

TP-Link HomeShield

Ultra-Fast Broadband Connection

Ultra-Low Latency: 5G brings responsive network connections with only 1 ms latency

VoLTE Support: Home phone over VoLTE

Design

Antenna type
Internal

Antennas quantity
16

Certification
RoHS, CE, RCM

LED indicators
Yes

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Product colour
Black

Product type
Mesh router

Reset button
Yes

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 60 °C

Transmit power
≤20 dBm (2.4 GHz), ≤23 dBm (5 GHz)

Features

BeamForming
Yes

Built-in processor
Yes

Firewall security
SPI Firewall

MIMO
Yes

MU-MIMO technology
Yes

Number of guest networks (2.4 GHz)
1

Number of guest networks (5 GHz)
1

Port forwarding
Yes

Processor cores
4

Processor frequency
2.2 GHz

Mobile network

4G standard
LTE-TDD & LTE-FDD

Mobile network generation
5G

Packaging content

AC adapter included
Yes

Ethernet cable
Yes

Number of products included
1 pc(s)

Number of units included
1 pc(s)

Ports & interfaces

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
2

Power

AC adapter frequency
50 - 60 Hz

AC adapter input current
1.5 A

AC adapter input voltage
100 - 240 V

AC adapter output current
4 A

AC adapter output voltage
12 V

Protocols

DHCP client
Yes

Universal Plug and Play (UPnP)
Yes

Weight & dimensions

Depth
123 mm

Height
210.5 mm

Package depth
237 mm

Package height
147.5 mm

Package weight
2.09 kg

Package width
276.5 mm

Width
130 mm

Wireless LAN features

Control apps supported
TP-Link Deco

Dynamic DNS (DDNS)
Yes

Dynamic IP
Yes

Guest access
Yes

IGMP proxy
Yes

IGMP snooping
Yes

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Point-to-point protocol over Ethernet (PPPoE)
Yes

Security algorithms
WPA, WPA2, WPA3

Static IP
Yes

Tagged VLAN
Yes

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Wireless Distribution System (WDS) bridge
Yes

WLAN data transfer rate (first band)
1148 Mbit/s

WLAN data transfer rate (second band)
4804 Mbit/s
