Model: TL-SG1006PP
EAN: 4895252500332

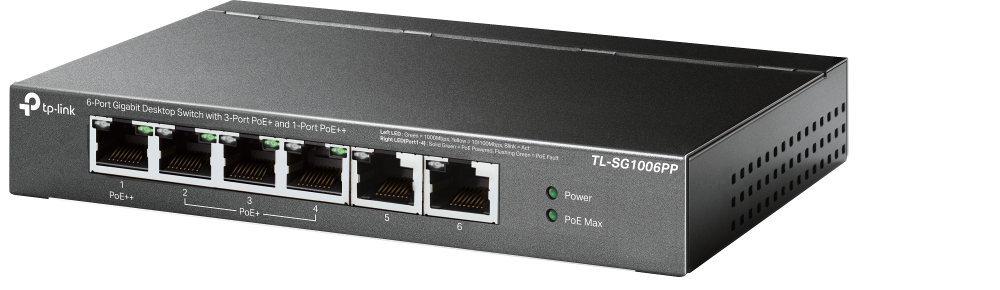

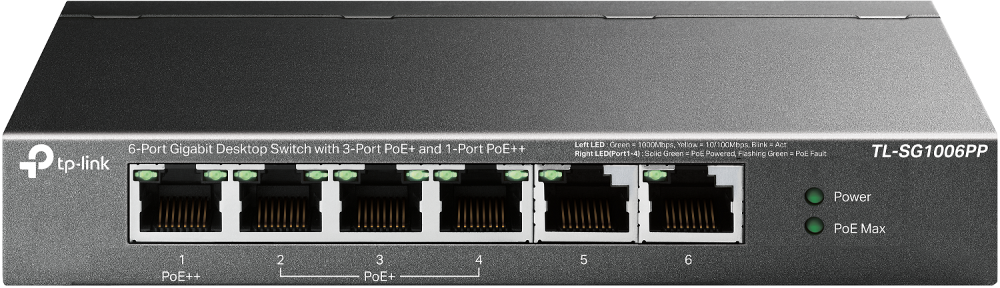

TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

Manufacturer:
TP-LINK
TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 4000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Rack mounting
  • 6× 10/100/1000 Mbps RJ45 ports

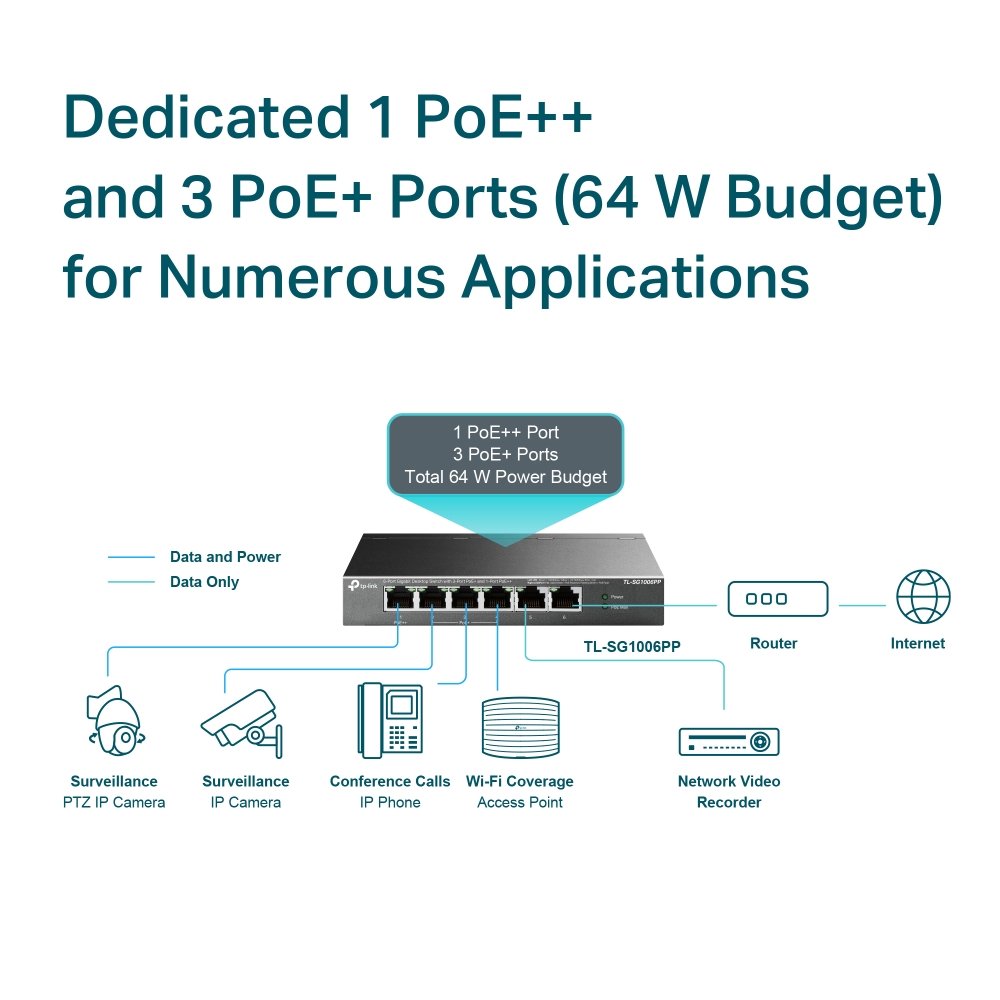

  • With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at/bt compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
  • Supports PoE Power up to 64 W for all PoE ports*

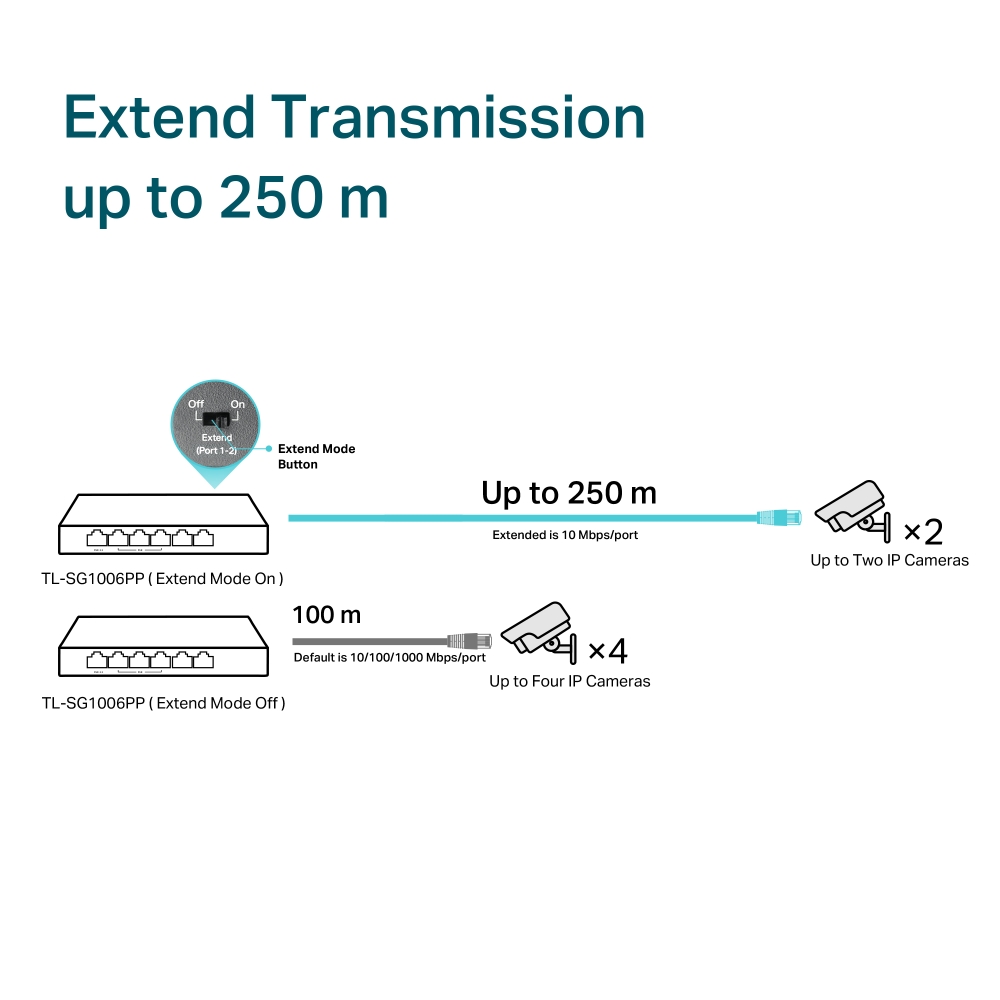

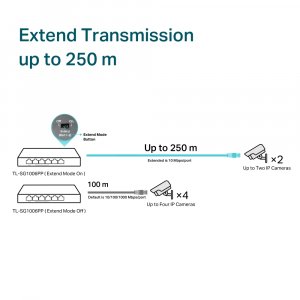

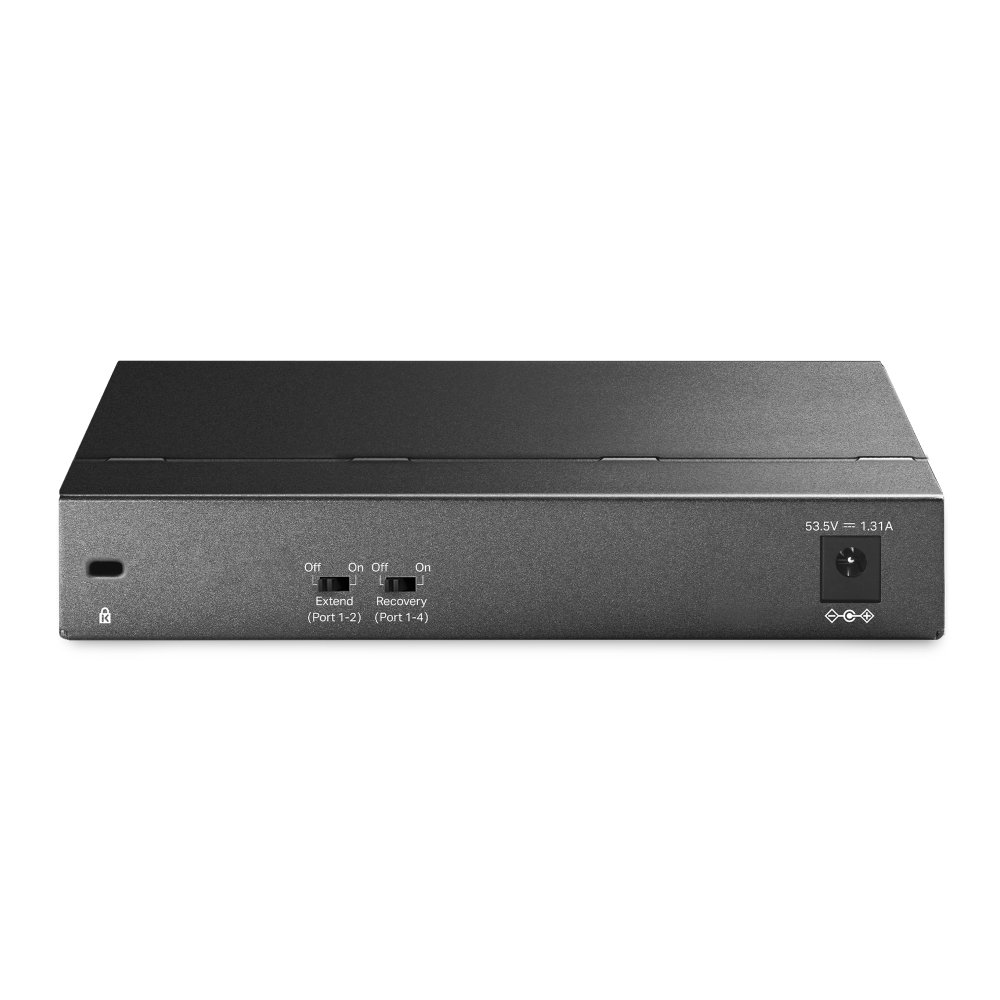

  • Up to 250m data and power transmitting range under Extend Mode**

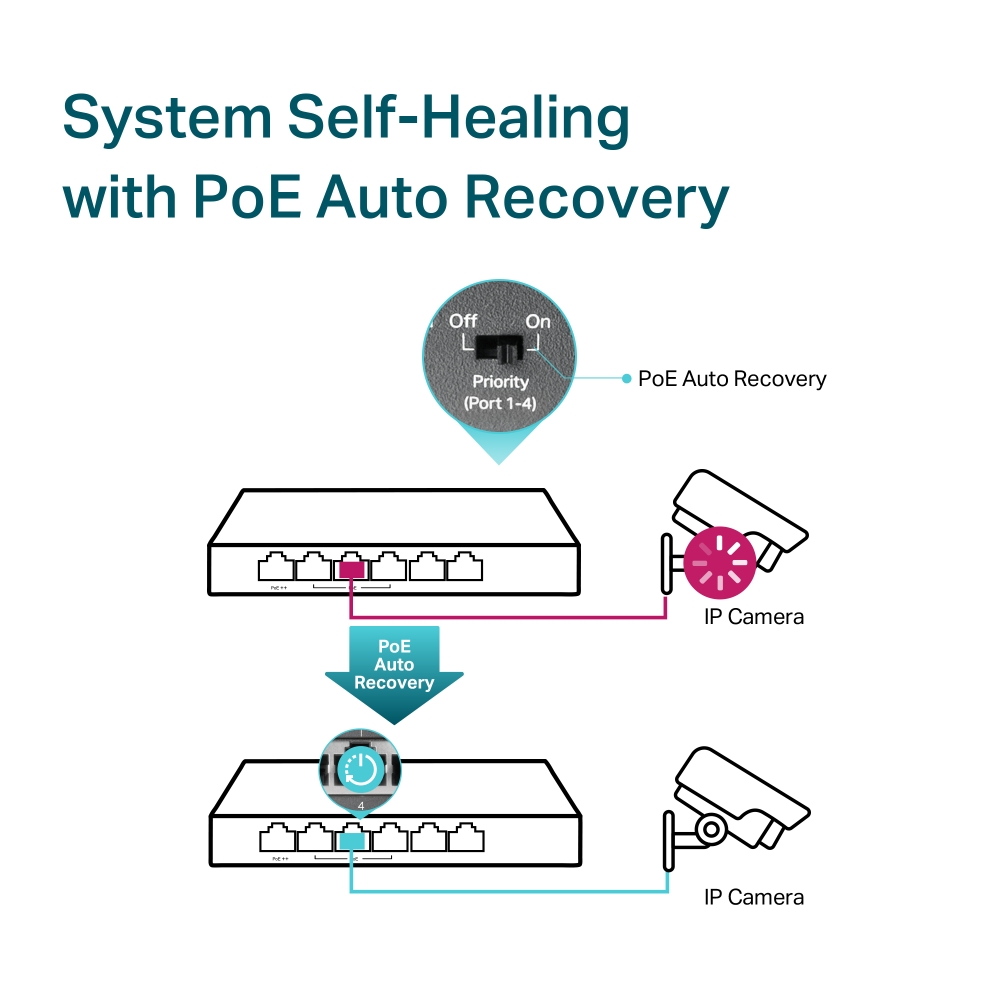

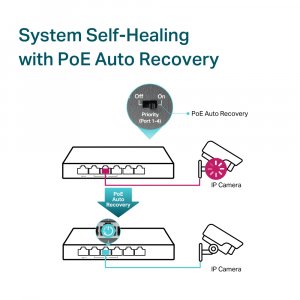

  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

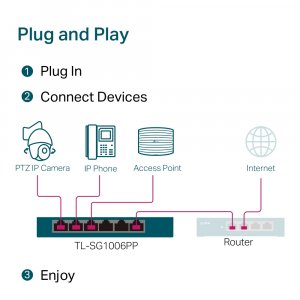

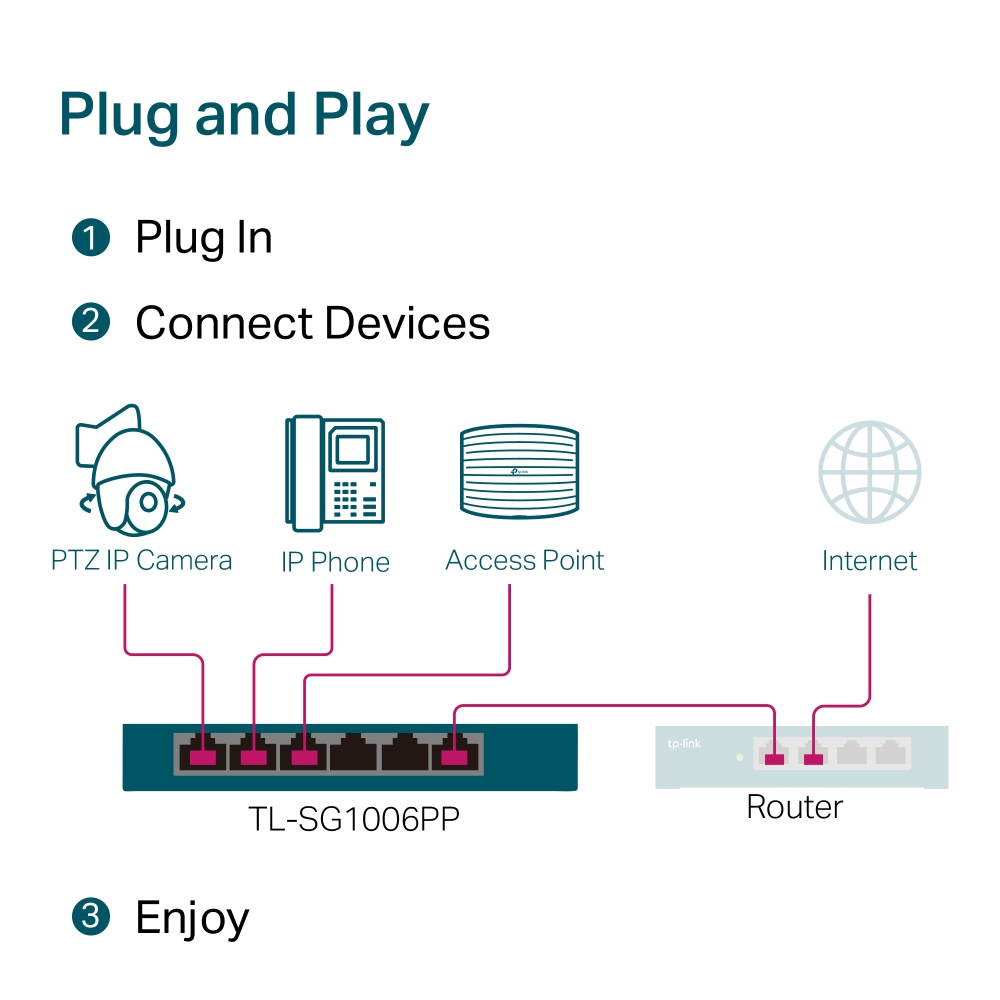

  • Plug and Play, no configuration and installation required

Product Properties

  • Model
  • TL-SG1006PP
  • EAN
  • 4895252500332
  • Bullet points
  • Point
  • 6× 10/100/1000 Mbps RJ45 ports
    802.1p/DSCP QoS enable smooth latency-sensitive traffic
    Plug and play, no configuration and installation required
    Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
    Supports PoE Power up to 64 W for all PoE ports*
    Up to 250m data and power transmitting range under Extend Mode**
    With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
    Works with IEEE 802.3af/at/bt compliant PDs
  • Data transmission
  • Forwarding rate
  • 8.928 Mpps
  • MAC address table
  • 4000 entries
  • Store-and-forward
  • Yes
  • Switching capacity
  • 12 Gbit/s
  • Design
  • Certification
  • FCC, CE, RoHS
  • LED indicators
  • Yes
  • Product colour
  • Grey
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch type
  • Unmanaged
  • Network
  • 10G support
  • No
  • Auto MDI/MDI-X
  • Yes
  • Auto-negotiation
  • Yes
  • Cable types supported
  • Cat3, Cat4, Cat5, Cat5e, Cat6
  • Copper ethernet cabling technology
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Flow control support
  • Yes
  • MAC address auto-aging supported
  • Yes
  • MAC address auto-learning supported
  • Yes
  • Networking standards
  • IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
  • Operational conditions
  • Heat dissipation
  • 16.2 BTU/h
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Packaging data
  • Package type
  • Box
  • Quick start guide
  • Yes
  • Performance
  • Fanless
  • Yes
  • Ports & interfaces
  • Switch Number of Ports
  • 6
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • DC input voltage
  • 53.5 V
  • Input current
  • 1.31 A
  • Power consumption (max)
  • 71.46 W
  • Power consumption (typical)
  • 4.75 W
  • Power source
  • DC/PoE
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) ports quantity
  • 4
  • Total Power over Ethernet (PoE) budget
  • 64 W
  • Security
  • IGMP snooping
  • Yes
  • Weight & dimensions
  • Depth
  • 101 mm
  • Height
  • 25 mm
  • Width
  • 158 mm
