Description

TP-Link 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries, Switching capacity: 7.6 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 53.5 V. Power over Ethernet (PoE)

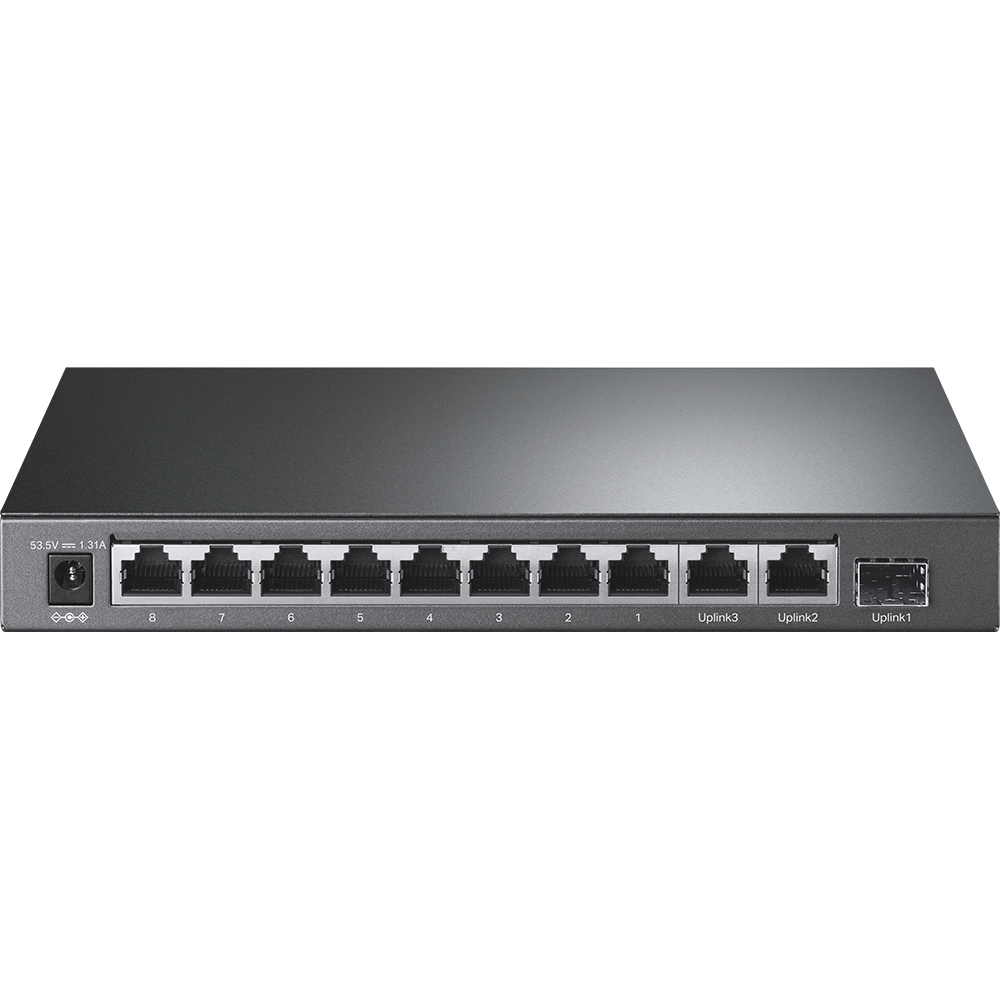

8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
8× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for 8 PoE ports*
Up to 250 m data and power transmitting range under Extend Mode**
Isolation Mode allows one-click client traffic separation for higher security and performance
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Fanless Design reduces power consumption and works silently in its location
Plug and play with no configuration required

Product Properties

Manufacturer
TP-LINK

Model
TL-SL1311P

EAN
4895252500295

Bullet points

Point
8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port

8× PoE+ ports transfer data and power on individual cables

Fanless Design reduces power consumption and works silently in its location

Isolation Mode allows one-click client traffic separation for higher security and performance

Plug and play with no configuration required

Supports PoE Power up to 30 W for each PoE port

Supports PoE Power up to 65 W for 8 PoE ports*

Up to 250 m data and power transmitting range under Extend Mode**

Works with IEEE 802.3af/at compliant PDs

Data transmission

Forwarding rate
5.6544 Mpps

Jumbo frames
16

Jumbo frames support
Yes

MAC address table
2000 entries

Store-and-forward
Yes

Switching capacity
7.6 Gbit/s

Design

Certification
FCC, CE, RoHS

LED indicators
Yes

Product colour
Black

Rack mounting
No

Reset button
Yes

Network

10G support
No

Networking standards
IEEE 802.3af, IEEE 802.3at

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

Cables included
LAN (RJ-45)

Package type
Box

Ports & interfaces

Switch Number of Ports
8

Switch Port Speed
Fast Ethernet (10/100)

Power

DC input voltage
53.5 V

Power consumption (max)
77.32 W

Power source
AC/DC

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Total Power over Ethernet (PoE) budget
65 W

Weight & dimensions

Depth
126 mm

Height
26 mm

Width
209 mm
