Description

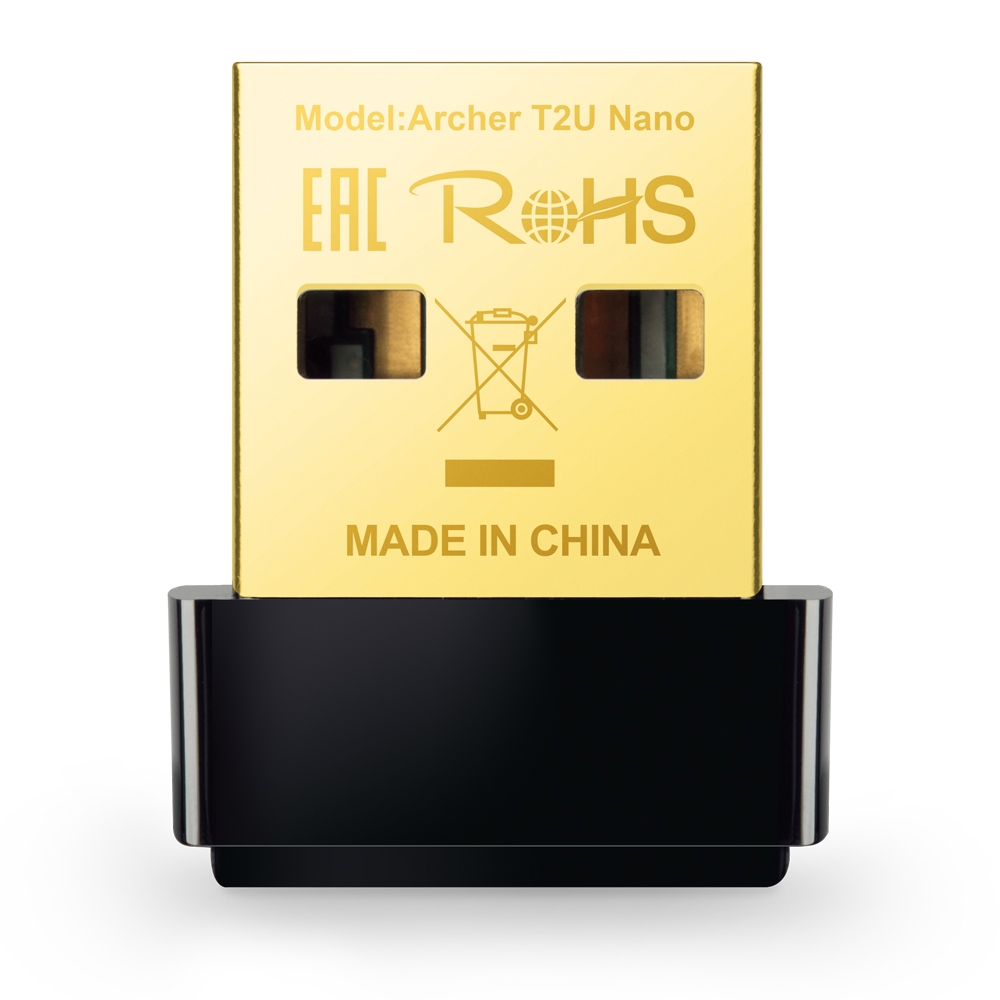

TP-Link AC600 Nano Wireless USB WiFi Adapter. Connectivity technology: Wireless, Host interface: USB. Maximum data transfer rate: 433 Mbit/s, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). USB powered. Product colour: Black

High Speed WiFi– Up to 600Mbps speeds with 200Mbps on 2.4GHz and 433 Mbps on 5GHz, upgrades your devices to higher AC WiFi speeds
Dual Band Wireless – 2.4GHz and 5GHz band for flexible connectivity, upgrades your devices to work with the latest dual-band WiFi router for faster speed and extended range
Nano design – Small, unobtrusive design allows you to plug it in and forget it is even there
Operating System – Supports Windows 10/8.1/8/7/XP, Mac OS X
Advanced Security –Supports 64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK encryption standards

Product Properties

Manufacturer
TP-LINK

Model
ARCHER T2U NANO-

EAN
6935364082635

Bullet points

Point
Advanced Security –Supports 64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK encryption standards

Nano Design – Small, unobtrusive design allows you to plug it in and forget it is even there

Operating System – Supports Windows 10/8.1/8/7/XP, Mac OS X

Design

Antenna
Yes

Antenna design
Internal

Antenna direction type
Omni-directional

Certification
CE, FCC

Internal
No

Product colour
Black

Receiver sensitivity
5GHz： 11a 6Mbps: -90dBm 11a 54Mbps: -73dBm 11n HT20 MCS0: -89dBm 11n HT20 MCS7: -70dBm 11n HT40 MCS0: -86dBm 11n HT40 MCS7: -67dBm 11ac VHT80 MCS0: -82dBm 11ac VHT80 MCS9: -56dBm 2.4GHz: 11b 1Mbps: -96dBm 11b 11Mbps: -88dBm 11g 6Mbps: -89dBm 11g 54Mbps: -74dBm 11n HT20 MCS0: -89dBm 11n HT20 MCS7: -72dBm 11n HT40 MCS0: -86dBm 11n HT40 MCS7: -66dBm

Network

Bandwidth (first)
2.4 GHz

Bandwidth (second)
5 GHz

Frequency range
2.4 - 5 GHz

Maximum data transfer rate
433 Mbit/s

Modulation
16-QAM, 64-QAM, 256-QAM, CCK, COFDM, DBPSK, DQPSK, OFDM

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x

Security algorithms
64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK

Top Wi-Fi standard
Wi-Fi 5 (802.11ac)

Wi-Fi
Yes

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)

Wi-Fi standards
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)

WLAN data transfer rates supported
11,54,150,200,433 Mbit/s

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Other features

Transmit power range
20 - 20 dBmW

Packaging content

Quick installation guide
Yes

Packaging data

Package depth
128 mm

Package height
30 mm

Package weight
90 g

Package width
138 mm

Quantity
1

Ports & interfaces

Connectivity technology
Wireless

Host interface
USB

USB version
2.0

Power

USB powered
Yes

Sustainability

Sustainability certificates
RoHS

System requirements

Linux operating systems supported
Yes

Mac operating systems supported
macOS

Windows operating systems supported
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows XP

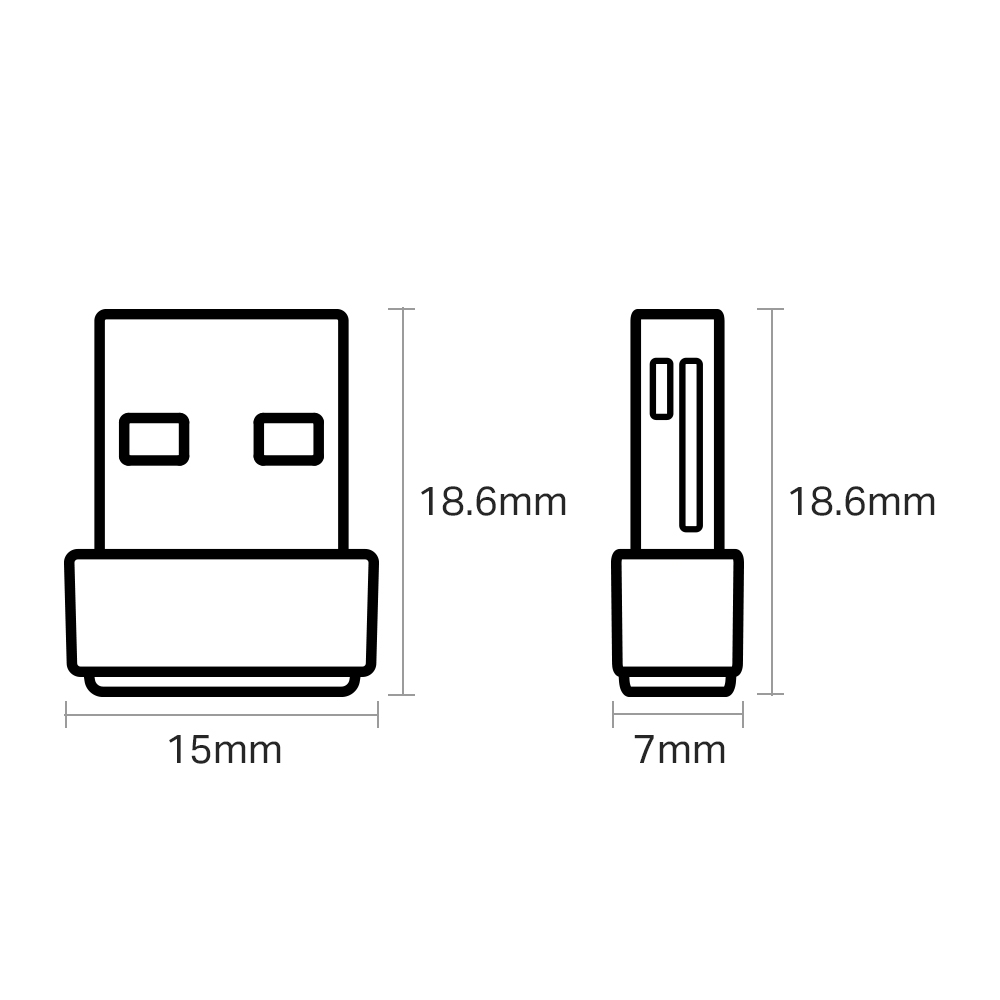

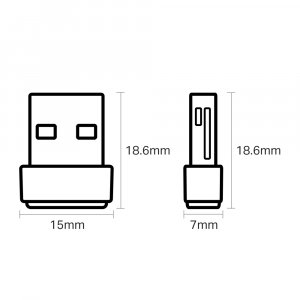

Weight & dimensions

Depth
7.1 mm

Height
18.6 mm

Width
15 mm
