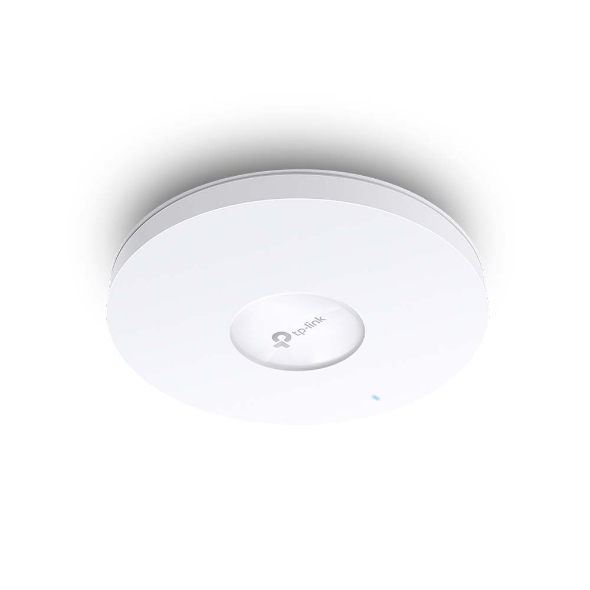

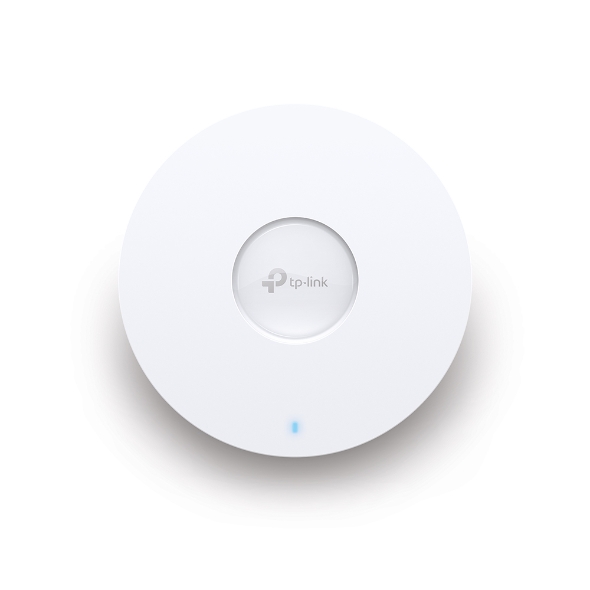

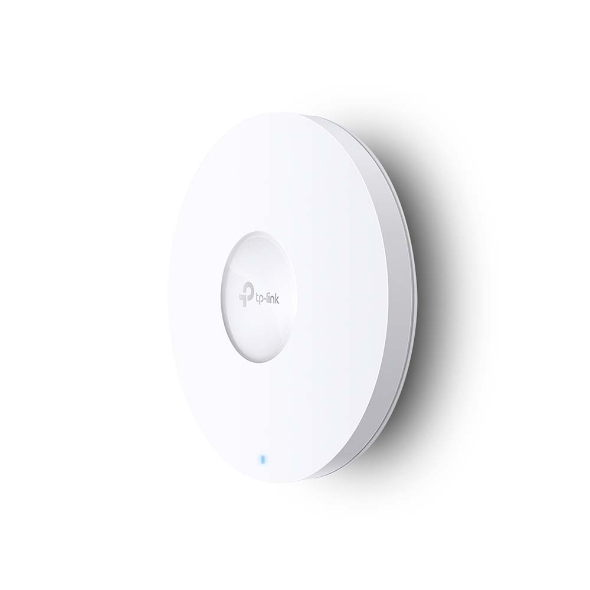

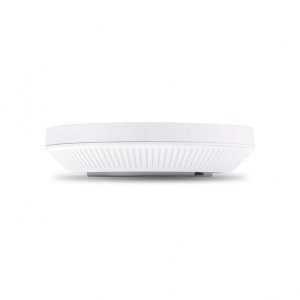

TP-Link AX1800 Ceiling Mount WiFi 6 Access Point
Roll over image to zoom inClick to Open expanded view
TP-Link AX1800 Ceiling Mount WiFi 6 Access Point
TP-Link AX1800 Ceiling Mount WiFi 6 Access Point
TP-Link AX1800 Ceiling Mount WiFi 6 Access Point
TP-Link AX1800 Ceiling Mount WiFi 6 Access Point
TP-Link AX1800 Ceiling Mount WiFi 6 Access Point
TP-Link AX1800 Ceiling Mount WiFi 6 Access Point
Print
Model: EAP620 HD NEW
EAN: 4897098680315

TP-Link AX1800 Ceiling Mount WiFi 6 Access Point

Manufacturer:
TP-LINK
TP-Link AX1800 Ceiling Mount WiFi 6 Access Point, 1800 Mbit/s, 574 Mbit/s, 1201 Mbit/s, 10,100,1000 Mbit/s, 2.4 - 5 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

TP-Link AX1800 Ceiling Mount WiFi 6 Access Point. Maximum data transfer rate: 1800 Mbit/s, Maximum data transfer rate (2.4 GHz): 574 Mbit/s, Maximum data transfer rate (5 GHz): 1201 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK, Service Set Identifier (SSID) features: Multiple SSIDs. Output voltage: 12 V. Placement: Ceiling, Wall, Product colour: White, Certification: CE, FCC, RoHS. Antenna type: Internal, Antenna direction type: Omni-directional, Antenna gain level (max): 6 dBi
  • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds
  • High-Density Connectivity: 4× increased capacity to connect more devices simultaneously
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management
  • Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment
  • PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies

Product Properties

  • Model
  • EAP620 HD NEW
  • EAN
  • 4897098680315
  • Antenna
  • Antenna direction type
  • Omni-directional
  • Antenna gain level (max)
  • 6 dBi
  • Antenna type
  • Internal
  • Bullet points
  • Point
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management
    High-Density Connectivity: 4× increased capacity to connect more devices simultaneously
    Integrated into Omada SDN
    Omada Mesh
    PoE+ Powered
    Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations
    Secure Guest Network
    Ultra-Fast WiFi 6 Speeds
    Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility
  • Design
  • Certification
  • CE, FCC, RoHS
  • Placement
  • Ceiling, Wall
  • Product colour
  • White
  • Reset button
  • Yes
  • Features
  • 2.4 GHz
  • Yes
  • 5 GHz
  • Yes
  • Band steering
  • Yes
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Frequency band
  • 2.4 - 5 GHz
  • Maximum data transfer rate
  • 1800 Mbit/s
  • Maximum data transfer rate (2.4 GHz)
  • 574 Mbit/s
  • Maximum data transfer rate (5 GHz)
  • 1201 Mbit/s
  • MIMO
  • Yes
  • MIMO type
  • Multi User MIMO
  • Modulation
  • 1024-QAM, OFDM
  • Networking standards
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
  • Quality of Service (QoS) support
  • Yes
  • Rate limiting
  • Yes
  • Transmitting power (CE)
  • 20/23 dBm
  • Transmitting power (FCC)
  • 23 dBm
  • Virtual LAN features
  • VLAN mapping
  • VLAN support
  • Yes
  • Wi-Fi Multimedia (WMM)/(WME)
  • Yes
  • Management features
  • Firmware upgradeable
  • Yes
  • Syslog
  • Yes
  • Web-based management
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Packaging content
  • AC adapter included
  • Yes
  • Number of products included
  • 1 pc(s)
  • Quick start guide
  • Yes
  • Packaging data
  • Package type
  • Box
  • Performance
  • Compatible operating systems
  • Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
  • Ports & interfaces
  • DC-in jack
  • Yes
  • Ethernet LAN (RJ-45) ports
  • 1
  • Power
  • Output voltage
  • 12 V
  • Power over Ethernet (PoE)
  • Yes
  • Security
  • Number of SSID supported
  • 16
  • Security algorithms
  • SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK
  • Service Set Identifier (SSID) features
  • Multiple SSIDs
  • Weight & dimensions
  • Depth
  • 160 mm
  • Height
  • 33.6 mm
  • Width
  • 160 mm
