Description

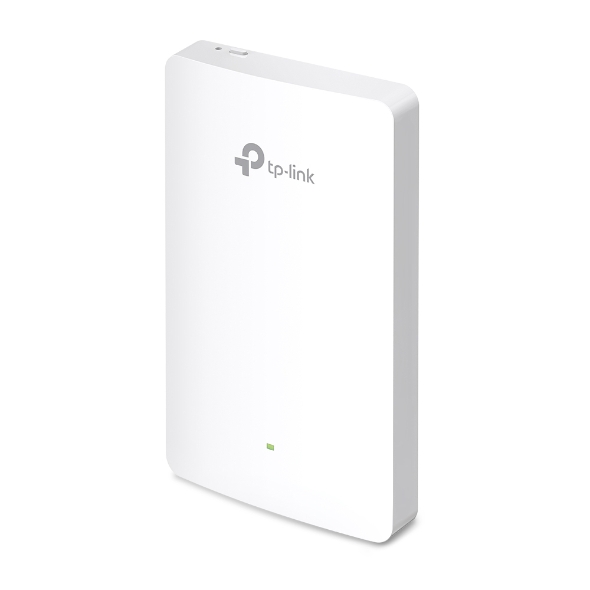

TP-Link AX1800 Wall Plate WiFi 6 Access Point. Maximum data transfer rate: 1774 Mbit/s, Maximum data transfer rate (2.4 GHz): 574 Mbit/s, Maximum data transfer rate (5 GHz): 1201 Mbit/s. Security algorithms: WPA, WPA2, WPA3, Service Set Identifier (SSID) features: Multiple SSIDs. Placement: Wall, Product colour: White, LED indicators: Power. Antenna type: Internal, Antenna gain level (max): 4 dBi. Width: 143 mm, Depth: 86 mm, Height: 20 mm

Superior WiFi 6 Speeds - Delivers dual-band speeds of up to 18 Gbps powered by the latest WiFi 6 technology

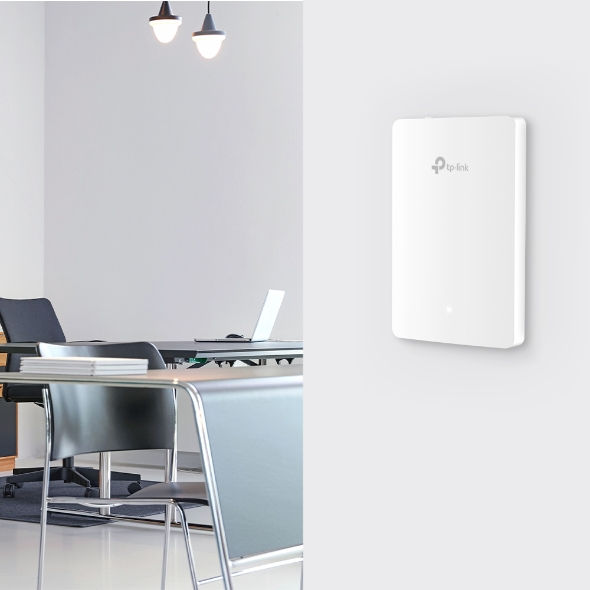

Complete In-Room WiFi Coverage - Guarantees strong signals and corner-to-corner WiFi coverage in each room
Higher Network Efficiency - OFDMA and DL/UL MU-MIMO* deliver data to multiple devices simultaneously with less lag

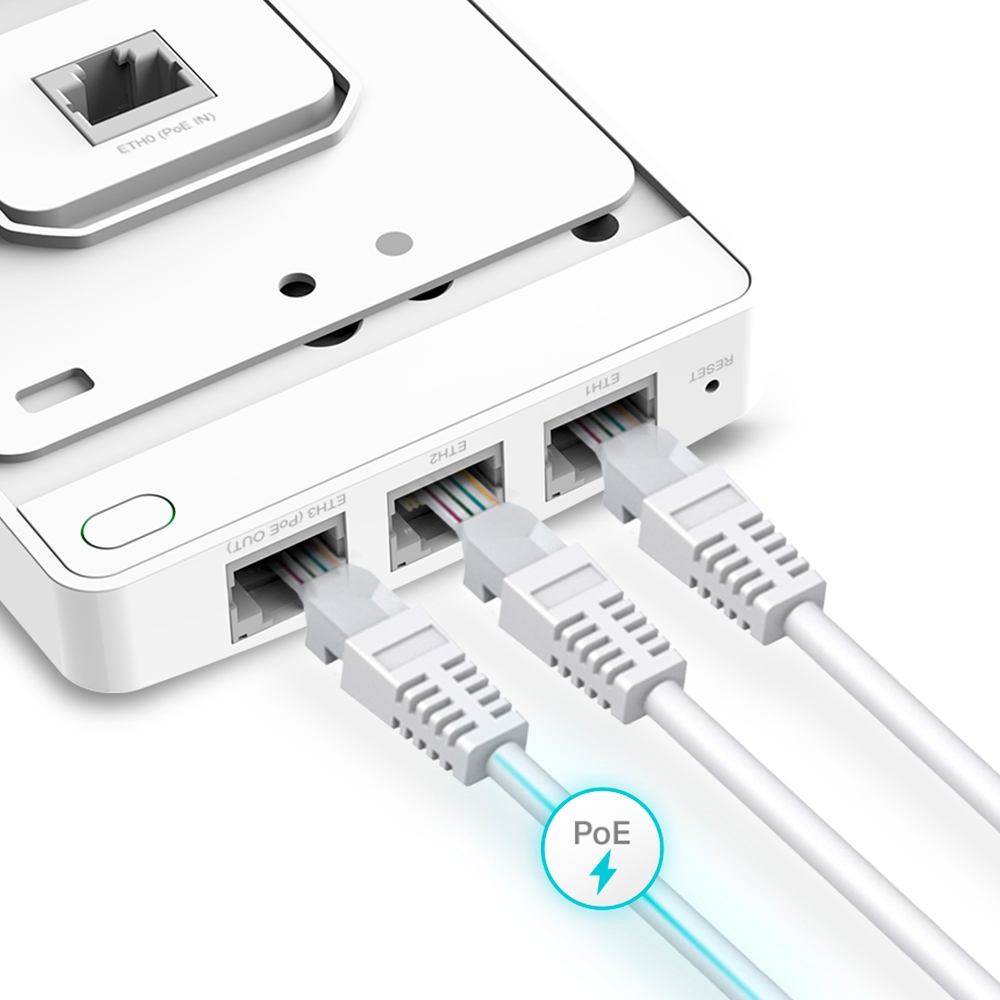

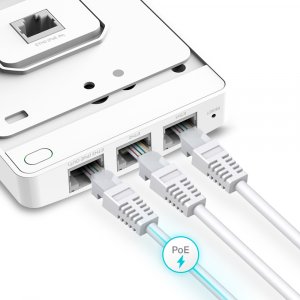

Full Gigabit Ports - Connect multiple devices with four gigabit ports and one downlink port offering PoE pass-through
Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management

Product Properties

Manufacturer
TP-LINK

Model
EAP615-WALL

EAN
4897098682128

Antenna

Antenna gain level (max)
4 dBi

Antenna type
Internal

Antennas quantity
4

Bullet points

Point
Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management

Design

Certification
CE, FCC, RoHS

LED indicators
Power

On/off switch
Yes

Placement
Wall

Product colour
White

Reset button
Yes

Features

2.4 GHz
Yes

5 GHz
Yes

6 GHz
No

Airtime Fairness (ATF)
Yes

Automatic channel scanning
Yes

Automatic channel selection
Yes

Band steering
Yes

BeamForming
Yes

Cabling technology
10/100/1000Base-T(X)

Ethernet LAN data rates
10,100,1000 Mbit/s

Maximum data transfer rate
1774 Mbit/s

Maximum data transfer rate (2.4 GHz)
574 Mbit/s

Maximum data transfer rate (5 GHz)
1201 Mbit/s

MIMO
Yes

MIMO type
Multi User MIMO

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Quality of Service (QoS) support
Yes

Rate limiting
Yes

Transmitting power (CE)
20 dBm

Transmitting power (FCC)
21 dBm

VLAN support
Yes

Wireless isolation
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Firmware upgradeable
Yes

Syslog
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

Package depth
495 mm

Package height
210 mm

Package weight
330 g

Package width
385 mm

Ports & interfaces

Ethernet LAN (RJ-45) ports
4

Power

Power over Ethernet (PoE)
Yes

Protocols

STelnet using SSH v2
Yes

Security

Access Control List (ACL)
Yes

Number of SSID supported
16

Remote Authentication Dial-In User Service (RADIUS)
Yes

Security algorithms
WPA, WPA2, WPA3

Service Set Identifier (SSID) features
Multiple SSIDs

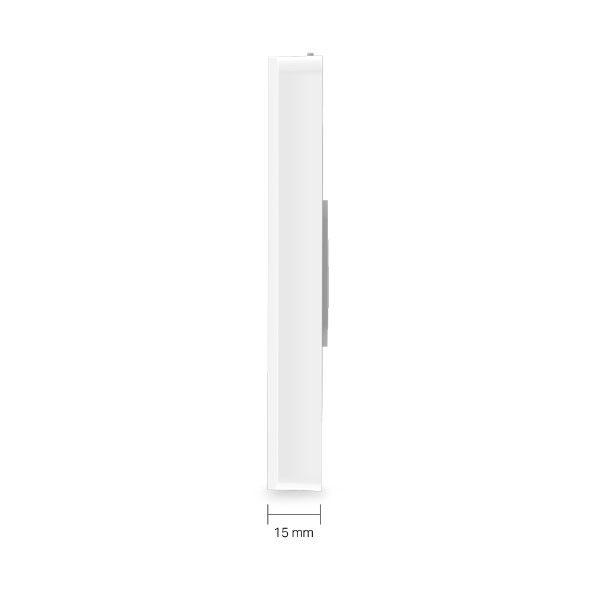

Weight & dimensions

Depth
86 mm

Height
20 mm

Width
143 mm
