Description

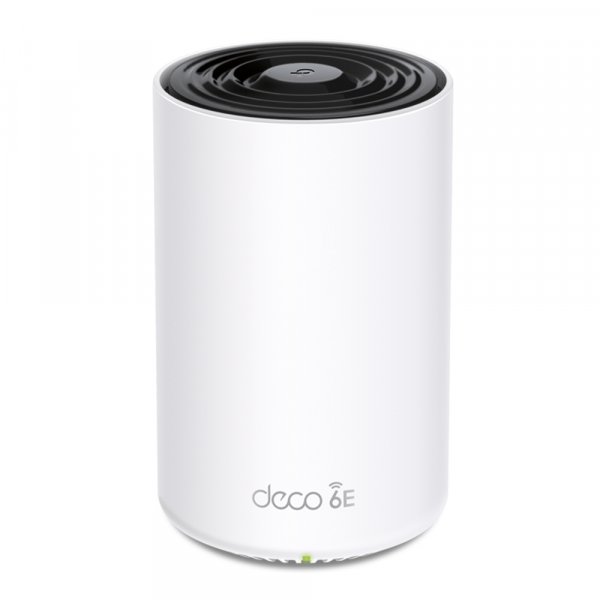

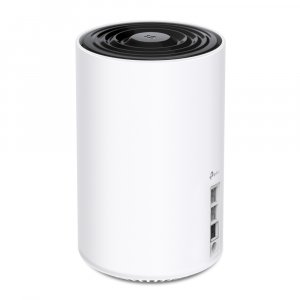

TP-Link AXE5400 Tri-Band Mesh Wi-Fi 6E System. Product colour: White, Antenna type: Internal, Product type: Mesh router. Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz), Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Processor frequency: 1.7 GHz, Firewall security: SPI Firewall, Parental control features: Bedtime, Content filter, Custom profiles, Family time, Pause the Internet, Time controls, Time.... AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50 - 60 Hz, AC adapter output voltage: 12 V. Width: 105 mm, Depth: 105 mm, Height: 169 mm

Whole Home WiFi 6E – Cover up to 2,900 ft2 with next-gen seamless WiFi and make dead zones and buffering a thing of the past
Brand-New 6 GHz Band – Experience the latest frequency of WiFi, eliminating interference from all legacy devices. The 6 GHz band also delivers a powerful dedicated backhaul to further streamline the WiFi performance of non-6E devices△
True Tri-Band Speed – All three WiFi bands work together to unleash your network’s total speeds up to 5,400 Mbps for 200 devices
AI-Driven Mesh – Unites your home under one name and password while delivering the best connections as you move room to room
TP-Link HomeShield – Keeps your home network safe with cutting-edge features for network and IoT protection
Setup Made Easier Than Ever – The Deco app walks you through setup step-by-step
Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem

Product Properties

Manufacturer
TP-LINK

Model
DECO XE75 PRO(1-PA

EAN
4897098685006

Bullet points

Point
Setup Made Easier Than Ever – The Deco app walks you through setup step-by-step

Design

Antenna type
Internal

Antennas quantity
4

Certification
CE, FCC, RoHS

LED indicators
Yes

Maximum coverage
270 m²

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Product colour
White

Product type
Mesh router

Reset button
Yes

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 60 °C

Transmit power
FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz), <30 dBm (6 GHz), CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz), <23 dBm (6 GHz)

Features

BeamForming
Yes

Built-in processor
Yes

Firewall security
SPI Firewall

MIMO
Yes

MU-MIMO technology
Yes

Number of guest networks (2.4 GHz)
1

Number of guest networks (5 GHz)
1

Parental control
Yes

Parental control features
Bedtime, Content filter, Custom profiles, Family time, Pause the Internet, Time controls, Time rewards, Weekly/monthly reports

Port forwarding
Yes

Processor cores
4

Processor frequency
1.7 GHz

Quality of Service (QoS) support
Yes

Packaging content

AC adapter included
Yes

Ethernet cable
Yes

Number of products included
1 pc(s)

Number of units included
1 pc(s)

Ports & interfaces

DC-in jack
Yes

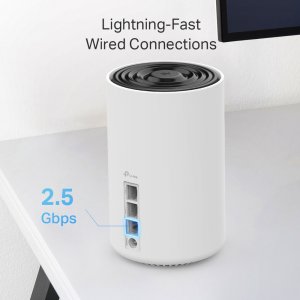

Ethernet LAN (RJ-45) ports
3

Ethernet WAN
Yes

Power

AC adapter frequency
50 - 60 Hz

AC adapter input voltage
100 - 240 V

AC adapter output voltage
12 V

Protocols

DHCP client
Yes

DHCP server
Yes

Supported network protocols (IPv6)
Y

Universal Plug and Play (UPnP)
Yes

Weight & dimensions

Depth
105 mm

Height
169 mm

Width
105 mm

Wireless LAN features

Control apps supported
TP-Link Deco

Dynamic DNS (DDNS)
Yes

Dynamic IP
Yes

Guest access
Yes

IGMP proxy
Yes

IGMP snooping
Yes

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Point-to-point protocol over Ethernet (PPPoE)
Yes

Security algorithms
WPA, WPA2-PSK, WPA3

Static IP
Yes

Tagged VLAN
Yes

Top Wi-Fi standard
Wi-Fi 6E (802.11ax)

Wi-Fi band
Tri-band (2.4 GHz / 5 GHz / 6 GHz)

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Wireless Distribution System (WDS) bridge
Yes

WLAN data transfer rate (first band)
574 Mbit/s

WLAN data transfer rate (second band)
2402 Mbit/s

WLAN data transfer rate (third band)
2402 Mbit/s
