Description

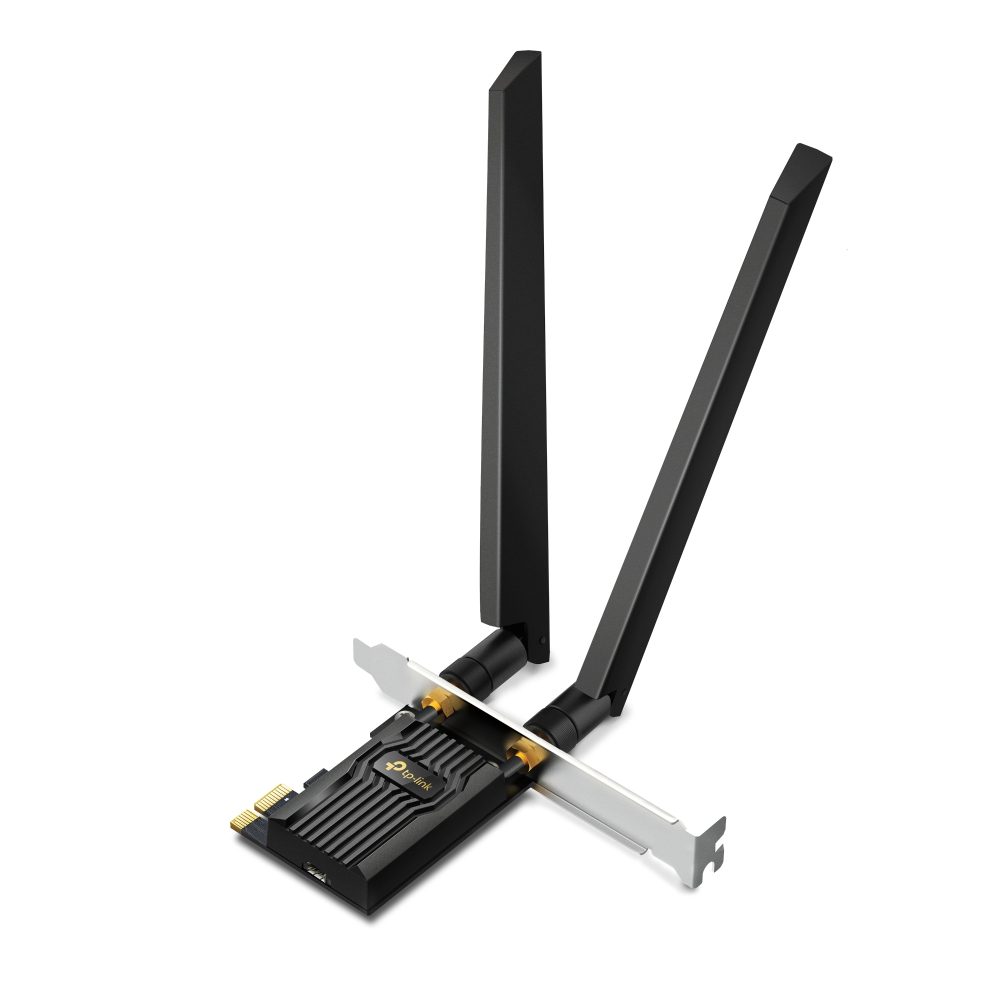

TP-Link AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: WLAN / Bluetooth. Maximum data transfer rate: 2402 Mbit/s, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz). Antenna type: 2x2, Product colour: Black

Unparalleled Tri-Band Speed — Boost your overall speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
WiFi 6E Standard — Expand to the clearer, broader 6 GHz band for more bandwidth and faster speeds. Currently 6 GHz Band only supported on Windows 11
Reliable Connections — The latest Intel® Wi-Fi 6E chipset’s reduced latency and improved reliability unlocks your Wi-Fi 6E router’s full potential
Wider Signal Coverage — Two multi-directional antennas with a magnetized base are designed for optimal signal reception
Bluetooth 5.2 — The latest Bluetooth technology achieves faster speeds and broader coverage
Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety
Reliably Engineered — The specialized heatsink and gold plating improve stability and performance even at high CPU temps
Backward Compatibility — Full support for 802.11ax/ac/a/b/g/n standards

Product Properties

Manufacturer
TP-LINK

Model
ARCHER TXE72E

EAN
4897098688397

Bullet points

Point
Backward Compatibility — Full support for 802.11ax/ac/a/b/g/n standards

Bluetooth 5.2 — The latest Bluetooth technology achieves faster speeds and broader coverage

Design

Antenna
Yes

Antenna design
External

Antenna type
2x2

Component for
PC

Internal
Yes

Operating modes
Infrastructure mode

Product colour
Black

Transmitting power (CE)
5 GHz: 15, 2.4 GHz: 16

Transmitting power (FCC)
5 GHz: 20, 2.4 GHz: 20, 6 GHz: 12

Network

Bluetooth
Yes

Bluetooth version
5.3

Maximum data transfer rate
2402 Mbit/s

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Security algorithms
WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3

Top Wi-Fi standard
Wi-Fi 6E (802.11ax)

Wi-Fi
Yes

Wi-Fi band
Tri-band (2.4 GHz / 5 GHz / 6 GHz)

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)

WLAN data transfer rates supported
54,300,1732,2402 Mbit/s

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Packaging content

Bluetooth header cable
Yes

Mounting brackets included
Yes

Quick installation guide
Yes

Resource CD
Yes

Packaging data

Package depth
152.5 mm

Package height
41.5 mm

Package weight
240 g

Package width
201.5 mm

Ports & interfaces

Connectivity technology
Wired

Host interface
PCI Express

Interface
WLAN / Bluetooth

Sustainability

Sustainability certificates
CE, Federal Communications Commission (FCC), RoHS

Sustainability compliance
Yes

System requirements

Windows operating systems supported
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 x64, Windows 11, Windows 11 Enterprise x64, Windows 11 x64

Weight & dimensions

Depth
21 mm

Height
120 mm

Width
78.5 mm
