Description

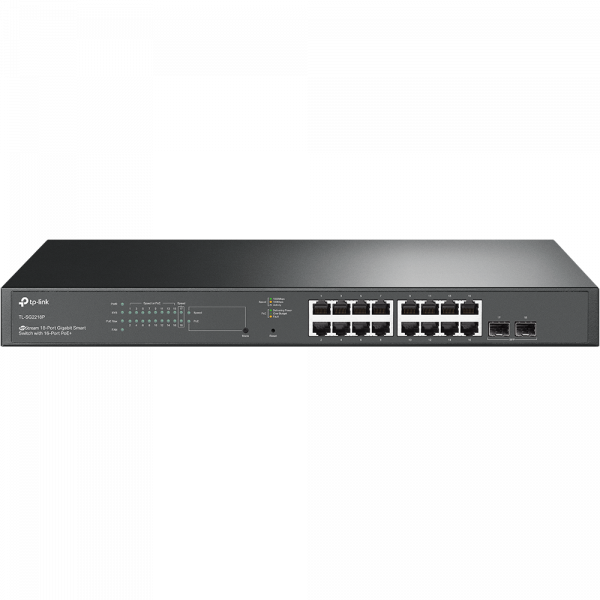

TP-Link JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+. Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 26.78 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

150 W PoE Budget: 16× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*
Full Gigabit Ports: 16× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring
Centralized Management: Cloud access and Omada app for ultra convenience and easy management
Static Routing: Helps route internal traffic for more efficient use of network resources
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery

Product Properties

Manufacturer
TP-LINK

Model
TL-SG2218P

EAN
4897098689516

Bullet points

Point
150 W PoE Budget: 16× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*

Centralized Management: Cloud access and Omada app for ultra convenience and easy management

Full Gigabit Ports: 16× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections

Integrated into Omada SDN

IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery

Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping

Robust Security Strategies

Static Routing: Helps route internal traffic for more efficient use of network resources

Data transmission

Forwarding rate
26.78 Mpps

Jumbo frames
9

Jumbo frames support
Yes

MAC address table
8000 entries

Switching capacity
26.78 Gbit/s

Design

Certification
CE, FCC, RoHS

Form factor
1U

LED indicators
Yes

Product colour
Black

Rack mounting
Yes

Management features

ARP inspection
Yes

Cloud-managed
Yes

Configuring Location Settings (CLI)
Yes

MIB support
MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9)

Quality of Service (QoS) support
Yes

Switch layer
L2/L2+

System event log
Yes

Web-based management
Yes

Multicast features

Multicast features
Multicast forwarding

Multicast support
Yes

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Broadcast storm control
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Flow control support
Yes

IP routing
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Policy-based routing
Yes

Rate limiting
Yes

Spanning tree protocol
Yes

VLAN support
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

Cables included
LAN (RJ-45)

Package depth
528 mm

Package height
80 mm

Package type
Box

Package weight
2.76 kg

Package width
250 mm

User guide
Yes

Ports & interfaces

Switch Number of Ports
16

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power source
DC/PoE

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Total Power over Ethernet (PoE) budget
150 W

Security

Access Control List (ACL)
Yes

Authentication
MAC-based authentication, Port-based authentication

BPDU filtering/protection
Yes

DHCP features
DHCP client, DHCP relay, DHCP snooping

Loop protection
Yes

MAC address filtering
Yes

SSH/SSL support
Yes

Static port security
Yes

Weight & dimensions

Depth
180 mm

Height
44 mm

Width
440 mm
