Description

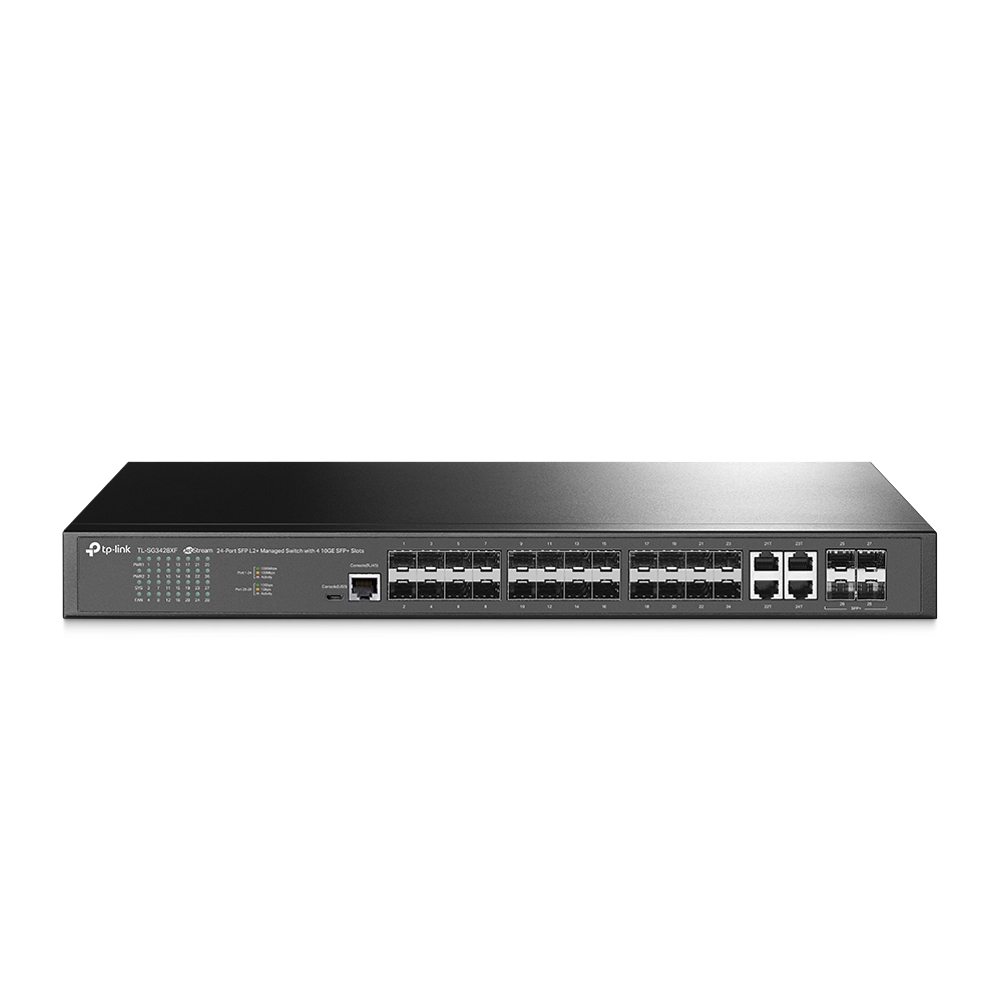

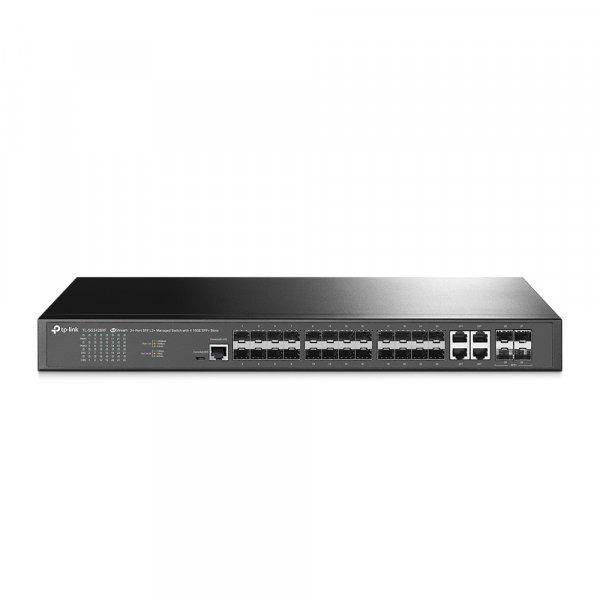

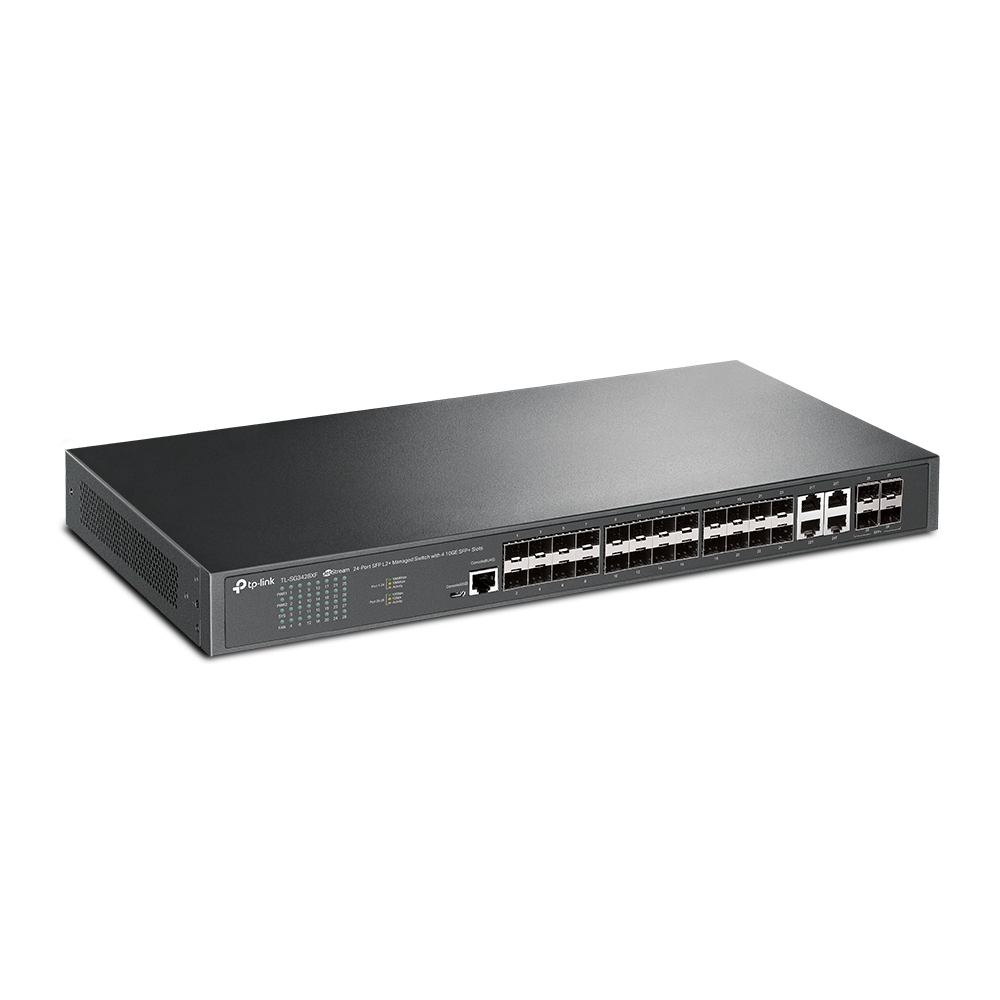

TP-Link JetStream 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots. Switch type: Managed, Switch layer: L2+. Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae,.... Power connector: AC-in jack. Rack mounting, Form factor: 1U

10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity
Gigabit Fiber Speeds: 20× gigabit SFP ports and 4× gigabit SFP/RJ45 Combo ports s offer high-speed and reliable connections to other switches and devices
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring
Centralized Management: Cloud access and Omada app for ultra convenience and easy management
Static Routing: Helps route internal traffic for more efficient use of network resources
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Product Properties

Manufacturer
TP-LINK

Model
TL-SG3428XF

EAN
4897098688229

Bullet points

Point
10G Lightning-Fast Uplink

Centralized Management: Cloud access and Omada app for ultra convenience and easy management

Gigabit Fiber Speeds

Integrated into Omada SDN

Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping

Robust Security Strategies

Standalone Management

Static Routing: Helps route internal traffic for more efficient use of network resources

Data transmission

Forwarding rate
95.23 Mpps

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
16000 entries

Number of static routes
48

Packet buffer memory
12 MB

Static route
Yes

Store-and-forward
Yes

Switching capacity
128 Gbit/s

Design

Form factor
1U

LED indicators
Yes

Number of fans
1 fan(s)

Product colour
Black

Rack mounting
Yes

Management features

ARP inspection
Yes

Cloud-managed
Yes

Configuring Location Settings (CLI)
Yes

MIB support
RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925

Quality of Service (QoS) support
Yes

Switch layer
L2+

Switch type
Managed

System event log
Yes

Web-based management
Yes

Multicast features

Multicast Listener Discovery (MLD) snooping
Y

Multicast support
Yes

Network

10G support
Yes

Active link detection
Yes

Broadcast storm control
Yes

Ethernet LAN data rates
10,100,1000,10000 Mbit/s

Flow control support
Yes

Head-of-line (HOL) blocking
Yes

IP routing
Yes

IPv4 routes
48

IPv6 routes
48

Link aggregation
Yes

Networking standards
IEEE 802.11d, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Number of VLANs
4000

Policy-based routing
Yes

Port mirroring
Yes

Rate limiting
Yes

Routing entries
512

Spanning tree protocol
Yes

Virtual LAN features
Port-based VLAN, Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN

VLAN support
Yes

Operational conditions

Heat dissipation
121.81 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 45 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

Cables included
AC

Manual
Yes

Package depth
336 mm

Package height
100 mm

Package weight
2.97 kg

Package width
528 mm

Rack mount kit
Yes

Ports & interfaces

Combo SFP ports quantity
4

Console port
RJ-45/Micro-USB

Fiber optic connector
SFP, SFP+

Fiber ports quantity
20

Power connector
AC-in jack

SFP+ module slots quantity
4

Switch Port Speed
No

Power

Number of power supply units
2

Power consumption (max)
35.7 W

Power source
AC

Power supply included
Yes

Redundant power supply (RPS) support
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Protocols

GARP VLAN Registration Protocol (GVRP)
Yes

IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert

Management protocols
SNMPv1/v2c/v3, SNTP

Security

Access Control List (ACL)
Yes

Authentication
Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication

Authentication type
AAA, RADIUS, TACACS+

BPDU filtering/protection
Yes

DHCP features
DHCP client, DHCP relay, DHCP server

IGMP proxy
Yes

IGMP snooping
Yes

IP-MAC-Port binding
Yes

Loop protection
Yes

MAC address filtering
Yes

Password protection
Yes

Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)

SSH/SSL support
Yes

Weight & dimensions

Depth
220 mm

Height
44 mm

Width
440 mm
