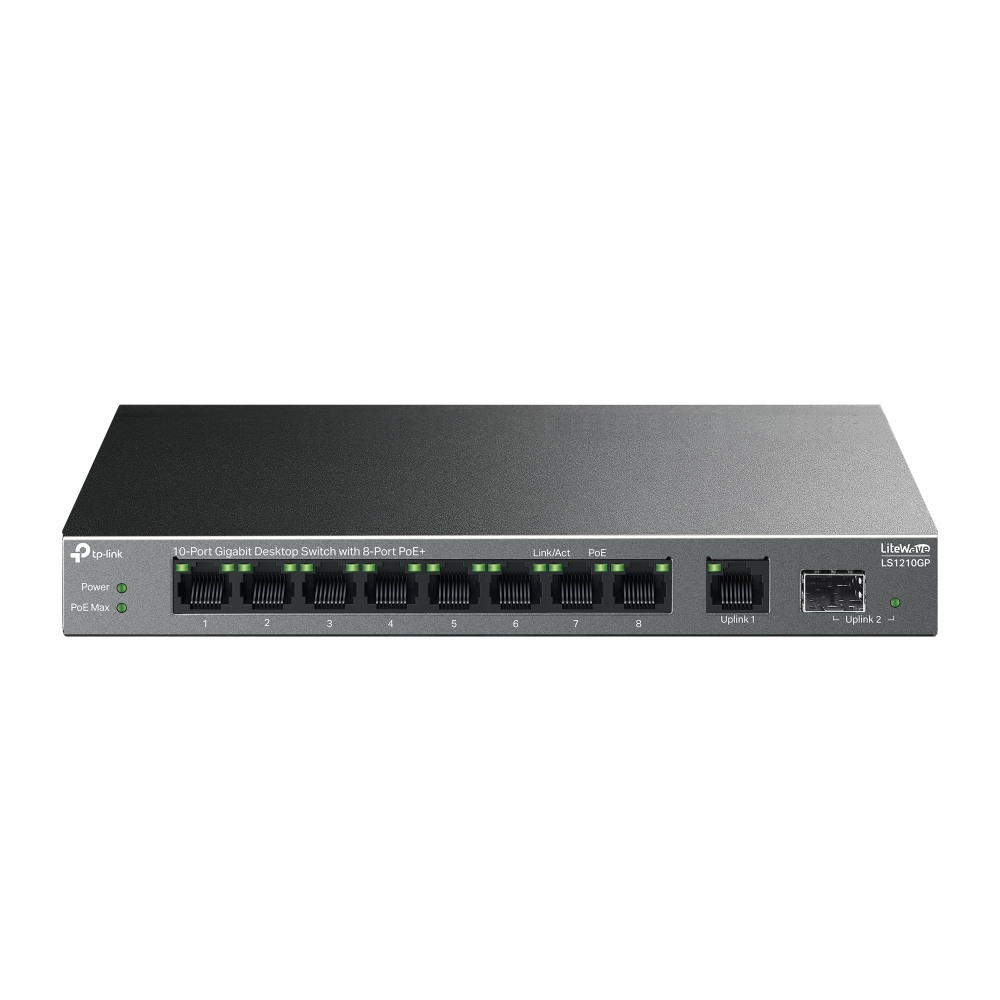

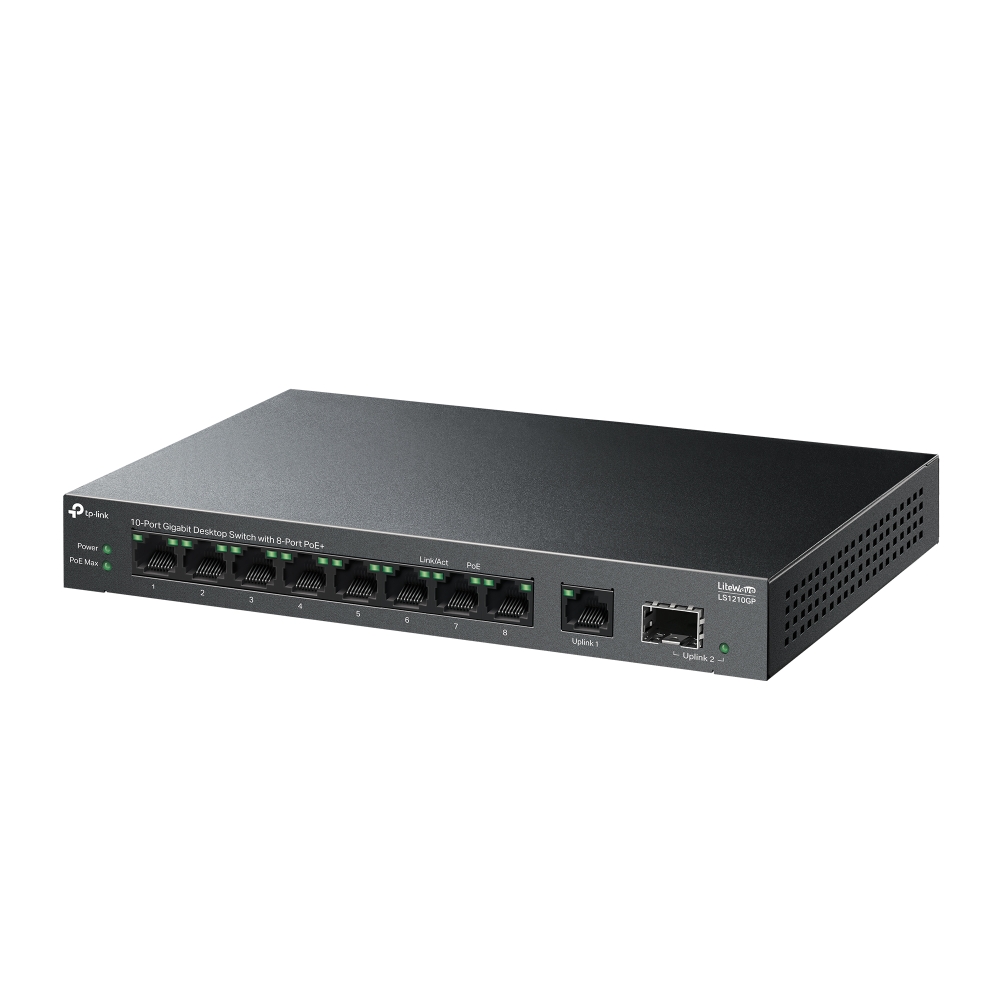

TP-Link LiteWave 10-Port Gigabit Desktop Switch with 8-Port PoE+
Roll over image to zoom inClick to Open expanded view
Model: LS1210GP
EAN: 4895252504576

TP-Link LiteWave 10-Port Gigabit Desktop Switch with 8-Port PoE+

Manufacturer:
TP-LINK
TP-Link LiteWave 10-Port Gigabit Desktop Switch with 8-Port PoE+, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

TP-Link LiteWave 10-Port Gigabit Desktop Switch with 8-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE.... DC input voltage: 53.5 V. Power over Ethernet (PoE)
  • Full Gigabit Ports: 9× gigabit auto-negotiation RJ45 Ethernet ports and 1× gigabit SFP port provide up to 20 Gbps switching capacity
  • 61 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
  • Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
  • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
  • Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storm
  • Plug and Play: Simply plug and play for instant connectivity with no configuration required
  • Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses
  • Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments

Product Properties

  • Model
  • LS1210GP
  • EAN
  • 4895252504576
  • Bullet points
  • Point
  • 61 W PoE Budget
    Full Gigabit Ports
    Plug and Play: Simply plug and play for instant connectivity with no configuration required
    PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
    Reliable Hardware Design
    Silent Operation
    Traffic Separation for Higher Security
    Up to 250 m PoE Transmission
  • Data transmission
  • Forwarding rate
  • 14.88 Mpps
  • Jumbo frames
  • 16000
  • MAC address table
  • 4000 entries
  • Store-and-forward
  • Yes
  • Switching capacity
  • 20 Gbit/s
  • Design
  • Certification
  • CE, FCC, RoHS
  • LED indicators
  • Yes
  • Product colour
  • Black
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch type
  • Unmanaged
  • Network
  • 10G support
  • No
  • Auto MDI/MDI-X
  • Yes
  • Auto-negotiation
  • Yes
  • Cable types supported
  • Cat3, Cat4, Cat5, Cat5e
  • Flow control support
  • Yes
  • Networking standards
  • IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Operational conditions
  • Heat dissipation
  • 261.66 BTU/h
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Packaging data
  • Package type
  • Box
  • User guide
  • Yes
  • Ports & interfaces
  • SFP module slots quantity
  • 1
  • Switch Number of Ports
  • 9
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 50 Hz
  • AC input voltage
  • 220 V
  • DC input voltage
  • 53.5 V
  • Power consumption (max)
  • 76.96 W
  • Power source
  • DC/PoE
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) ports quantity
  • 8
  • Power over Ethernet (PoE) power per port
  • 30 W
  • Total Power over Ethernet (PoE) budget
  • 61 W
  • Weight & dimensions
  • Depth
  • 126 mm
  • Height
  • 26 mm
  • Width
  • 209 mm
