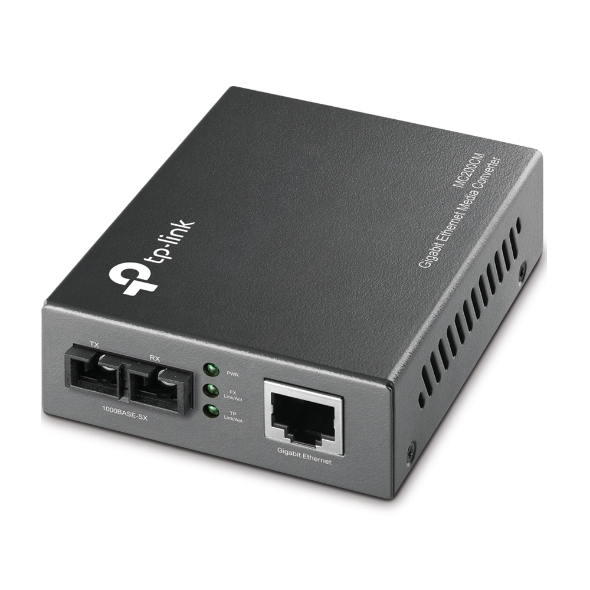

TP-Link MC200CM network media converter 1000 Mbit/s 850 nm Multi-mode Black
Roll over image to zoom inClick to Open expanded view
Print
Model: MC200CM
EAN: 6935364081331

TP-Link MC200CM network media converter 1000 Mbit/s 850 nm Multi-mode Black

Manufacturer:
TP-LINK
TP-Link MC200CM, 1000 Mbit/s, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s, Full, Half, Cat5, Cat5e
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

    Description

    TP-Link MC200CM. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 550 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. Product colour: Black. Power consumption (max): 1.66 W
    • 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
    • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
    • Complies with IEEE 802.3ab and IEEE 802.3z
    • Extends fiber distance up to 1,800 feet (550m)

    Product Properties

    • Model
    • MC200CM
    • EAN
    • 6935364081331
    • Bullet points
    • Point
    • 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
      Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
      Complies with IEEE 802.3ab and IEEE 802.3z
      Extends fiber distance up to 1,800 feet (550m)
    • Design
    • Internal
    • No
    • LED indicators
    • Yes
    • Product colour
    • Black
    • Logistics data
    • Harmonized System (HS) code
    • 85176990
    • Network
    • Auto MDI/MDI-X
    • Yes
    • Cable types supported
    • Cat5, Cat5e
    • Duplex system
    • Full, Half
    • Ethernet interface type
    • Gigabit Ethernet
    • Ethernet LAN data rates
    • 10,100,1000 Mbit/s
    • Maximum data transfer rate
    • 1000 Mbit/s
    • Networking standards
    • IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
    • Operational conditions
    • Operating relative humidity (H-H)
    • 10 - 90%
    • Operating temperature (T-T)
    • 0 - 40 °C
    • Storage relative humidity (H-H)
    • 5 - 90%
    • Storage temperature (T-T)
    • -40 - 70 °C
    • Packaging content
    • Manual
    • Yes
    • Performance
    • Fiber cable diameters supported (core/cladding)
    • 50/125,62.5/125 µm
    • Fiber mode structure
    • Multi-mode
    • Maximum transfer distance
    • 550 m
    • Wavelength
    • 850 nm
    • Ports & interfaces
    • Connectivity technology
    • Wired
    • Ethernet LAN (RJ-45) ports
    • 1
    • Fiber optic connector
    • SC
    • Fiber ports quantity
    • 1
    • Power
    • Power consumption (max)
    • 1.66 W
    • Technical details
    • Sustainability certificates
    • RoHS
    • Weight & dimensions
    • Depth
    • 73 mm
    • Height
    • 27 mm
    • Width
    • 95 mm
