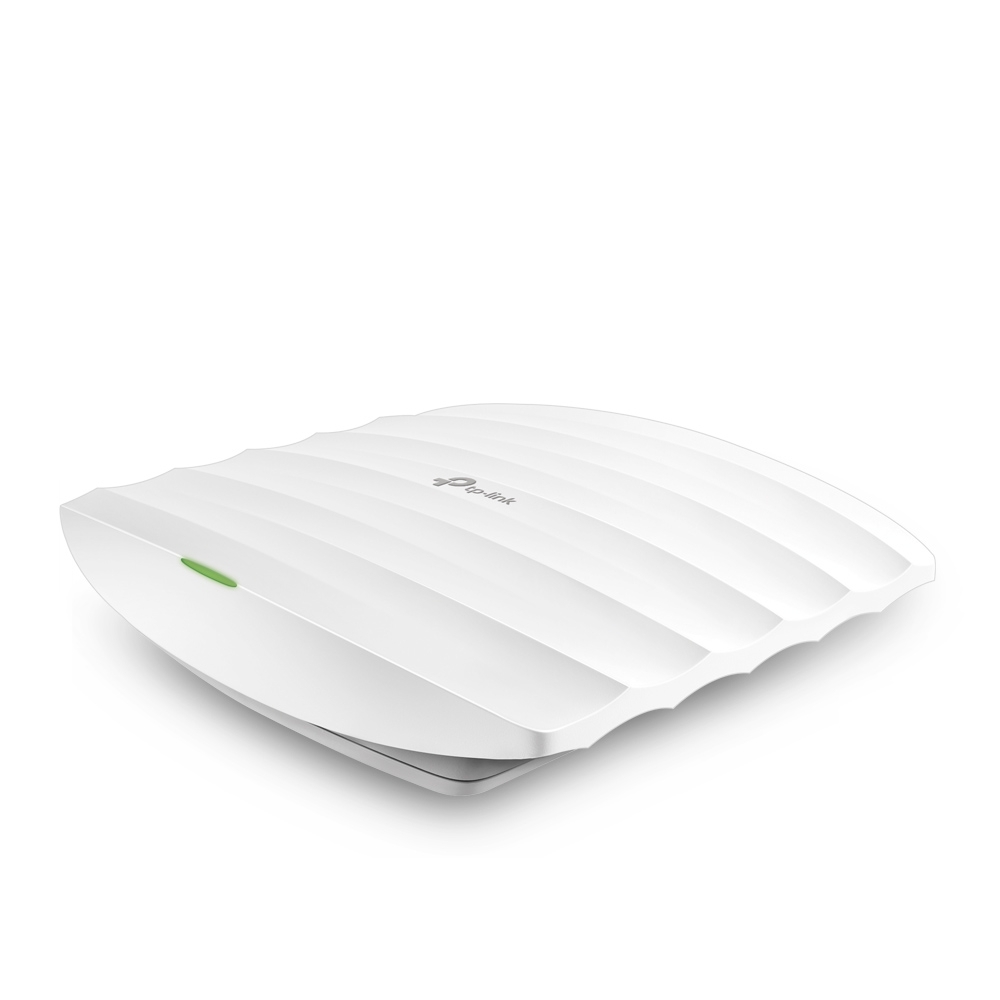

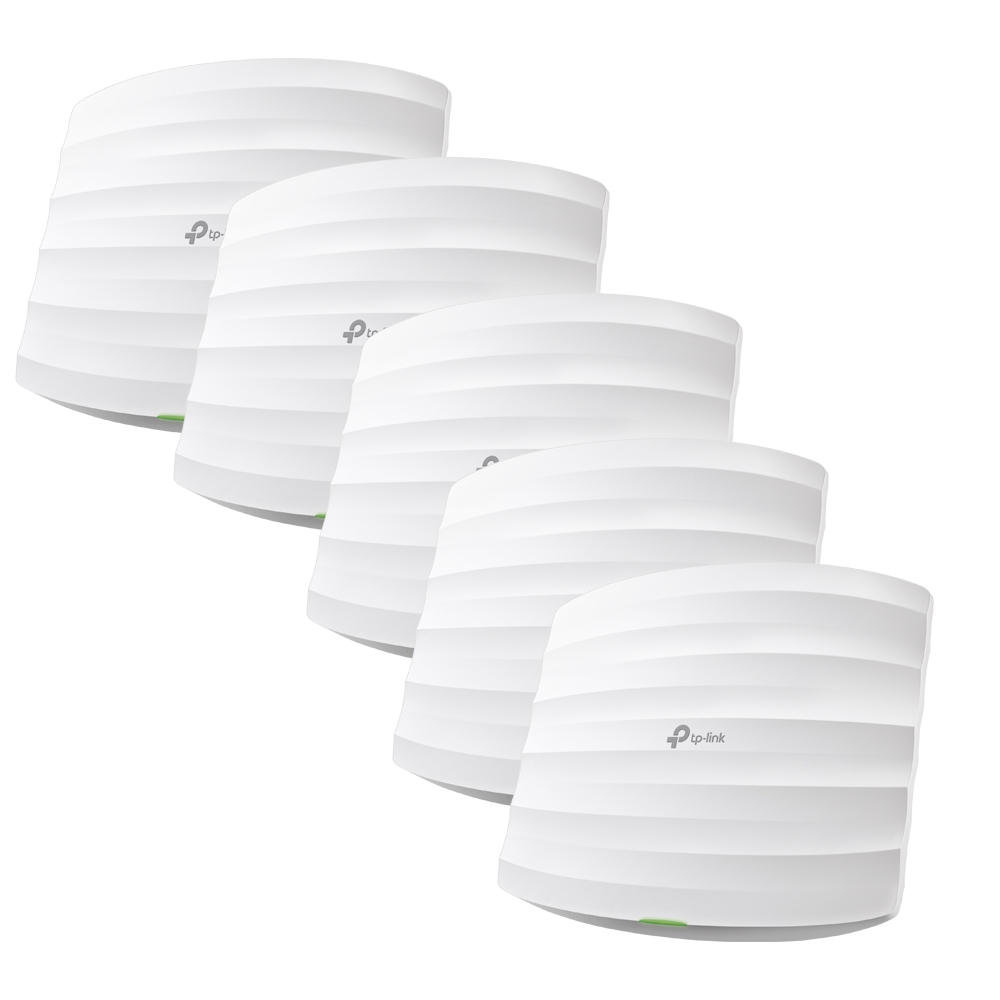

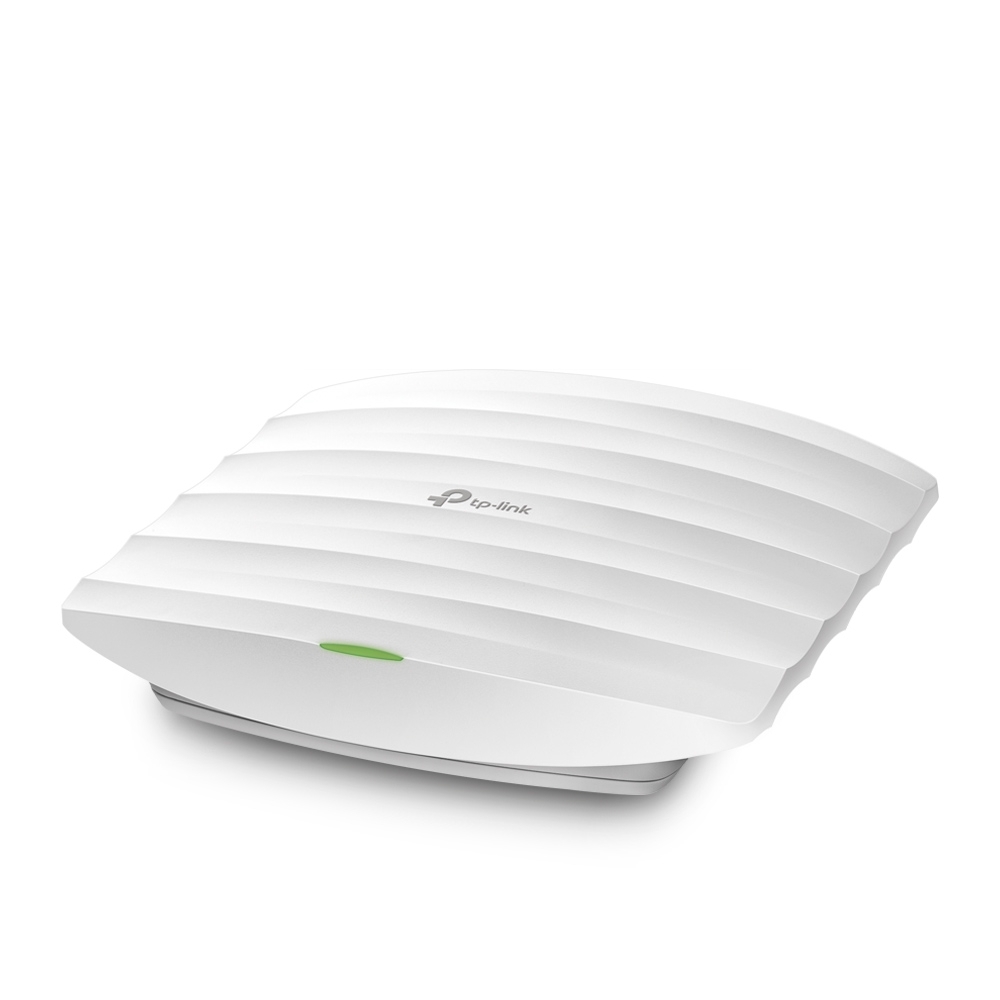

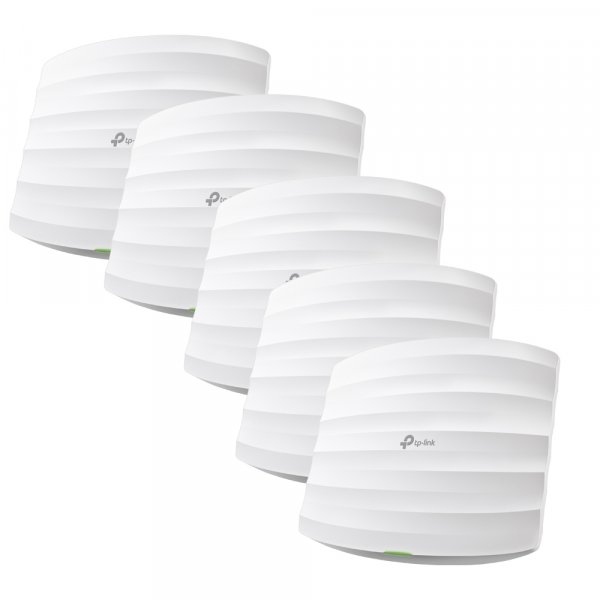

TP-Link Omada EAP245(5-PACK) wireless access point 1750 Mbit/s White Power over Ethernet (PoE)
Roll over image to zoom inClick to Open expanded view
TP-Link Omada EAP245(5-PACK) wireless access point 1750 Mbit/s White Power over Ethernet (PoE)
TP-Link Omada EAP245(5-PACK) wireless access point 1750 Mbit/s White Power over Ethernet (PoE)
TP-Link Omada EAP245(5-PACK) wireless access point 1750 Mbit/s White Power over Ethernet (PoE)
TP-Link Omada EAP245(5-PACK) wireless access point 1750 Mbit/s White Power over Ethernet (PoE)
TP-Link Omada EAP245(5-PACK) wireless access point 1750 Mbit/s White Power over Ethernet (PoE)
Print
Model: EAP245(5-PACK)
EAN: 4897098687024

TP-Link Omada EAP245(5-PACK) wireless access point 1750 Mbit/s White Power over Ethernet (PoE)

Manufacturer:
TP-LINK
TP-Link Omada EAP245(5-PACK), 1750 Mbit/s, 450 Mbit/s, 1300 Mbit/s, 10,100,1000 Mbit/s, 2.4, 5 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

TP-Link Omada EAP245(5-PACK). Maximum data transfer rate: 1750 Mbit/s, Maximum data transfer rate (2.4 GHz): 450 Mbit/s, Maximum data transfer rate (5 GHz): 1300 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, Service Set Identifier (SSID) features: Multiple SSIDs. Management protocols: HTTP/HTTPS. Power over Ethernet (PoE) type supported: Passive PoE, AC input voltage: 48 V, Input current: 1.5 A. Placement: Ceiling, Wall, Product colour: White, Cable lock slot type: Kensington
  • Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
  • Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
  • Free cloud centralized management and Omada app for ultra convenience and easy management
  • Support Power over Ethernet(802.3at/802.3af) for convenient and affordable installation
  • Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
  • Band Steering Automatically moves dual-band devices onto the wider 5GHz band for faster connections
  • Load balance ensures large numbers of users have smooth network experiences in high-density business networks
  • Supports management VLAN for an enhanced network management

Product Properties

  • Model
  • EAP245(5-PACK)
  • EAN
  • 4897098687024
  • Antenna
  • Antenna direction type
  • Omni-directional
  • Antenna features
  • Integrated antenna
  • Antenna gain level (max)
  • 4 dBi
  • Antenna type
  • Internal
  • Bullet points
  • Point
  • Band Steering Automatically moves dual-band devices onto the wider 5GHz band for faster connections
    Free cloud centralized management and Omada app for ultra convenience and easy management
    Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
    Support Power over Ethernet(802.3at/802.3af) for convenient and affordable installation
    Supports management VLAN for an enhanced network management
  • Design
  • Cable lock slot
  • Yes
  • Cable lock slot type
  • Kensington
  • LED indicators
  • Yes
  • Placement
  • Ceiling, Wall
  • Product colour
  • White
  • Reset button
  • Yes
  • Features
  • 2.4 GHz
  • Yes
  • 5 GHz
  • Yes
  • 6 GHz
  • No
  • Airtime Fairness (ATF)
  • Yes
  • Automatic channel scanning
  • Yes
  • Automatic channel selection
  • Yes
  • Band steering
  • Yes
  • BeamForming
  • Yes
  • Cabling technology
  • 10/100/1000Base-T(X)
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Frequency band
  • 2.4, 5 GHz
  • Maximum data transfer rate
  • 1750 Mbit/s
  • Maximum data transfer rate (2.4 GHz)
  • 450 Mbit/s
  • Maximum data transfer rate (5 GHz)
  • 1300 Mbit/s
  • MIMO
  • Yes
  • MIMO type
  • Multi User MIMO
  • Networking standards
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af
  • Quality of Service (QoS) support
  • Yes
  • Rate limiting
  • Yes
  • Transmitting power
  • 27 dBmW
  • Transmitting power (CE)
  • 20 - 23 dBm
  • Transmitting power (FCC)
  • 24 dBm
  • Virtual LAN features
  • SSID-based VLAN assignment
  • VLAN support
  • Yes
  • Wi-Fi Multimedia (WMM)/(WME)
  • Yes
  • Wireless isolation
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Syslog
  • Yes
  • Web-based management
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 70 °C

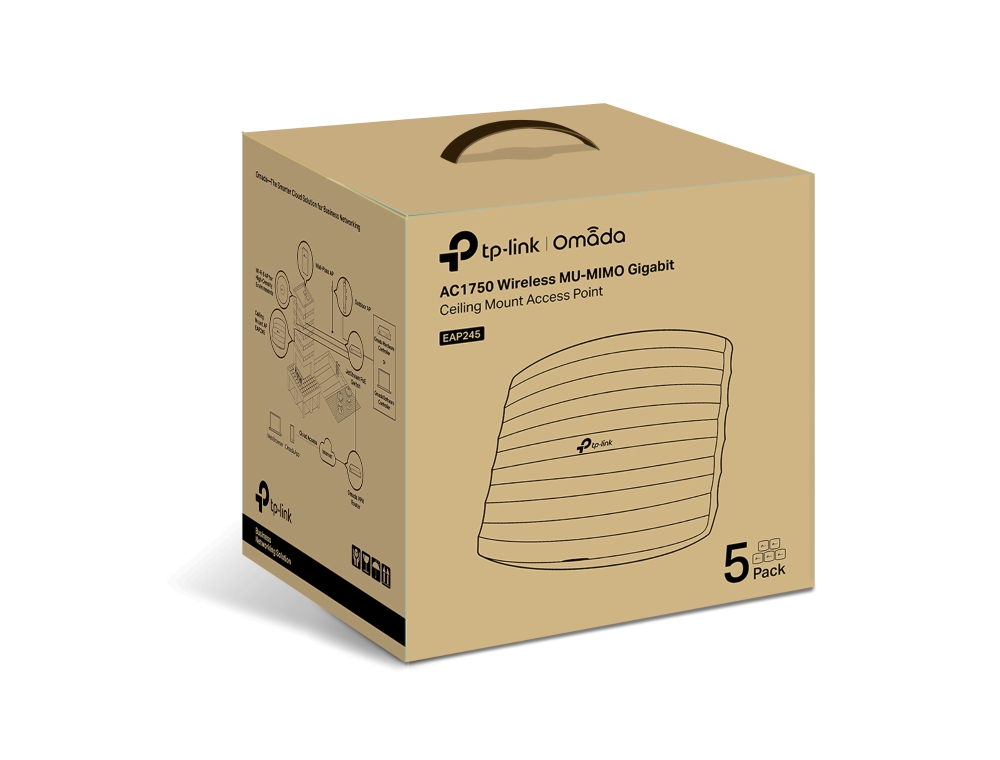

  • Packaging content
  • Cables included
  • AC
  • Mounting kit
  • Yes
  • Number of products included
  • 5 pc(s)
  • PoE adapter included
  • Yes
  • Quick start guide
  • Yes
  • Packaging data
  • Package depth
  • 285.5 mm
  • Package height
  • 283.5 mm
  • Package weight
  • 3.54 kg
  • Package width
  • 257.5 mm
  • Performance
  • Compatible operating systems
  • Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
  • Ports & interfaces

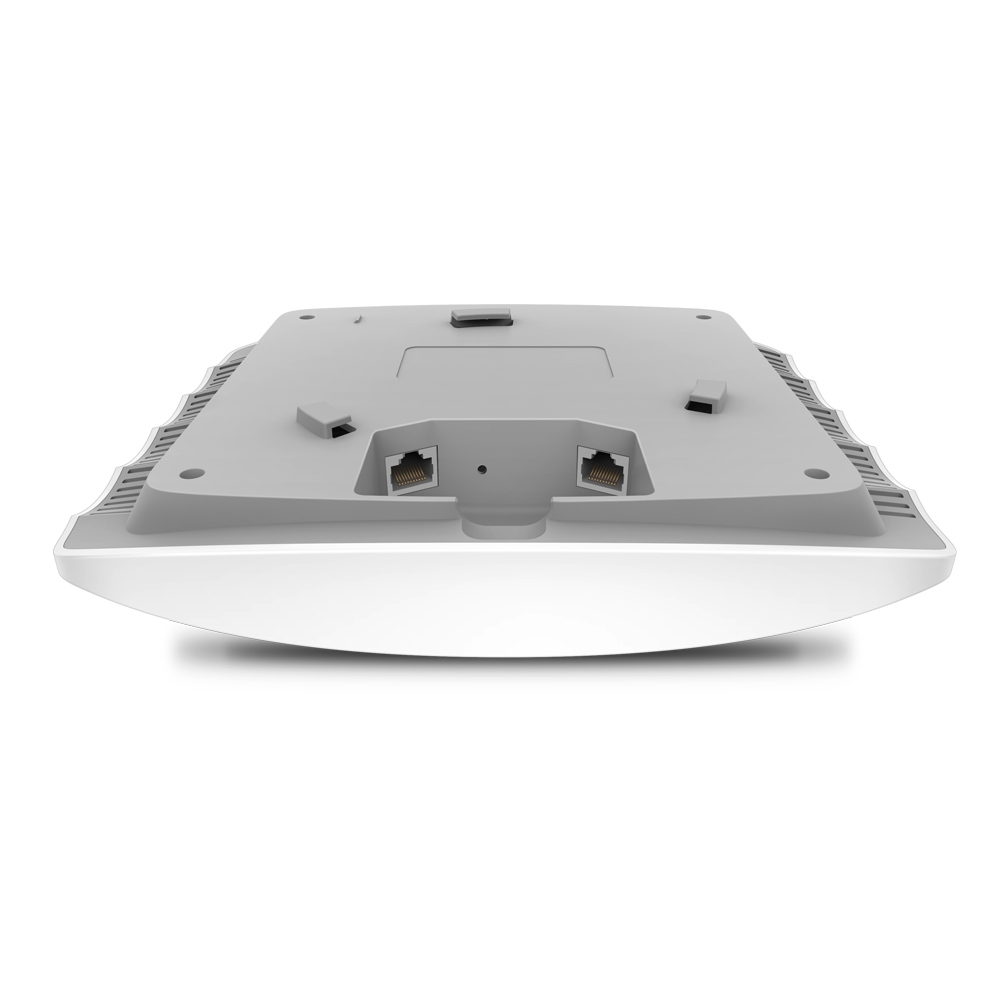

  • Ethernet LAN (RJ-45) ports
  • 2
  • Power
  • AC input voltage
  • 48 V
  • Input current
  • 1.5 A
  • Power consumption (typical)
  • 12.3 W
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) type supported
  • Passive PoE
  • Protocols
  • Management protocols
  • HTTP/HTTPS
  • Security
  • Access Control List (ACL)
  • Yes
  • MAC address filtering
  • Yes
  • Number of SSID supported
  • 16
  • Security algorithms
  • 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
  • Service Set Identifier (SSID) features
  • Multiple SSIDs
  • Sustainability
  • Sustainability certificates
  • Federal Communications Commission (FCC), CE, RoHS
  • Sustainability compliance
  • Yes
  • Weight & dimensions
  • Depth
  • 180 mm
  • Height
  • 47.5 mm
  • Width
  • 180 mm
