Description

TP-Link RE500X. Type: Network transmitter & receiver, Data transfer rate: 1200 Mbit/s, Ethernet LAN data rates: 1000 Mbit/s. Antenna type: Internal, Transmitting power (CE): 2.4 GHz ≤20dBm, 5 GHz ≤30dBm. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Product colour: White, Quantity per pack: 1 pc(s). AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Power consumption (max): 10 W

RE500X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion
Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage
Gigabit Ethernet Port – Provides faster-wired connections to smart TVs, computers and gaming consoles
Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
AP Mode – Creates a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
Ultimate Compatibility – Extends the range of any Wi-Fi router or wireless access point

Product Properties

Manufacturer
TP-LINK

Model
RE500X

EAN
6935364010317

Antenna

Antenna type
Internal

Antennas quantity
2

Transmitting power (CE)
2.4 GHz ≤20dBm, 5 GHz ≤30dBm

Bullet points

Point
AP Mode – Creates a new Wi-Fi access point to enhance your wired network with Wi-Fi capability

Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage

TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device

Ultimate Compatibility – Extends the range of any Wi-Fi router or wireless access point

Design

LED indicators
Yes

Product colour
White

Quantity per pack
1 pc(s)

Reset button
Yes

Logistics data

Harmonized System (HS) code
85176990

Network

Cabling technology
10/100/1000Base-T(X)

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Security algorithms
64-bit WEP, 128-bit WEP, WPA, WPA-PSK

Wi-Fi
Yes

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)

Wi-Fi data rate (max)
1200 Mbit/s

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Quick start guide
Yes

Packaging data

Package depth
125 mm

Package height
97 mm

Package type
Box

Package weight
350 g

Package width
202 mm

Performance

Browser supported
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0

Data transfer rate
1200 Mbit/s

Ethernet LAN data rates
1000 Mbit/s

Linux operating systems supported
Yes

Mac compatibility
Yes

Mac operating systems supported
Yes

Type
Network transmitter & receiver

Windows operating systems supported
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP

WPS push button
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
1

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Power consumption (max)
10 W

Technical details

Sustainability certificates
CE, RoHS

Weight & dimensions

Depth
36 mm

Height
149 mm

Width
78 mm

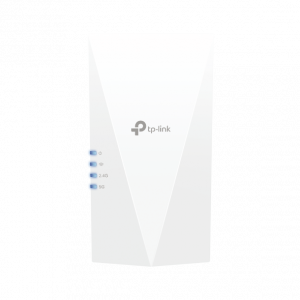

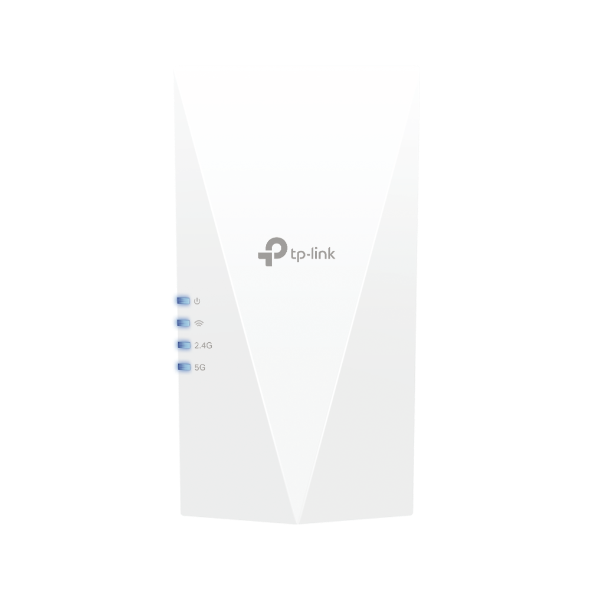

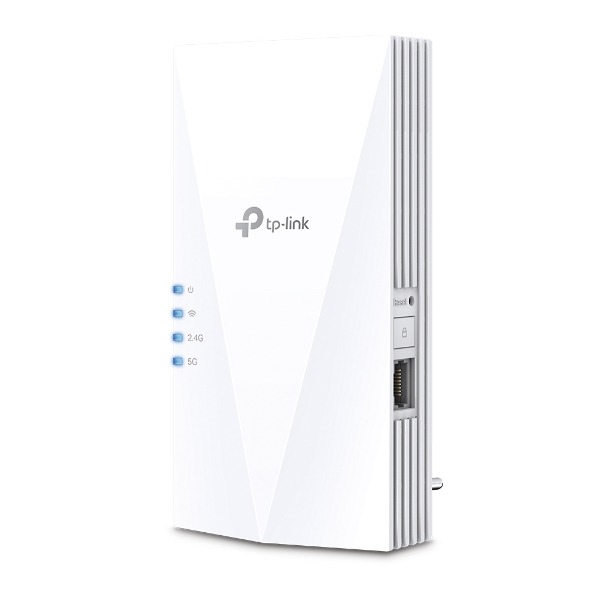

TP-Link RE500X network extender Network transmitter & receiver White 1000 Mbit/s
