Description

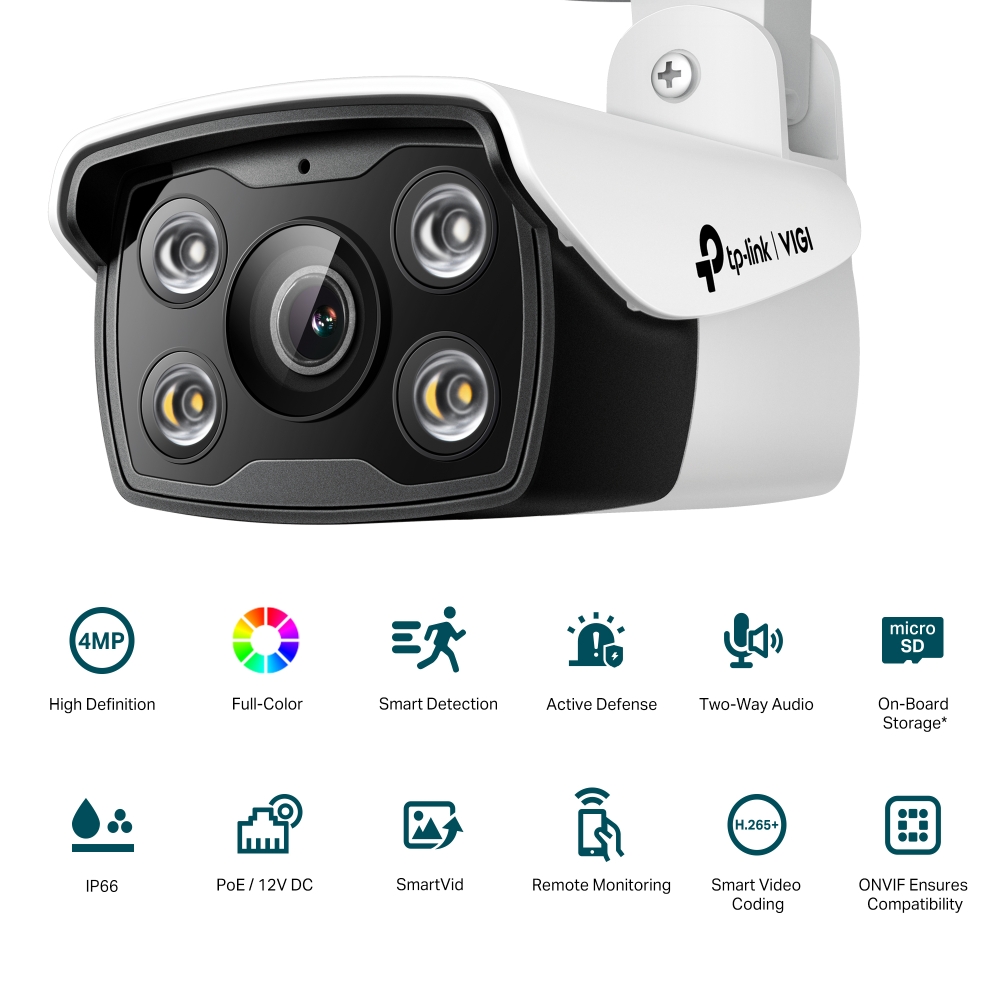

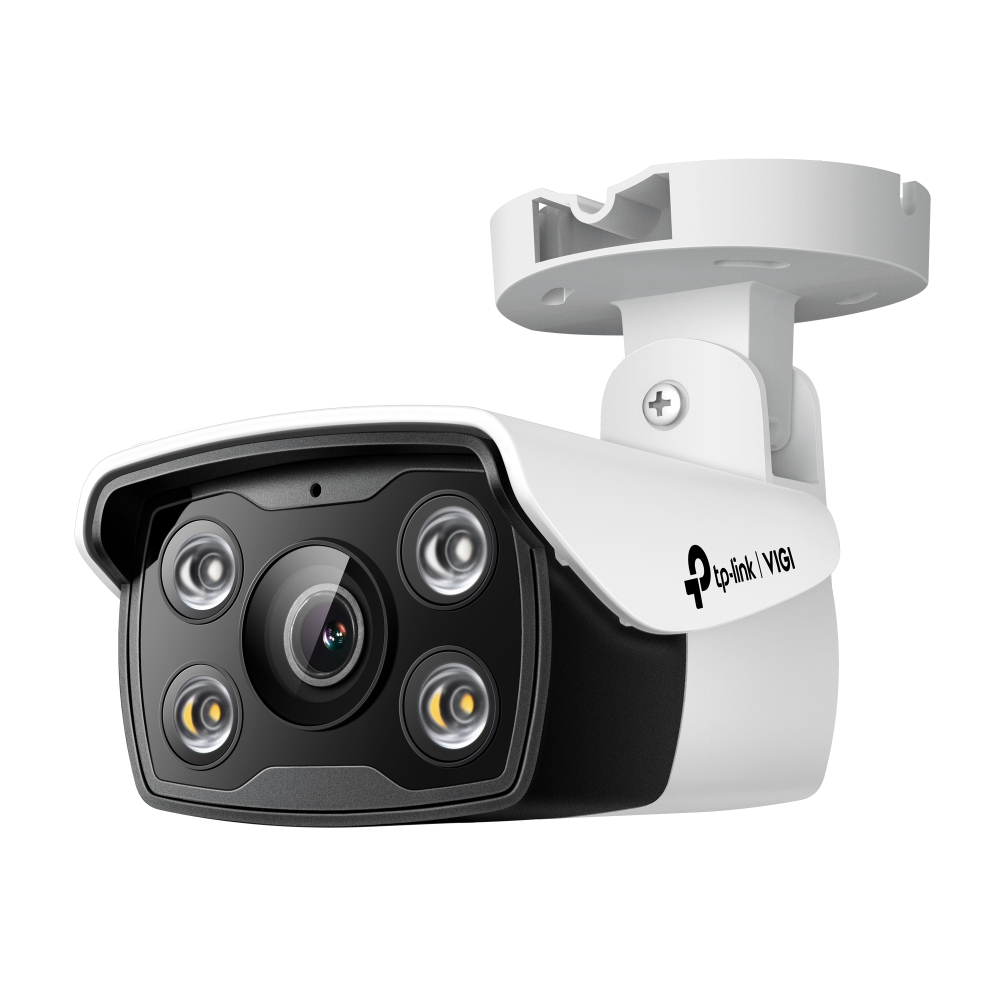

TP-Link VIGI 4MP Outdoor Full-Color Bullet Network Camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 79°, Lens viewing angle, vertical: 43°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m

4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details
24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs
Waterproof: Reliable IP66 for stable outdoor performance
Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality

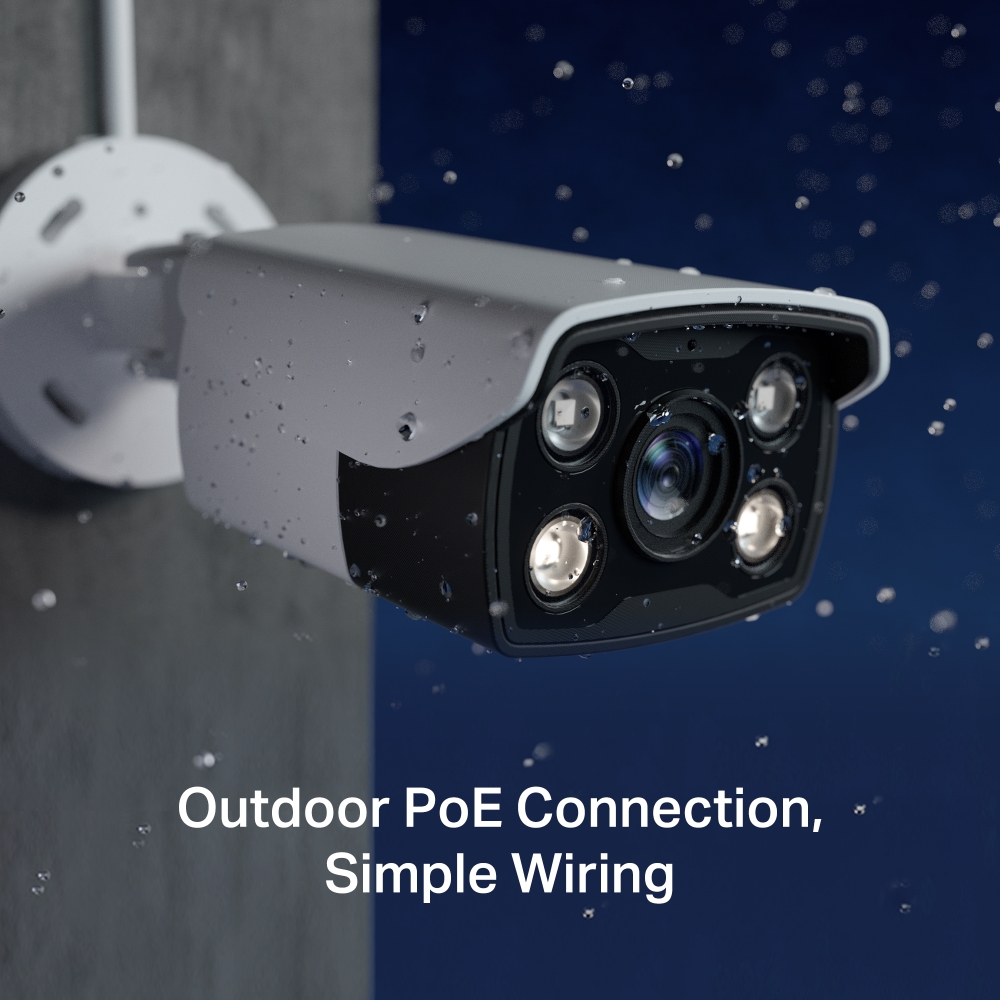

PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy

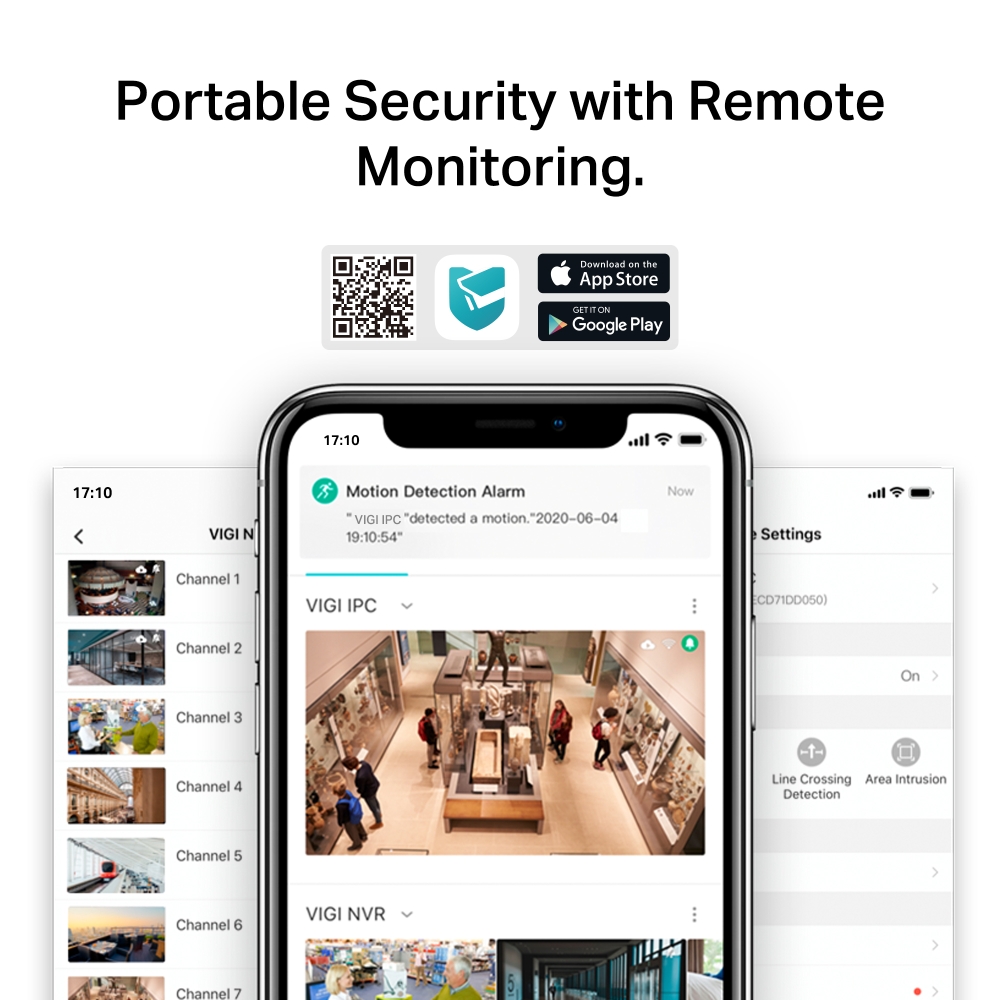

VIGI App: Manage your security from the palm of your hand with the VIGI app

Product Properties

Manufacturer
TP-LINK

Model
VIGI C340(4MM)

EAN
4897098688663

Audio

Audio input channels
1 channels

Audio output channels
1 channels

Audio system
2-way

Bit rate range
0 - 64 Kbit/s

Built-in microphone
Yes

Built-in speaker(s)
Yes

Sample rate
8 kHz

Signal-to-Noise Ratio (SNR)
52 dB

Bullet points

Point
24h Full-Color

4MP High Definition

H.265+

PoE/12V DC

Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering)

VIGI App: Manage your security from the palm of your hand with the VIGI app

Waterproof: Reliable IP66 for stable outdoor performance

Camera

Camera shutter speed
1/3 - 1/10000 s

Lens viewing angle, diagonal
93°

Lens viewing angle, horizontal
79°

Lens viewing angle, vertical
43°

Minimum illumination
0.005 lx

Number of Privacy masking areas
4

Pan range
-90 - 90°

Tilt angle range
-90 - 90°

Design

Form factor
Bullet

Housing material
Plastic

International Protection (IP) code
IP66

LED indicators
Yes

Mounting type
Ceiling/Wall/Pole

Product colour
Black, White

Image sensor

Number of sensors
1

Optical sensor size
25.4 / 3 mm (1 / 3")

Progressive scan
Yes

Sensor type
CMOS

Lens system

Detect distance
80 m

Fixed focal length
4 mm

Identify distance
8 m

Maximum aperture number
1.6

Number of lenses
1

Observe distance
33 m

Recognize distance
16 m

Management features

Reset button
Yes

Web browser
Yes

Network

Bluetooth
No

Ethernet interface type
Fast Ethernet

Ethernet LAN
Yes

Live view
Yes

Networking standards
IEEE 802.3af, IEEE 802.3at

Number of simultaneous live view channels
3 channels

Supported network protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Wi-Fi
No

Night vision

Infra-red wavelength
850 nm

LED type
IR

Night vision
Yes

Night vision distance
30 m

Number of illumination LEDs
2

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
-30 - 60 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-40 - 60 °C

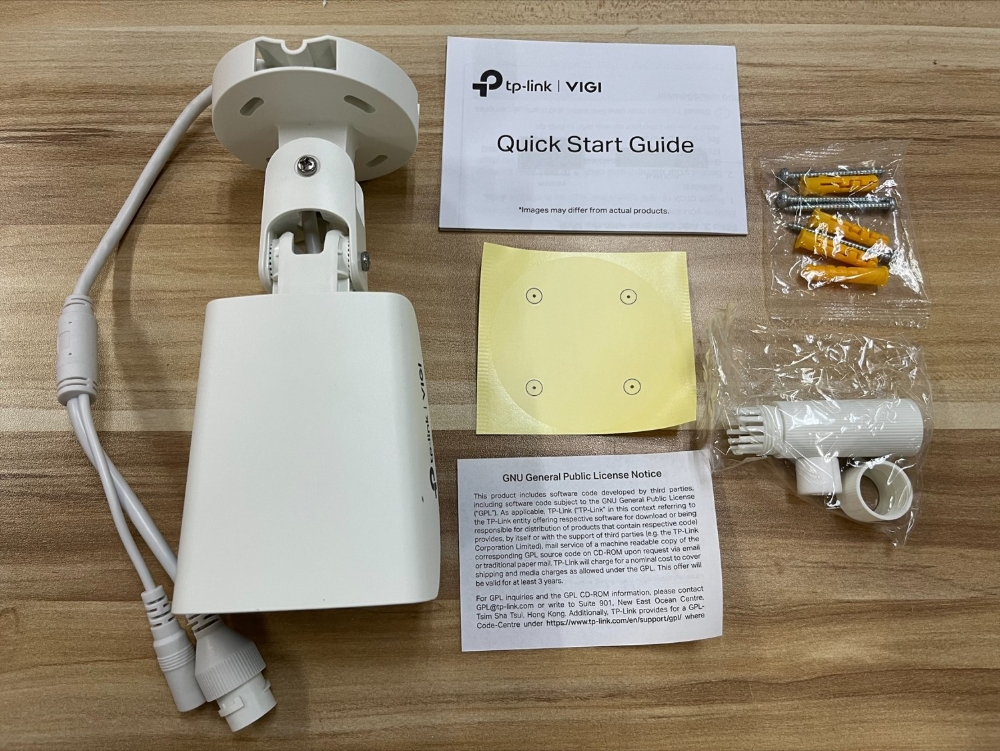

Packaging content

Manual
Yes

Mounting kit
Yes

Number of cameras
1

Panoramic camera

Digital Wide Dynamic Range (DWDR) (panoramic camera)
Yes

Performance

Connectivity technology
Wired

Day/night mode
Yes

Placement supported
Outdoor

Type
IP security camera

Ports & interfaces

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
1

Power

DC output voltage
12

Power consumption (max)
7 W

Power consumption (typical)
3.4 W

Power source type
DC, PoE

Security

Automatic Network Replenishment (ANR)
Yes

HTTPS encryption
Yes

IP address filtering
Yes

Network access storage (NAS)
Yes

Password protection
Yes

Video motion detection
Yes

Storage

Built-in HDD
No

Card reader integrated
Yes

Compatible memory cards
MicroSD (TransFlash)

Maximum memory card size
256 GB

Technical details

Sustainability compliance
Yes

Video

3D positioning
Yes

Back Light Compensation (BLC)
Yes

Bit rate
256 Kbps - 4 Mbps

Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Digital Wide Dynamic Range (DWDR)
Yes

Frame rate
30 fps

Highlight Compensation (HLC)
Yes

Image quality adjustment
Brightness, Contrast, Mirror, Saturation

Maximum resolution
2560 x 1440 pixels

Noise reduction
Yes

Privacy masking
Yes

Region of Interest (ROI) encoding
Yes

Smart IR
Yes

Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440

Total megapixels
4 MP

Video compression formats
H.264, H.264+, H.265, H.265+

Video formats supported
H.264, H.264+, H.265, H.265+

Video streaming
Yes

Weight & dimensions

Depth
70 mm

Height
174 mm

Package depth
218 mm

Package height
103 mm

Package type
Box

Package weight
420 g

Package width
128 mm

Weight
195 g

Width
78 mm
